Surveyor Travel Trailers

Surveyor invites you to take the road less traveled...and make it all the difference.

We invite you to see why Surveyor is the "Best Constructed, Most Turn-Key Ready-to-Go" travel trailer on the market. Please check out our detailed Construction Cutaway Poster and feel free to download flyers about exceptional features like; Azdel Composite Panels, PVC Roofing, Lippert Axles, Lionshead Tires, and more! Take a moment to watch our High Definition 3D Virtual Tours and or walk around Videos of models led by our own Regional Sales Managers!

Annually a Top 10 selling brand in North America, and as high a percentage of "repeat buyers" as any travel trailer in the industry - the more you compare Surveyor, the better we look!

Thank you for visiting our Website!



Surveyor Legend Travel Trailers

"We Don't Stop Playing Because We Grow Old, We Grow Old Because We Stop Playing" - George Bernard Shaw

Same quality craftsmanship as built in every Surveyor; Legends have just a few less standard features & options to offer the "Best Value Trailer" in the industry. Every floorplan is carefully examined to be fashionably appealing, but most importantly, to ensure your best camping experience!


Sub-4,000 lb. Models

Sub-4s start below 4,000 lb. and are packed with fun! Designed for those wanting their own "Bungalow" on wheels; shorter, lighter, living an active on-the-go lifestyle, without having to compromise "Comforts." Loaded with features, these "Big 7" stand out among the crop of small trailers out there: 10 cu ft Res refer, 60 x 80 Queen Bed, 15K AC, Slow Close Shower Door, Morryde 2.0 Platform Entry Steps, Outside Griddle/Prep Shelf & Spray Port, and Solar Panel! Sub-4s allow you to live like John Muir said, "I went into the Forest to lose my mind, and find my soul"


Murphy Bed Models

Legend Murphy Bed Models are better designed and the smartest use of space in order to tow a shorter trailer that has both a dinette & sofa. They come equipped with the super-easy-to-use "Latch & Catch" system for operation of our True Queen Size 60" x 80" Bed (as compared to the Competitions smaller 60" x 74" Bed)!


Azdel Onboard™ RV Composite Panels    KOA Care Camps, fighting cancer and making memories

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications












to

to




Floorplans

Print


Surveyor Legend Sub - 4,000 lb.

Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

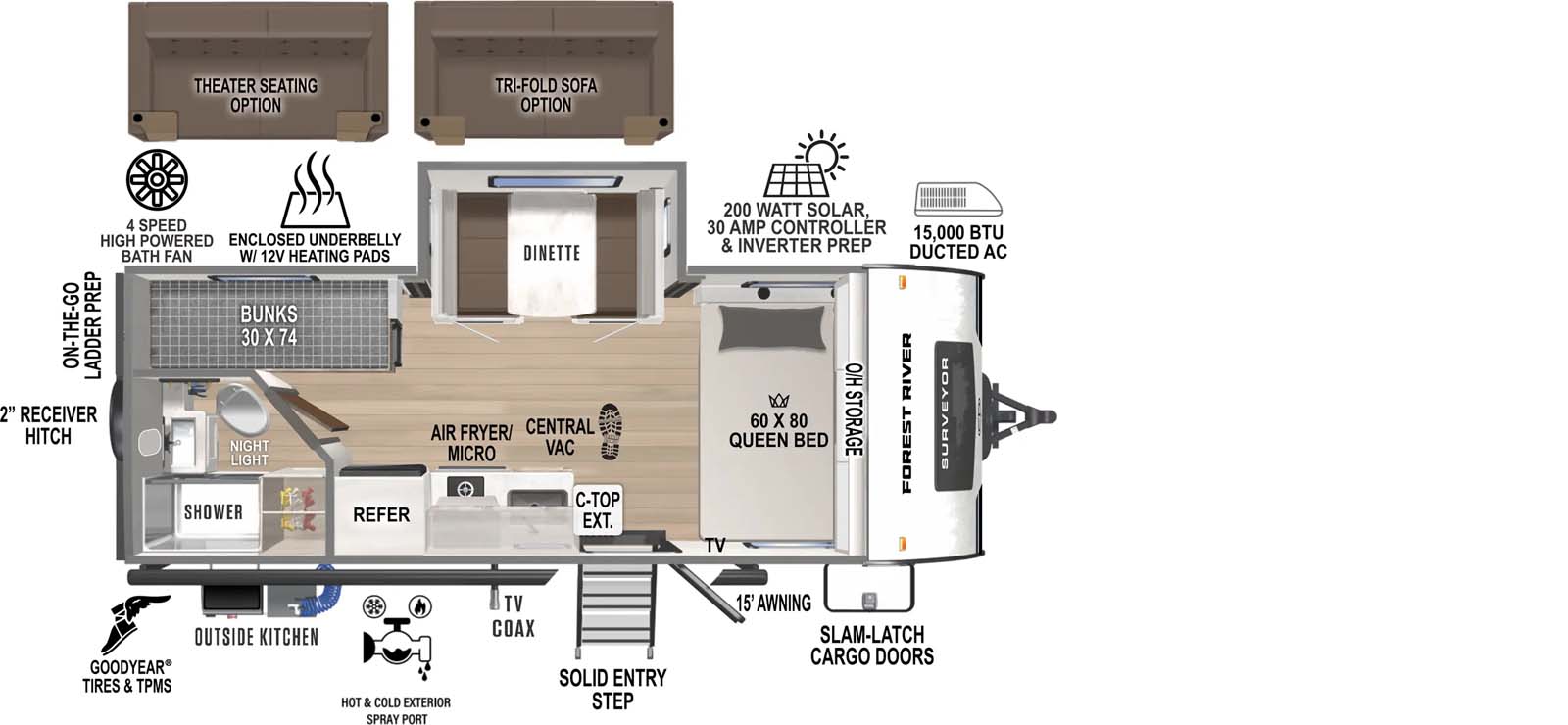

19BHLE
Has Gallery Photos Has 360 Tour Has Video Tour

19BHLE



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

19RBLE
Has Gallery Photos Has 360 Tour Has Video Tour

19RBLE




Survey Legend Murphy Bed

Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

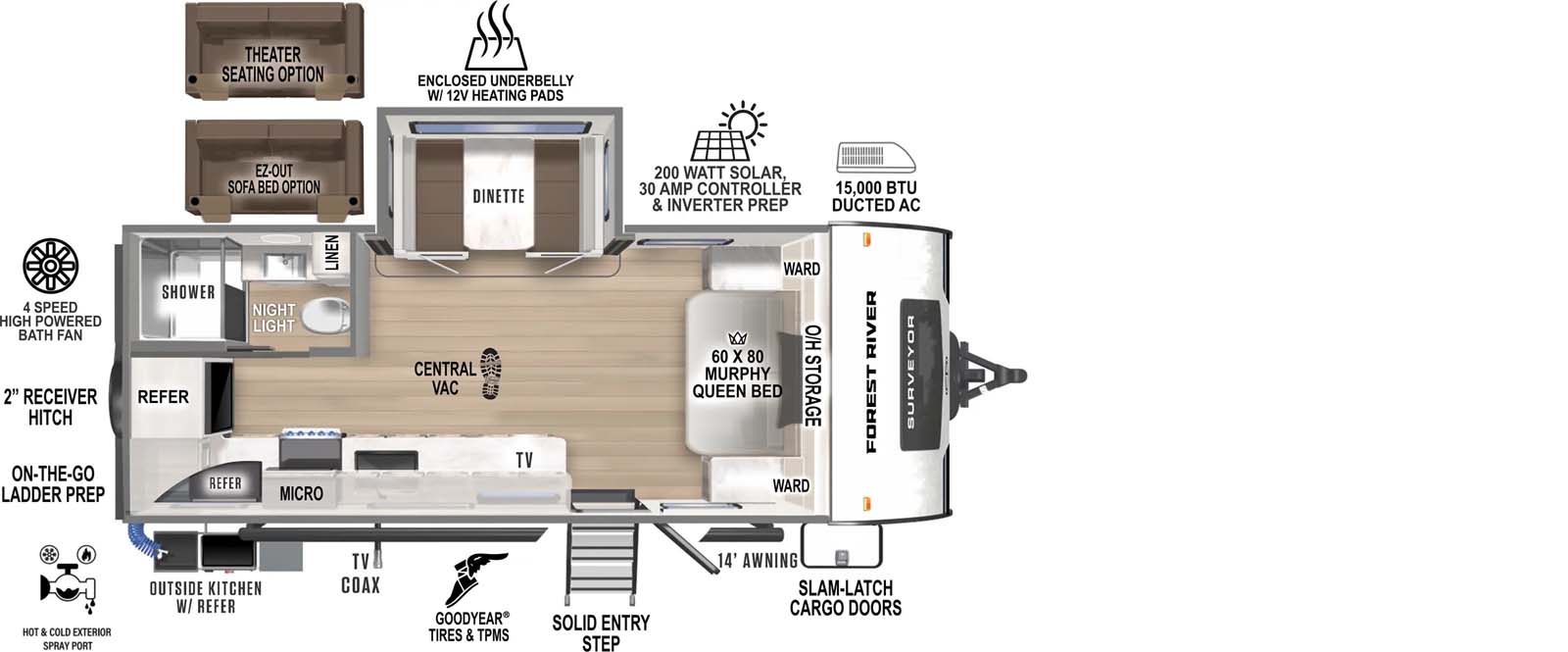

203RKLE
Has Gallery Photos Has 360 Tour Has Video Tour

203RKLE



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

240BHLE
Has Gallery Photos Has 360 Tour Has Video Tour

240BHLE




Surveyor Legend

Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

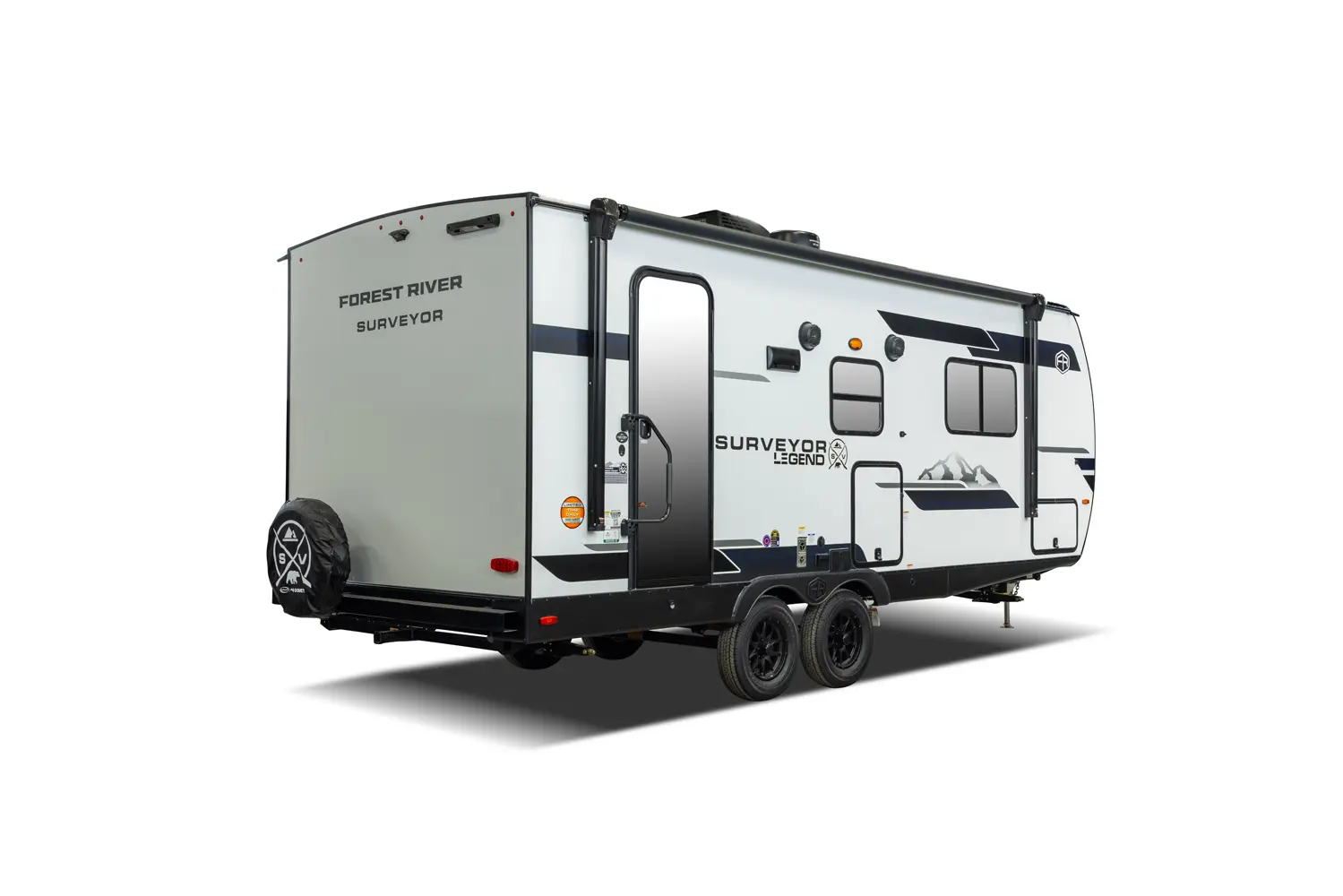

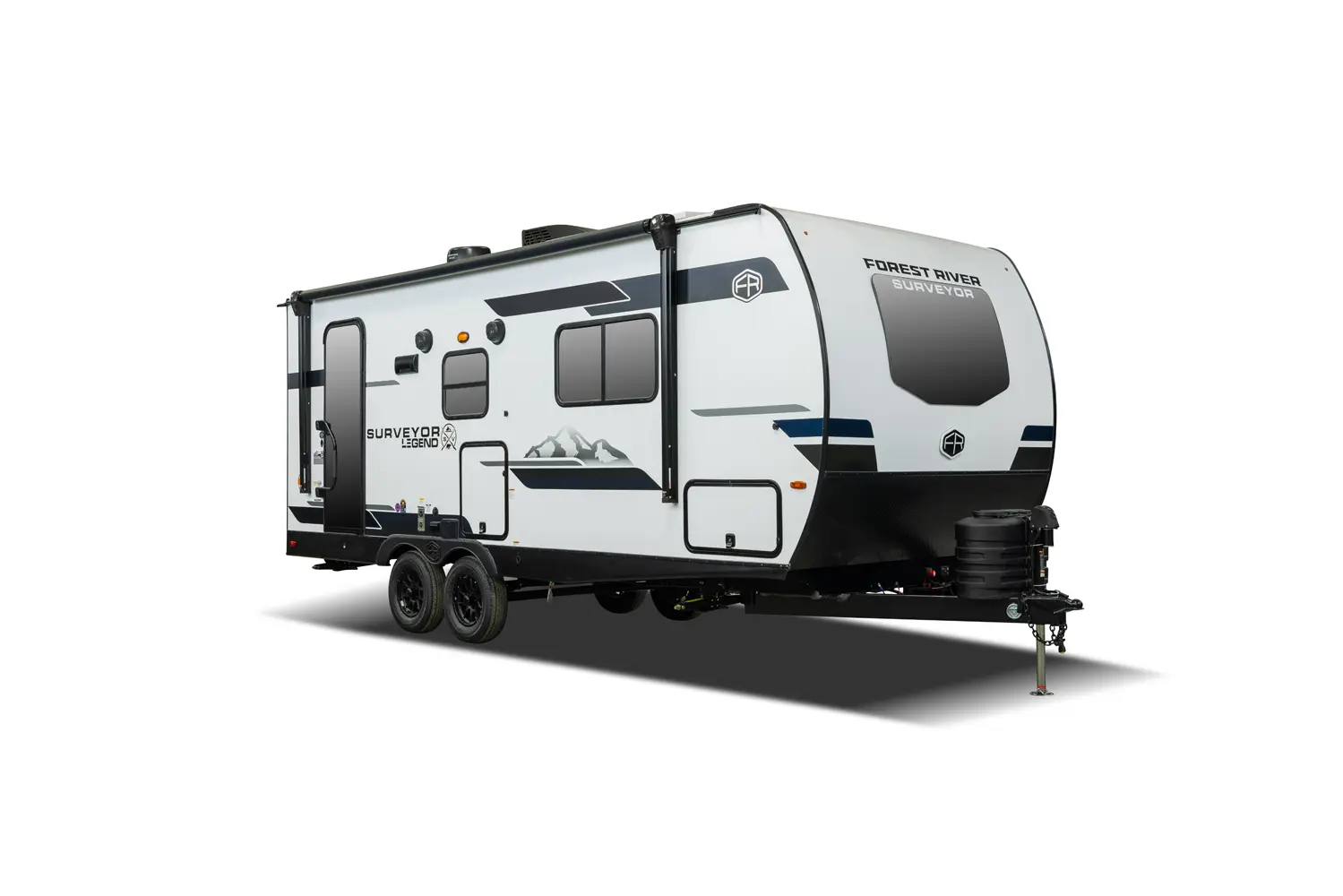

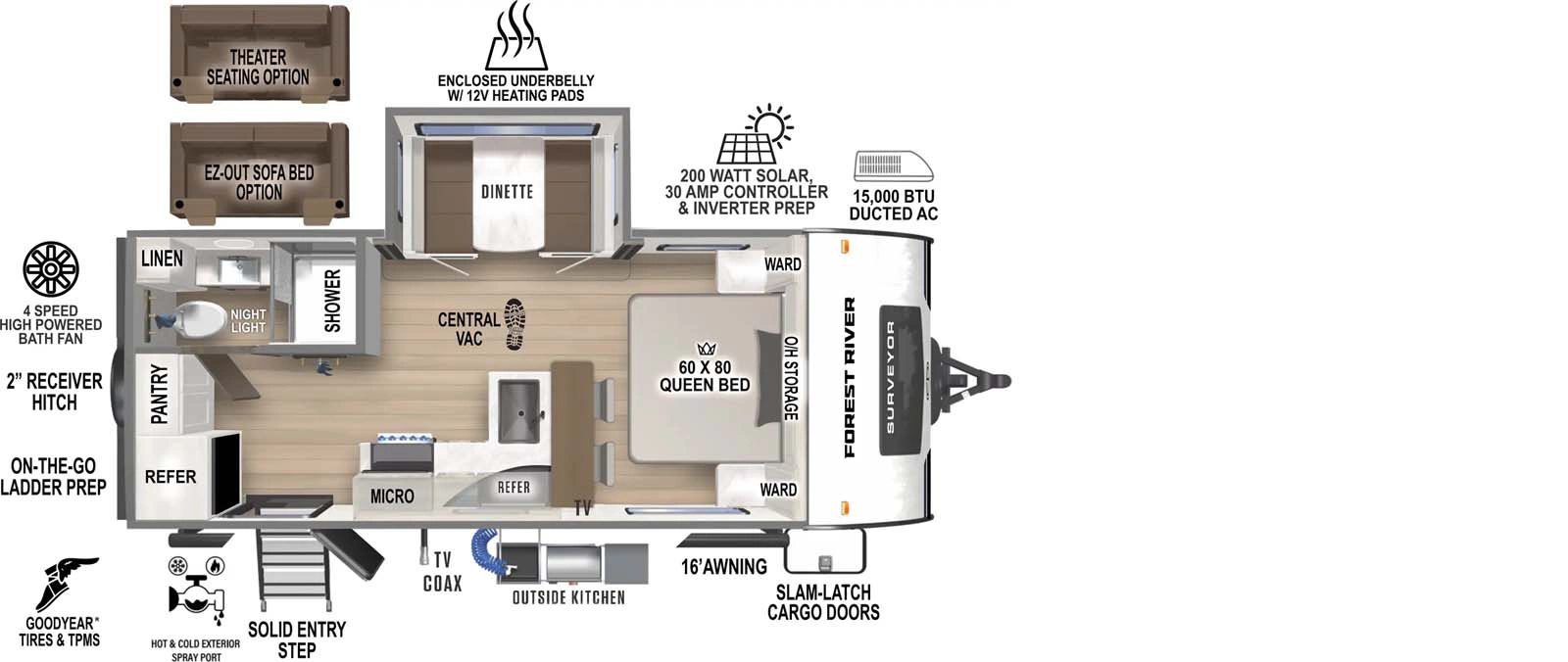

202RBLE
Has Gallery Photos Has 360 Tour Has Video Tour

202RBLE



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

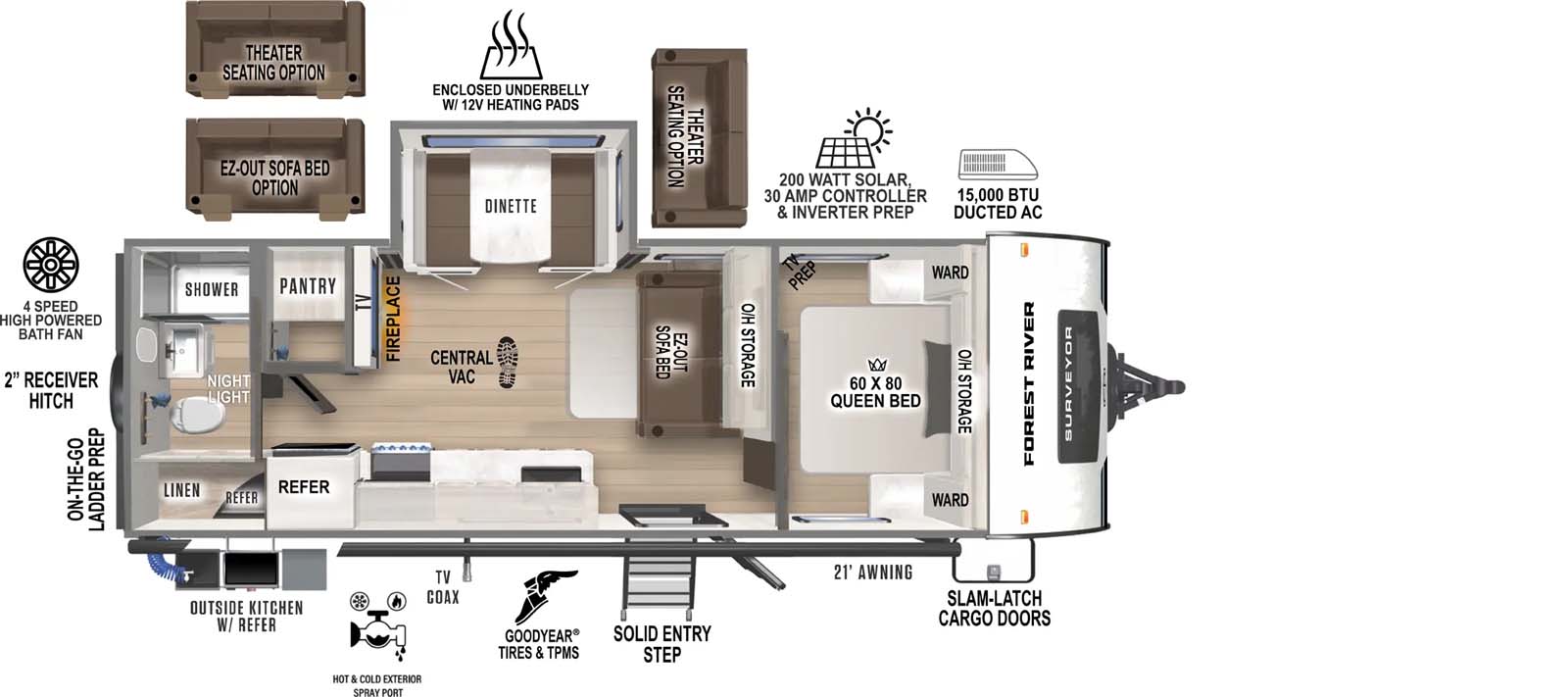

252RBLE
Has Gallery Photos Has 360 Tour Has Video Tour

252RBLE



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

276BHLE
Has Gallery Photos Has 360 Tour

276BHLE



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

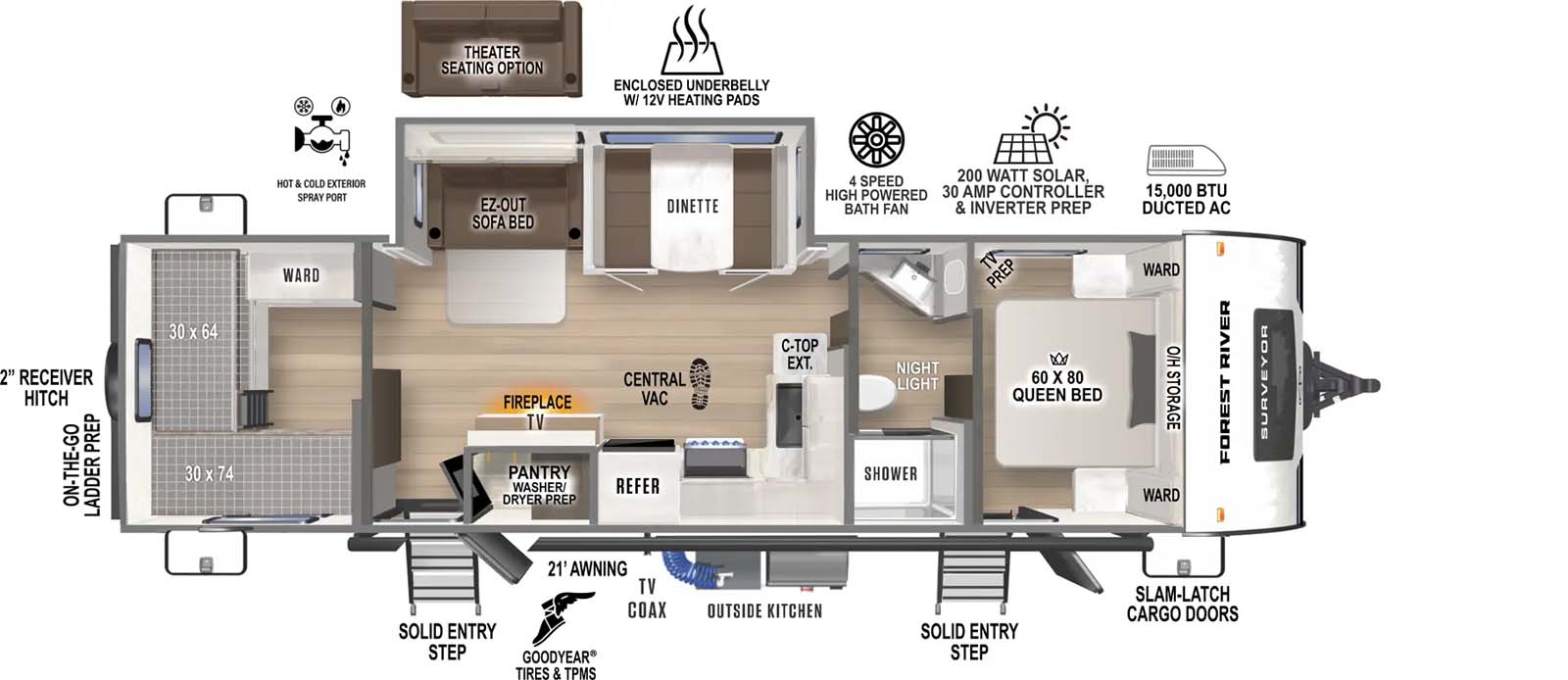

296QBLE
Has Gallery Photos Has 360 Tour Has Video Tour

296QBLE




Temporarily Unavailable

Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

320BHLE
Has Gallery Photos Has 360 Tour Has Video Tour

320BHLE




Dealer Stock Only

Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

248BHLE

248BHLE - DSO



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

295QBLE

295QBLE - DSO





Specifications

Print


Hitch Weight:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
405 lb.
3814 lb.
991 lb.
23' 4"
10' 3"
88"
30.00 gal.
30.00 gal.
30.00 gal.
15'
345 lb.
3749 lb.
996 lb.
23' 4"
10' 3"
88"
30.00 gal.
30.00 gal.
30.00 gal.
15'
577 lb.
5030 lb.
2547 lb.
24' 4"
11' 3"
96"
40.00 gal.
40.00 gal.
30.00 gal.
14'
517 lb.
5137 lb.
2380 lb.
25' 11"
11' 3"
96"
40.00 gal.
40.00 gal.
30.00 gal.
21'
497 lb.
4931 lb.
2566 lb.
24' 4"
11' 2"
96"
40.00 gal.
40.00 gal.
30.00 gal.
16'
590 lb.
5313 lb.
2277 lb.
29' 4"
11' 2"
96"
40.00 gal.
40.00 gal.
30.00 gal.
21'
650 lb.
6358 lb.
1292 lb.
32' 6"
11' 3"
96"
40.00 gal.
40.00 gal.
30.00 gal.
19'
804 lb.
6806 lb.
2798 lb.
34' 11"
11' 3"
96"
40.00 gal.
40.00 gal.
30.00 gal.
21'
847 lb.
7764 lb.
1883 lb.
37' 0"
11' 3"
96"
40.00 gal.
80.00 gal.
70.00 gal.
20'
610 lb.
5504 lb.
2106 lb.
29' 11"
11' 3"
96"
40.00 gal.
60.00 gal.
30.00 gal.
17'
777 lb.
5995 lb.
1782 lb.
33' 0"
11' 2"
96"
40.00 gal.
40.00 gal.
30.00 gal.
16'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Extended Camping (15K High Performance A/C,Heat Ducts Concealed in Wall/Cabinets (Sub-4's Ductless) w/Radiant Heat & Heat Duct
  • to Underbelly, 10 Cu. Ft. Residential 12V Refrigerator, Azdel Composite Walls, PVC Roof Membrane, Porcelain Toilet, Friction Hinge Entry Door(s),
  • Black Tank Flush, Rear Camera Prep, Rooftop Solar Prep, Adjustable Platform Step - Main Entry, USB Ports
  • Stainless Steel Undermount Kitchen Sink w/Backsplash, Undermount Bath Sink w/Backsplash
  • Intergrated Front Windshield, Slow Close Shower Door, Bluetooth Stereo, LED Interior & Exterior Lighting,
  • Storage Doors Under Dinette, Pleated Night Shades, Power Tongue Jack, Residential Bath Faucet, Roof Ladder (N/A 202RBLE),
  • One Touch Electric Awning w/Led LIghtstrip, Surf(x)® Seamless Countertops T/O, Gourmet Cooking Collection (N/A Sub-4s)
  • Outdoor Kitchen - Gas Griddle, Sink, Refer & Side Shelf (Sub-4s Griddle & Shelf), Garbage Can in Bath & Kitchen, Resort Bath Hooks,
  • Toothbrush Holder, Vertical Mount Toilet Tissue Holder, Motion Sensor LED Lighting Front Baggage & Walk-In Pantry (Select Models),
  • 3/4" Stab Jack Drill Bit & Holder, Oversized Safety Assist Handle, Knife Block & Spoon Holder, Exterior LED Speakers, Custom Logo Laundry Bag,
  • Sink Covers, Euro Style Entry Door Handle, Silverware Organizer-Kitchen, High Arc Pull Down Faucet, Platinum Vanity Mirror, Pet Friendly Features
  • 20,000 BTU Furnace (Sub-4s)
  • 30,000 BTU Ducted Furnace
  • 6 Gallon G/E DSI High Output Quick Recovery Hot Water Heater
  • Digital Thermostat Wall Mounted
  • Greystone® Gourmet Cooking Collection (N/A Sub-4s)
  • Greystone® Convection Microwave (Sub-4s)
  • Range Top 3-Burner and 17" Gas Oven w/LED Lights
  • Range Top Two-Burner (Sub-4s)
  • Stainless Power Range Hood w/Light
  • 12V Power Exhaust Fan
  • Heat Duct & A/C Vent (Most Models)
  • Privacy Door Lock
  • Skylight over Tub/Shower
  • Storage Cubbies Easily Stow Toiletry Kit, Blow Dryer, Linens
  • Systems Monitor Panel
  • Toilet Porcelain Thetford Underlip Flush & Single Cast Mold
  • Window Natural Light & Vented (Select Models)
  • 60 X 80 Residential Queen Bed
  • Bedding Embossed Coverlet
  • Cubbie Storage Area w/110V Outlets & Cup Holders
  • Double-Strut Lift Super Storage Under Bed (Most Models)
  • Drawer(s) On Each Side Of Bed
  • Indura-Kleen Evergreen Mattress (Antibacterial, Hypoallergenic, Mold & Mildew Resistant)
  • Oversize Wardrobes -Actually Fit Hangers & Clothes
  • Teddy Bear® Bunk Bedding (Bunk Bed Models)
  • 1 1/2" Laminated Aluminum Frame Sidewalls, Rear Wall, & Slideout Walls (R7 Closed Cell Block Foam Insulation)
  • 2" Laminated Aluminum Perimeter Floor & Studs (R9 Closed Cell Block Foam Insulation)
  • Aluminum Framing All Openings; Windows, Doors, Appliances
  • Roof: Trusses 16″ On-Center, R14 Insulation, 3/8″ Decking
  • Underbelly: Lami-Plast™ All Weather Protection Fully Heated & Enclosed
  • 30 AMP Marine Grade Detachable Power Cord
  • 55 AMP Converter w/Charger (35 AMP Sub-4s)
  • Battery Disconnect Mounted Front A-Frame
  • Cable & Satellite Ready
  • GFI 120V Exterior Receptacle Doorside
  • LED Amber Patio Light
  • LED Interior/Exterior Lighting
  • Two Tone Diamond Ice & White Star Gel-Coated Fiberglass
  • Front Diamond Plate Protection
  • Dual Battery Rack
  • 4" Square Bumper w/Sewer Hose Storage
  • Magnetic Baggage Door Catches
  • 82" Ceiling Height (78" Sub-4s)
  • A/C Ceiling Vents Adjustable Flow & Direction
  • Adjustable Shelves in Pantry (Where Applicable)
  • Ceiling Light Switch At Entrance Door
  • Designer Shaw® Lino Flooring w/ 7 year Warranty
  • Doors Under Dinette
  • Long Lasting Wood Drawers w/Ball Bearing Glides
  • Modern Frame Edge Cabinets w/Prism Curio Glass On Overheads
  • Shaw® Stain & Soil Resistant Carpet (Slide-Outs)
  • Vented Side Windows In Slide-Outs
  • 12V Demand Water Pump
  • Black Tank Flush *Artisan Package
  • City Water Fill
  • Color Coded Water Lines
  • Gravity Water Fill
  • Rotocast Fresh Water, Black, Gray Tanks (Underfloor)
  • Water Heater Bypass Kit
  • Winterization Kit
  • 2 5/16" Coupler
  • 205/75R15 LRD (Select Models)
  • 225/75R15 LRD (Sub-4s & Select Models)
  • Automotive Style Wheels
  • Lippert Axles Leaf Spring Suspension
  • Nitrogen Filled Radial Tires w/Steel Lug Inserts
  • Self Adjusting Electric Brakes
  • Spare Tire & Carrier
  • Super Lube Hubs
  • Brake-Away Switch
  • Carbon Monoxide Detector
  • Dead Bolt Door Lock
  • Fire Extinguisher
  • Ground Fault Electrical Circuit(s)
  • Heavy Duty Safety Chains
  • LP Leak Detector
  • Smoke Detector
  • Tinted Safety Glass Windwos
  • 2ND A/C 13.5K Bedroom Requires 50 AMP Service - (276BHLE, 296QBLE, 320BHLE)
  • 50 AMP Service Prep 2nd A/C (276BHLE, 296QBLE, 320BHLE)
  • 28" TV (Sub-4s)
  • 32" TV (202RBLE, 203RKLE, 240BHLE)
  • 39" TV (252RBLE, 276BHLE, 296QBLE, 320BHLE)
  • Arctic Package (12V Heat Pads On Holding Tanks)
  • Bamboo Wood Plank Lino Flooring
  • Bike/Utility Rack
  • TSS -Trifold Sofa Seat IPO of Dinette 202RBLE and IPO Storage Sofa (252RBLE, 276BHLE, 296QBLE, 320BHLE)
