T282QBXL Floorplan

X-Lite Travel Trailers

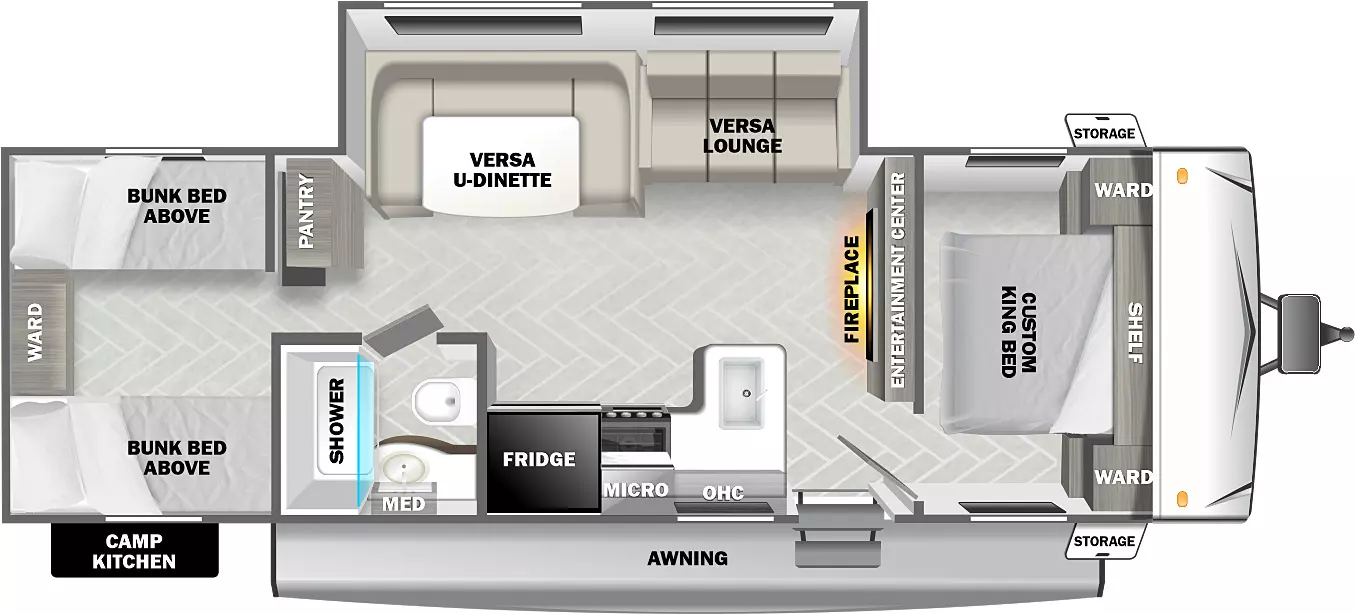

The 282QBXL has one slideout and one entry. Exterior features a camp kitchen, awning, and front storage. Interior layout front to back: bed with shelf above and wardrobes on each side; entertainment center with fireplace below along inner wall; off-door side slideout with versa lounge and versa dinette, and pantry; door side entry, peninsula kitchen counter wraps to the door side with overhead cabinet, microwave and refrigerator; door side full bathroom with medicine cabinet; rear bunk room with opposing bunks beds and rear wardrobe.


Hitch Weight:
705 lb.
6,457 lb.
1,248 lb.
Exterior Length:
32' 10"
Exterior Height:
10' 10"
Exterior Width:
Fresh Water:
50.00 gal.
Gray Water:
30.00 gal.
Black Water:
28.00 gal.
Awning Size:
GVWR (Gross Vehicle Weight Rating)
– is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.
