Berkshire XLT Diesel Class A Motorhomes

The all-new Berkshire XLT Class A Motorhome provides a level of luxury and performance expected of a tag axle with an unmatched value driven price point.

>> 2019 Berkshire XLT Construction


Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications








to




Floorplans

Print


Cummins ISL 450HP Engine

43B
Has Gallery Photos Has 360 Tour

43B


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.
43C
Has Gallery Photos Has 360 Tour

43C


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

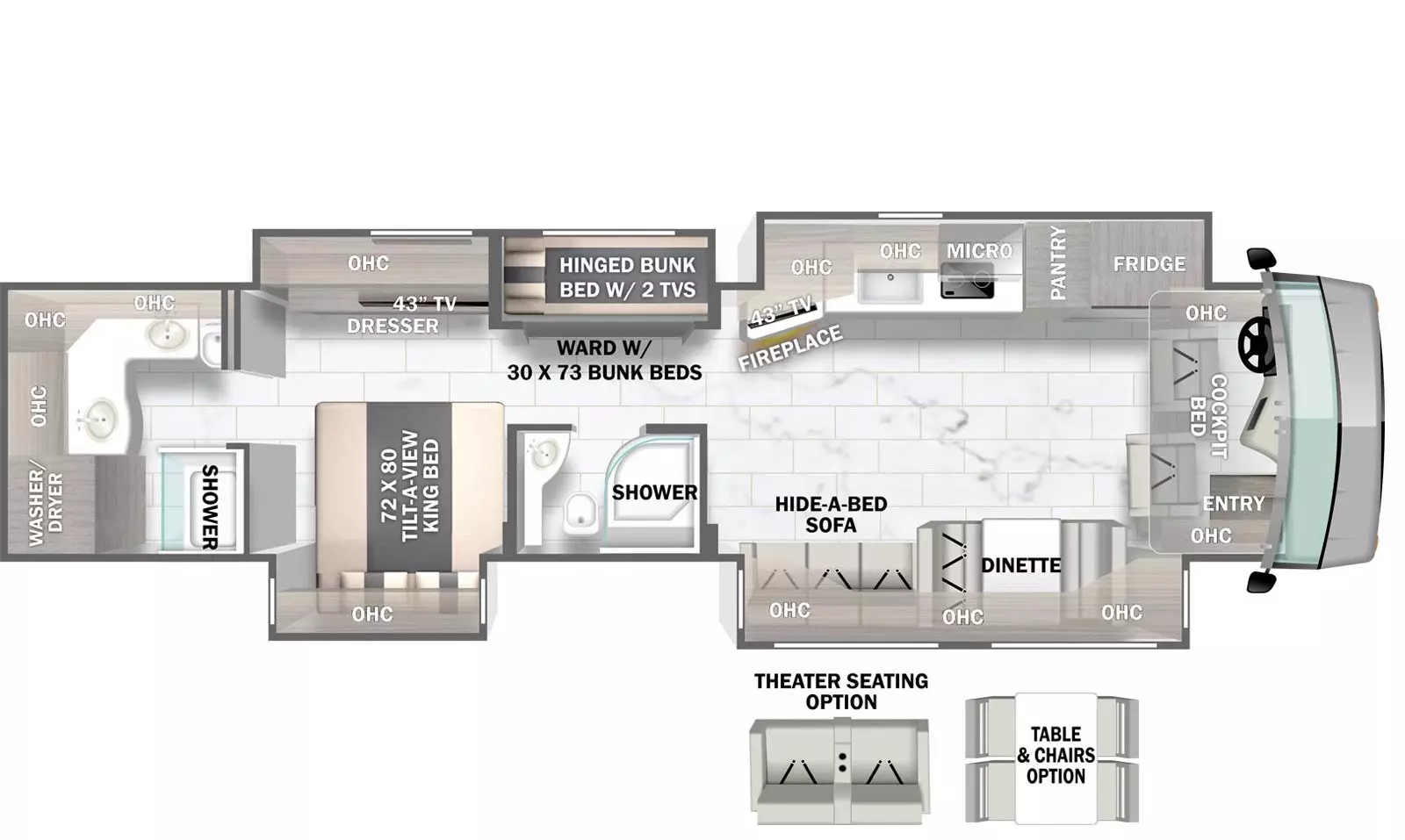

45A
Has Gallery Photos Has 360 Tour

45A


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.
45B
Has Gallery Photos Has 360 Tour

45B


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

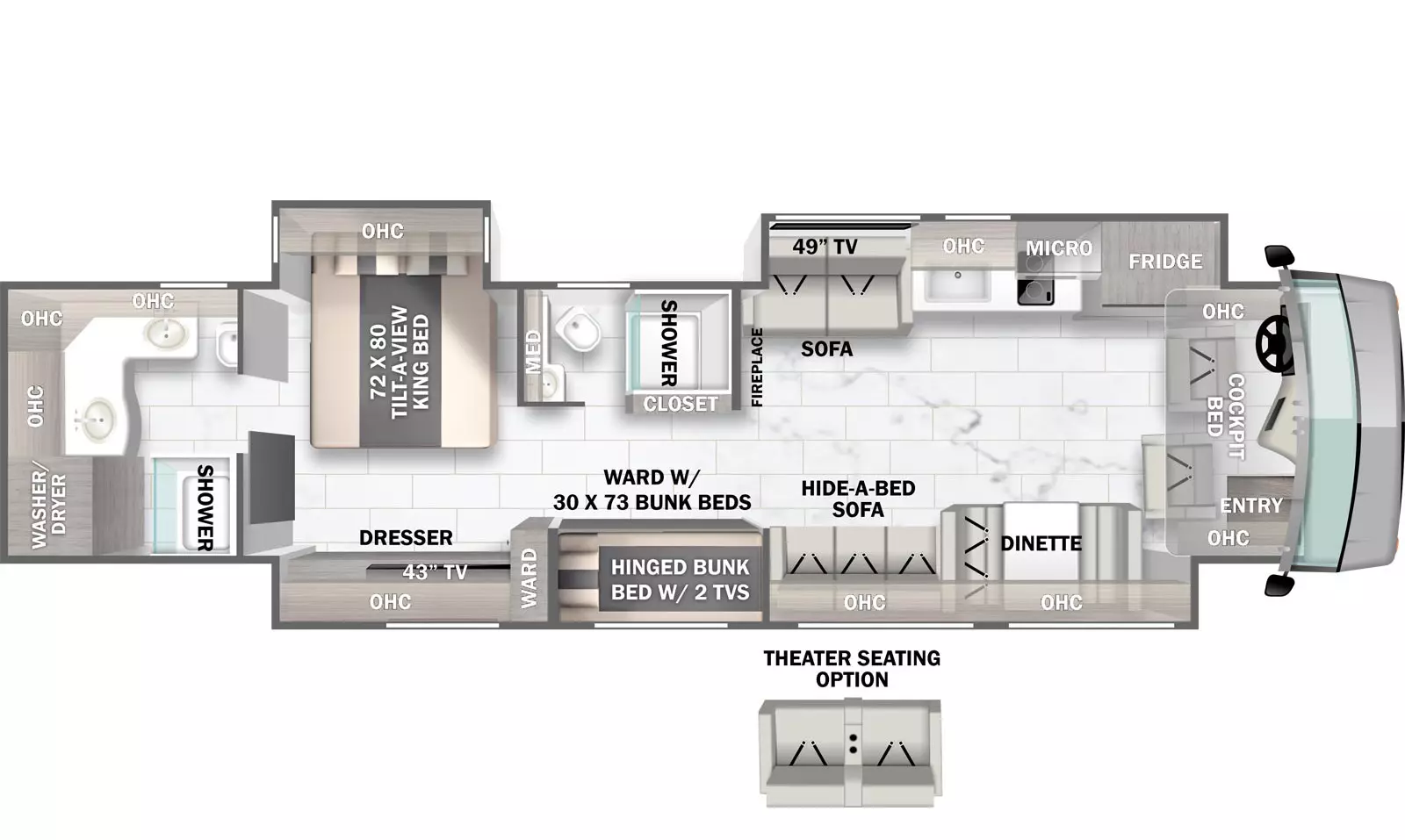

45CA
Has Gallery Photos Has 360 Tour Has Video Tour

45CA


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.


Specifications

Print


Wheelbase:
GVWR:
GCWR
GAWR Front:
GAWR Rear:
Fuel Capacity:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
273"
47000 lb.
62000 lb.
17000 lb.
20000 lb.
150 gal.
42' 10"
12' 9"
100"
103.00 gal.
66.00 gal.
42.00 gal.
12' 9" & 12' 9"
273"
47000 lb.
62000 lb.
17000 lb.
20000 lb.
150 gal.
42' 10"
12' 9"
100"
103.00 gal.
66.00 gal.
42.00 gal.
12' 9"
294"
47000 lb.
62000 lb.
17000 lb.
20000 lb.
150 gal.
44' 10"
12' 9"
100"
103.00 gal.
66.00 gal.
42.00 gal.
12' 9"
294"
47000 lb.
62000 lb.
17000 lb.
20000 lb.
150 gal.
44' 10"
12' 9"
100"
103.00 gal.
66.00 gal.
42.00 gal.
16' 0"
294"
47000 lb.
62000 lb.
17000 lb.
20000 lb.
150 gal.
44' 10"
12' 9"
100"
103.00 gal.
66.00 gal.
42.00 gal.
18' 0"

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Freightliner XCR Raised Rail Chassis
  • Cummins ISL 450HP, 100RPM, 2200GOV RPM, 1250 LB/FT @ 1400RPM
  • Allison 3000MH 6-speed transmission
  • 120V Engine Heater 1000W
  • 22.5" Polished Aluminum Wheels
  • Michelin 315/80R22.5 Front, 295/80R22.5 Rear/Tag Tires
  • Trailer Hitch, 15,000 # Capacity
  • 150 gallon, locking dual fill fuel tank
  • Driver side remote fill, 15 Gallon DEF Tank
  • Day time running lights
  • 7-Pin tow power connector
  • 18.7 CFM air compressor
  • Farr Eco-air cleaner
  • Air filter restriction indicator
  • Fuel/water separator
  • Brake line Air Dryer w/Heater
  • Automatic, heated moisture ejectors
  • Heavy duty-windshield wipers w/intermittent function
  • 160 amp alternator
  • Full air ABS brakes w/ auto slack adjuster
  • Two (2) 1900 CCA at 0 degree Fahrenheit, maint. free
  • Jacobs compression brake
  • Suspension Neway (front & tag axles) & V-ride (rear axle)
  • Sachs custom tuned shock absorbers
  • Auto air suspension deflation system
  • Side radiator cooling package
  • Transmission oil cooler
  • 5 year / 100,000 mile coolant (some maintenance required)
  • Electronic cruise control w/ high idle
  • Independent front suspension, IFS
  • Ultra steer tag axle
  • Tire pressure Monitoring sytem (TPMS)
  • Fiberglass front and rear caps
  • Full body painted exterior
  • Four (4) point fully auto hydraulic leveling system w/ auto air dump
  • Steel basement structure
  • Tru-Brace Anti Camber chassis support system
  • Rust resistant aluminized steel chassis skirts
  • Diamond shield front mask protective film
  • 1 Piece Fiberglass Roof
  • Top-mount remote mirros w/heat, turn signal & sideview cameras
  • Frameless dual pane, dark tint windows
  • Automotive foam and Ziebart seal undercoating
  • Carefree power door awning
  • Carefree Latitude dual pitch patio awning w/led lt & Wind Sensor
  • Carefree s/o topper w/covers
  • Full height strut assisted compt doors w/full pass through storage
  • One Key system, ext-compartment, entry door & fuel fill doors
  • Quiet integrated A/C intake/ducting roof system
  • Crowned and layered vacuum bonded fiberglass roof
  • Vacuum bonded 3" floor w/tubular aluminum frame
  • Gel coat vacuum bonded sidewalls, s/o floors & walls
  • Block foam polystyrene insulation in walls, roof and floors
  • 30" Entryway
  • Channeled drains for A/Cs
  • Tube steel firewall w/polystyrene insulation
  • Lighted exterior assist handle
  • 84" interior ceiling height
  • PTL steel entrance door with deadbolt (Keyless Prep)
  • Auxiliary air chuck (front driverside compartment)
  • LED Headlights & Marker Lights
  • Full length mud flap w/ chrome Berkshirename
  • Slide tray in basement compartment
  • All Electric
  • 50A service w/auto transfer switch & 34' power cord reel
  • EZ power cord entry
  • 10kW Onan diesel generator w/manual slide tray
  • Energy management system
  • Electronic house power disconnect switch
  • Generator start/stop switch (On dash/bedroom)
  • Multi-plex w/Precision plex app control
  • Dimmer control lighting throughout
  • LED lighting package
  • Decorative bath, dinette & wall lights w/applicable
  • Individual bed led reading lights in overhead
  • 3000kW pure sine inverter/converter
  • Auto generator start control
  • (6) Six volt deep cycle house batteries
  • House Battery Distribution Center (HBC)
  • Chassis & house battery bank master shut off switches
  • Led porch & patio lights
  • Easy read 12v house/Chassis load centers
  • Solar prep w/mppt controller and roof prep
  • Automotive chassis fuse panel (front driverside compt)
  • Ceiling fan in bedroom
  • Kitchen & living room accent lighting
  • 100W solar panel
  • Variable speed 4GPM water pump
  • Individual zoned hot/cold manifold water supply system
  • 4-way water management valve in water bay compartment
  • Bath - solid surface under mount sink
  • Kitchen - Stainless steel under mount sink
  • Solid Surface shower walls, glass door,teakwood seat & skylight
  • Whole house water filter
  • Black water tank flush system
  • Kitchen single lever faucet w/ pull-out sprayer
  • Porcelain china bowl toilet w/foot flush (N/A 45B)
  • Clean-easy exterior shower hose
  • Convenience monitor panel in water bay door
  • 360 Roof vent caps
  • Tecma-macerator toilet(rear bath) (45B Applicable in 2 Bathrooms)
  • One piece windshield
  • Power front day/night shades
  • Passenger & driver window day/night shades
  • 3D Carbon fiber dash panels
  • Optiview glass instrument panel
  • Steering wheel - w/radio audio, wipers, engine brake, cruise, adjustable pedals & transmission mode control
  • Auxiliary Fog lights
  • 10" Dash radio w/ color back-up and side view camera pkg w/Navigation
  • Sirius/XM satellite roof mounted antennae
  • Flexsteel soft touch wide driver seat, swivel,recline seat w/6-Way pwr adj.
  • Flexsteel soft touch wide passenger seat, swivel, recline & power foot rest
  • Driver/Passenger side consoles w/cupholders
  • Passenger seat workstation
  • Driver console wireless cellphone charger
  • Lighted step well
  • Two (2) Defroster fans w/ high and low settings
  • Automotive dash AC/heater w/ deluxe controls
  • Multiple auxiliary/USB & 12V charging ports at dash
  • Power flushfloor stepwell cover
  • Multiple entry assist handles
  • Driver & Passenger LED ceiling map lights
  • Emergency/aux engine start switch at dash
  • Fitted Cockpit floormat w/"Berkshire" logo
  • Fitted entryway step carpet mats
  • Keyless entry
  • 49" LED TV, living room (N/A 45A)
  • 43" LED TV, living room (45A)
  • 43" LED TV exterior TV w/bluetooth radio & Speakers
  • 32" LED TV, bedroom
  • 32" LED TV in cockpit overhead
  • 22" LED TV, (2)each bunk w/ easy access HDMI jack (45A, 45CA)
  • Bose Soundbar w/integrated sub & bluetooth
  • Roof mount Winegard Trav'ler satellite prep
  • Park/cable prep
  • WiFi antennae & router
  • High Definition Cat6 matrix signal distribution
  • Hi-Definition digital TV antennae
  • Kicker Dash radio tuned amplifier system,
  • Blu-ray DVD player
  • Auto WiFi extended range Falcon antennae
  • Polished porcelain tile throughout
  • Semi gloss hardwood cabinetry w/glazingy, interior doors & slideout fascia (Glazing N/A with executive dark cherry option)
  • Hardwood raised panel cabinet doors w/glazing
  • Front bed lift in cockpit
  • Hidden hinges and bar pull style cabinet hardware
  • Living room ceilling crown Trim
  • Carpeted slide-outs w/applicable
  • Window valances
  • Hardwood valance legs w/applicable
  • Soft Touch Dream booth dinette w/ storage underneath
  • Villa Ultrafab love seat (N/A 45A)
  • Villa Ultrafab hide-a-bed sofa
  • Polished solid surface kit/bath c-tops & backsplash w/tile inserts
  • Full extension ball bearing metal drawer guides throughout
  • Galley storage compartment for sink covers
  • Kitchen Pantry
  • Pull out kitchen counter top (45A, 45B)
  • Bi-fold doors, bunk beds (45A, 45CA)
  • “Soft Touch” padded ceiling
  • Roller style day/night shades
  • Dresser drawers and wardrobe bedroom cabinetry
  • 72"x 80" Serta king bed w/bedspread and decorative pillows
  • Contoured overhead cabinets in slide rooms
  • Bed night stands, w/dual USB jack & overhead cabinetry
  • Mirrored vanity overhead cabinet doors
  • Towel bar, toilet Paper holder & towel ring
  • Living room ceiling feature
  • Electronic safe
  • LP gas, carbon monoxide & smoke detectors
  • Fire extinguisher
  • (3)15,000 btu A/C's (Front & Rear-w/heat pump)
  • Heated holding tank compartment
  • Aqua Hot hydronc heat w/continous flow hot water
  • Electric heated tile floors
  • 30" OTR convection microwave oven
  • 23 cf french door residential refrigerator w/ice maker
  • Electric induction glass cook top
  • Power fan in bathroom w/rain cover
  • Maxxair in galley w/wireless remote control w/rain cover
  • Washer/dryer prep
  • Electric fireplace
  • Central vacuum system
  • Free standing dinette w/hutch and 4 chairs (N/A 45CA)
  • Theater seating ilo of hide-a-bed sofa
  • Ceramic matte finish tile
  • Trav'ler (Winegard) satellite antennae- Dish Network TV (US)
  • Trav'ler (Winegard) satellite antennae- Shaw (Canada)
  • Stackable washer & dryer
  • Stainless steel dishwasher
  • Delete front bunk lIft
  • Basement freezer with pull out tray

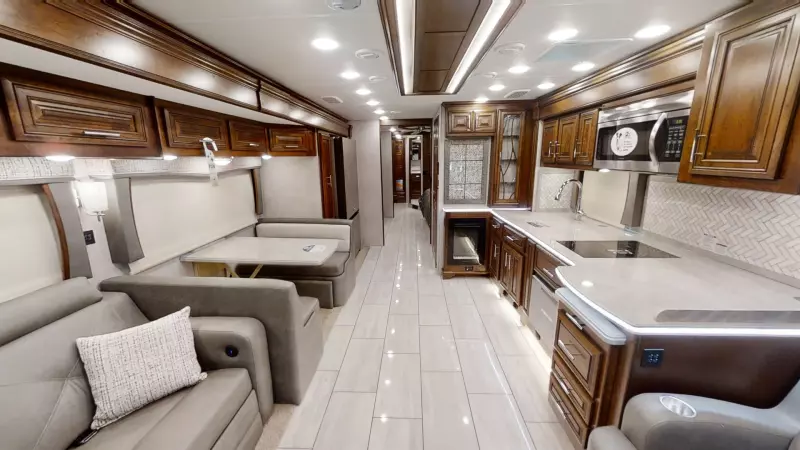

Virtual Tours

43B

43C

45A

45B

45CA



Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature


Berkshire XLT Brochure
Berkshire XLT Brochure

Berkshire XLT Construction
Berkshire XLT Construction

Aqua-Hot 400 Series Use & Care Guide
Aqua-Hot 400 Series Use & Care Guide




© 2020 Forest River, Inc. | Privacy Policy | Terms of Use
