Sunseeker MBS Class C Motorhomes

Sunseeker’s unique split level design gives you maximum headroom in the living area, while still offering pass-through storage on every floorplan. Plus, all Sunseeker Class C Motorhomes are “Certified Green” by TRA Certification. By being actively involved after the sale, we not only provide you a better experience, but also use your input to build a better product.


Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications








to




Floorplans

Print


MERCEDES BENZ SERIES (MBS)

2400B
Has Video Tour

2400B


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.
2400Q

2400Q


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.
2400T

2400T (Coming Soon)


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

Dealer Stock Only

2400R

2400R - DSO


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.
2400S

2400S - DSO


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.
2400W
Has Gallery Photos Has 360 Tour

2400W - DSO


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.


Specifications

Print


Wheelbase:
GVWR:
GCWR
GAWR Front:
GAWR Rear:
Fuel Capacity:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
170"
11030 lb.
15250 lb.
4080 lb.
7720 lb.
26 gal.
25' 5"
11' 3"
95"
35.00 gal.
35.00 gal.
35.00 gal.
16'
170"
11030 lb.
15250 lb.
4080 lb.
7720 lb.
26 gal.
25' 5"
11' 3"
95"
35.00 gal.
35.00 gal.
35.00 gal.
16'
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
170"
11030 lb.
15250 lb.
4080 lb.
7720 lb.
26 gal.
24' 11"
11' 3"
94"
35.00 gal.
30.00 gal.
30.00 gal.
16'
170"
11030 lb.
15250 lb.
4080 lb.
7720 lb.
26 gal.
24' 8"
11' 3"
94"
35.00 gal.
33.00 gal.
33.00 gal.
15' 6"
170"
11030 lb.
15250 lb.
4080 lb.
7720 lb.
26 gal.
24' 11"
11' 3"
94"
35.00 gal.
32.00 gal.
32.00 gal.
15' 6"

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • 12 Months/12,000 mile basic limited warranty
  • Chassis warranty (see owners manual)
  • Battery disconnect
  • Water heater bypass
  • (2) Deep cycle coach batteries
  • “Easy Access” battery in step-well
  • 30 Amp service with power cord
  • 60 Amp Progressive Dynamics converter
  • 6 Gallon DSI gas/electric water heater
  • 30,000 BTU furnace
  • Satellite/cable connection
  • 13,500 BTU ceiling ducted roof air
  • 3.6 KW Onan LP generator (diesel generator option available)
  • Automatic generator transfer switch
  • Water filtration system
  • Arctic Package (12V tank heaters)
  • Optional 15K BTU A/C with heat pump
  • Carbon Monoxide, LP and smoke detector
  • Winegard digital antenna
  • 1.5” Aluminum framed laminated sidewalls
  • Superlite composite substrate
  • Gel Coat exterior fiberglass
  • Block foam insulation
  • Power patio awning with LED light strip
  • Slide-out awnings
  • Fiberglass roof
  • One-piece fiberglass front cap
  • LED exterior lights
  • Stainless steel wheel liners
  • Valve stem extensions
  • Roto-cast storage compartments
  • Driver side security light
  • Fiberglass running boards
  • 110V, GFI protected exterior receptacle
  • Tinted frameless windows
  • Heated, remote exterior mirrors
  • 4,200 Lbs. hitch, 7-pin connector
  • Roof ladder
  • Power entry step with motion sensor light
  • Stabilizer jacks (2-point)
  • LP quick connect
  • Optional Full body paint
  • Outside shower
  • Optional Outside 12V LED TV (See floorplans)
  • Black tank flush
  • 7” Touch screen radio with USB and Bluetooth
  • Magnetic privacy shades
  • Power leather swivel driver and passenger seats
  • Power windows and door locks
  • Keyless entry (N/A Chevy)
  • Color back-up camera
  • Side view cameras
  • Swivel driver seat (N/A Chevy, Power)
  • Power driver seat (N/A Chevy)
  • Swivel passenger seat (N/A Chevy)
  • Recessed 3-burner range with flush glass cover
  • Convection microwave
  • 10.7 Cu. ft. 12V refrigerator
  • Sink covers
  • Full extension ball bearing drawer guides
  • Flip-up countertop extension
  • Lightweight composite toilet
  • Lightweight Arcadia shower door
  • Towel bar, tissue, toothbrush and soap holder
  • Electric roof fan
  • Shower head with flexible extension
  • Motion sensor light
  • Shower skylight
  • Upgraded memory foam mattress
  • Bedspread
  • Black-out roller shades
  • 12V Bedroom TV
  • Dream dinette (N/A with U-shape dinettes)
  • 12V LED flat panel adjustable side TV
  • Child seat head tethers in dinette
  • Maxx Air multi-speed power fan with cover
  • LED lighting throughout
  • 12V USB charging station

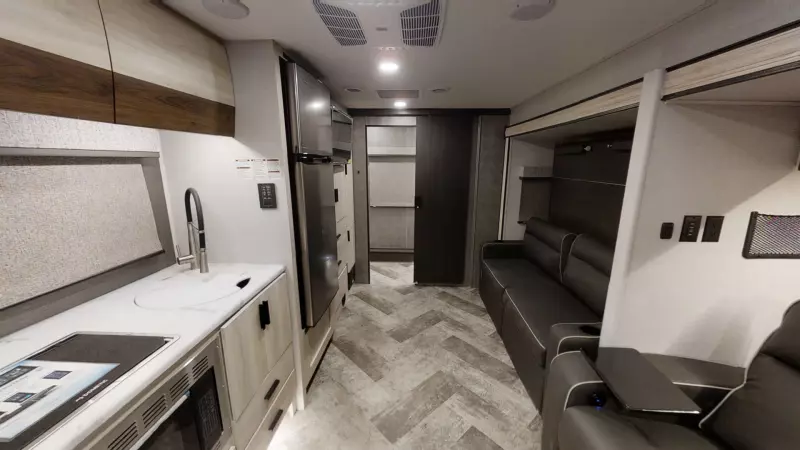

Virtual Tours

2400W - DSO



Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature


Sunseeker Brochure
Sunseeker Brochure
