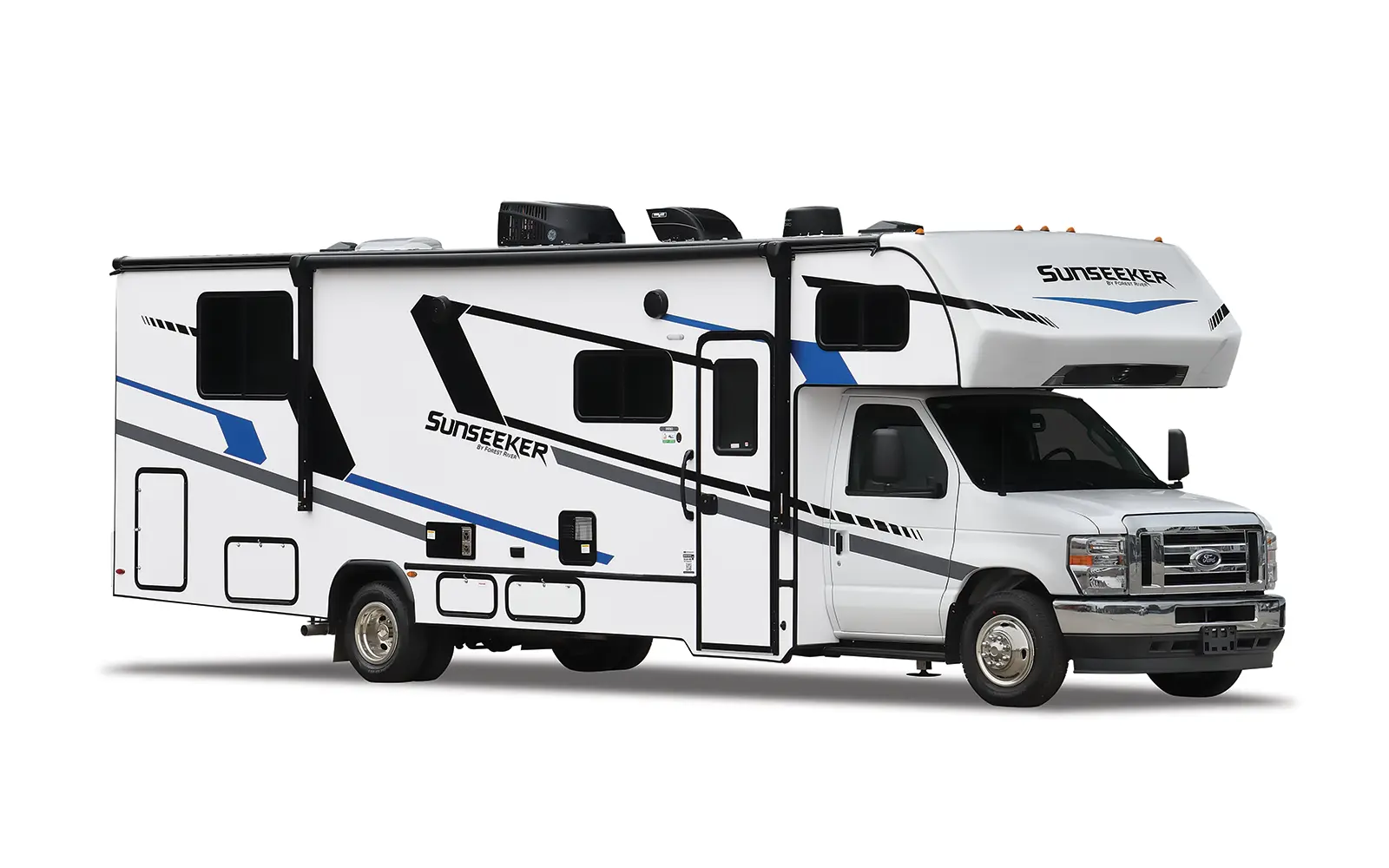

Sunseeker TS Class C Motorhomes

Sunseeker’s unique split level design gives you maximum headroom in the living area, while still offering pass-through storage on every floorplan. Plus, all Sunseeker Class C Motorhomes are “Certified Green” by TRA Certification. By being actively involved after the sale, we not only provide you a better experience, but also use your input to build a better product.

SUNSEEKER MOTORHOMES: MORE FEATURES, BETTER BUILT, BEST VALUE.


Certified Green by TRA Certification™ Care Camps, fighting cancer and making memories

Floorplans

Print

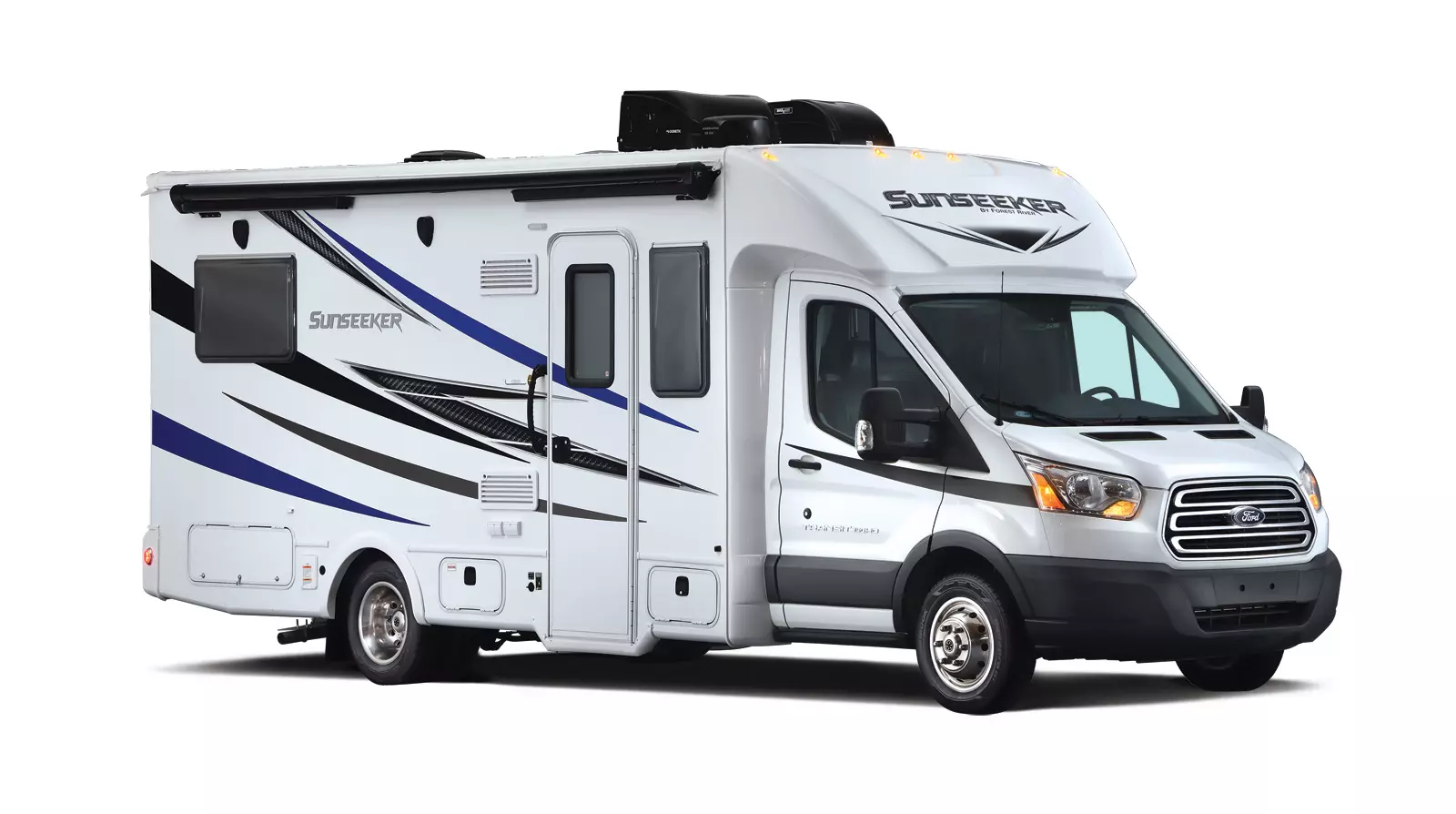

Ford Transit (TS)


Specifications

Print

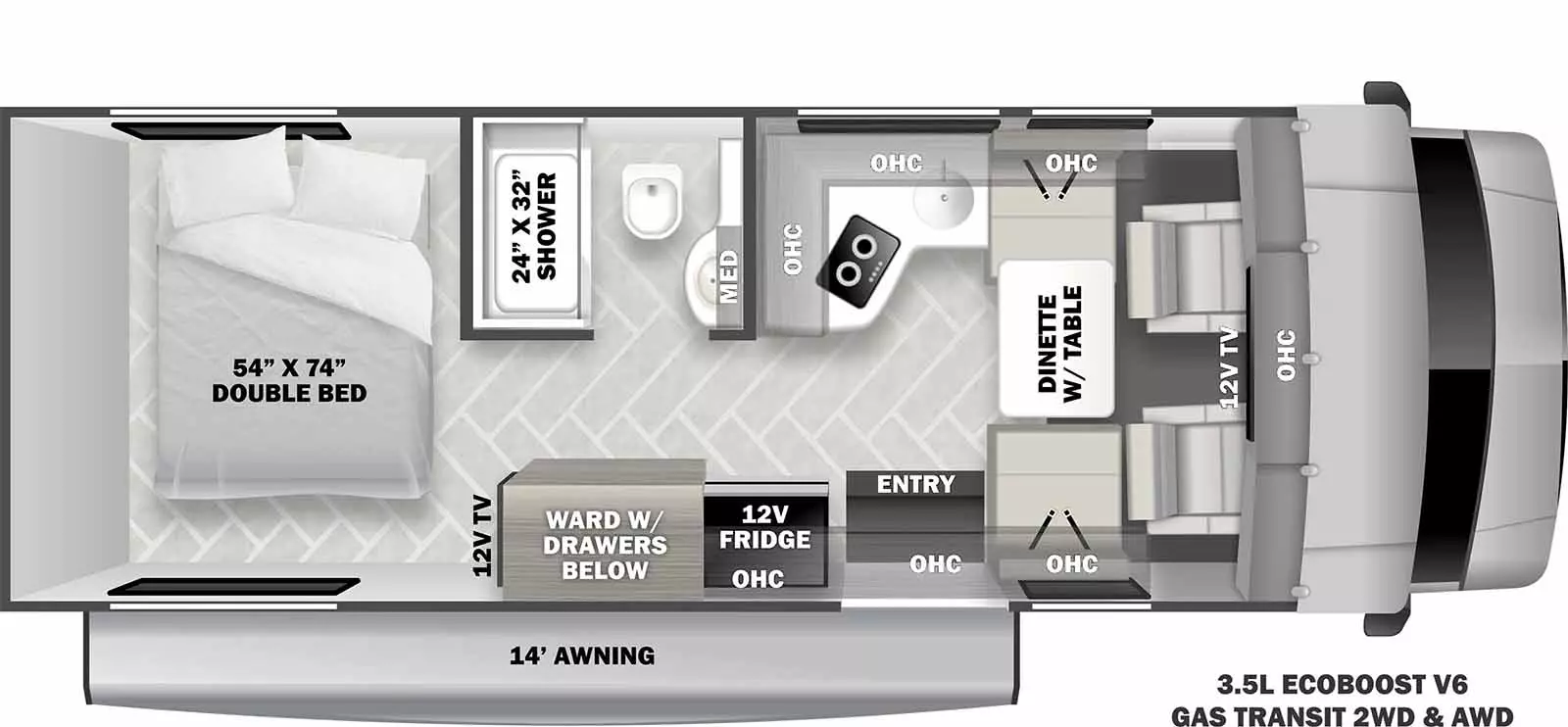

Floorplan: TS2370 : Ford Transit (TS) TS2380 : Ford Transit (TS)
Wheelbase:178"178"
GVWR:10,360 lb.10,360 lb.
GCWR:13,500 lb.13,500 lb.
GAWR Front:4,130 lb.4,130 lb.
GAWR Rear:7,275 lb.7,275 lb.
Fuel Capacity:25 gal.25 gal.
LP Tank Capacity:41 lb.41 lb.
Exterior Length:26' 1"25' 6"
Exterior Height:10' 5"10' 5"
Exterior Width:87"87"
Fresh Water:35.00 gal.35.00 gal.
Gray Water:30.00 gal.30.00 gal.
Black Water:28.00 gal.30.00 gal.
Awning Size:15'15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including cargo, fl uids, optional equipment and accessories that can be safely supported by each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fl uids and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, passengers, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before fi lling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Ultra-light, eco-friendly building materials
  • Frameless windows
  • Class-leading, pass-through storage
  • Residential style cabinetry
  • 12V LED TV
  • 5.3 Cu. ft. Eurostyle refrigerator operates on 12V/110/LP
  • Undermount .9 cu. ft. convection microwave
  • 8" Touch screen Ford Sync radio
  • All enclosed bathrooms with privacy door (No wet baths)
  • Passenger swivel seat
  • Back-up and side view cameras
  • Power awning with LED light strip

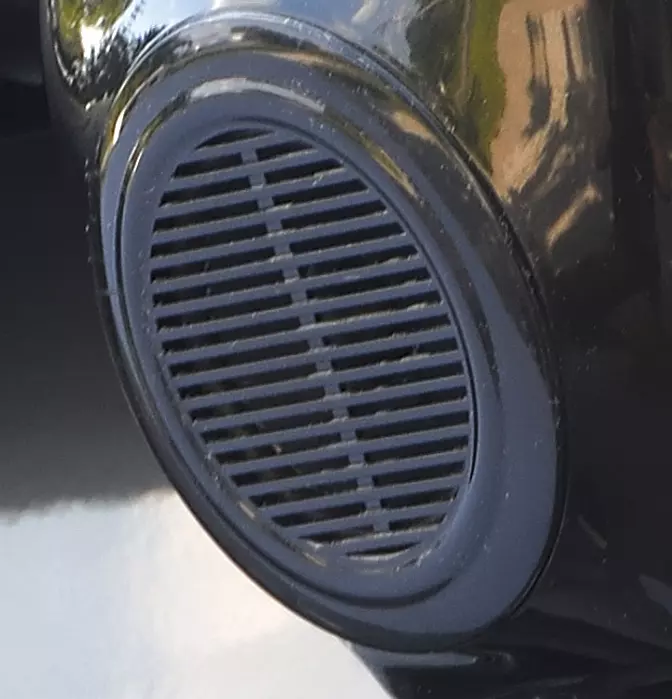

  • Exterior speakers
  • Interior surround sound entertainment system
  • Truma Combi electric heat and high ef?ciency water heater

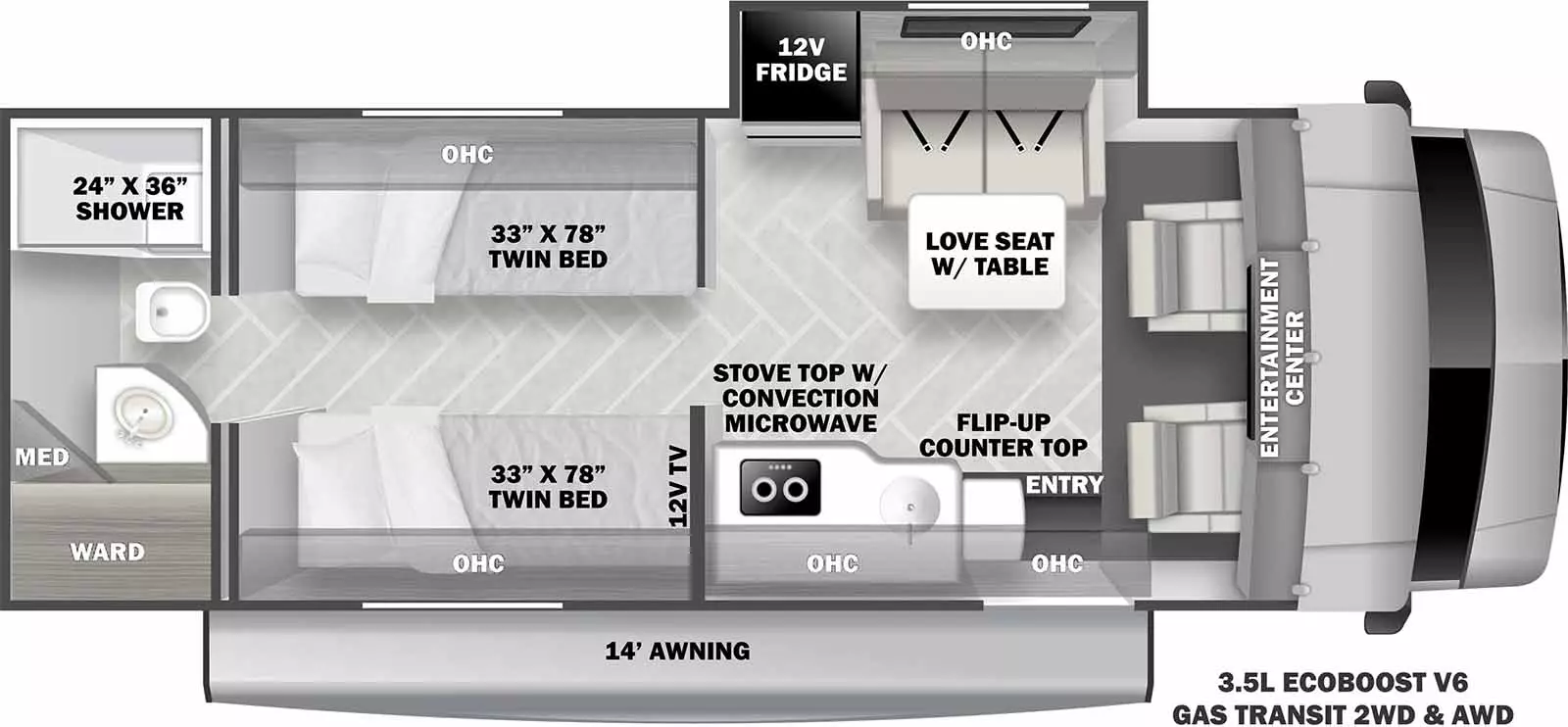

  • TS2370 includes power twin beds that convert into a queen size bed
  • Optional all wheel drive
  • 12 Months/12,000 mile basic limited warranty
  • Chassis warranty (see owners manual)
  • Battery disconnect
  • Water heater bypass
  • (1) Deep cycle coach battery

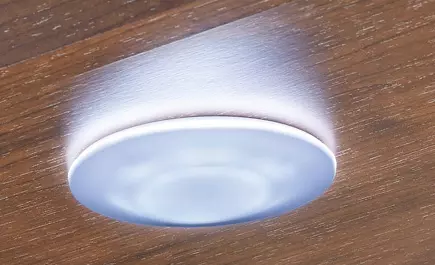

  • LED lighting

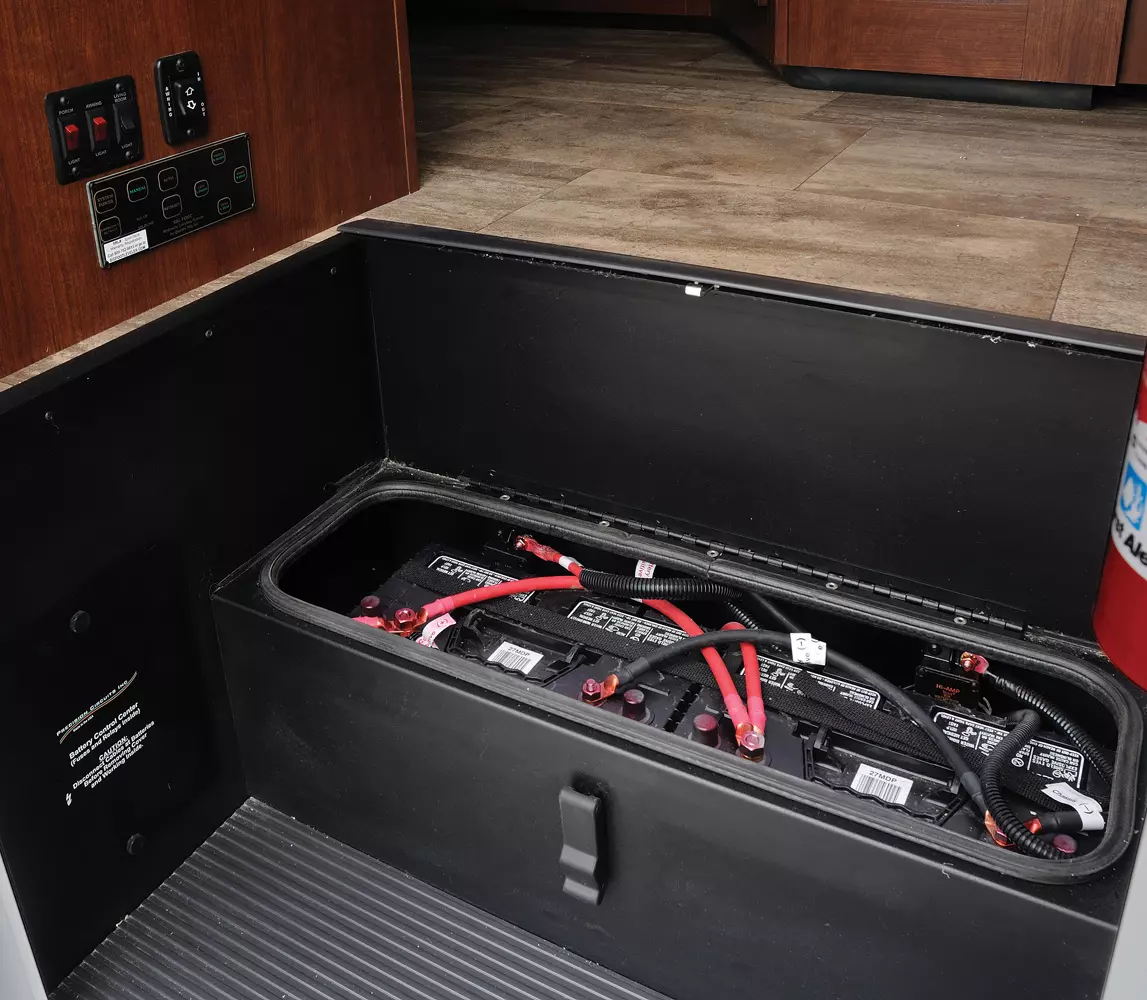

  • Easy Access battery in step-well
  • 30 Amp service with power cord

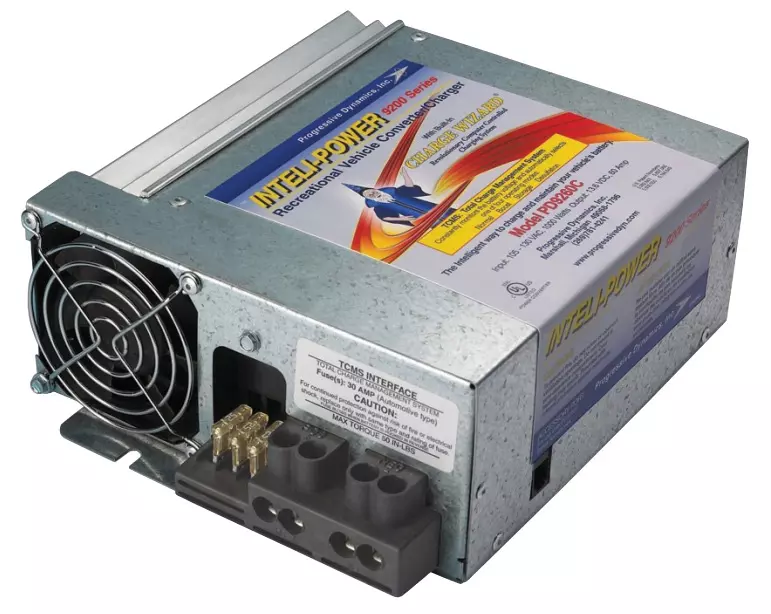

  • 60 Amp Progressive Dynamics converter
  • Truma Combi water heater/furnace
  • Emergency start switch
  • Satellite/cable connection

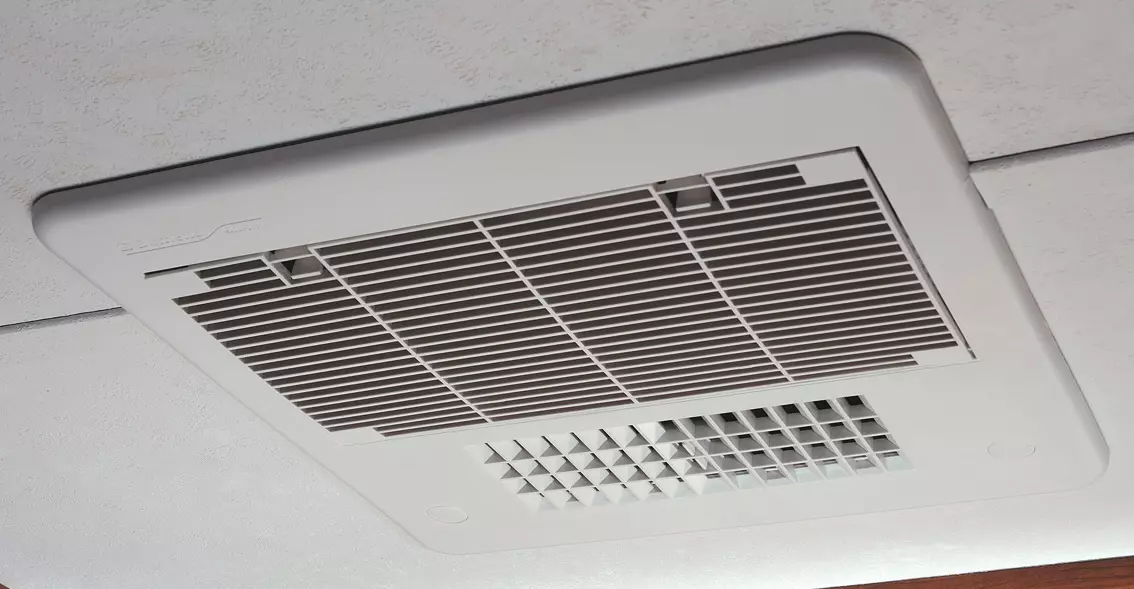

  • 13,500 BTU ceiling ducted high efficiency roof air
  • 2.8 KW Gas generator (Only available on gasoline model)

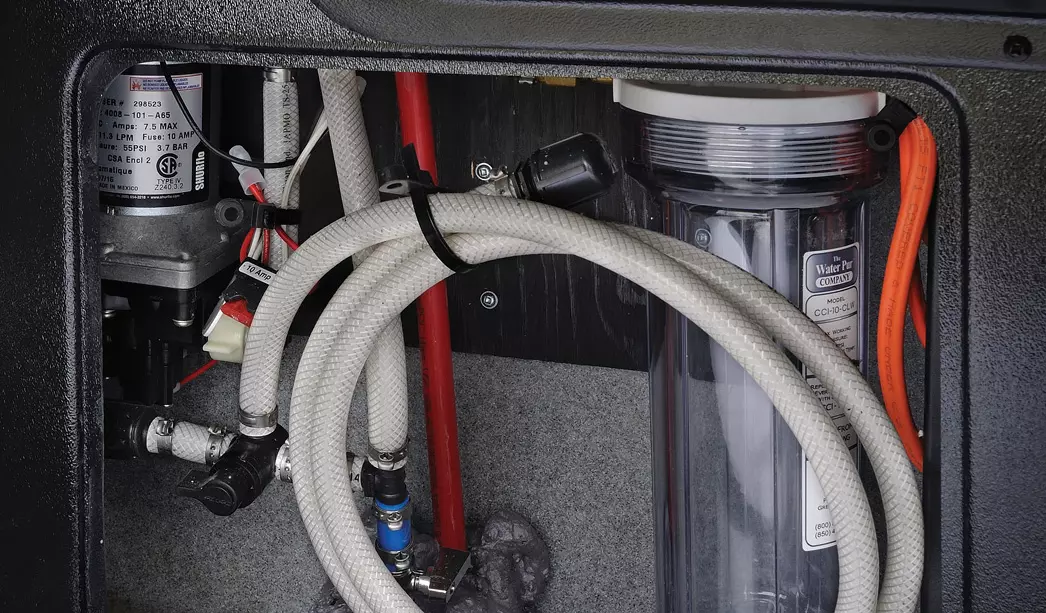

  • Water filtration system
  • CO, LP and smoke detector

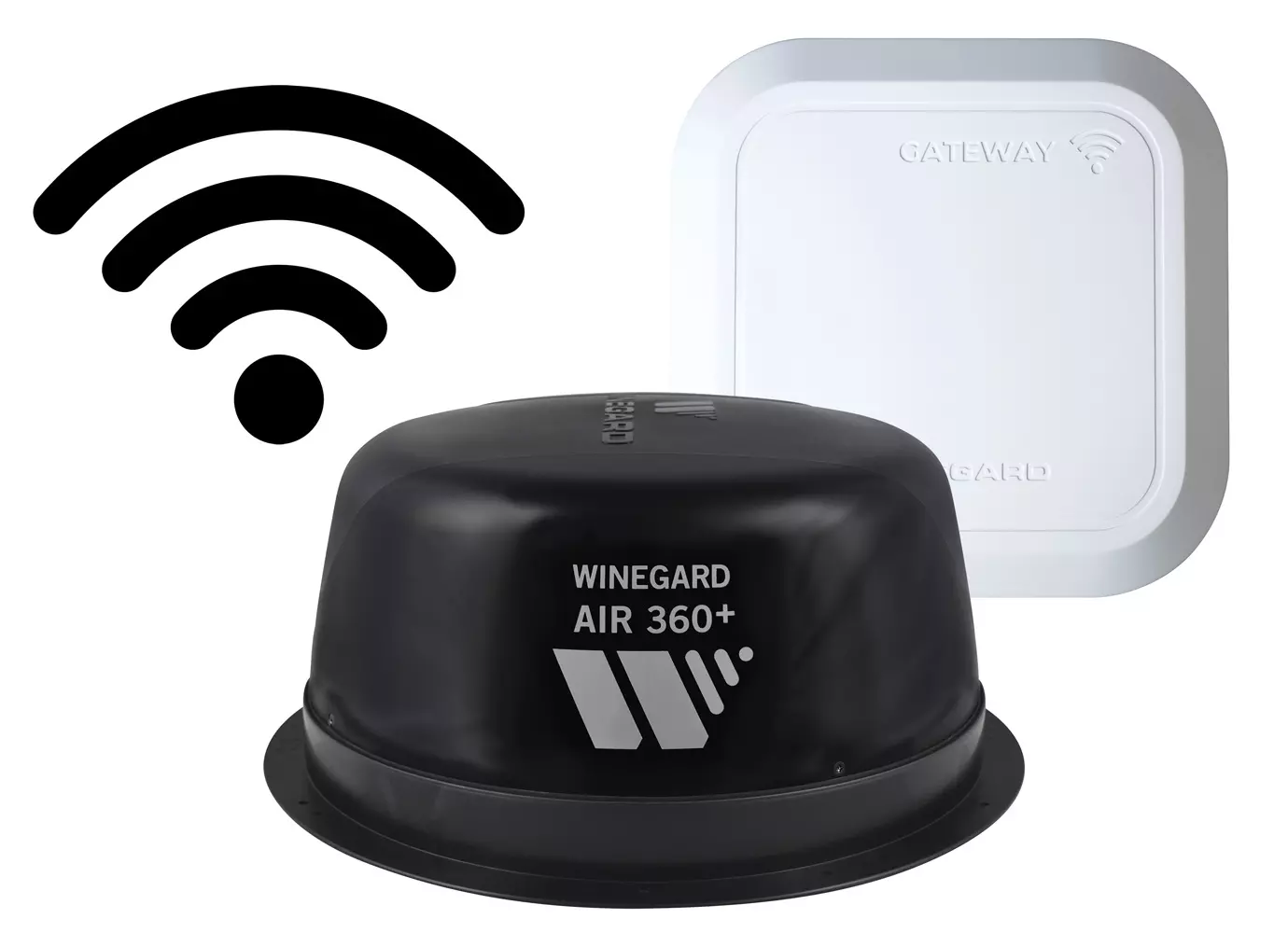

  • Winegard Air 360+ digital antenna
  • Gateway 4G WiFi capability

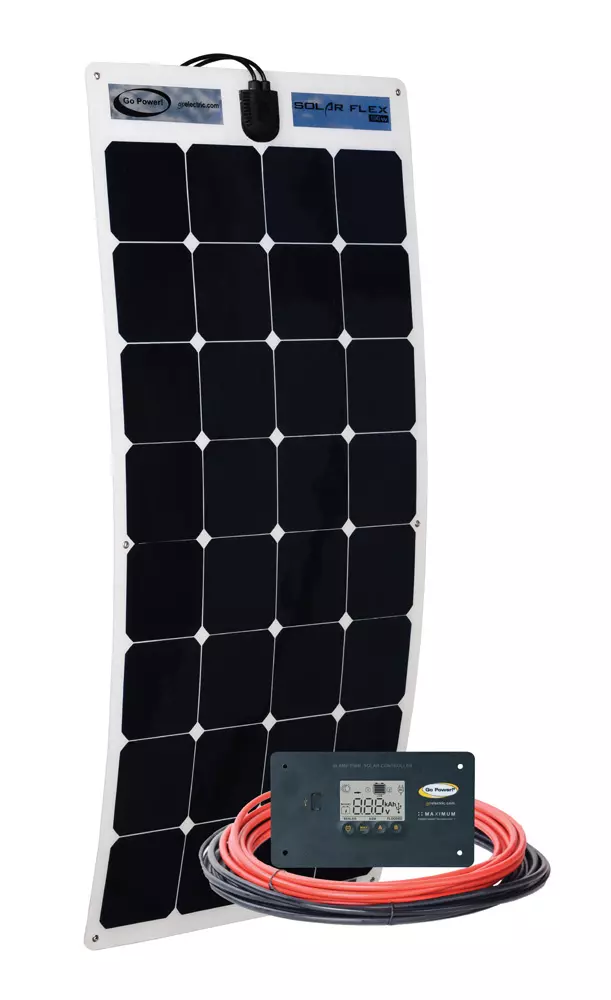

  • Side-mounted solar prep connection (N/A with roof-mounted solar)

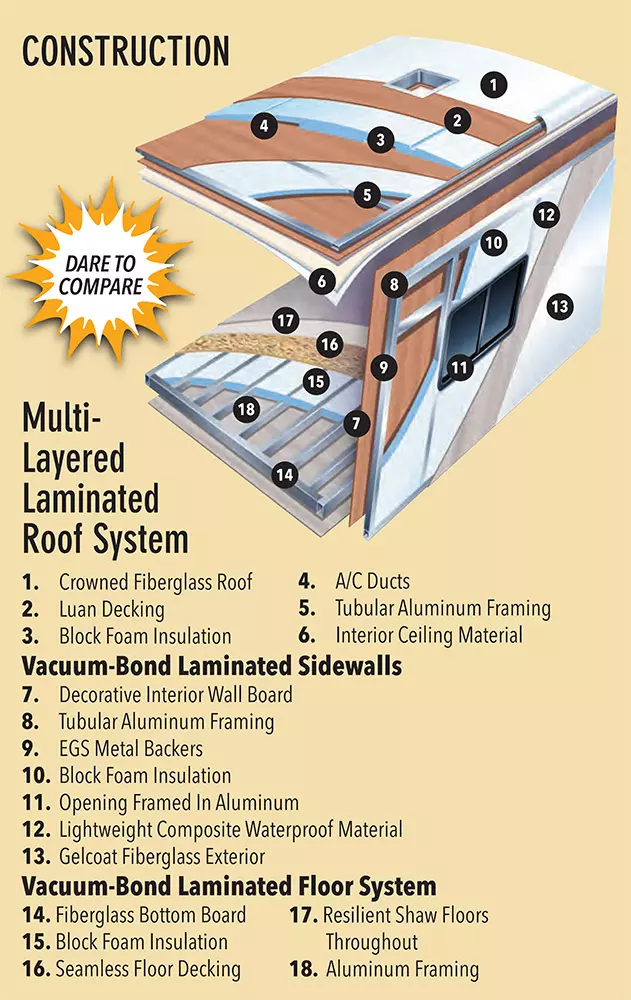

  • 1.5” Aluminum framed laminated sidewalls
  • Superlite composite substrate
  • Gel Coat exterior fiberglass
  • Block foam insulation

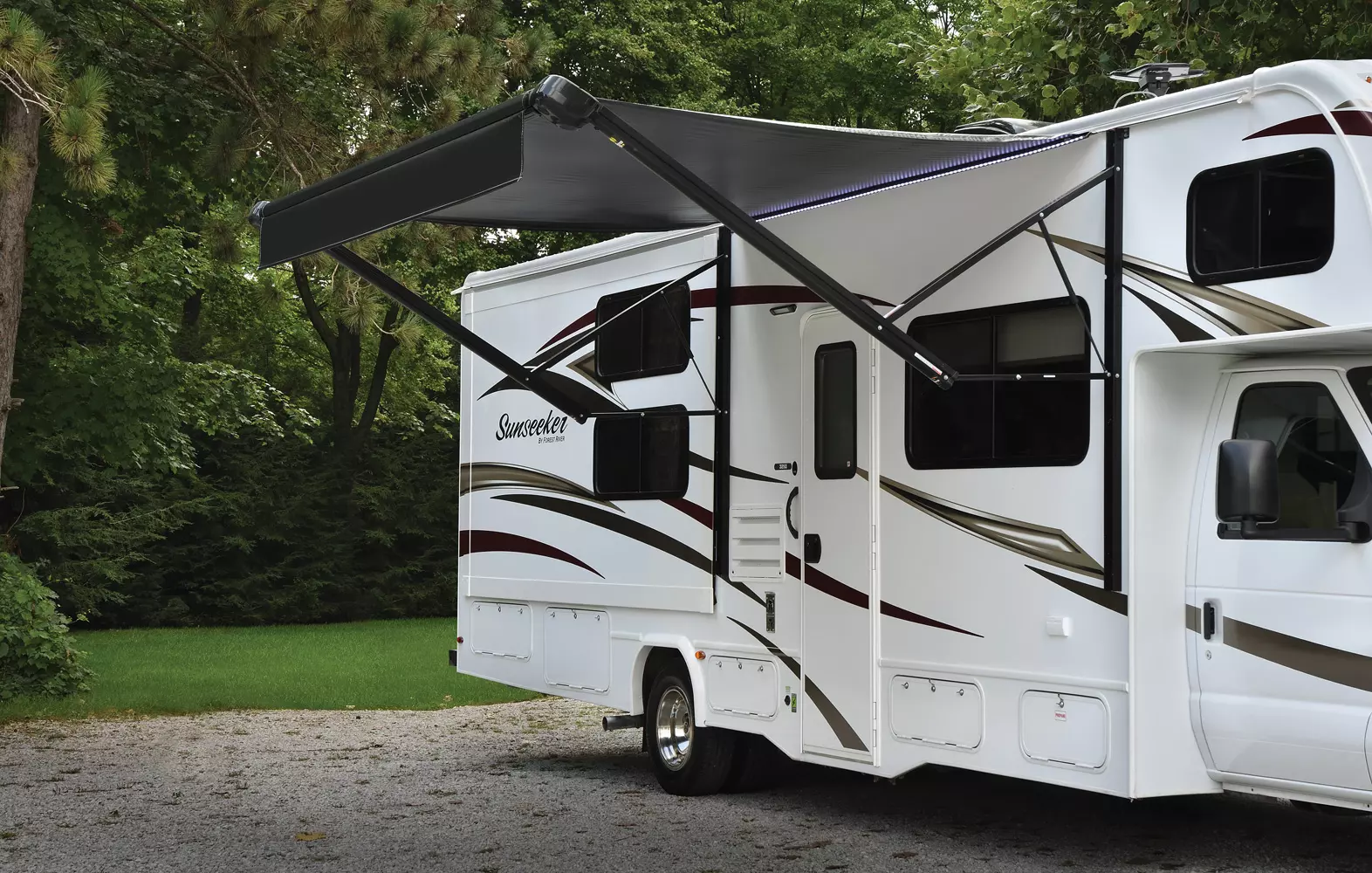

  • Power patio awning with LED light strip
  • Slide-out awnings

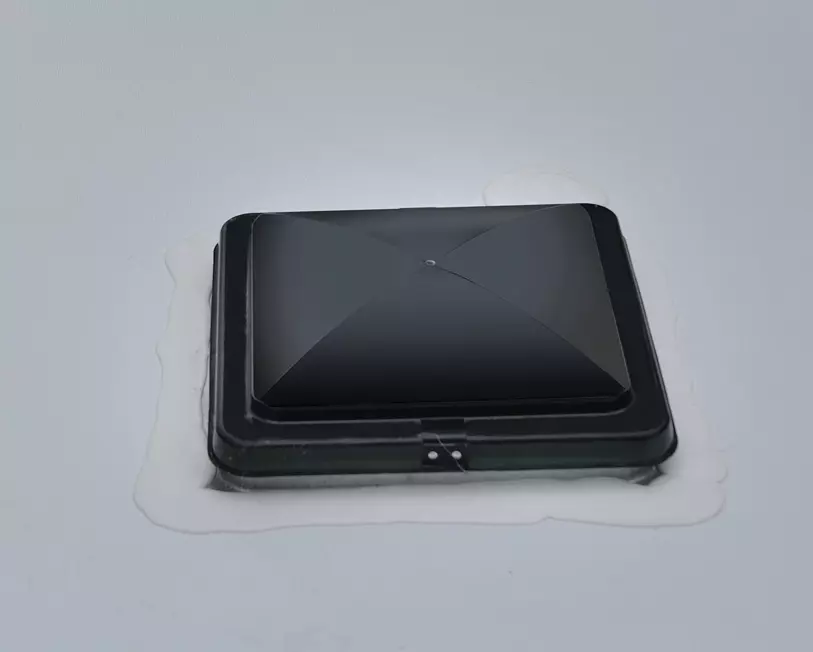

  • Fiberglass roof
  • One-piece fiberglass front cap
  • Roto-cast storage compartments
  • Fiberglass running boards
  • Tinted frameless windows
  • Spare tire

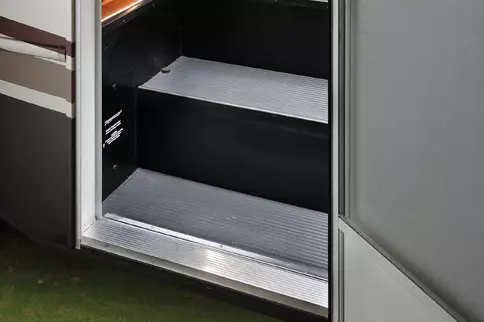

  • Integrated entry step
  • LP quick connect
  • Outside shower
  • Black tank flush
  • 9” Touch screen CarPlay/Android radio with USB and Bluetooth
  • Power windows and door locks
  • Keyless entry
  • Color back-up camera with rear view monitor
  • Side view cameras
  • Swivel driver seat (Ford only)
  • Swivel passenger seat (Ford only)
  • Recessed 2-burner range with flush glass cover
  • 0.9 Cu. ft. convection microwave

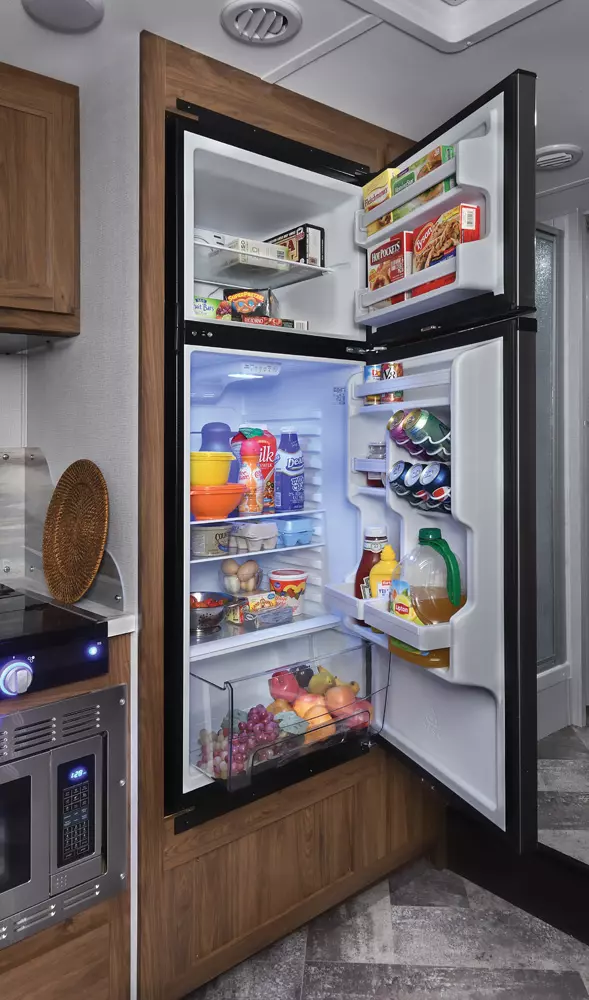

  • 5.3 Cu. ft. lightweight LP/Electric 110V refrigerator
  • Soft touch self-closing drawer guides
  • Electric roof fan

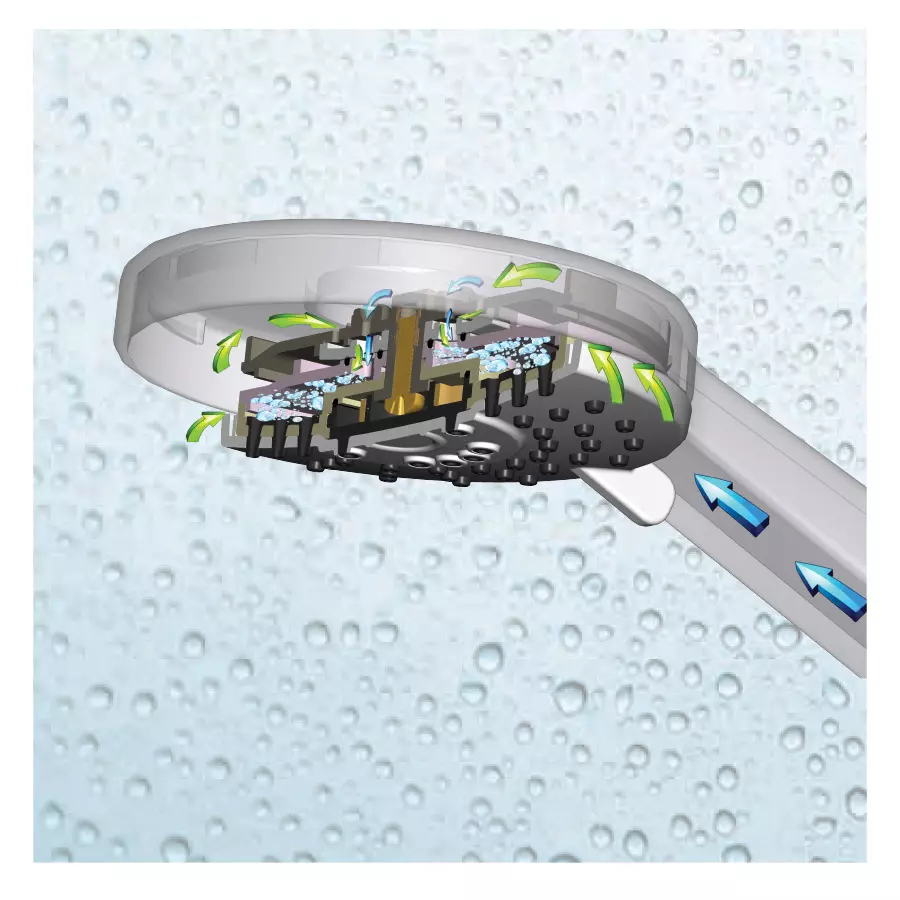

  • Oxygen-infused shower head with flexible extension
  • Motion sensor light
  • Shower skylight
  • Black-out roller shades
  • 12V Bedroom TV
  • Black out roller shades
  • 12V LED flat panel adjustable side TV

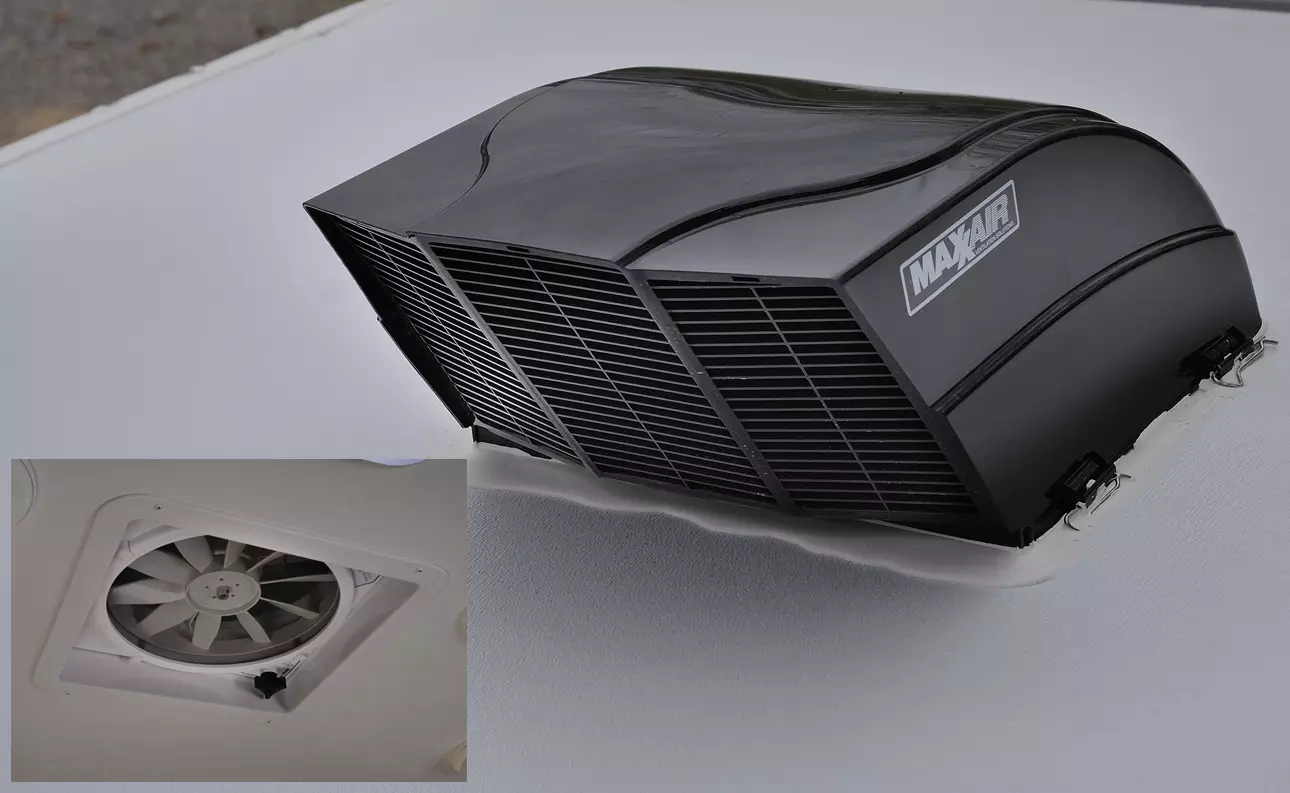

  • Maxx Air multi-speed power fan with cover

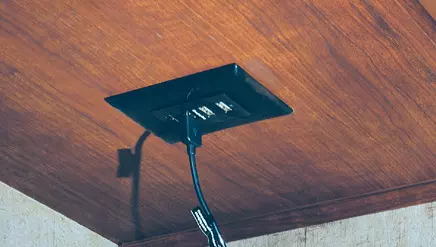

  • 12V USB charging station


Virtual Tours

  • TS2370

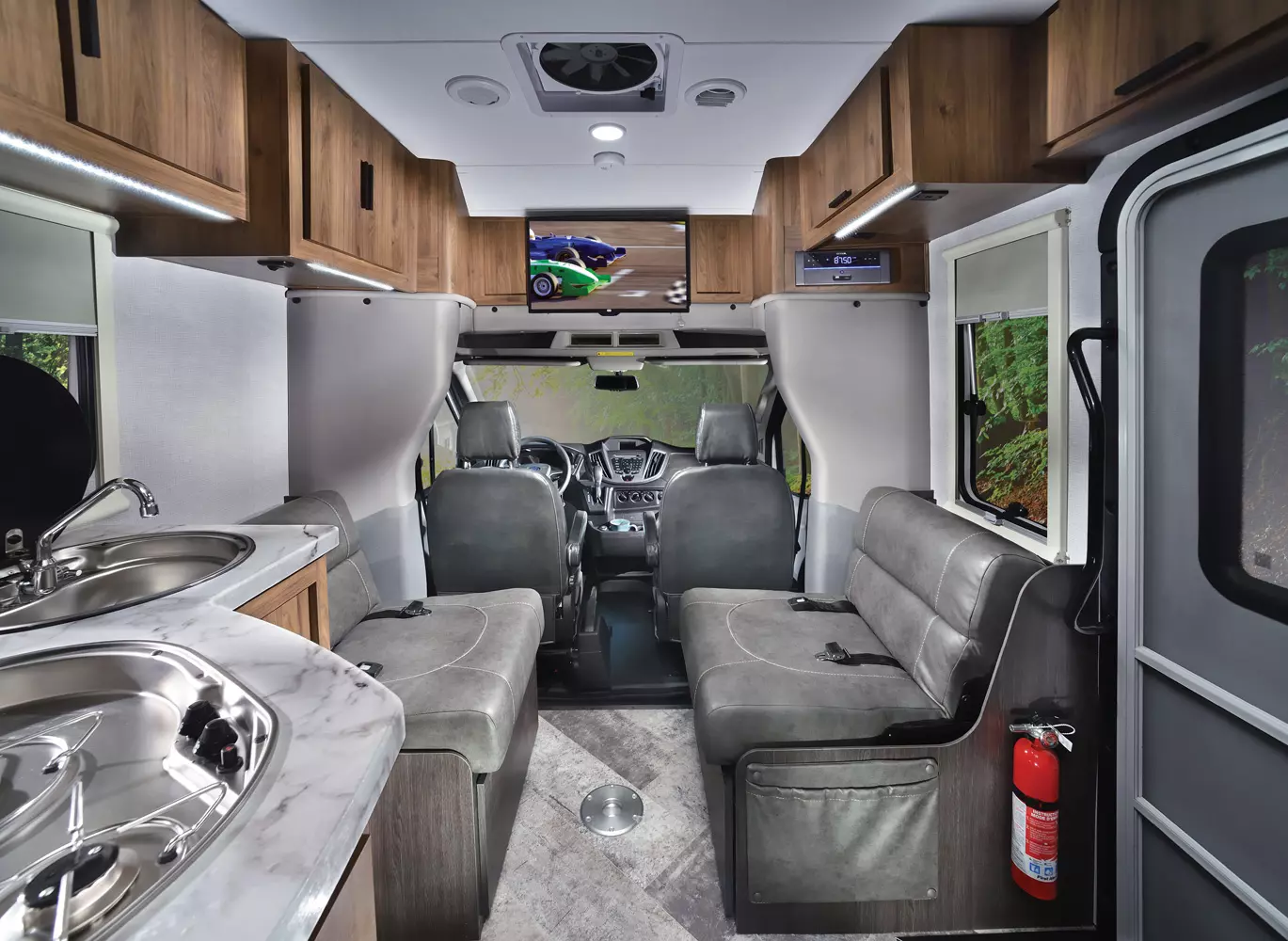

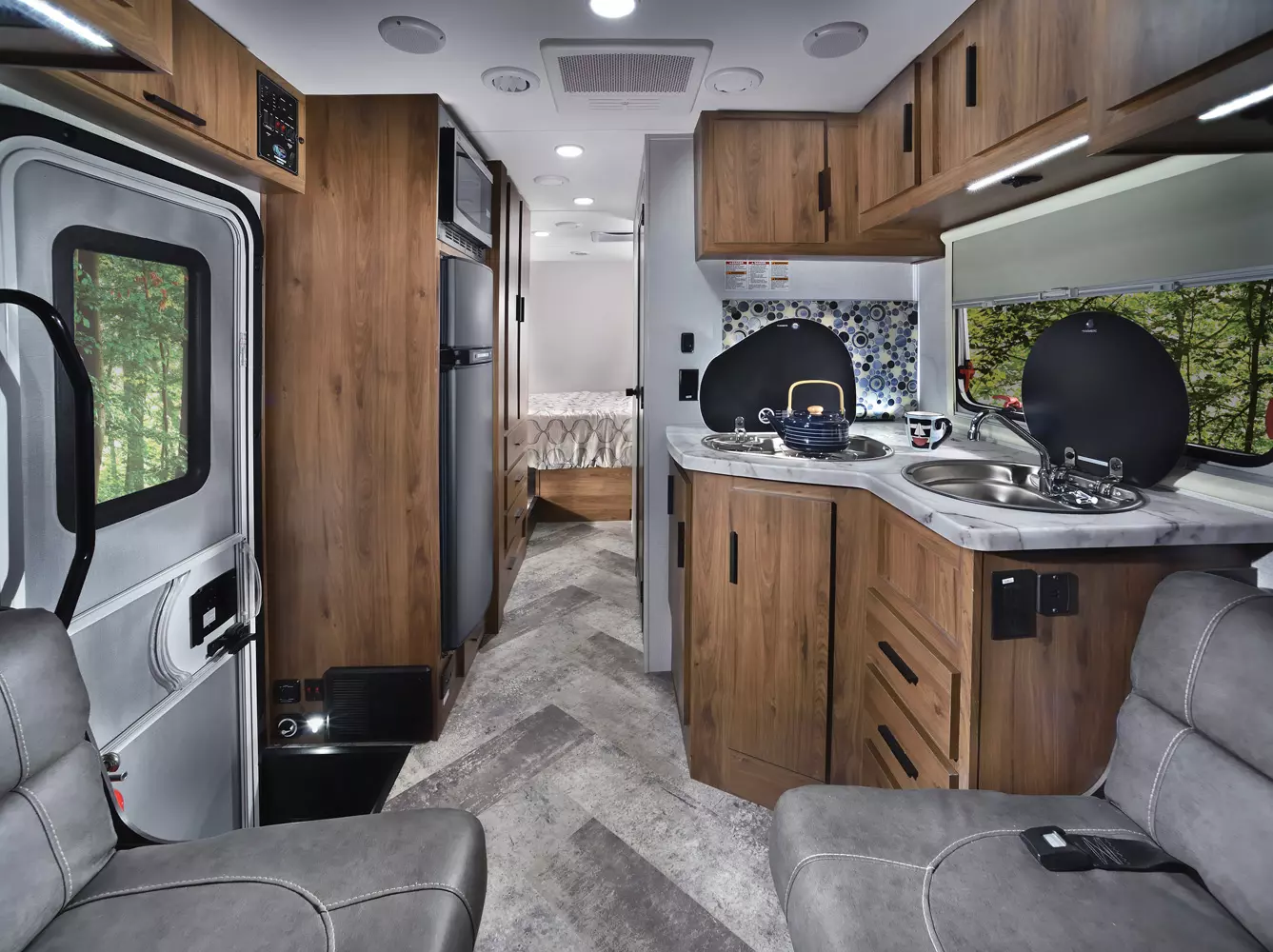

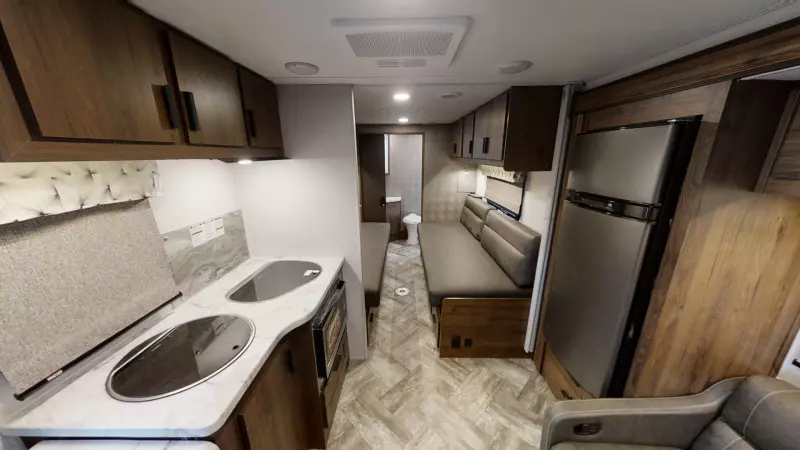

    TS2370 Main Room
  • TS2380
    TS2380 Main Room
