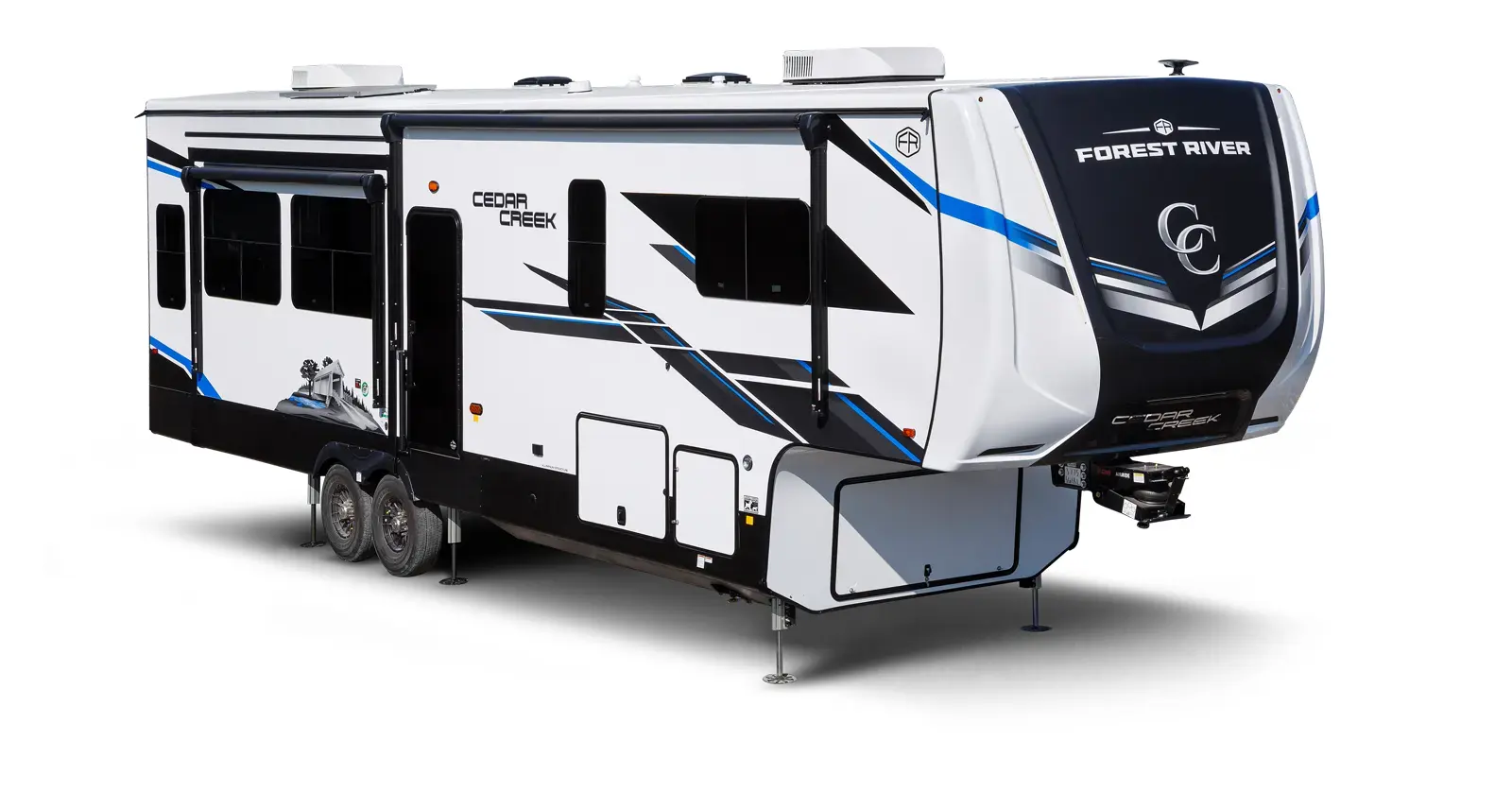

Cedar Creek Fifth Wheels

Cedar Creek is dedicated to enhancing the joy of the outdoors and your peace of mind, by building better quality recreational vehicles designed to withstand rugged road conditions and extreme temperatures. Experience Cedar Creek – see where the road leads and enjoy what life has to offer.

Coming Soon to a Dealer Near You! The Smart Choice for the Experienced RVer


RV Business 2021 Top RV DebutCare Camps, fighting cancer and making memories

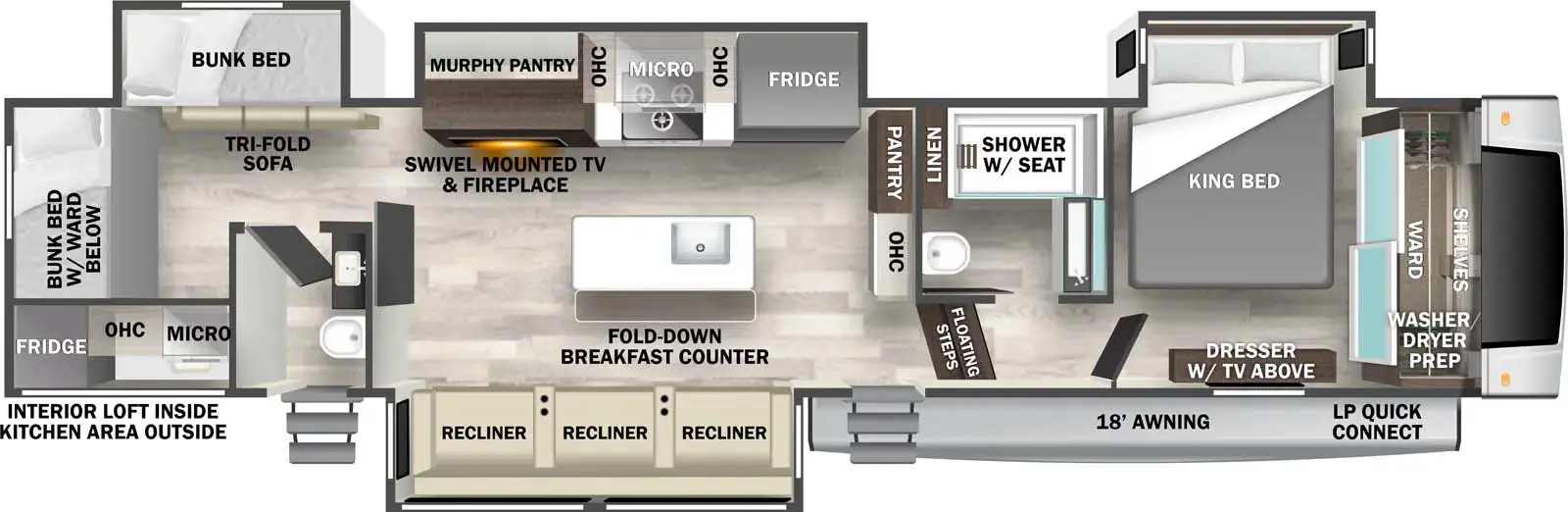

Floorplans

Print

Fifth Wheels
Dealer Stock Only


Specifications

Print

Floorplan: 291RW : Fifth Wheels 311RL : Fifth Wheels 345IK : Fifth Wheels 360RL : Fifth Wheels 371FL : Fifth Wheels 375BHO : Fifth Wheels 375RD : Fifth Wheels 377BH : Fifth Wheels 385TH : Fifth Wheels 388RK2 : Fifth Wheels 388WDM : Fifth Wheels 355LF - DSO : Dealer Stock Only 377OF - DSO : Dealer Stock Only 388DB - DSO : Dealer Stock Only 388RK - DSO : Dealer Stock Only
Hitch Weight:2,350 lb.2,435 lb.2,190 lb.2,525 lb.2,615 lb.TBDTBD2,135 lb.3,176 lb.2,205 lb.2,115 lb.2,050 lb.2,170 lb.2,220 lb.2,100 lb.
GVWR:14,350 lb.14,435 lb.16,190 lb.16,525 lb.16,615 lb.TBDTBD16,135 lb.18,000 lb.18,205 lb.18,115 lb.16,050 lb.16,170 lb.18,000 lb.18,000 lb.
UVW:11,414 lb.11,244 lb.12,224 lb.13,134 lb.13,564 lb.TBDTBD12,679 lb.14,190 lb.12,439 lb.13,144 lb.13,324 lb.13,359 lb.13,064 lb.12,868 lb.
CCC:2,936 lb.3,191 lb.3,966 lb.3,391 lb.3,051 lb.TBDTBD3,456 lb.3,810 lb.5,766 lb.4,971 lb.2,726 lb.2,811 lb.4,936 lb.5,132 lb.
Exterior Length:34' 7"37' 0"38' 10"40' 7"41' 11"TBDTBD42' 5"42' 4"42' 0"41' 6"40' 11"40' 8"40' 3"40' 4"
Exterior Height:13' 5"13' 5"13' 5"13' 5"13' 5"TBDTBD13' 5"13' 5"13' 5"13' 5"13' 5"13' 5"13' 5"13' 5"
Exterior Width:96"96"96"96"96"TBDTBD96"96"96"96"96"96"96"96"
Fresh Water:57.00 gal.57.00 gal.57.00 gal.57.00 gal.57.00 gal.TBDTBD57.00 gal.57.00 gal.57.00 gal.57.00 gal.57.00 gal.57.00 gal.57.00 gal.57.00 gal.
Gray Water:82.00 gal.82.00 gal.82.00 gal.82.00 gal.82.00 gal.TBDTBD82.00 gal.82.00 gal.82.00 gal.82.00 gal.82.00 gal.82.00 gal.82.00 gal.82.00 gal.
Black Water:41.00 gal.41.00 gal.41.00 gal.41.00 gal.82.00 gal.TBDTBD41.00 gal.41.00 gal.82.00 gal.82.00 gal.82.00 gal.41.00 gal.82.00 gal.82.00 gal.
Awning Size:18'18'18'18'15' & 15'18'18'21'18'18'TBD21'18'18'18'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

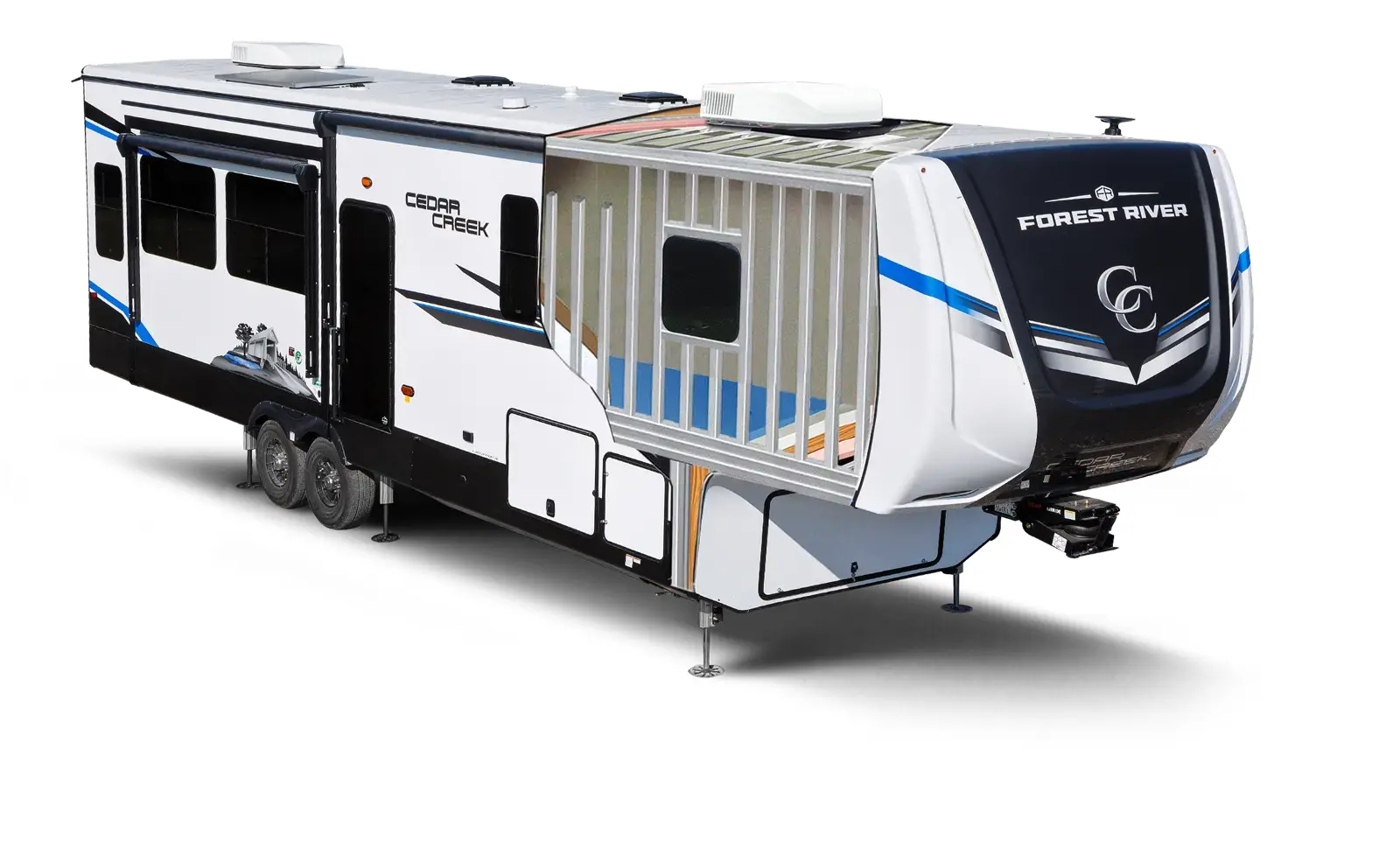

  • Cedar Creek’s Famous All Aluminum Superstructure – 16” on Centers or Less
  • “True” High Gloss Gelcoat Exterior (The Best of the Best in Exteriors)
  • Solid Surface Countertops with Stainless Steel Under-mounted Sinks
  • Animal Leash Latch

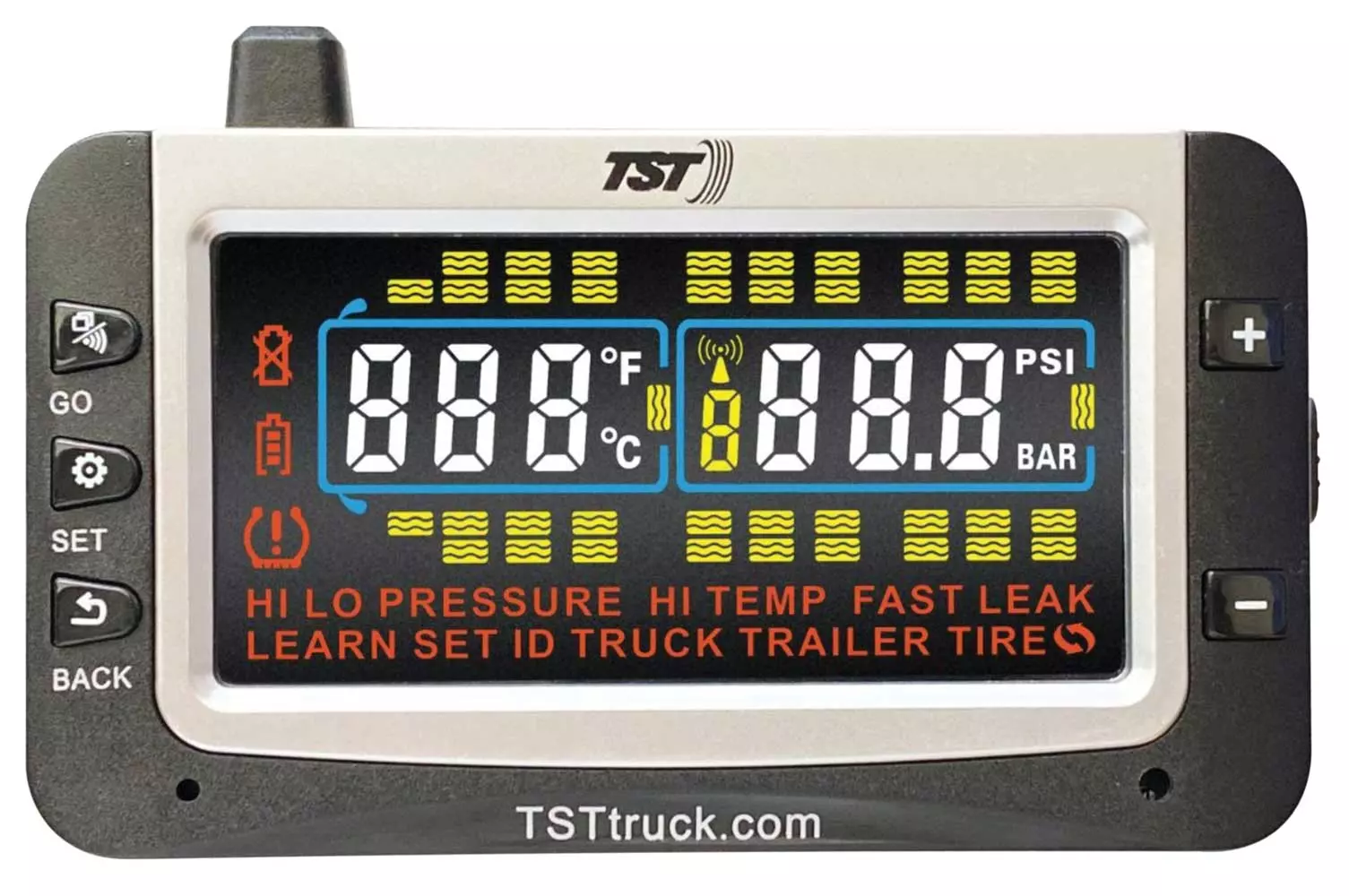

  • Tire Pressure Monitoring System
  • 2” Bike Rack Receiver

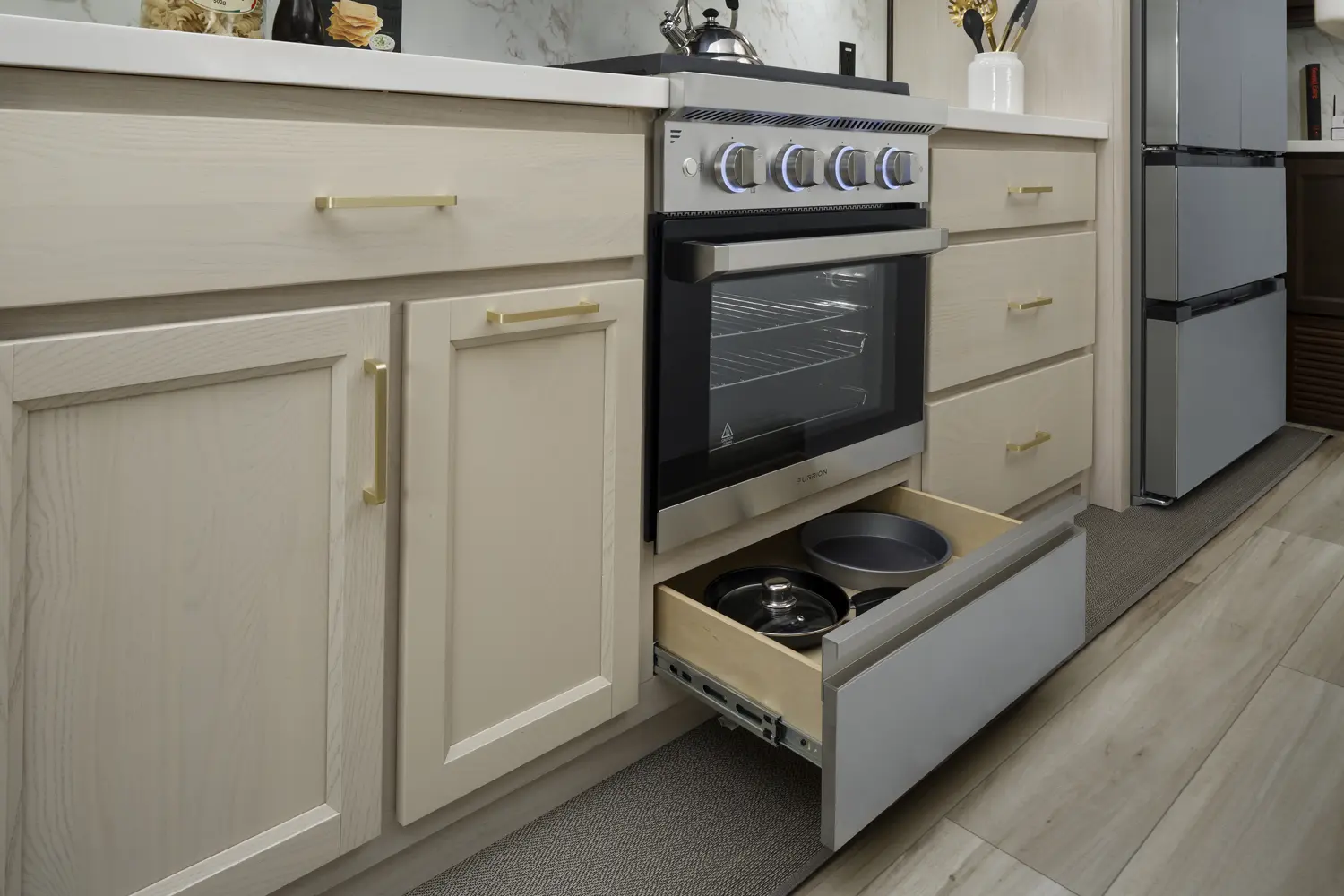

  • Free Standing 24” Gas Range
  • Day/Night Shades
  • Automatic 6-Point Hydraulic Leveling System
  • Quick Disconnect Exterior LP Gas Connection

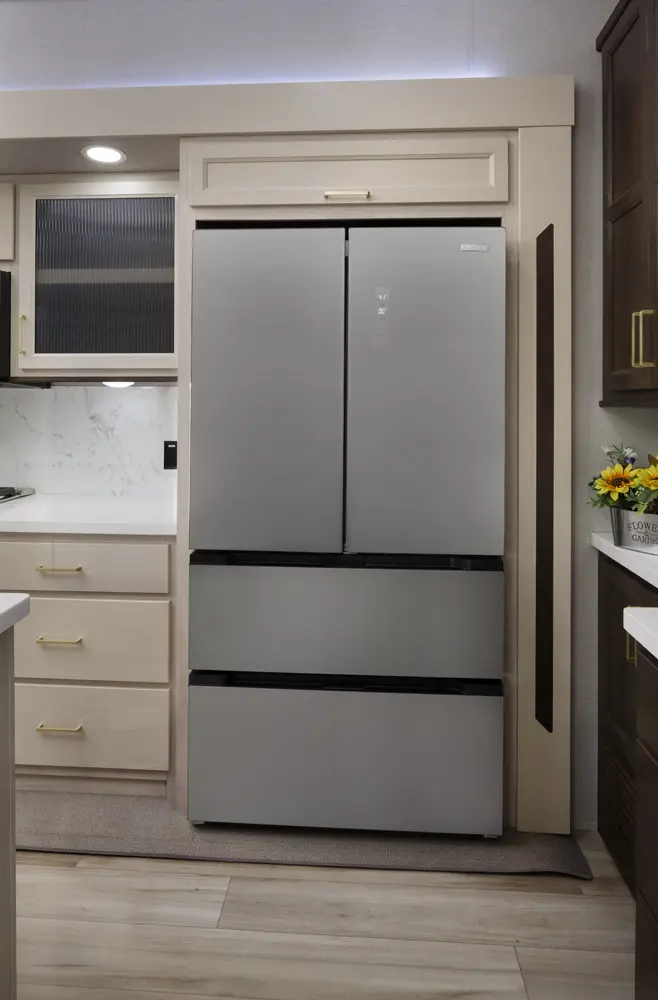

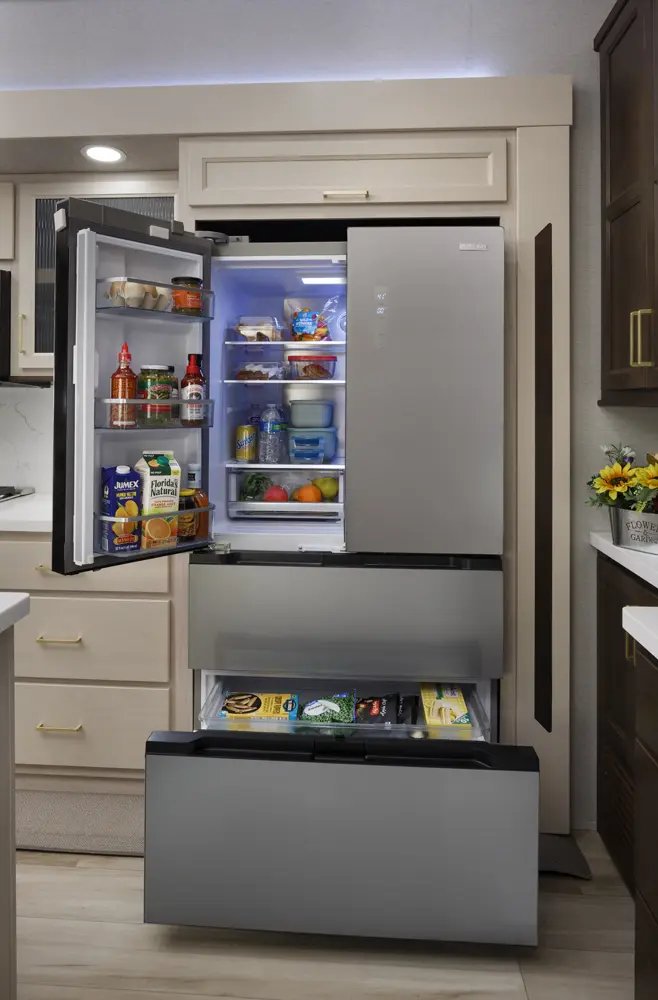

  • 20 Cu. Ft. Stainless Steel Electric Refrigerator with Ice Maker and Dedicated 1000W Inverter

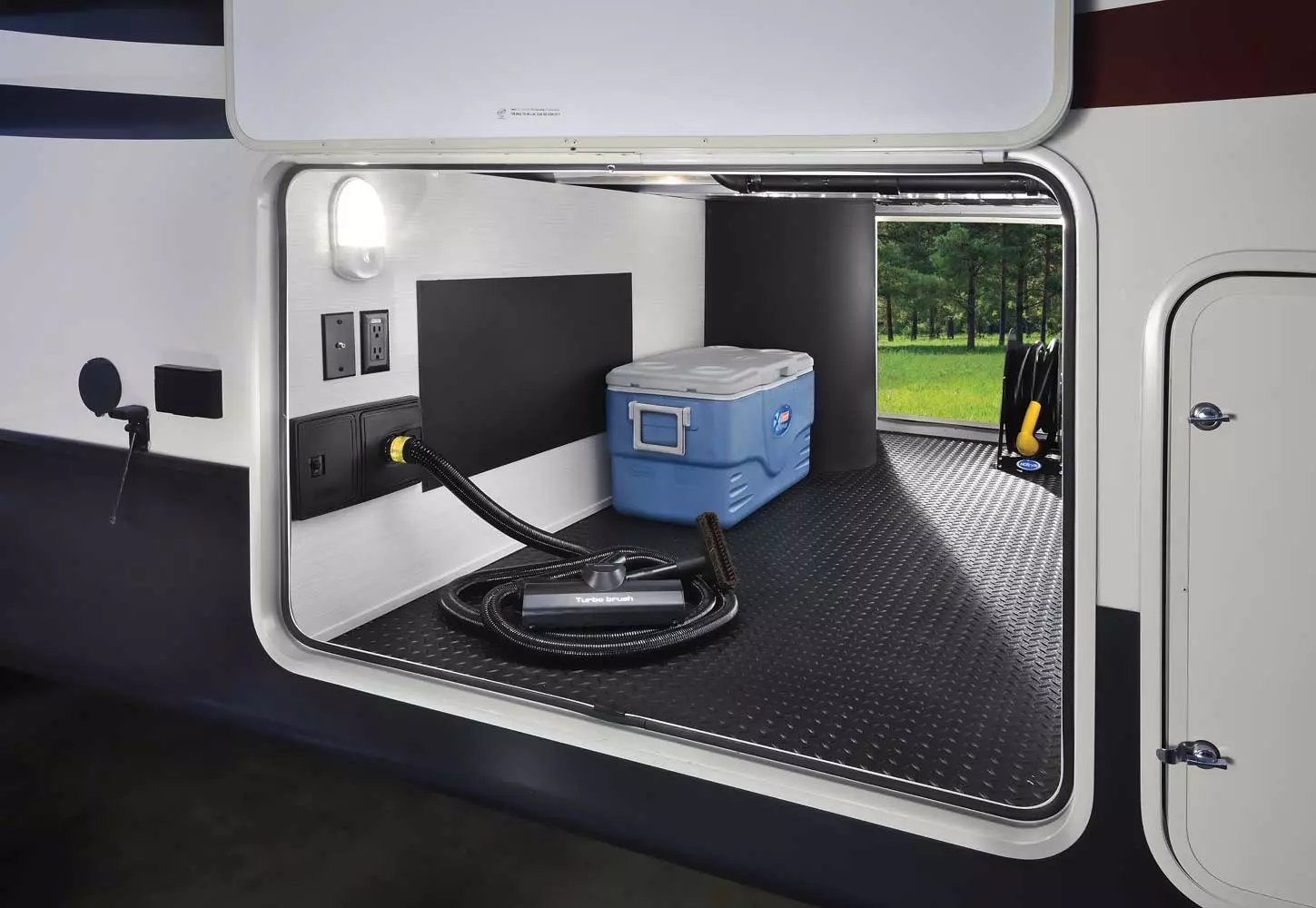

  • Heated Storage Compartment with Diamond Tread Flooring
  • True Gelcoat, Painted, Front Cap
  • Extra Wide 32” Entry Door with a Friction Hinge
  • 5-Tier MorRyde® Easy-Steps™
  • 12 Gallon LP/110V Hot Water Heater with Bypass Kit
  • (2) High Performance (HP) Ducted Air Conditioners with Dual Zone Control and Cold Air Returns

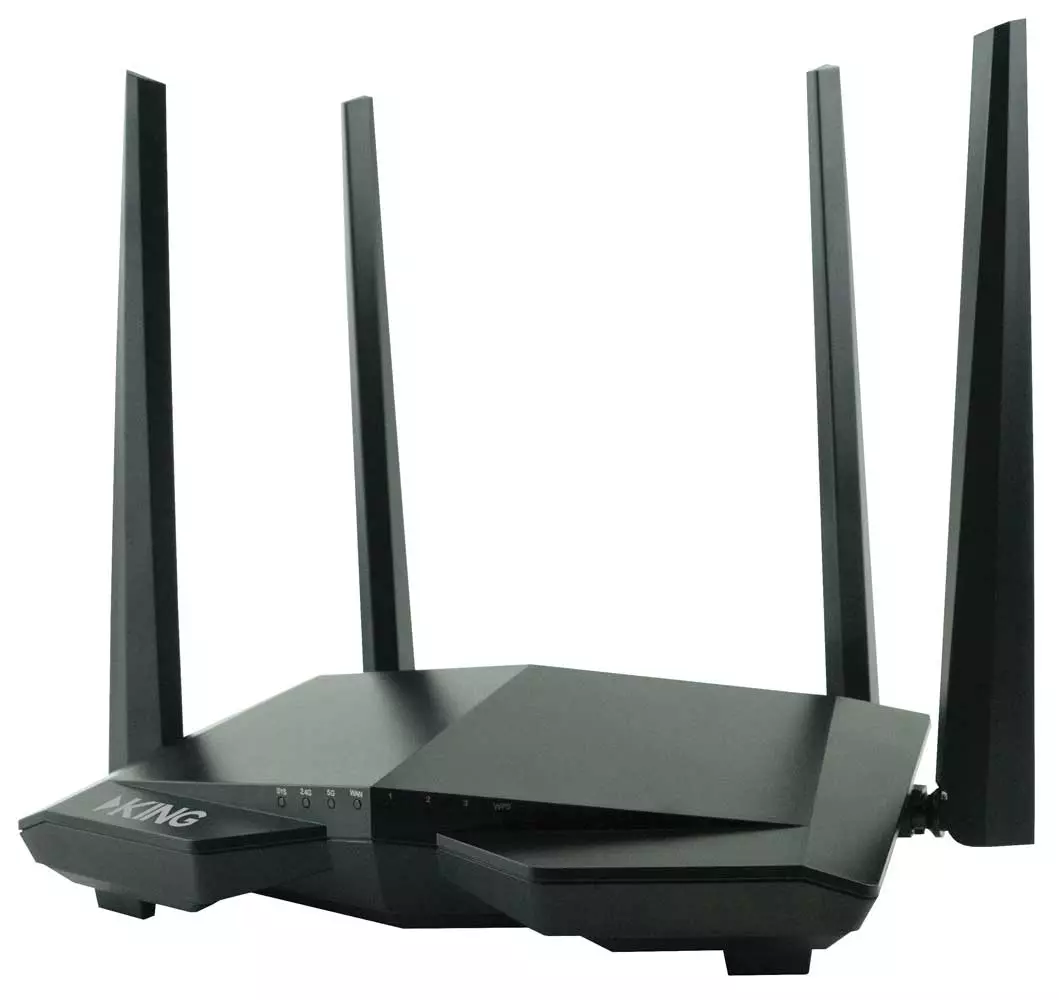

  • King WiFi Router/Range Extender
  • 50” Flat Screen Television with Swing Arm

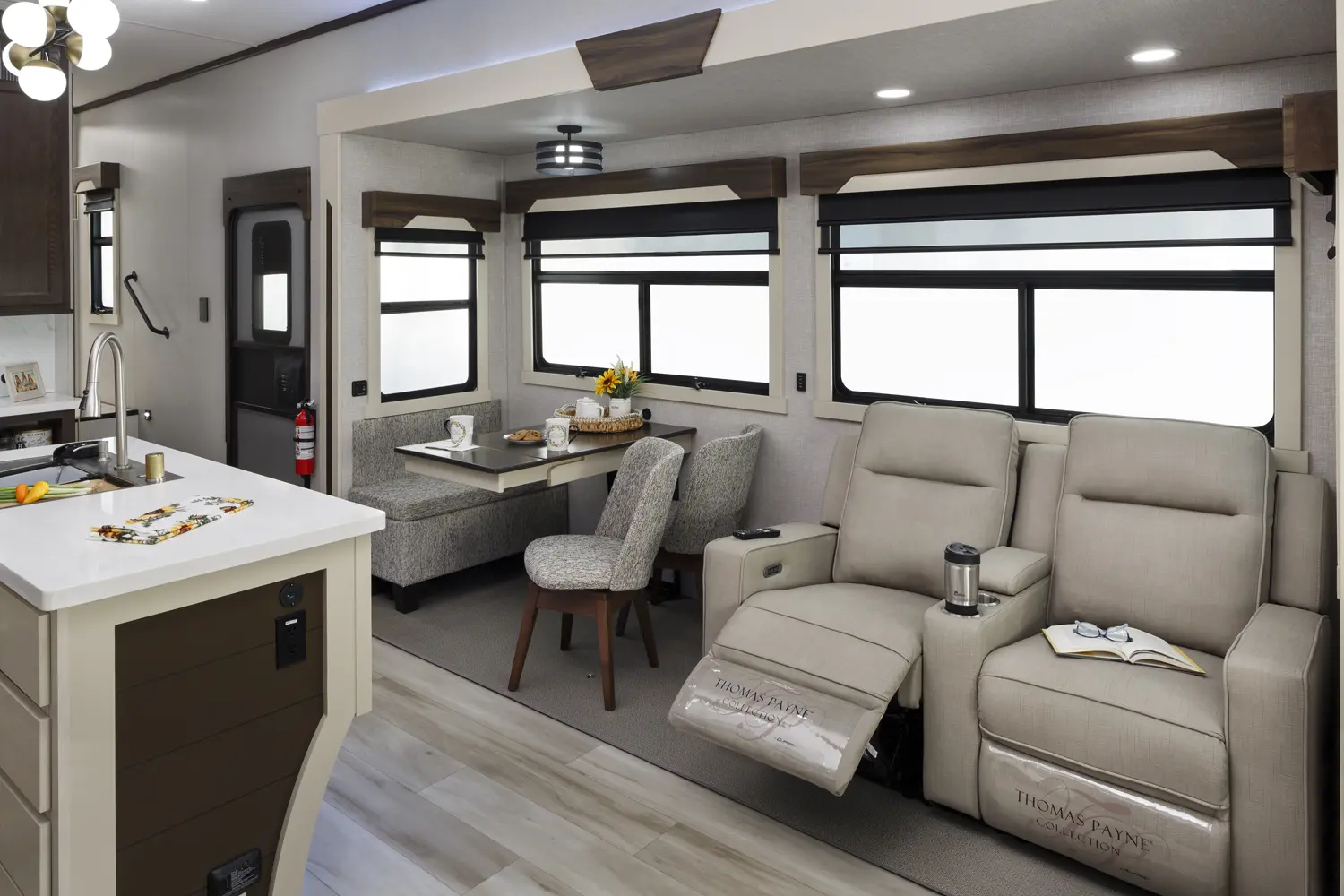

  • Power Theater Seating with USB charging ports
  • Variable Speed, Power Fan with Rain Sensor Override in Kitchen
  • Slam Latch Baggage Doors with Magnetic Catches
  • USB Ports Throughout
  • Prepped for an Optional Washer and Dryer
  • Full Extension Drawer Glides with Self-closing Drawers

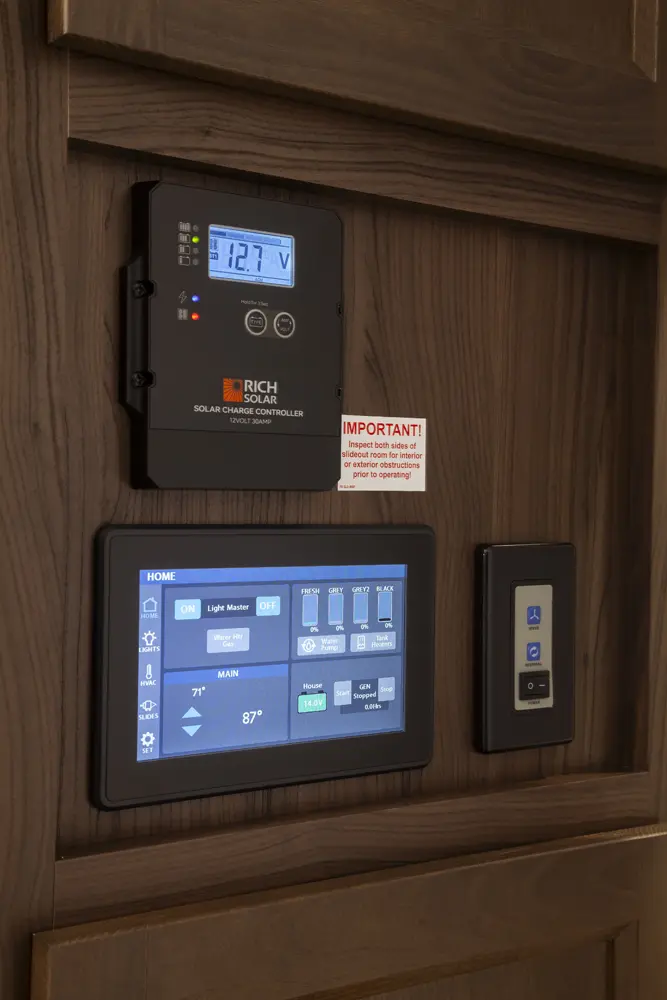

  • Total Unit Control with Vegatouch Panel and Firefly Dimmer Switches that Include Wireless Connectivity to Your Phone

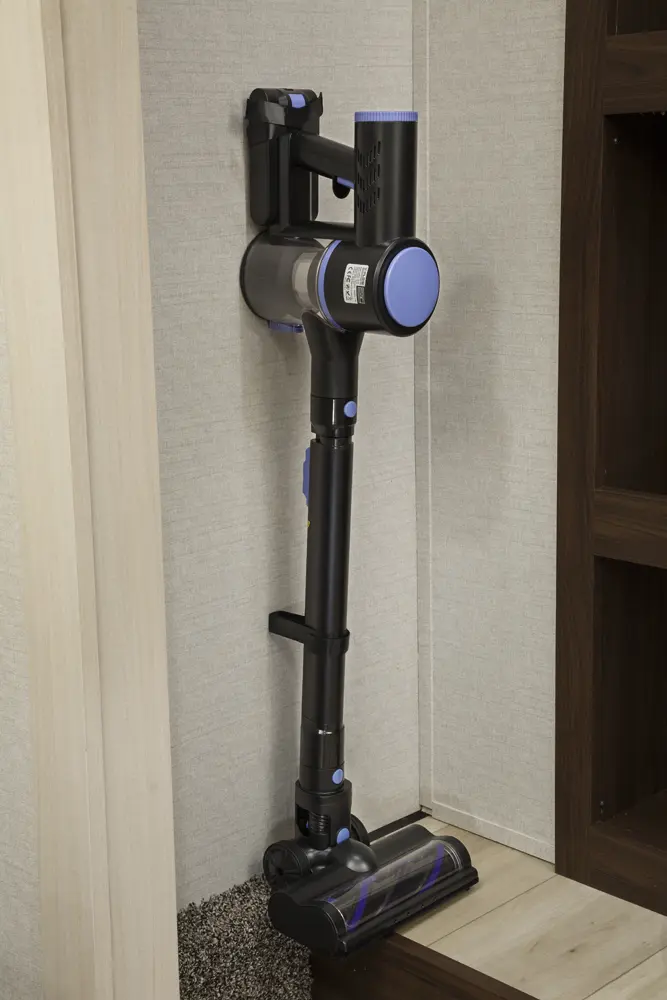

  • Intervac Central Vacuum System with Front Storage Compartment Port and Interior Automatic Dustpan
  • Silaprene® Bonded Sidewalls – resilient, with outstanding resistance to UV, heat, cold, moisture, oils, gasoline, highway chemicals. Creates a bond that grows stronger with age and resists delamination.

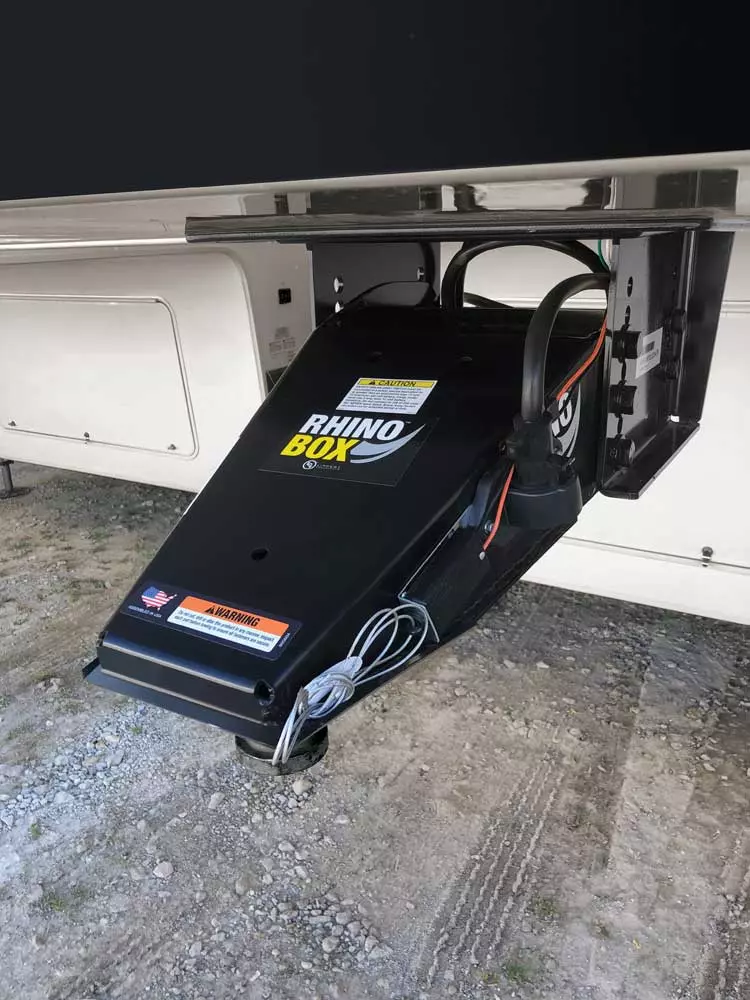

  • 21,000 Lb. Rhino Box Hitch
  • Dexter Performance and Safety Package
  • Dexter Heavy Duty Axles with E-Z Lube™ Hubs

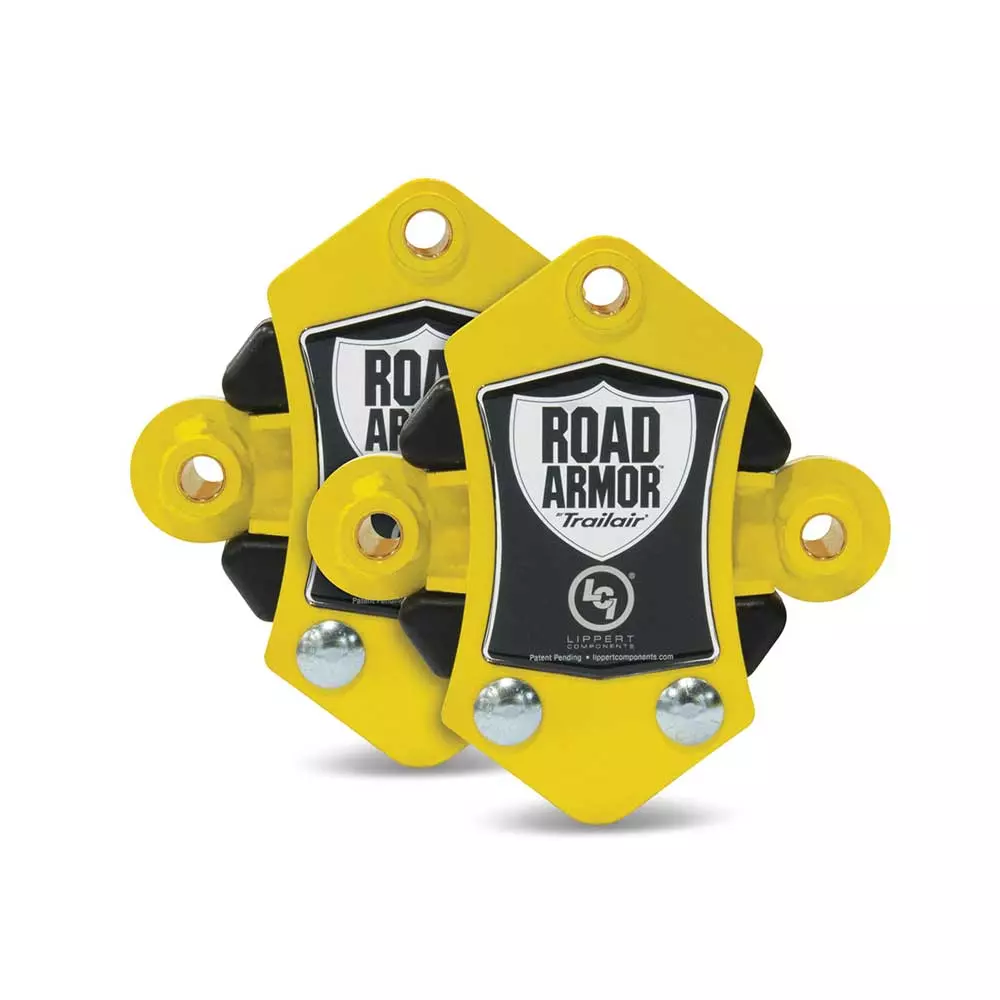

  • Trailair Road Armor Tandem Axle Kit with Bronze Bushings
  • Z-frame with Metal Wrapped Skirting to the Frame
  • Frameless, Tinted Automotive Style Windows
  • Lionshead Special Trailer (ST) Tires with “No Excuses” One Year Guarantee!
  • 4’ x 6’ ABS, Ribbed, Removable Underbelly Panels
  • Full, Walk-on Roof with Tufflex PVC Roof Vinyl

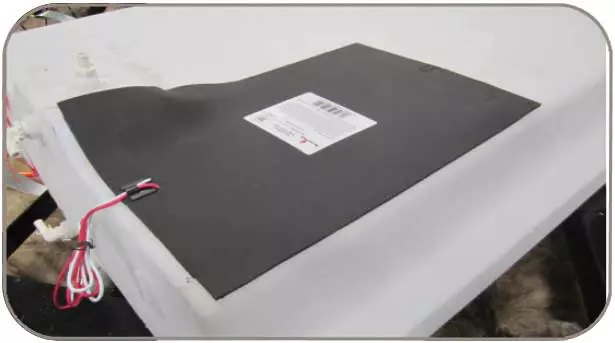

  • 12V Heating Pads on All Black, Grey, and Fresh Water Tanks
  • Black Electric Awning with Upgraded Fabric and LED Night Lights
  • Full Docking Station with Multi-function Tank Levers, Outside Shower, Black Tank Flush, 12V Battery Disconnect
  • Door Side, Cold Water Port
  • 50 Amp Power Cord Reel
  • Mini Outdoor Kitchen area with Mini Fridge and Slide Out Grill (375BHO, 377BH Only)

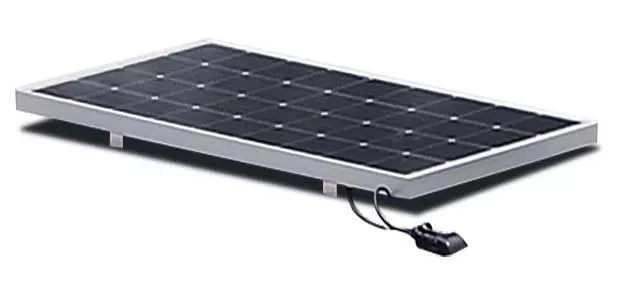

  • 190 Watt Solar Panel
  • One Year of Saferide™ RV Roadside Assistance
  • Free Membership to Forest River Owners Group (F.R.O.G.)
  • 32” Television in the Bedroom
  • 12V AM/FM/DVD Stereo System with (2) Waterproof Exterior Speakers
  • (2) Exterior Satellite and Cable Hook-ups to Bedroom and Living Room
  • Prewired for Satellite to the Roof
  • Ashley Grey Cabinet Doors and Fascia in Kitchen and Living Room

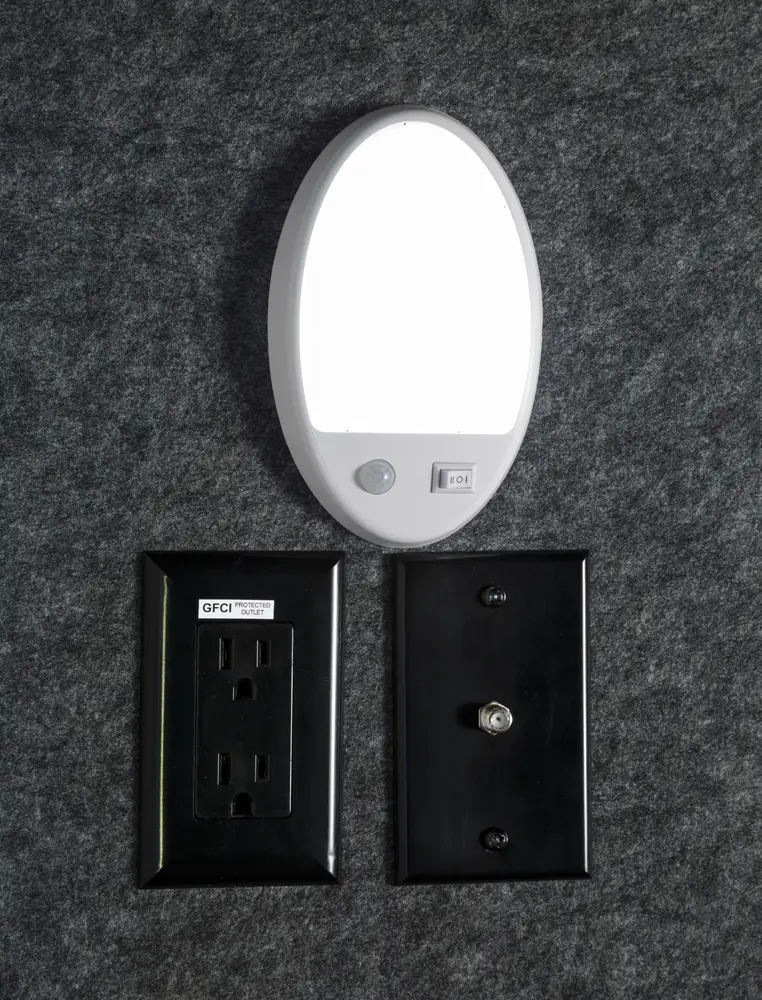

  • LED Lighting Fixtures
  • Kitchen Pantry with Full Extension Pull-out Drawers (Where applicable)

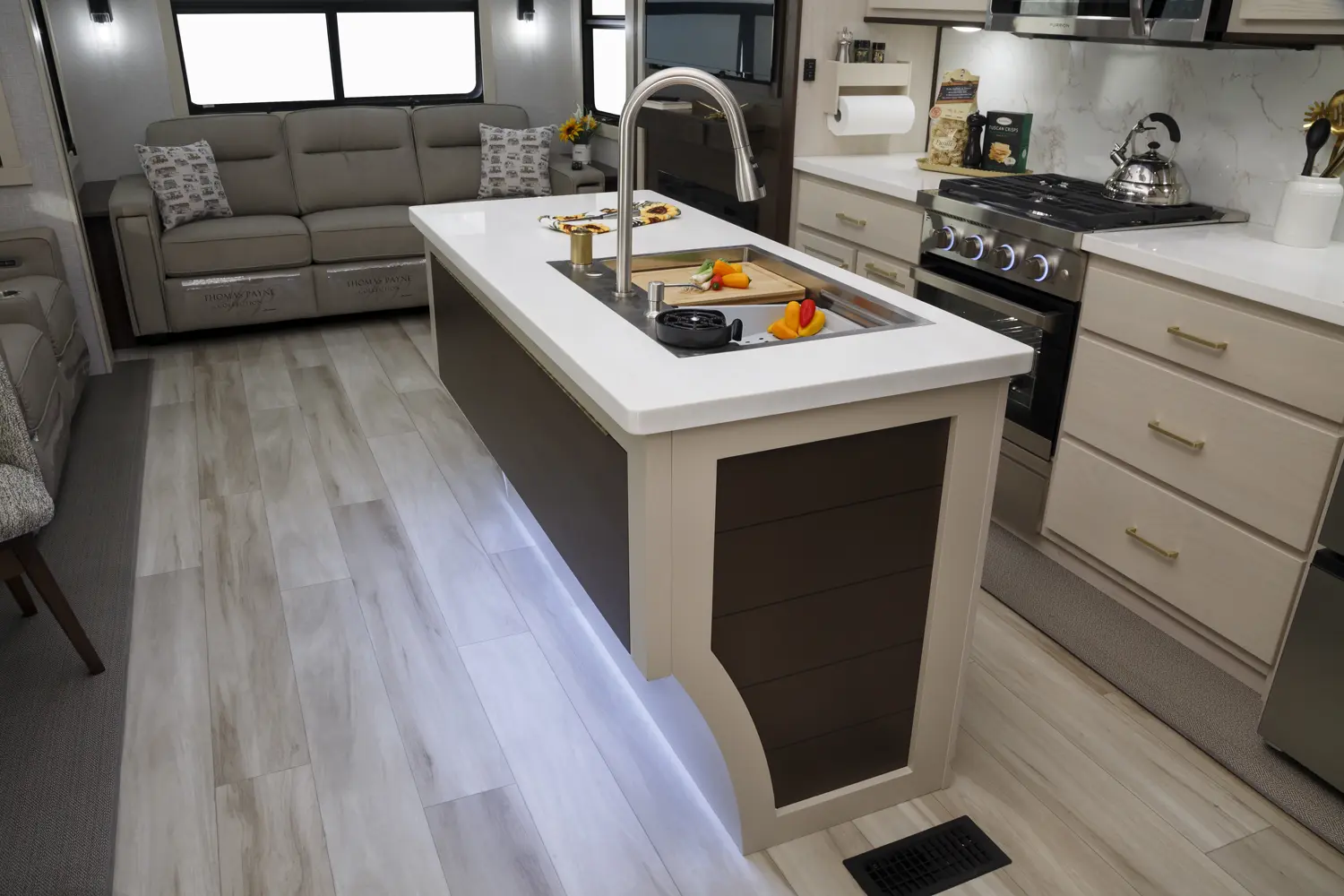

  • Residential, High Top, Swivel, Kitchen Faucet with Pull-out Sprayer
  • Stainless Steel, 30” Over the Range Microwave Oven
  • Full Panel Backsplashes (Where applicable)
  • Backlit Medallion Over the Island

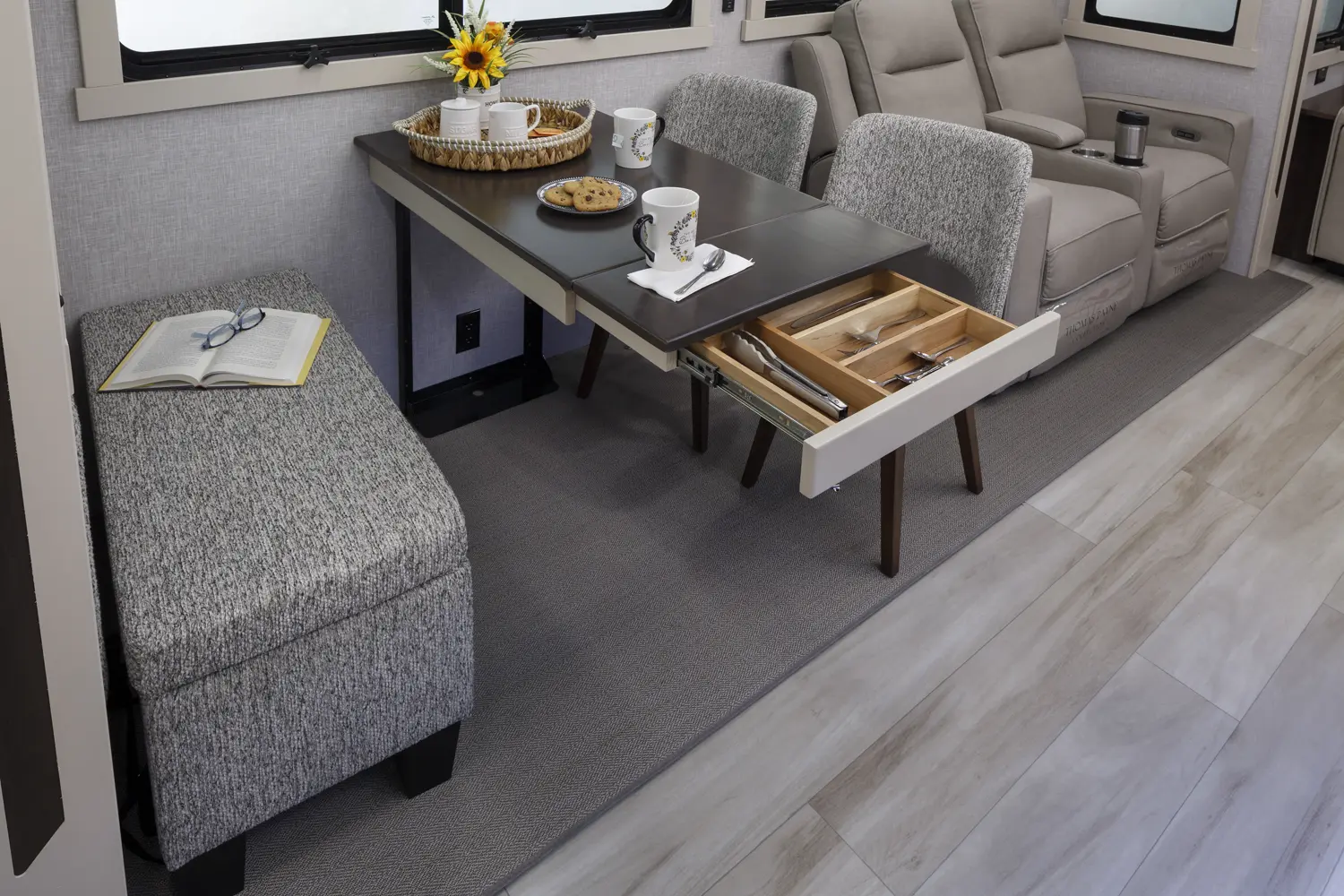

  • Free Standing Table with Center Leaf and (4) Chairs (2 Folding /2 stationary with hidden storage)
  • Congoleum® Flooring throughout the Living Room, Bedroom, and Bath (Carpet mandatory in dining slide)
  • Larger Full View Windows - Every Window Opens for Ventilation
  • Luxury Hide-a-Bed Sofa

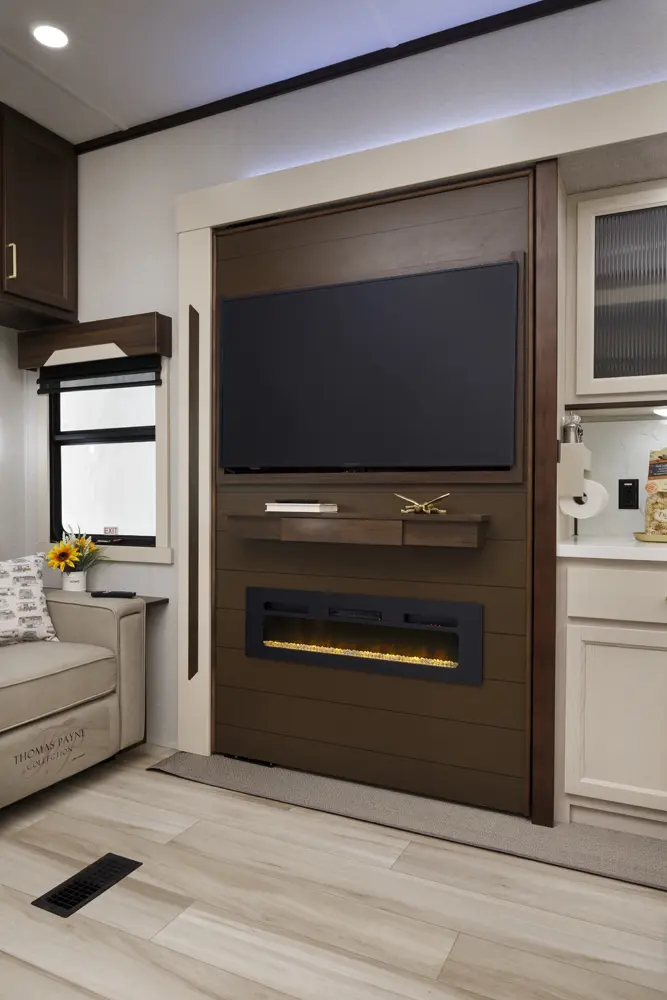

  • 36” Fireplace
  • Congoleum® Flooring (Carpet mandatory in dining slide)

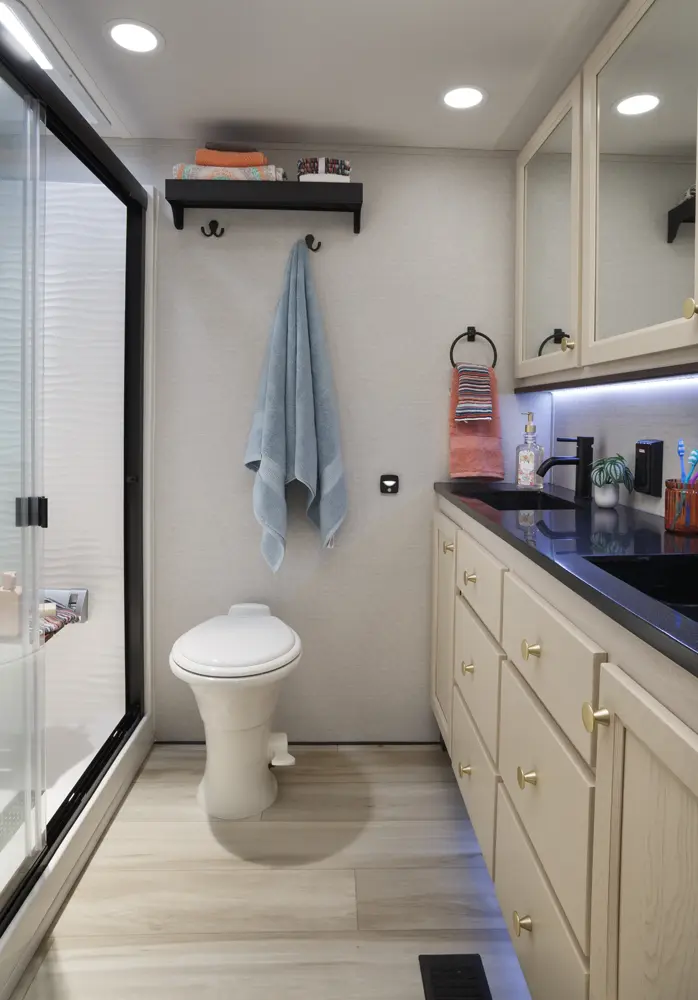

  • Full 48” x 30” Rectangular Shower with Large Seat and Sliding Glass Doors
  • Large Single or Double Faucet Sinks with White Cabinetry
  • Skylight Over the Shower
  • Upgraded Shower Head
  • 18” High Porcelain Toilet with Top Circular Flush System
  • Create-A-Breeze Circulation Fan
  • Convenient Wall Switches for Fan and Lights
  • Extra Storage for Linens
  • LED Night Lighting Under the Vanity
  • Black-out Night Shades (Bedroom only)
  • Individual Reading Lighting Above the Bed
  • USB Plug-ins on Each Side of the King Bed
  • Standard 72” x 80” King Bed (N/A 385TH)
  • Flip-Up Dresser Top with Hidden Storage
  • Storage Area Under the Bed
  • 21,000 Lb. Trailair Air Ride Hitch
  • Dual Pane Frameless, Tinted Windows

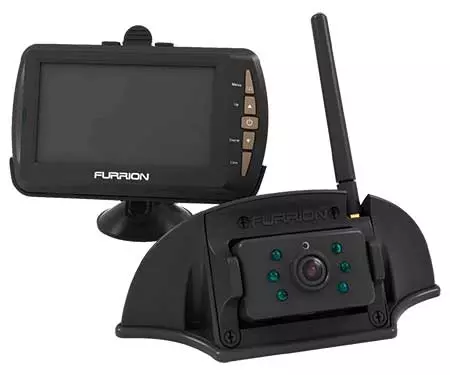

  • Furrion Rear Observation or (4) Camera Security Systems
  • Slide-out Awning Toppers
  • 12’ THULE® Power Awning on Dining Slide (N/A 371FL, 375RD, 385TH)
  • Heat Pump on Main Air Conditioner
  • Truma™ On-Demand Hot Water System
  • Second Go Power Solar Panel
  • Full Body Paint Package
  • LP Generator Prep
  • 5.5K Onan Marquis Gold LP Generator with Prep
  • King, Roof Mounted Satellite – My Dish RV Flexible Programming Including Local Channels
  • 18 Cu. Ft., Stainless Steel, Gas/Electric Refrigerator
  • Optional 30” Convection/Microwave
  • Trackless Shaw® Carpet in the Living Room or Bedroom
  • Dishwasher in the Island (N/A 385TH, 371FL, 388RK2)
  • Booth Dinette (N/A 371FL, 375RD, 385TH, 388RK2)
  • Cedar Creek Outdoor Party Center in Front Storage Compartment (N/A 385TH, 371FL)
  • Upgraded Luxury King Bed
  • Upgraded Luxury Queen Bed
  • Optional Side-by-Side Washer/Dryer
  • Cadet Wall Mounted Heater with Circulation Fan

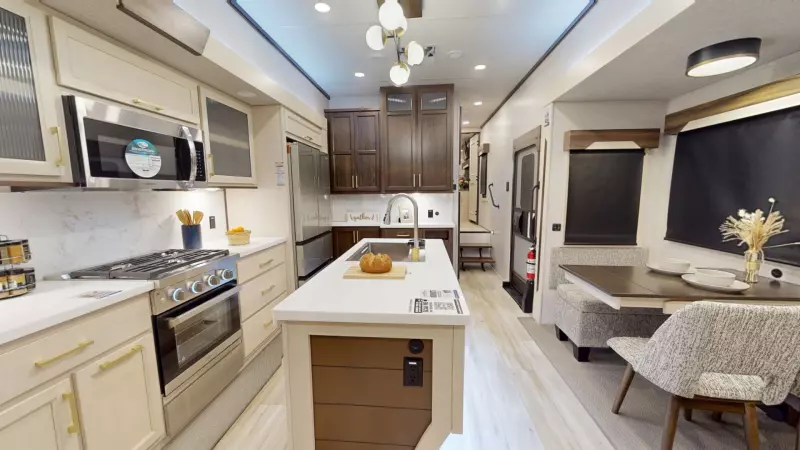

Virtual Tours
