Aurora Travel Trailers

The all-new Aurora has been designed to give customers a superior built trailer that comes packed with industry leading standard features to make your camping experience enjoyable and memorable. Our goal at Aurora is to provide the highest quality product with functional and distinctive features that will help you create memories that last a lifetime. Comfortability, usability, and quality were the core values when the Aurora was designed. We look forward to you joining the Aurora family!

Care Camps, fighting cancer and making memories

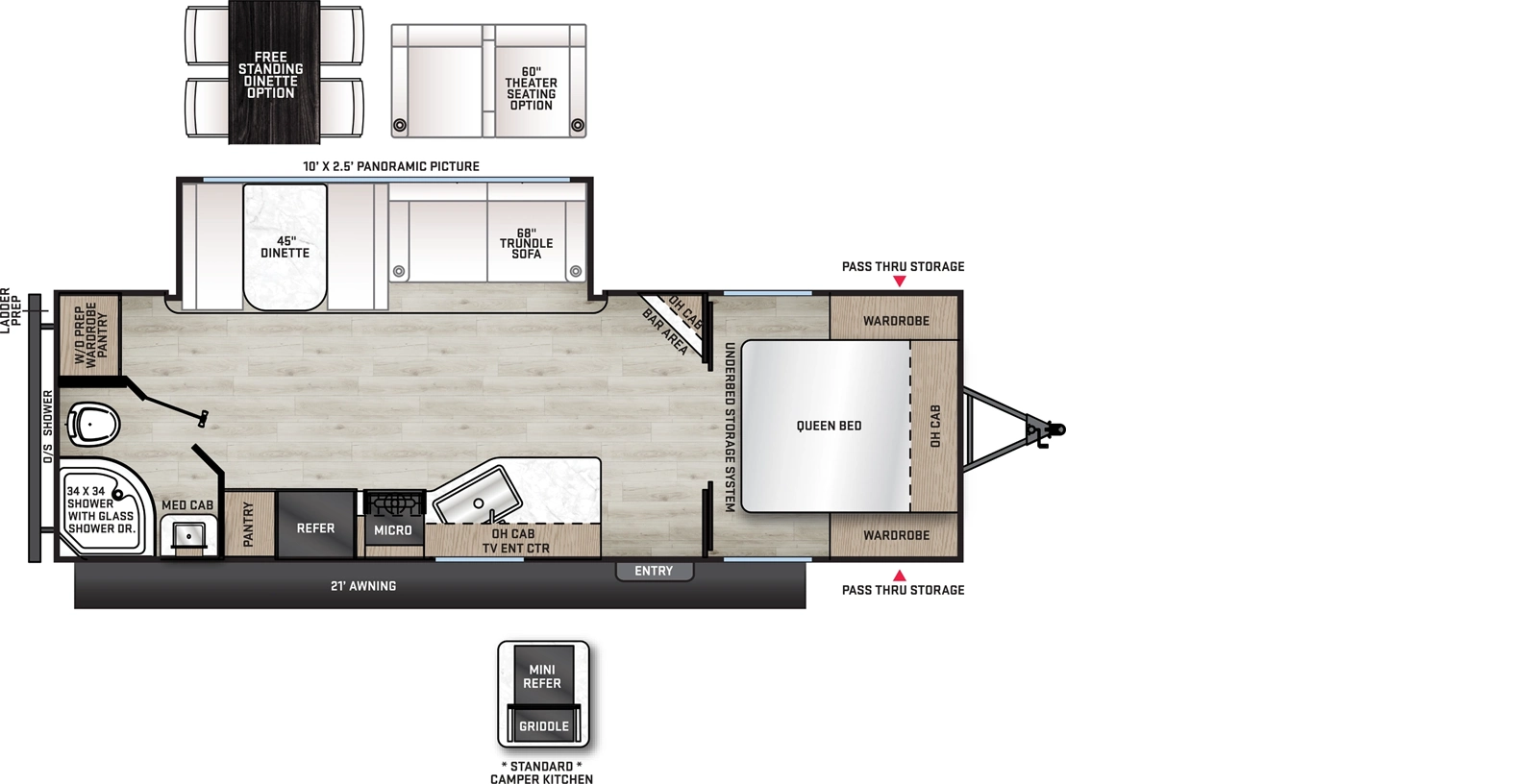

Floorplans

Print

Toy Haulers
Travel Trailers
Temporarily Unavailable


Specifications

Print

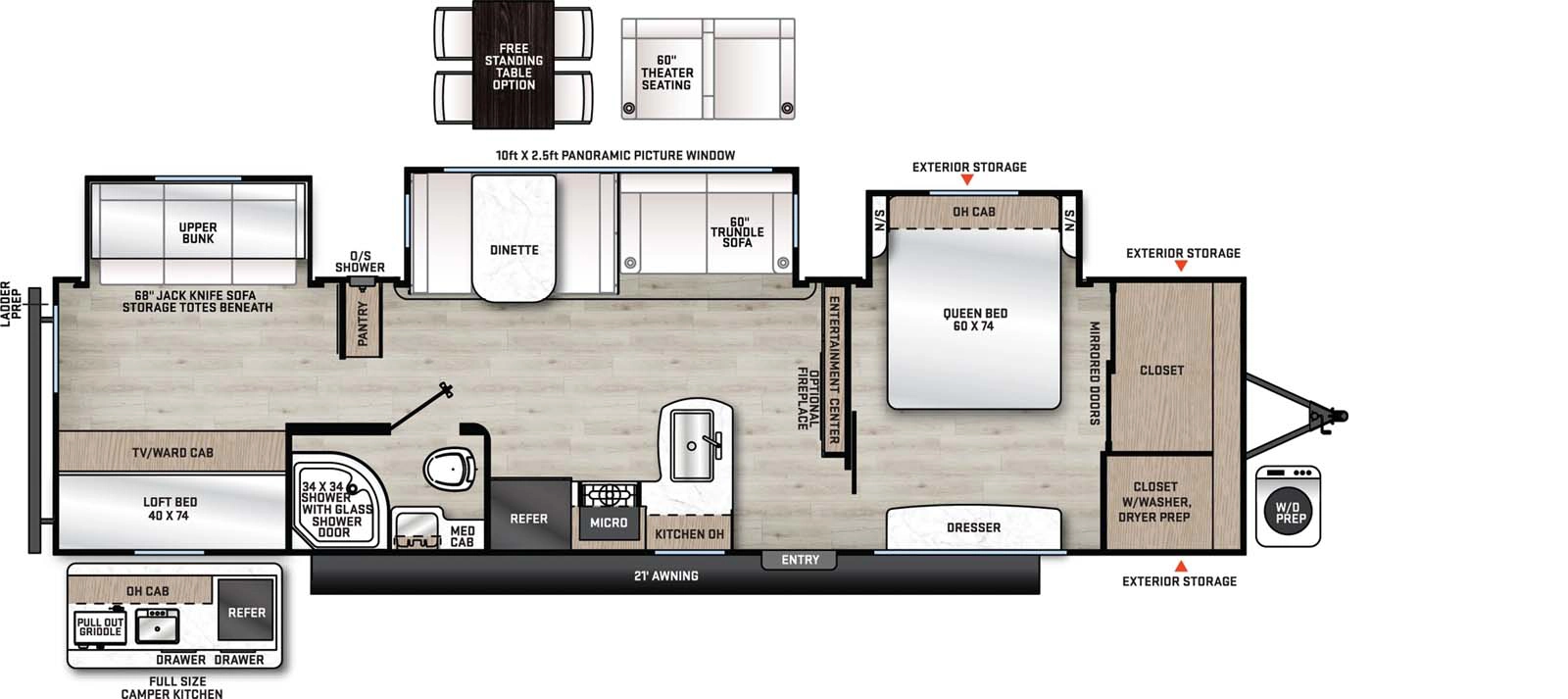

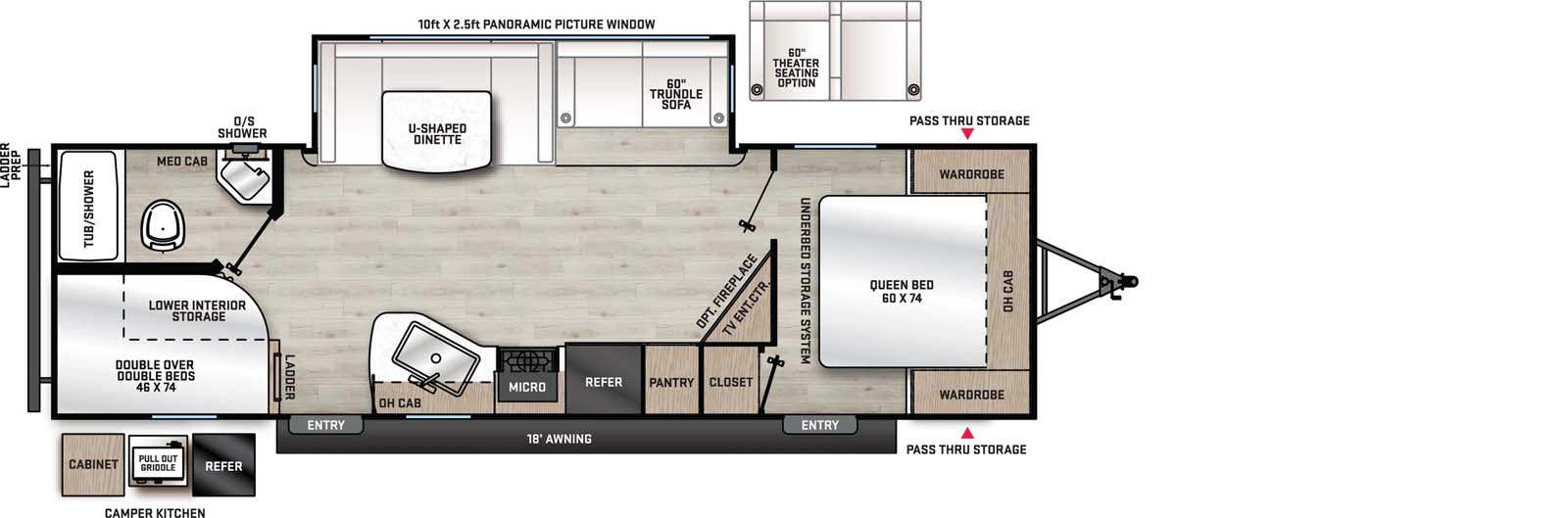

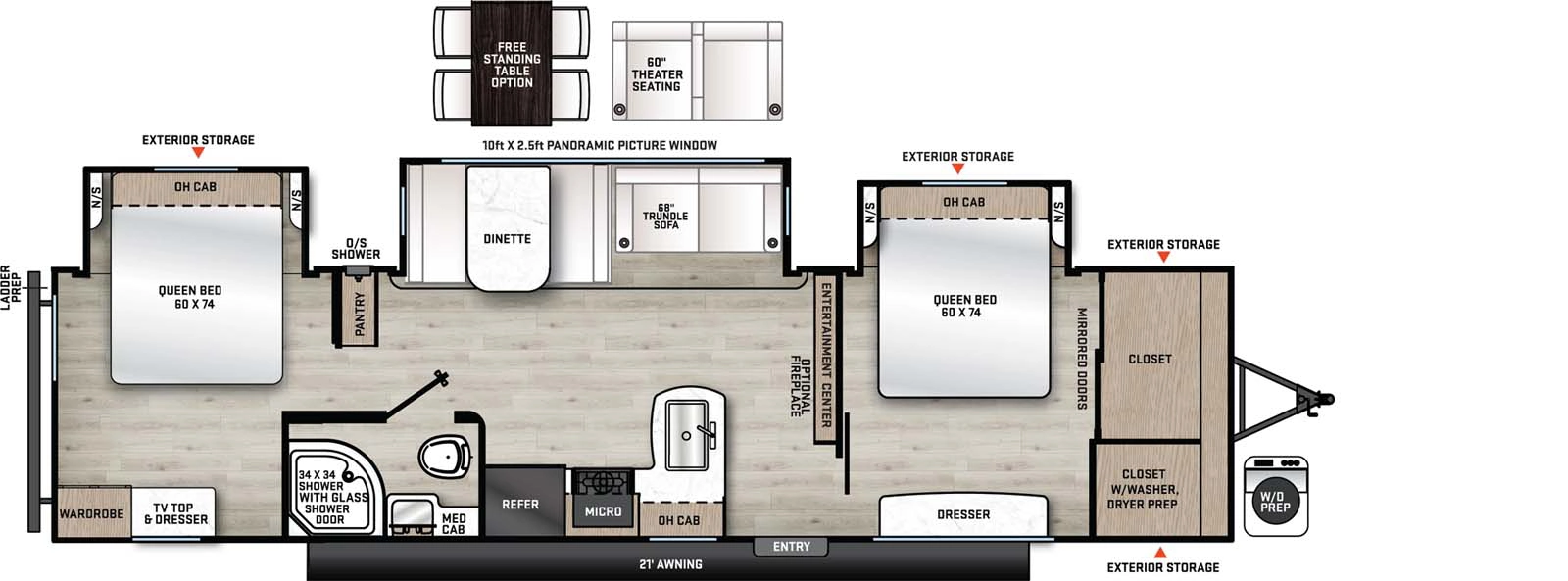

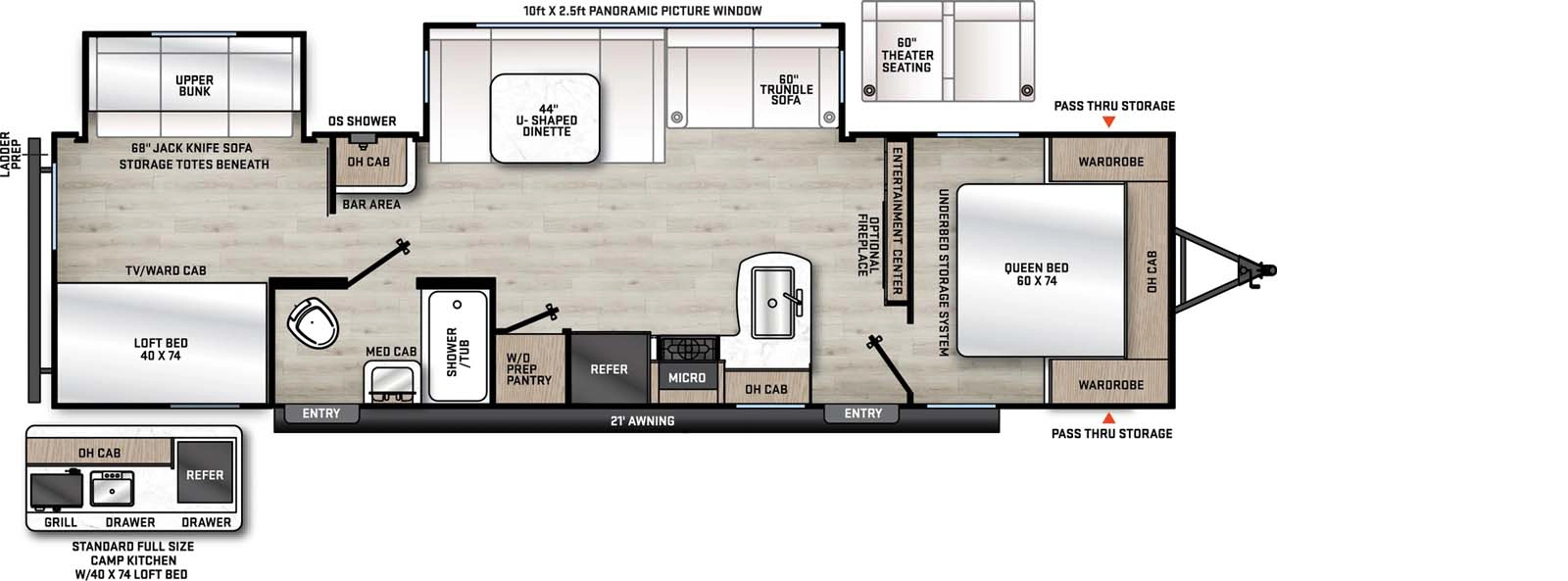

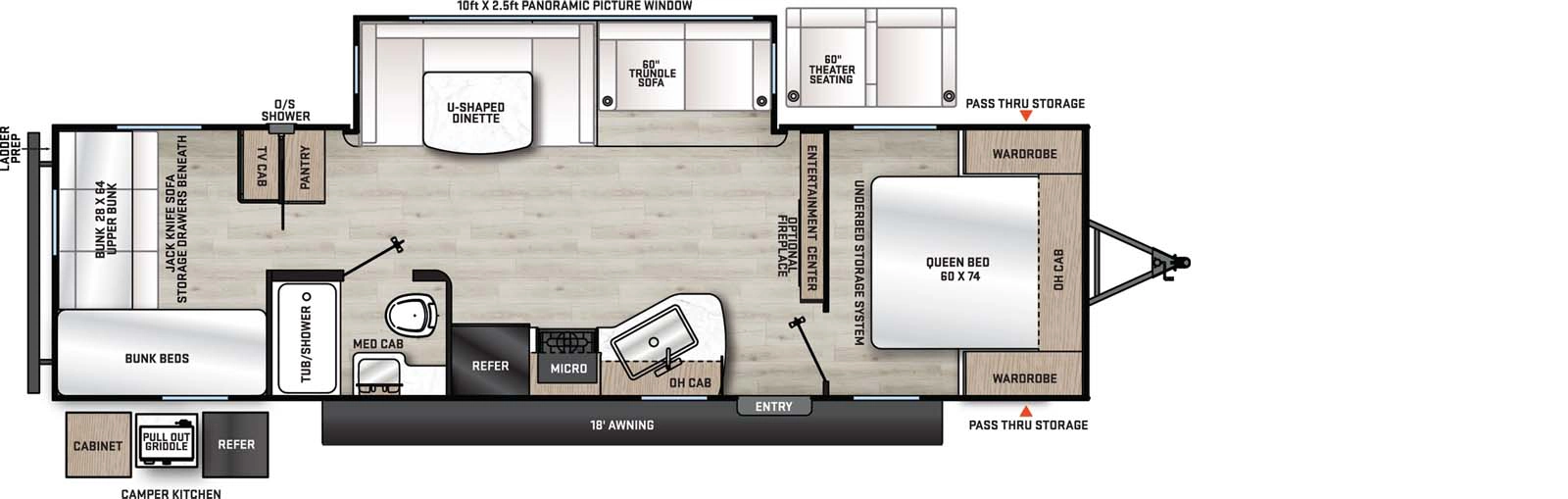

Floorplan: 28ATH : Toy Haulers 29ATH : Toy Haulers 18BHS : Travel Trailers 28BHS : Travel Trailers 29QBS : Travel Trailers 31KDS : Travel Trailers 32BDS : Travel Trailers 33RLTS : Travel Trailers 34BHTS : Travel Trailers 34BHTS (2 Queen Beds) : Travel Trailers 26BH : Temporarily Unavailable 26BHS : Temporarily Unavailable
Hitch Weight:1,126 lb.1,270 lb.492 lb.730 lb.768 lb.1,042 lb.790 lb.1,106 lb.1,154 lb.TBD541 lb.738 lb.
GVWR:10,500 lb.11,470 lb.5,500 lb.7,600 lb.9,568 lb.10,000 lb.9,500 lb.10,500 lb.10,500 lb.TBD7,000 lb.7,700 lb.
UVW:7,226 lb.7,143 lb.4,202 lb.6,324 lb.6,849 lb.7,743 lb.7,749 lb.8,265 lb.8,666 lb.TBD4,747 lb.6,197 lb.
CCC:3,274 lb.4,327 lb.1,298 lb.1,276 lb.2,719 lb.2,257 lb.1,751 lb.2,235 lb.1,834 lb.TBD2,253 lb.1,503 lb.
Exterior Length:33' 10"35' 8"23' 1"32' 1"32' 9"36' 3"36' 0"36' 0"38' 0"TBD29' 3"30' 3"
Exterior Height:11' 10"11' 1"10' 1"11' 1"11' 1"11' 3"11' 1"11' 1"11' 3"TBD10' 7"11' 1"
Exterior Width:96"96"90"96"96"96"96"96"96"TBD96"96"
Fresh Water:98.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.44.00 gal.TBD44.00 gal.44.00 gal.
Gray Water:40.00 gal.40.00 gal.30.00 gal.70.00 gal.40.00 gal.70.00 gal.70.00 gal.40.00 gal.70.00 gal.TBD40.00 gal.40.00 gal.
Black Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.TBD30.00 gal.30.00 gal.
Awning Size:18'15'15'18'18'21'21'14'21'TBD15'15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • 5/8” Tongue & Groove Plywood Floor
  • 6’9” Interior Height on Tandem Axles
  • Screwed Cabinet Construction w/Pocket Bored Lumber Core Stiles
  • 15,000 BTU Ducted A/C (13.5 on 18BHS)
  • Drop Edge Thermofoil Seamless Countertops (No T-Mold)
  • Dexter EZ Lube Axles w/ Leaf Spring Suspension
  • 6 Gal. Gas/Electric DSI Water Heater w/16 Gal. Per Hour Quick Recovery
  • 5/8” Plywood Bed Base, Dinette Base, Backers in Walls, & Shower Base
  • Full Length Frame E-Coated Outriggers
  • 2’X3’ Floor Joists on Approximately 12” Centers w/Horizontal Support Studs
  • 3/8” Fully Decked Walk-On Roof
  • 4" Floor To Frame Steel Lag Bolts
  • Seamless Roof Membrane with 18 Year Warranty
  • Water Heater By-Pass Winterization Kit
  • 12V Demand Water Pump
  • Self Adjusting Brakes
  • Roto-Cast Holding Tanks
  • 35,000 BTU Furnace with 2 yr. Warranty
  • Smooth Aluminum Radius Front
  • NEW Standard Power Tongue Jack (Option on 18BHS)
  • 100 Watt Roof Mounted Solar Panel (Option on 18BHS)
  • 40A/480W Solar Store Controller w/Bluetooth Renogy App
  • Magnetic Baggage Door Latches
  • Upgraded JBL Elite Exterior Speakers
  • Carefree Awning with Multicolor Lights and Remote(16 Colors)
  • LP Quick Connect
  • Blackstone Griddle in Camp Kitchens(28BHS, 29QBS, 32BDS, 34BHTS)
  • Battery Disconnect
  • Enclosed, Fully Sealed Underbelly (N/A on 18BHS)
  • Friction Hinge Door
  • SolidStep Entrance Steps IPO Flip-Down Steps(Main Entrance Only)
  • XL Swing Arm Grab Handle
  • Outside Hot/Cold Shower w/Hands Free Holder (N/A on 18BHS)
  • Black Tank Flush
  • Aluminum Sport Wheels
  • Nitrogen Filled Radial Tires
  • Polished Aluminum Fender Skirts
  • Exterior 110V G.F.C.I Protected Receptacle
  • Exterior RG-6 Coax Cabling and Satellite Prep
  • G20 Tinted Windows
  • Two 20lb. LP Tanks w/ABS Bottle Cover
  • Spare Tire, Carrier, and Cover
  • Rear View Camera Prep
  • Diamond Plate Rock Guard
  • Rain Gutters with Drip Spouts
  • Full Size Exterior Camp Kitchen (32BDS & 34BHTS)
  • Pull Out Camp Kitchen (28BHS, 29QBS)
  • Bottle Opener(Exterior Camp Kitchens)
  • Flush Mount Baggage Doors w/Radius Corners
  • NEW Standard 39" Flat Screen LED TV (N/A on 18BHS)

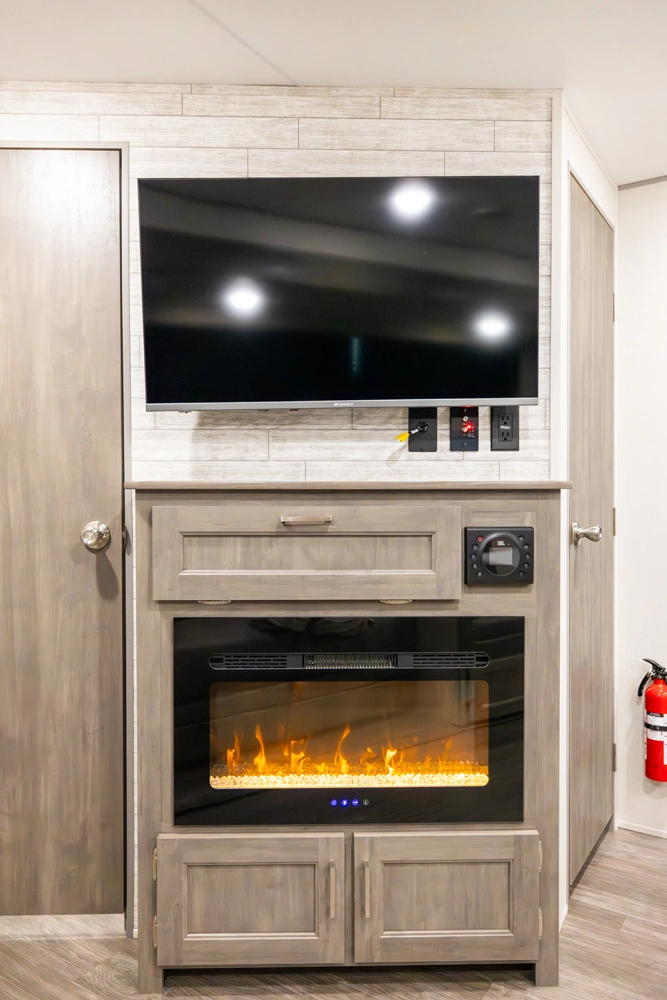

  • NEW Standard 30" Electric Fireplace (N/A on 18BHS, 28ATH, 29ATH)
  • NEW 12V Ceiling Vent Fan in Living Room
  • NEW Larger Kitchen Window
  • NEW Black Night Shades
  • NEW Stainless Steel Appliances
  • NEW Interior Wood
  • NEW Linoleum Flooring
  • NEW Countertops
  • 12V USB in Kitchen
  • Residential Kitchen Faucet w/ Pull Down Faucet
  • Swing Arm TV Bracket

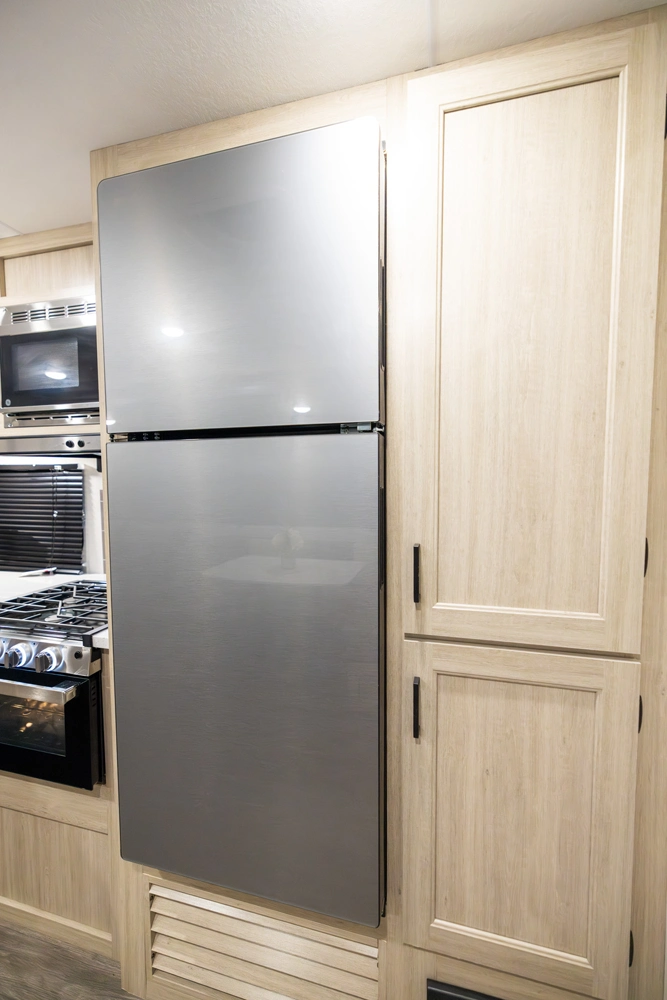

  • Stainless Steel GE 12V 10 Cu. Ft. Refrigerator

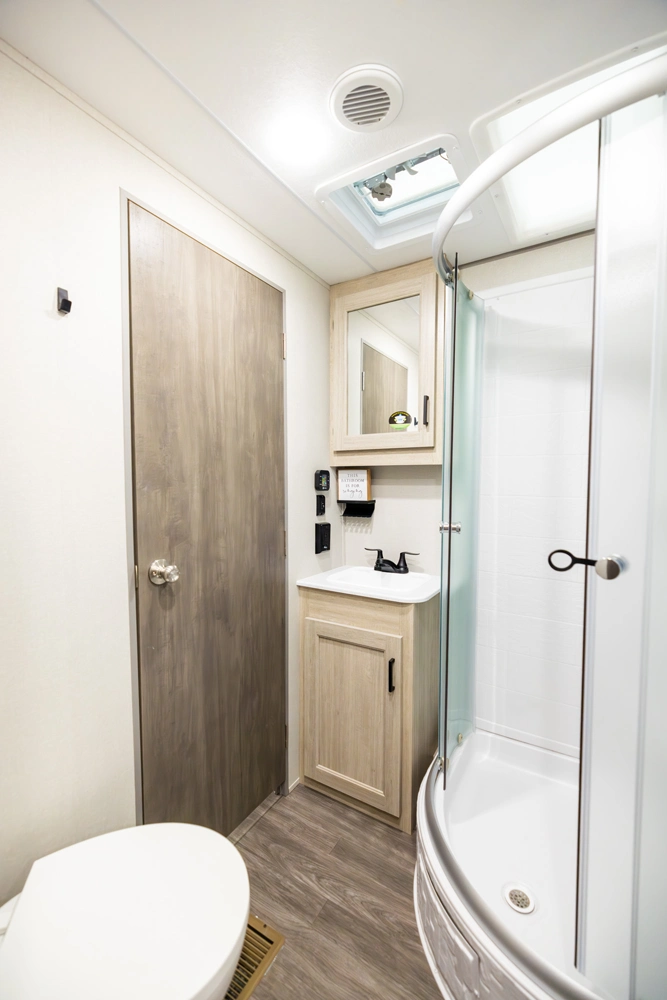

  • ABS Tub/Shower Surround
  • Skylight Above Tub/Shower (N/A on 18BHS)
  • Easy Access Booth Dinette Storage Doors
  • Stereo with AM/FM/HDMI/Bluetooth and USB Charging Port
  • All-In One Monitor Panel
  • 3 Burner Range w/Flush Mount Glass Top & Blue LED Accent Lighting
  • 2 Burner Range w/Flush Mount Glass Top on 18BHS
  • LED Interior Lighting
  • Bedroom USB Surface Mounts(2)
  • USB Surface Mount Near Bunk Beds
  • Decorative Fitted Bedsheet

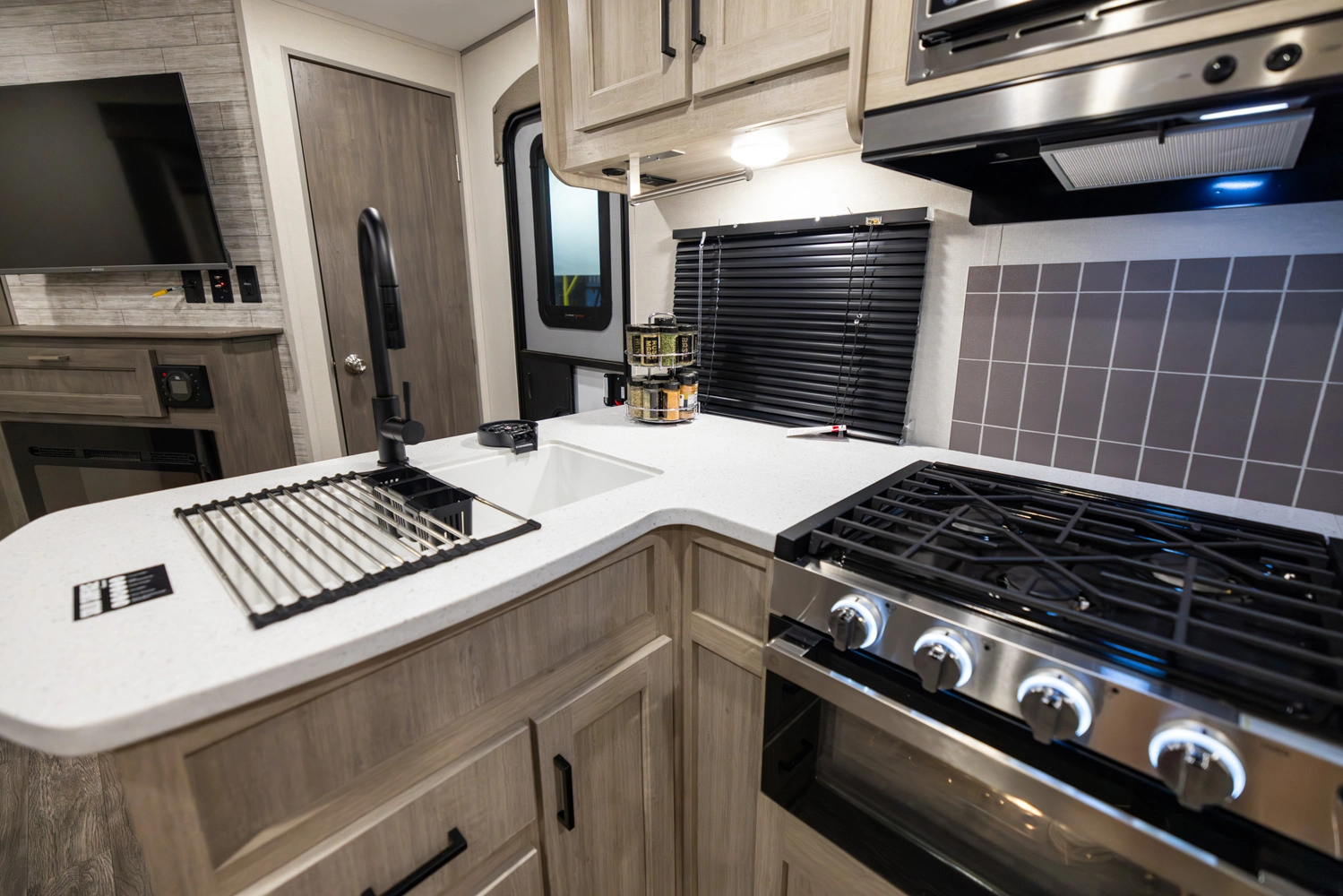

  • Deep Undermount Farm Style Sink
  • Flush Thermofoil Kitchen Sink Covers
  • Silverware Kitchen Drawer
  • Residential In-Floor Ducted Heat

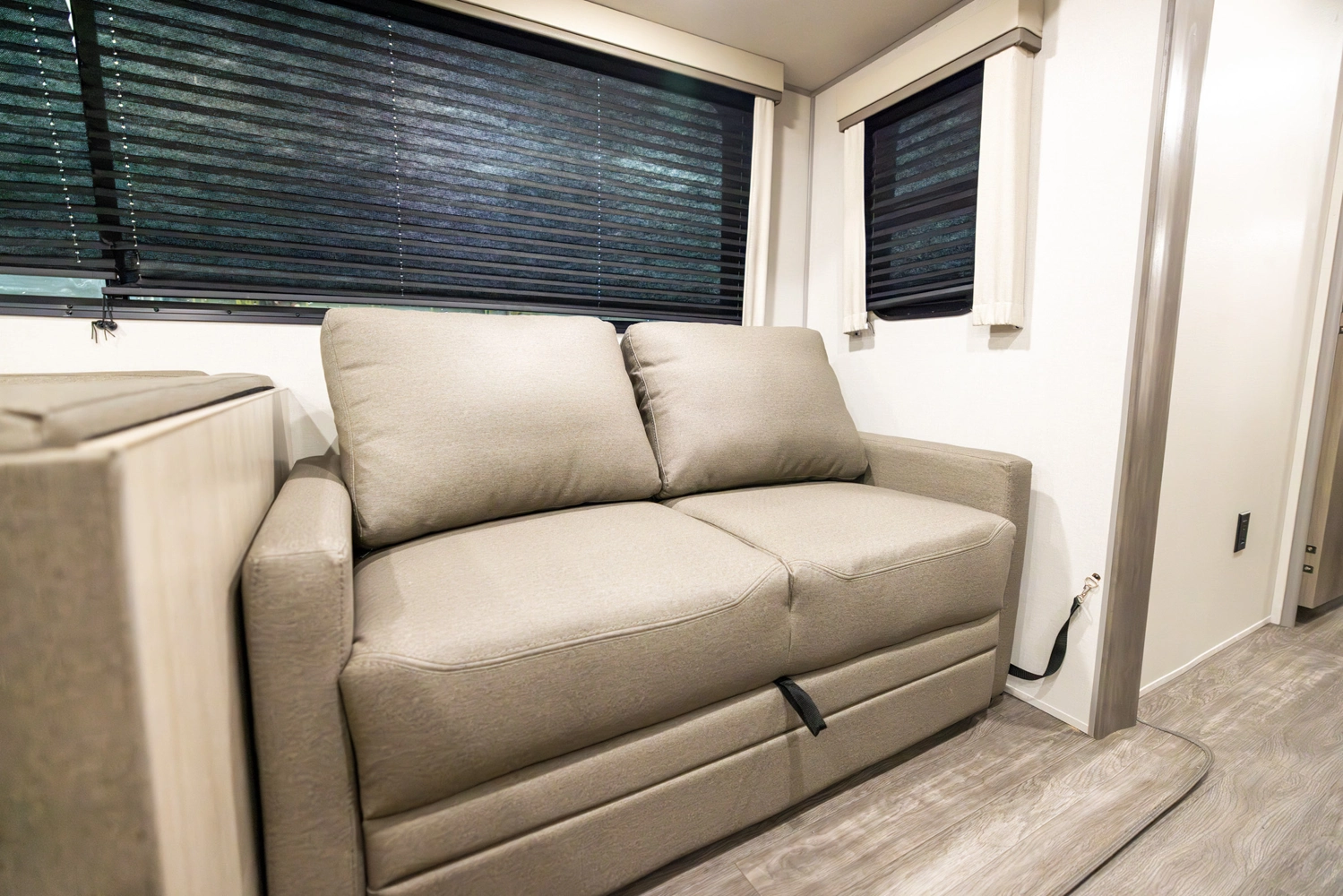

  • Jiffy Sofa w/Flip Down Cup Holder/Arm Rest
  • Storage Underneath Jiffy Sofa
  • Decorative Sofa Throw Pillows
  • Pedestal Thermofoil Dinette Table
  • Hard Valance Window Treatment w/ Decorative Lambrequins

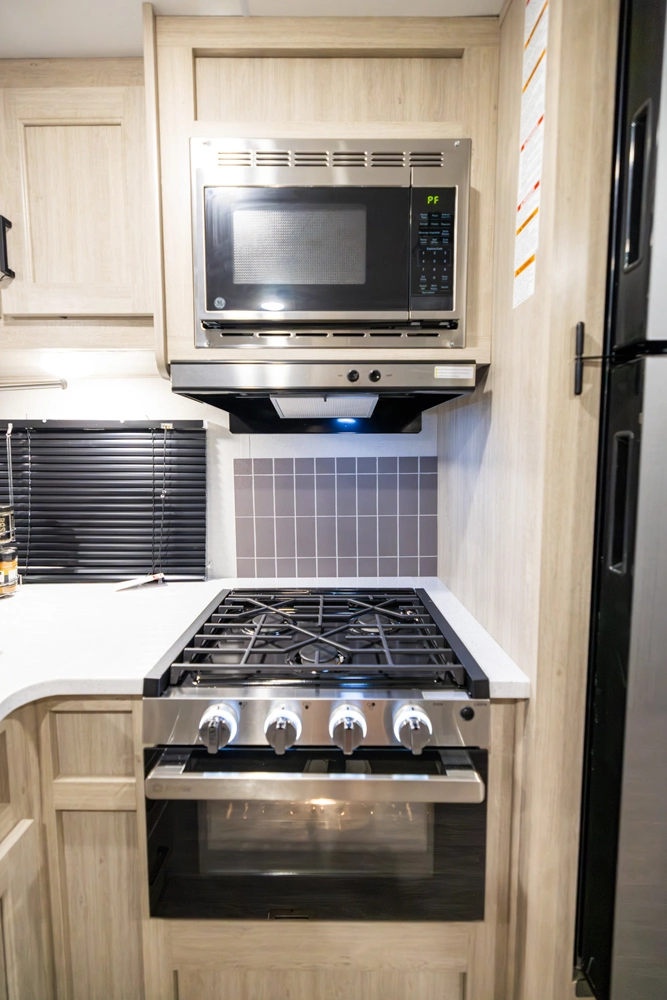

  • Stainless Steel Range Hood and Microwave
  • Marine Toilet with Foot Flush
  • Power Vent Fan in Bathroom
  • Medicine Cabinet with Mirror
  • Solid Bunk Room Door
  • Solid Master Bedroom Door
  • Mirrored Wardrobes in Master Bedroom (N/A Bed Slide Models)
  • Underbed Storage w/Separation from Outside Front Storage

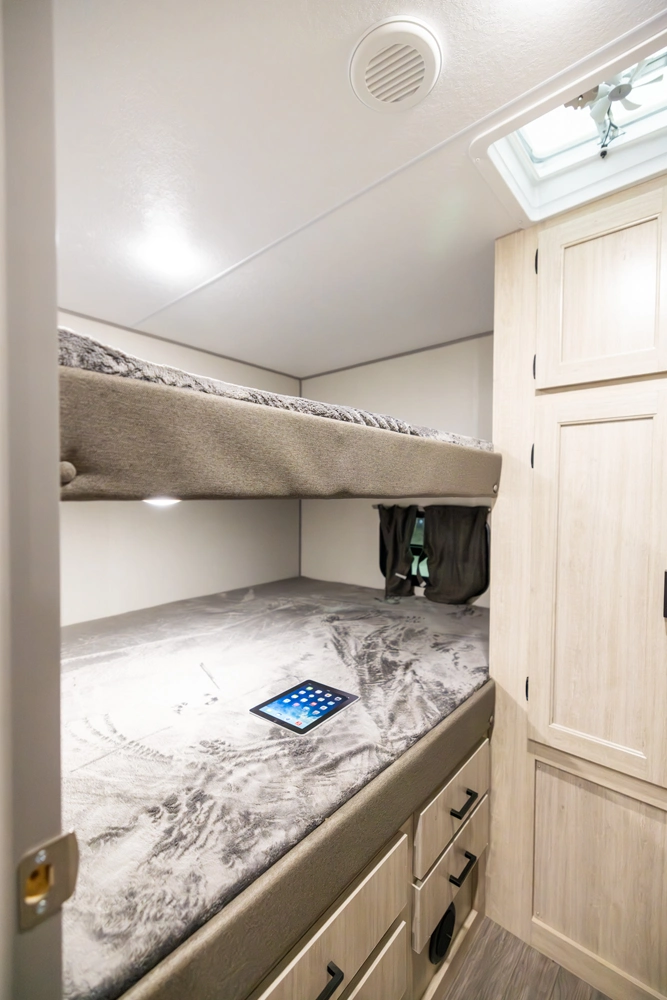

  • Teddy Bear Bunk Mats
  • Washer/Dryer Prep (31KDS, 33RLTS ,34BHTS)
  • Smoke Alarm
  • LP/CO Gas Detector
  • Fire Extinguisher
  • Fire Escape Windows
  • Entrance Door Window
  • Dead-Bolt Lock on Entry Door
  • Tri-Fold Hide A Bed Sofa
  • 7 Cu. Ft. Gas/Electric Refrigerator
  • 50 Amp Service w/2nd A/C Prep (29QBS, 31KDS, 32BDS, 33RLTS & 34BHTS)
  • 50 Amp Service w/2nd 13.5A/C (29QBS, 31KDS, 32BDS, 33RLTS & 34BHTS)


Virtual Tours

  • 26BHS
    26BHS Main Room
  • 28BHS
    28BHS Main Room
  • 29ATH
    29ATH Main Room
  • 29QBS
    29QBS Main Room
  • 31KDS
    31KDS Main Room
  • 32BDS
    32BDS Main Room
  • 33RLTS
    33RLTS Main Room
  • 34BHTS
    34BHTS Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.
