Rockwood Geo Pro Travel Trailers

THE FLOOR PLAN YOU WANT IN THE SIZE YOU NEED. We have custom designed our trailers with the best in style and amenities while keeping your towing needs in mind. Modern, fresh interiors will almost make you forget you are in the great outdoors. Quality craftsmanship and attention to detail have been put into our Geo Pro travel trailers, all with you in mind.

Azdel Onboard™ RV Composite PanelsKOA Care Camps, fighting cancer and making memories

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications














to

to

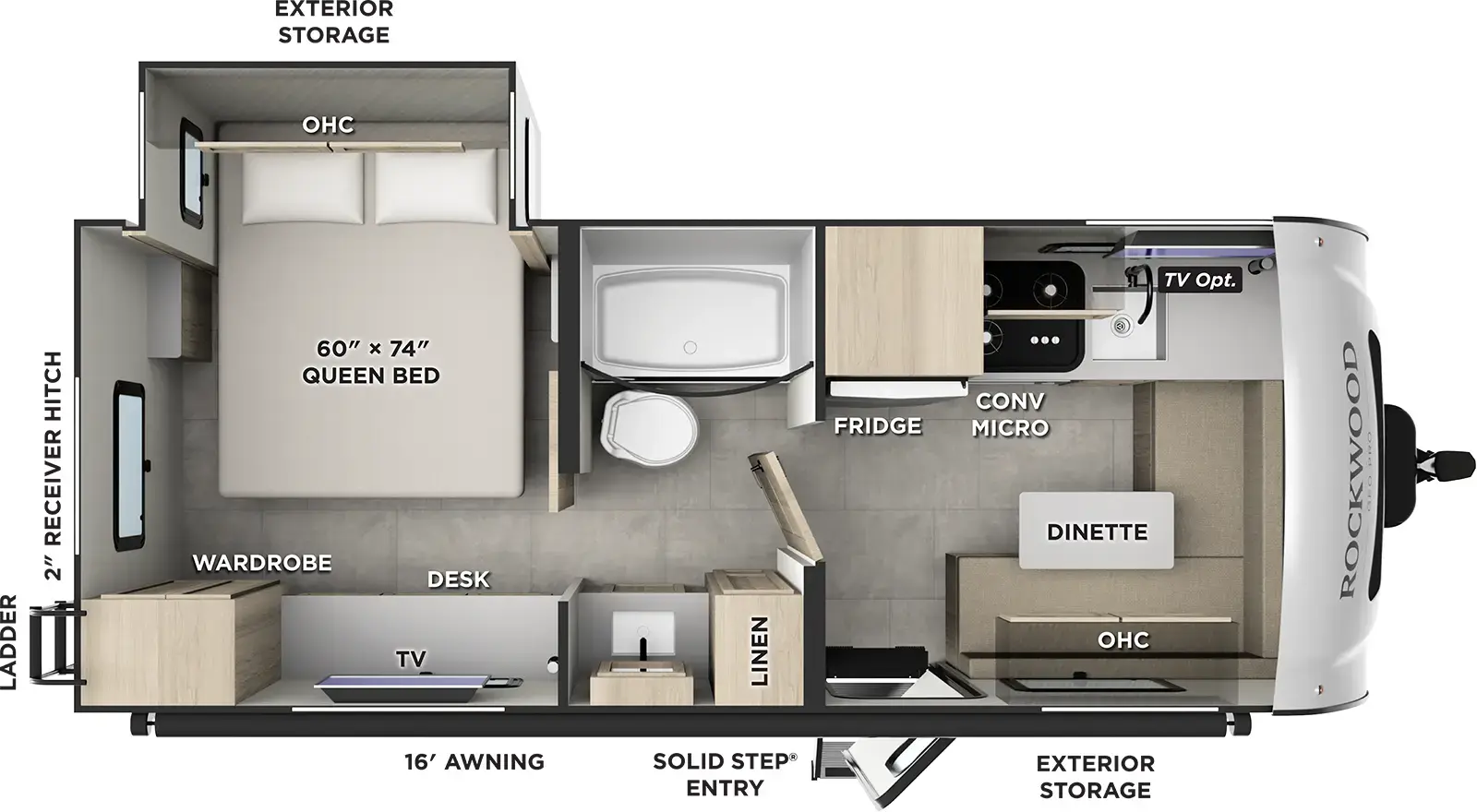

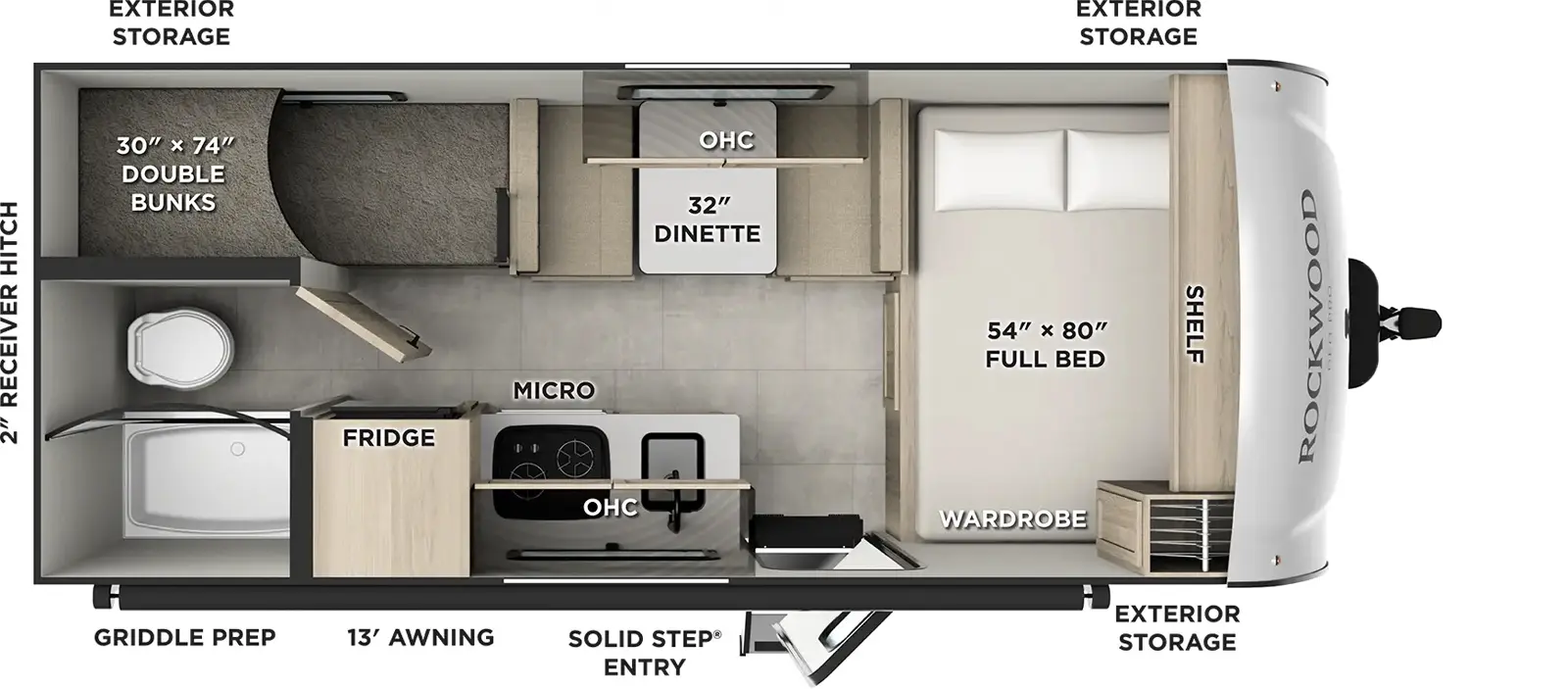

Floorplans

Print


Toy Haulers

Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

G19TH
Has Gallery Photos Has 360 Tour

G19TH



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

G19FBTH
Has Gallery Photos Has 360 Tour Has Video Tour

G19FBTH



New Floorplan

Travel Trailers

Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

G12RK
Has Gallery Photos Has 360 Tour

G12RK



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

G12SRK
Has Gallery Photos Has 360 Tour

G12SRK



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

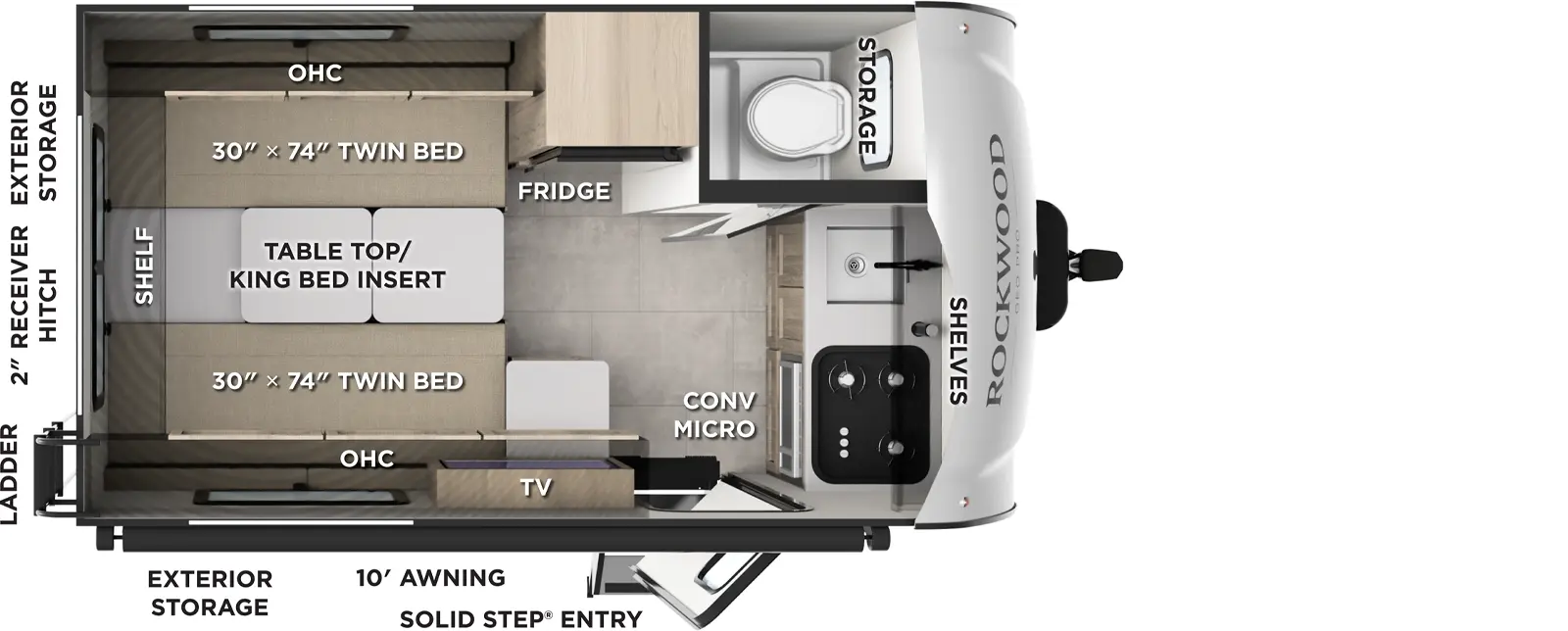

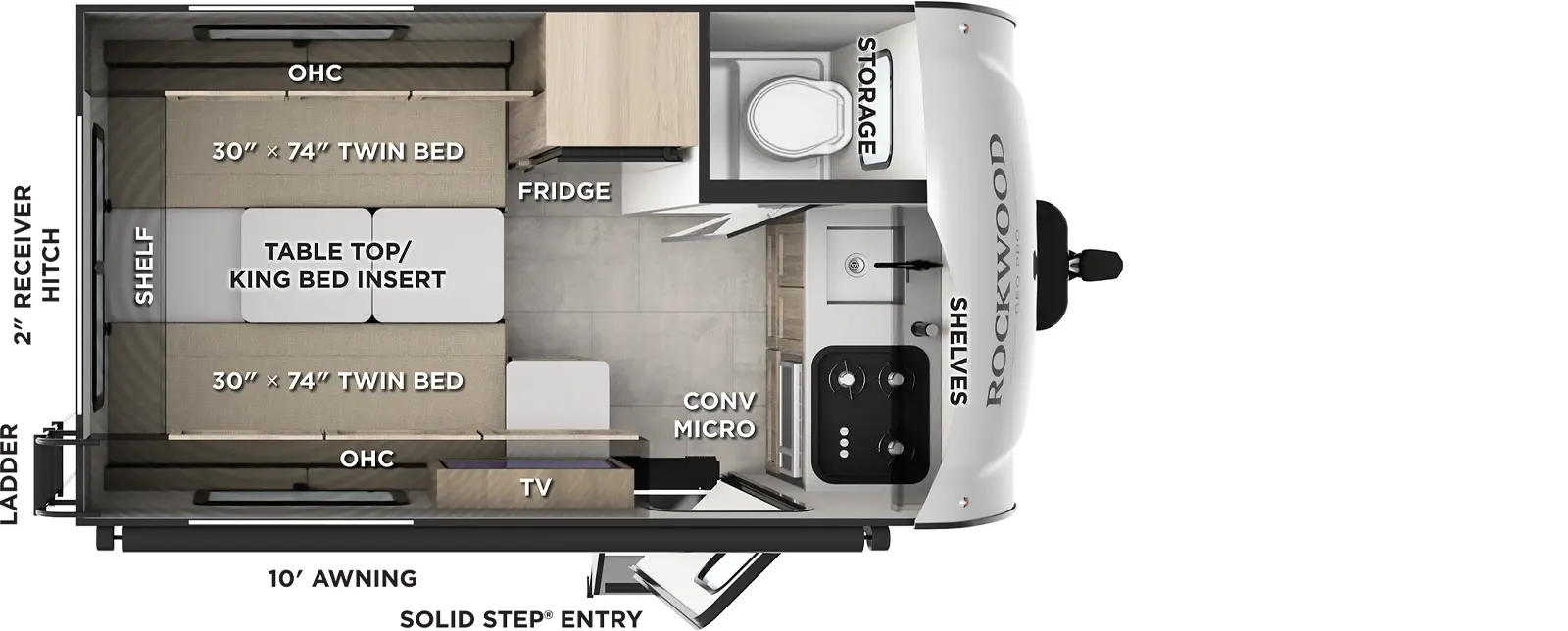

G15TB
Has Gallery Photos Has 360 Tour

G15TB



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

G16BH
Has Gallery Photos Has 360 Tour

G16BH



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

G19BH
Has Gallery Photos Has 360 Tour

G19BH



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

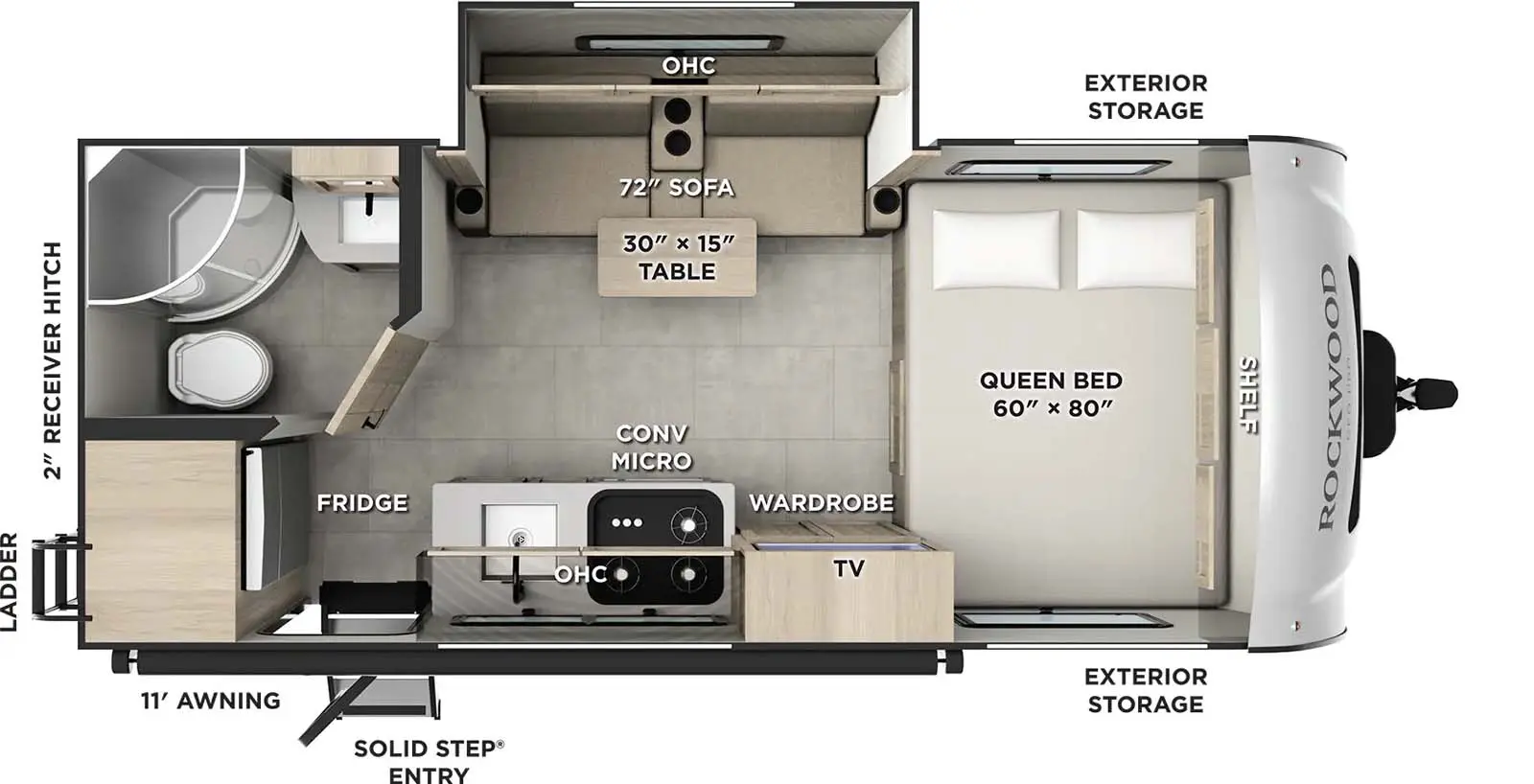

G19FBS
Has Gallery Photos Has 360 Tour

G19FBS



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

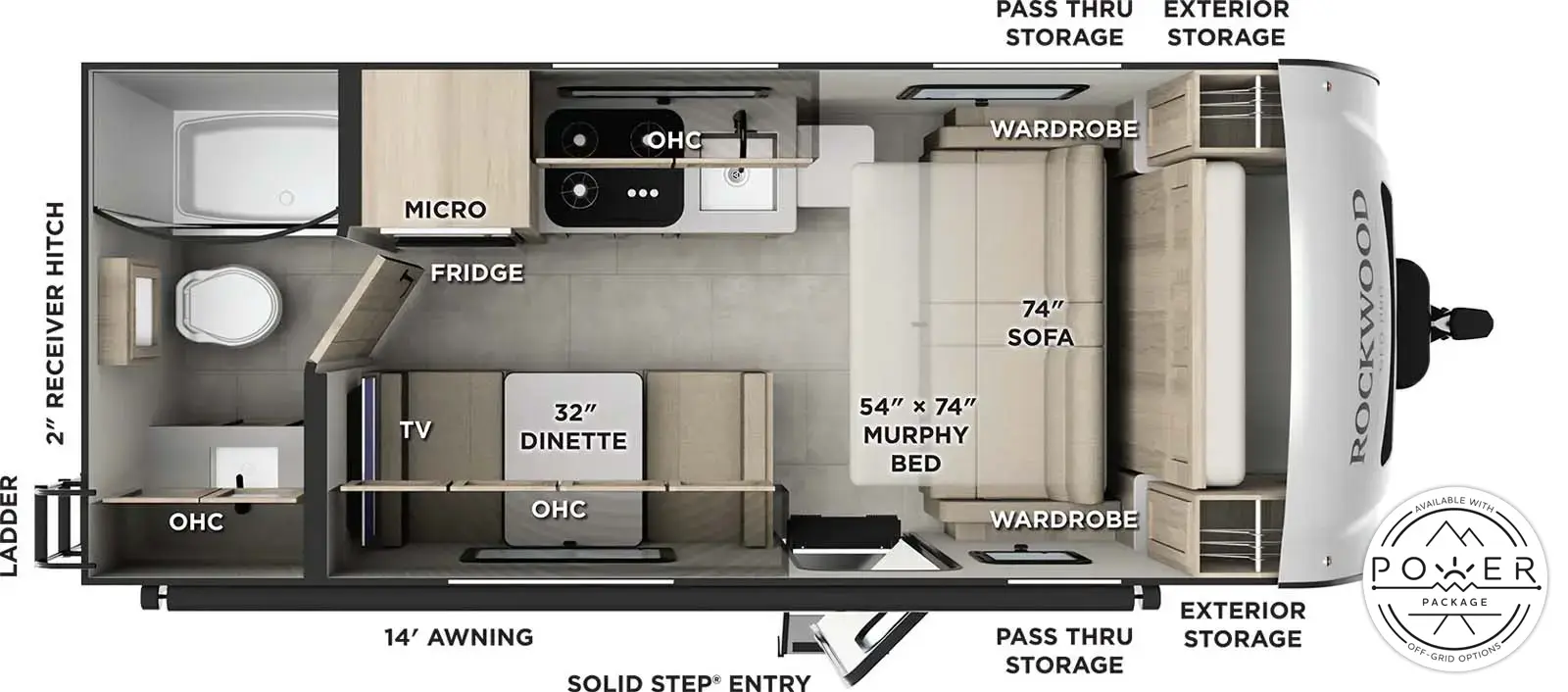

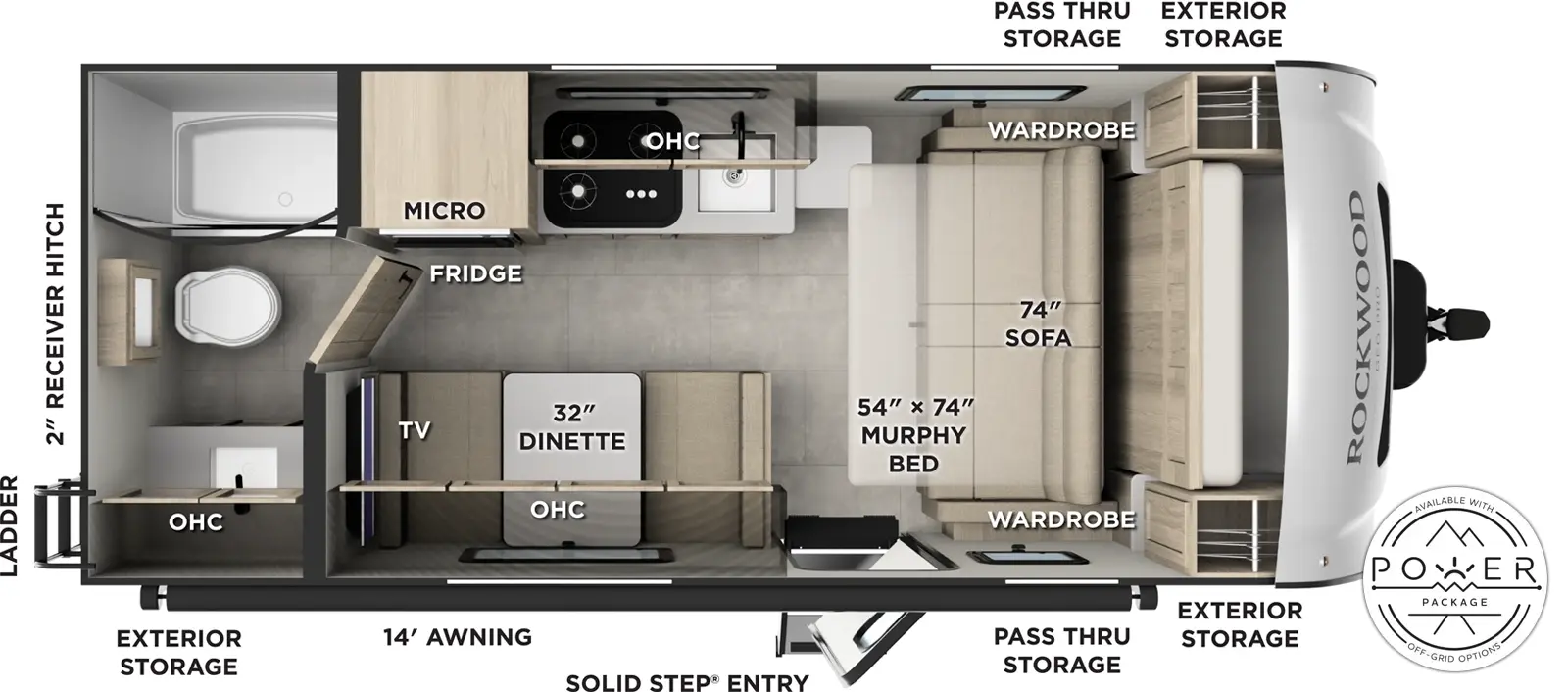

G19FD
Has Gallery Photos Has 360 Tour

G19FD



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

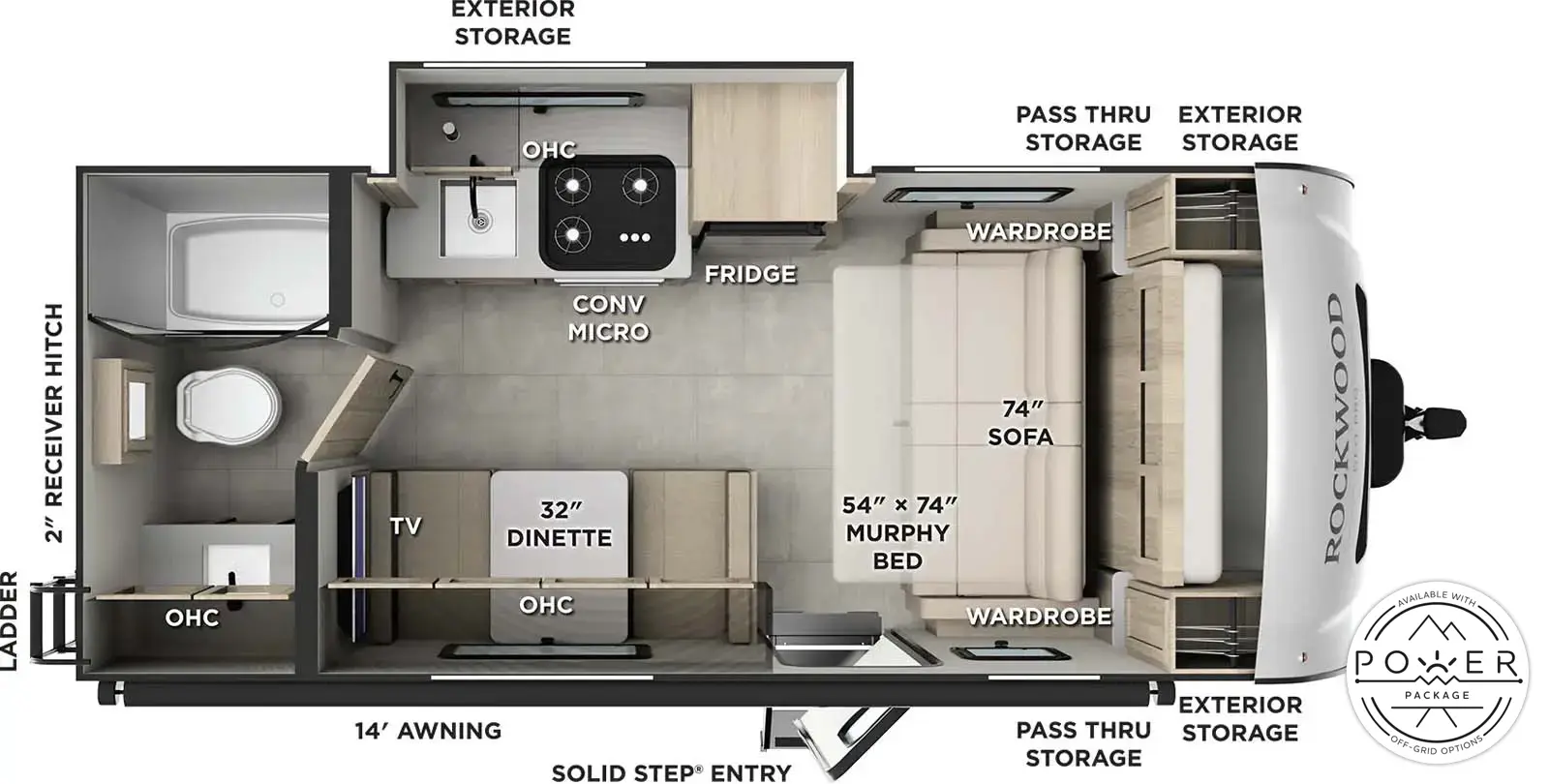

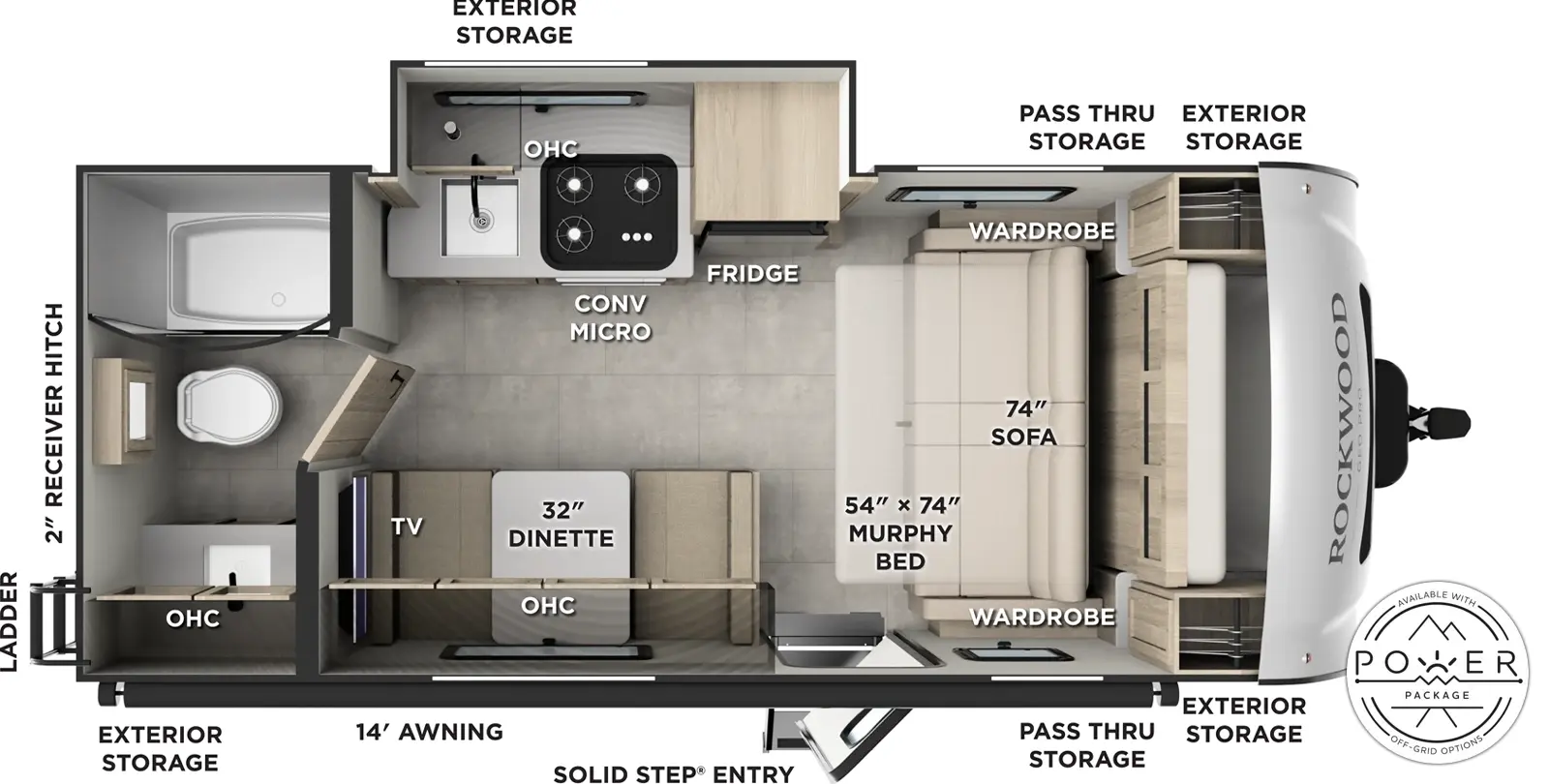

G19FDS
Has Gallery Photos Has 360 Tour

G19FDS



New Floorplan
Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

G19RD
Has Gallery Photos Has 360 Tour

G19RD



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

G20BHS
Has Gallery Photos Has 360 Tour

G20BHS



Unfilled heart, add model to wishlist
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

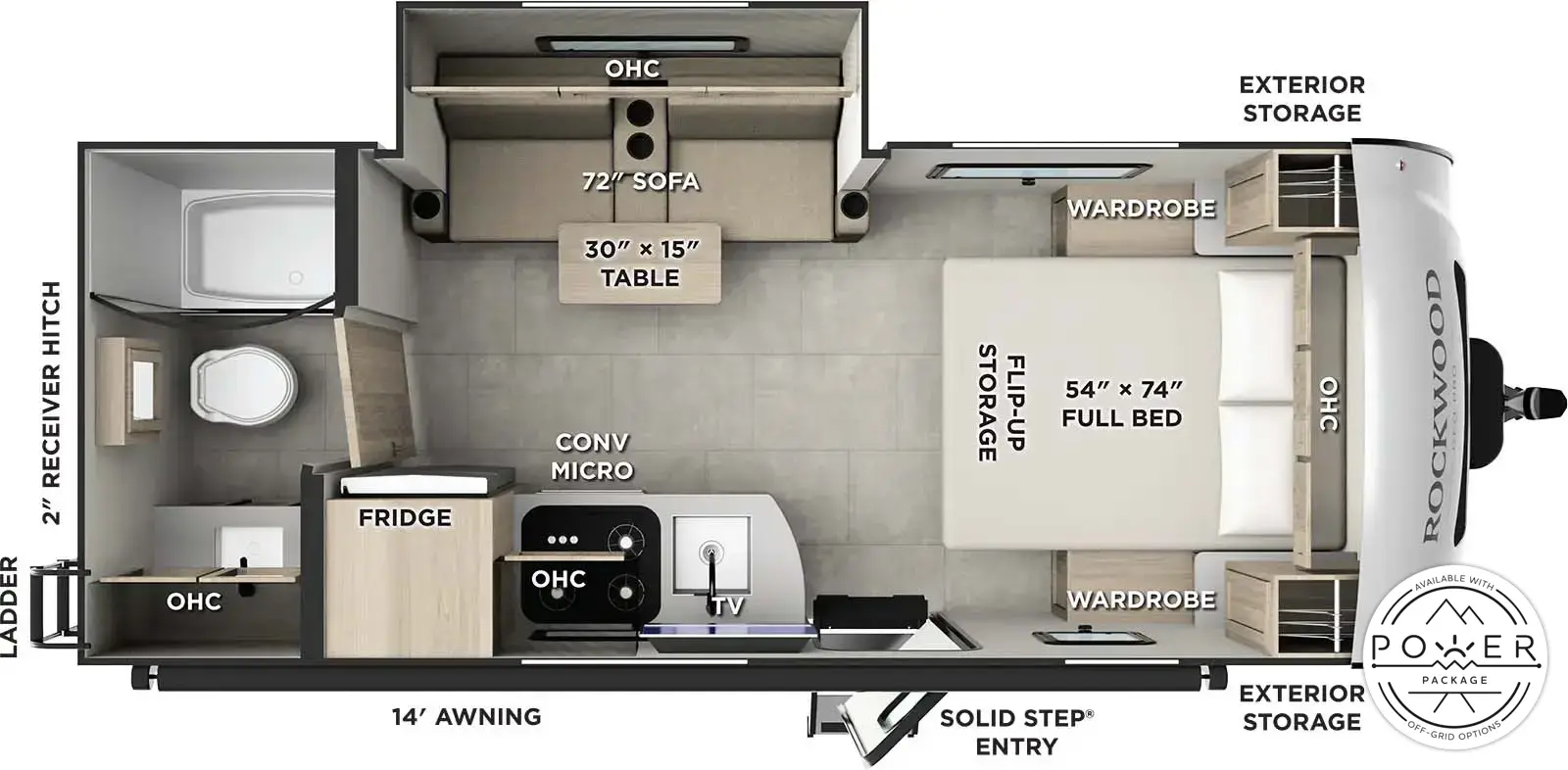

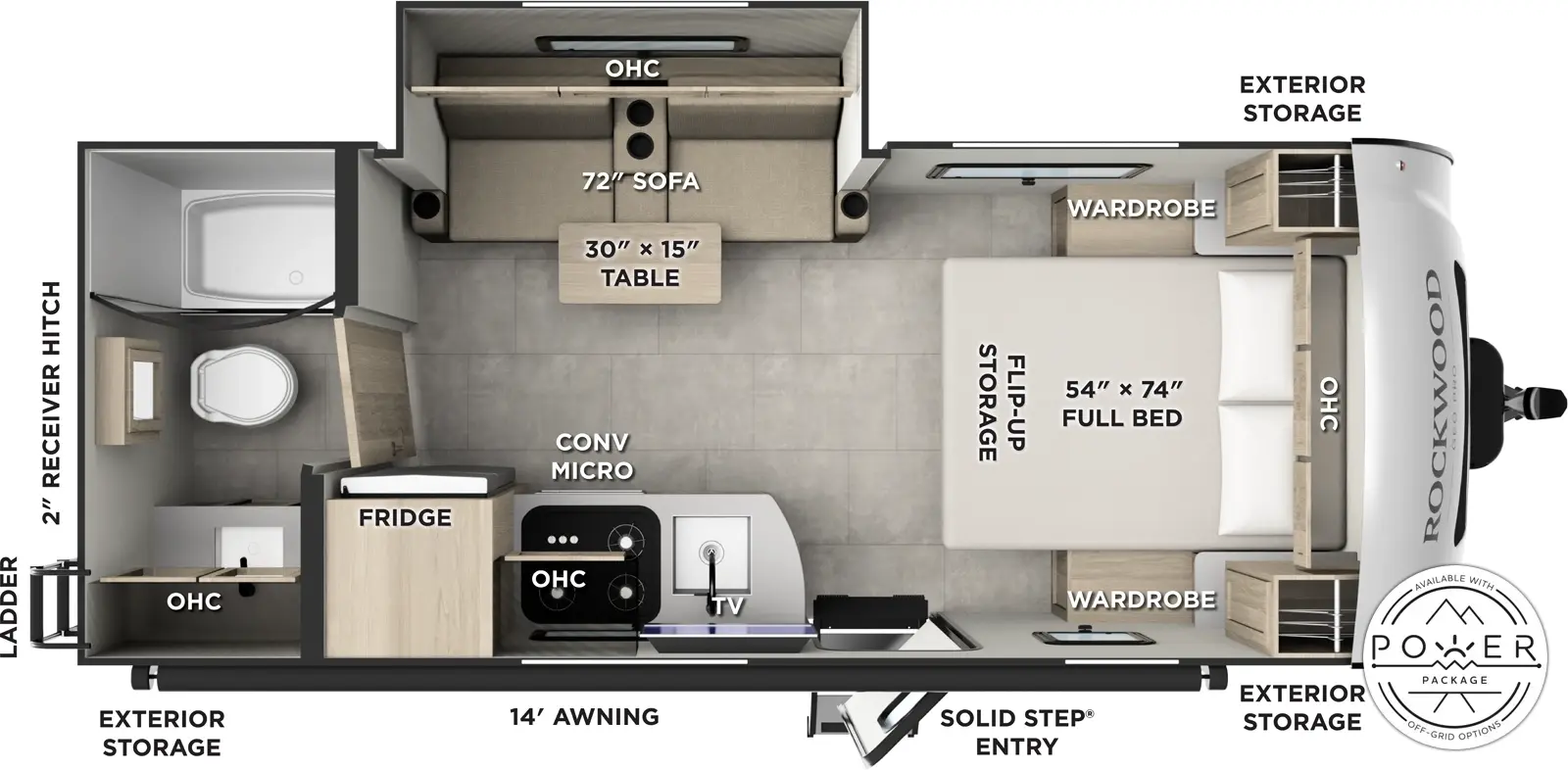

G20FBS
Has Gallery Photos Has 360 Tour

G20FBS



New Floorplan


Specifications

Print


Hitch Weight:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
641 lb.
3407 lb.
1584 lb.
20' 2"
10' 0"
92"
31.00 gal.
16.00 gal.
30.00 gal.
12'
574 lb.
3541 lb.
1383 lb.
20' 2"
TBD
92"
31.00 gal.
16.00 gal.
30.00 gal.
12'
162 lb.
1252 lb.
710 lb.
11' 3"
7' 9"
80"
20.00 gal.
6.00 gal.
0.00 gal.
7' (Opt.)
258 lb.
1763 lb.
1135 lb.
12' 3"
7' 9"
88"
20.00 gal.
6.00 gal.
0.00 gal.
8' (Opt.)
374 lb.
2608 lb.
1266 lb.
15' 10"
9' 10"
92"
31.00 gal.
12.00 gal.
12.00 gal.
10'
461 lb.
3200 lb.
761 lb.
18' 6"
9' 10"
92"
31.00 gal.
30.00 gal.
30.00 gal.
12'
411 lb.
3178 lb.
1133 lb.
20' 2"
9' 10"
92"
31.00 gal.
30.00 gal.
30.00 gal.
13'
474 lb.
3290 lb.
1084 lb.
20' 2"
9' 10"
92"
31.00 gal.
30.00 gal.
30.00 gal.
11'
418 lb.
3167 lb.
1151 lb.
20' 2"
9' 10"
92"
31.00 gal.
30.00 gal.
30.00 gal.
13'
435 lb.
3413 lb.
922 lb.
20' 2"
9' 10"
92"
31.00 gal.
30.00 gal.
30.00 gal.
14'
436 lb.
3271 lb.
1065 lb.
20' 2"
9' 10"
92"
31.00 gal.
30.00 gal.
30.00 gal.
13'
455 lb.
3513 lb.
842 lb.
21' 2"
10' 0"
92"
31.00 gal.
30.00 gal.
30.00 gal.
14'
410 lb.
3258 lb.
1052 lb.
21' 2"
9' 10"
92"
31.00 gal.
30.00 gal.
30.00 gal.
14'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

* Due to the current environment, our features and options are subject to change due to material availability.

  • Roller Shades
  • 12 Volt TV w/ DVD Player
  • AM/FM Stereo w/ Bluetooth and USB
  • Quick recovery Gas/Electric Water Heater
  • Outside Speaker (N/A 12SRK, 12RK)
  • 190 Watt Roof Mount Solar Panel w/ 1000 Watt Inverter
  • Power Awning (N/A 12SRK, 12RK)
  • 20,000 BTU Furnace
  • Outside Griddle with LP Hook Up
  • 2- 20# LP Bottles
  • Microwave
  • Polished Alloy Wheels
  • Tinted Frameless Windows
  • Spare Tire
  • Power Tongue Jack
  • 13,500 Low Profile Roof A/C
  • AM/FM Stereo w/ Bluetooth and USB
  • 12 Volt TV w/ DVD Player
  • Outside Griddle with LP Hookup
  • 2- 20# LP Tanks
  • Ground Solar Prep with 1000 Watt Inverter
  • 13,500 Low Profile Roof A/C w/ Chill Chaser Heat Strip
  • Aluminum Cage Dinette Base (dinette models)
  • 6 Sided Aluminum Cage Construction
  • Vacuum Laminated Roof and Walls
  • 5/8" tongue and groove plywood flooring
  • 4 Frame Mounted Stabilizer Jacks (2 on 12RK, 12SRK)
  • Fold Out Entry Steps (N/A 12RK, 12SRK)
  • Roof Ladder (N/A 12RK, 12SRK, 19FBTH, 19TH)
  • Torsion Axle, Rubber-Ryde Suspension
  • Nitro Filled Radial Tires with Tire Pressure Monitoring System
  • Pre Wired for Backup Camera (N/A 12RK, 12SRK)
  • Magnetic Baggage Door Catches
  • Maxxair® Ventilation Fan and Vent Cover (Opt 12RK, 12SRK; Std all others)
  • Recessed Cooktop W/ Flush Mount Cover (N/A 12RK, 12SRK )
  • 12V Refrigerator
  • Water Heater, Gas/Electric (N/A 12RK)
  • Shower Miser Water Saver (N/A 12RK, 12SRK)
  • Black Tank Flush (N/A 12RK, 12SRK,15TB)
  • 360 Siphon Cap on Black Tank (N/A 12RK, 12SRK)
  • Water-Pur Filtration System (N/A 12RK)
  • Sport Tire & Wheel Package: 15” Mud Rover Radial Tires and a Lift Kit
  • Outside Shower (NA 12RK)
  • Foot Flush Toilets
  • Front Windshield (N/A 12 Models, 15TB, 19TH & Opt. 19FD, 19FDS)
  • Front Windshield (Opt Only on 19FD, 19FDS)
  • Manual Awning 12RK & 12SRK
  • Gas Oven (19BH, 19FB, 19FBS, 19FD, 19RD, 20BHS)
  • Convection Microwave (N/A 12RK, 12SRK)
  • Pro Rac Mounting Bars w/ Removable Tire Step (12RK & 12SRK Only)
  • Pro Rac Mounting Bars w/ Removable Ladder (N/A 12RK & 12SRK)
  • MORryde® AirGlide Suspension (19TH, 19FBTH Only)
  • Pro Rac Kayak, Bike, Tie Downs, Etc. Accessories
  • Tongue Mount Bike Rack
  • Maxxair® Ventilation Fan and Vent Cover (Opt 12RK, 12SRK; Std all others)
  • Heated Holding Tanks (NA 12RK, 12SRK)
  • CSA (Canadian Standards)

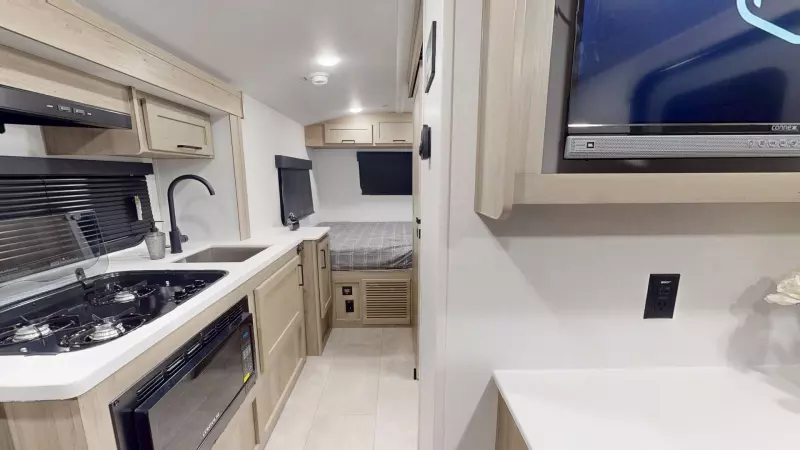

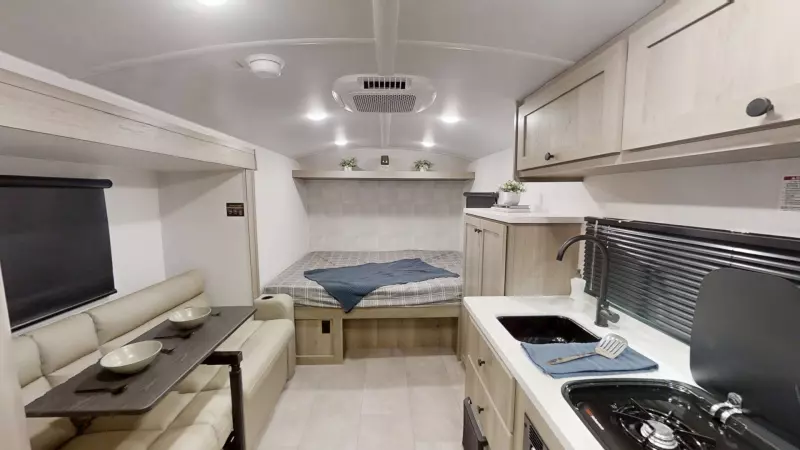

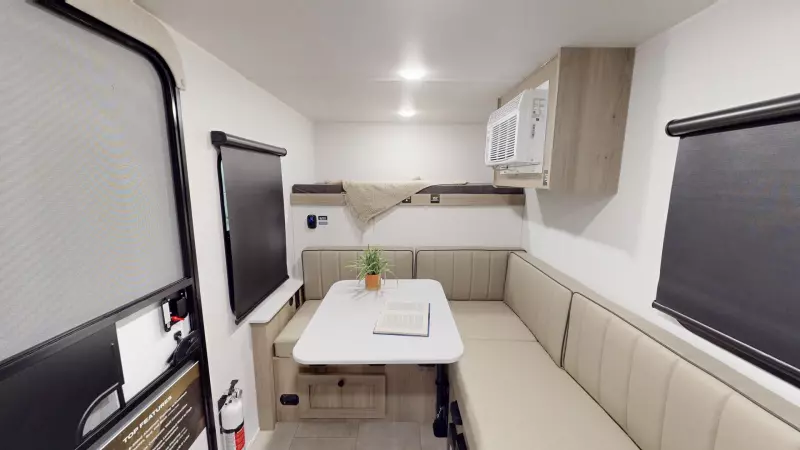

Virtual Tours

G12RK

G12RK Main Room

G12SRK

G12SRK Main Room

G15TB

G15TB Main Room

G16BH

G16BH Main Room

G19BH

G19BH Main Room

G19FBS

G19FBS Main Room

G19FBTH

G19FBTH Main Room

G19FD

G19FD Main Room

G19FDS

G19FDS Main Room

G19RD

G19RD Main Room

G19TH

G19TH Main Room

G20BHS

G20BHS Main Room

G20FBS

G20FBS Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.
