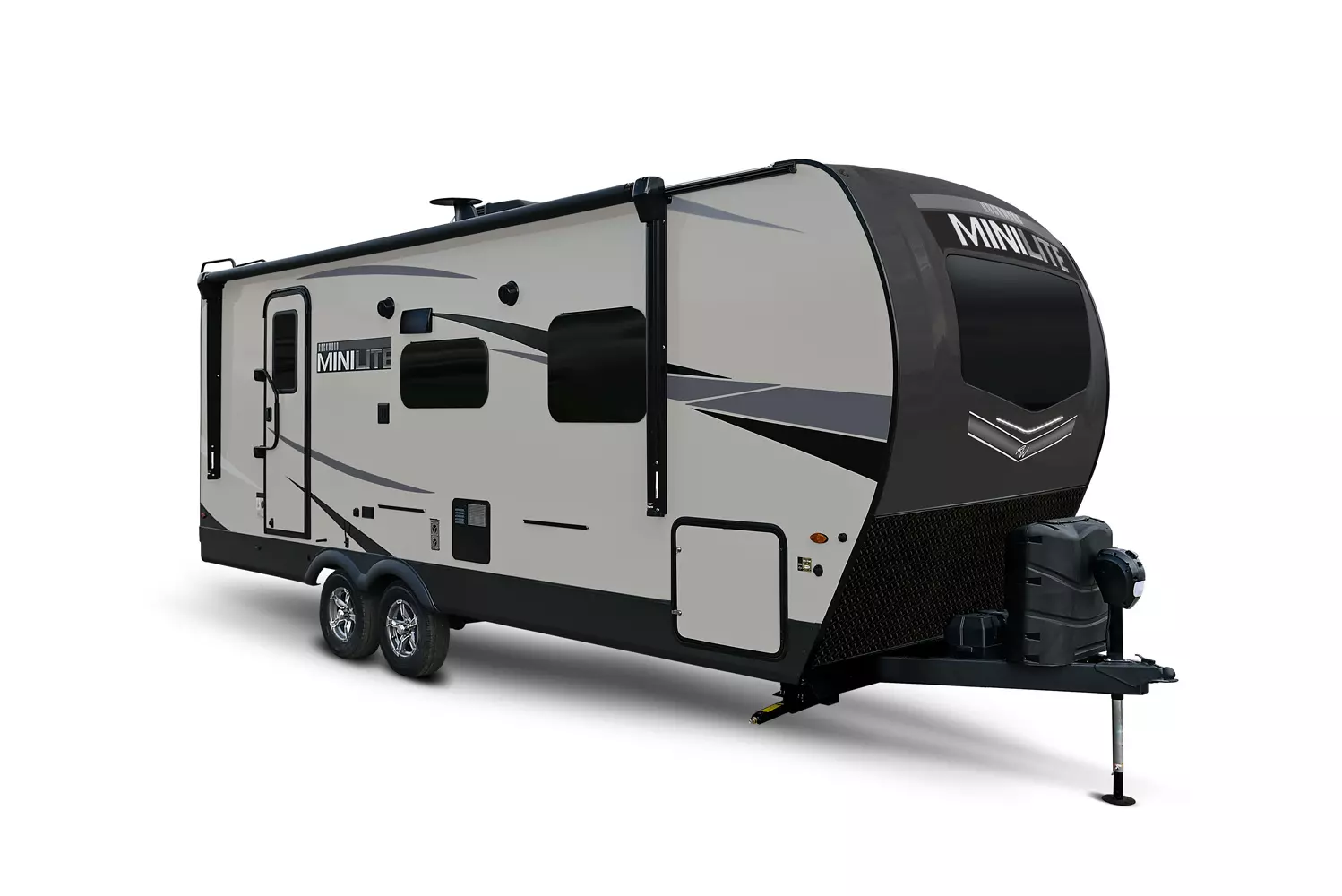

Rockwood Mini Lite Travel Trailers

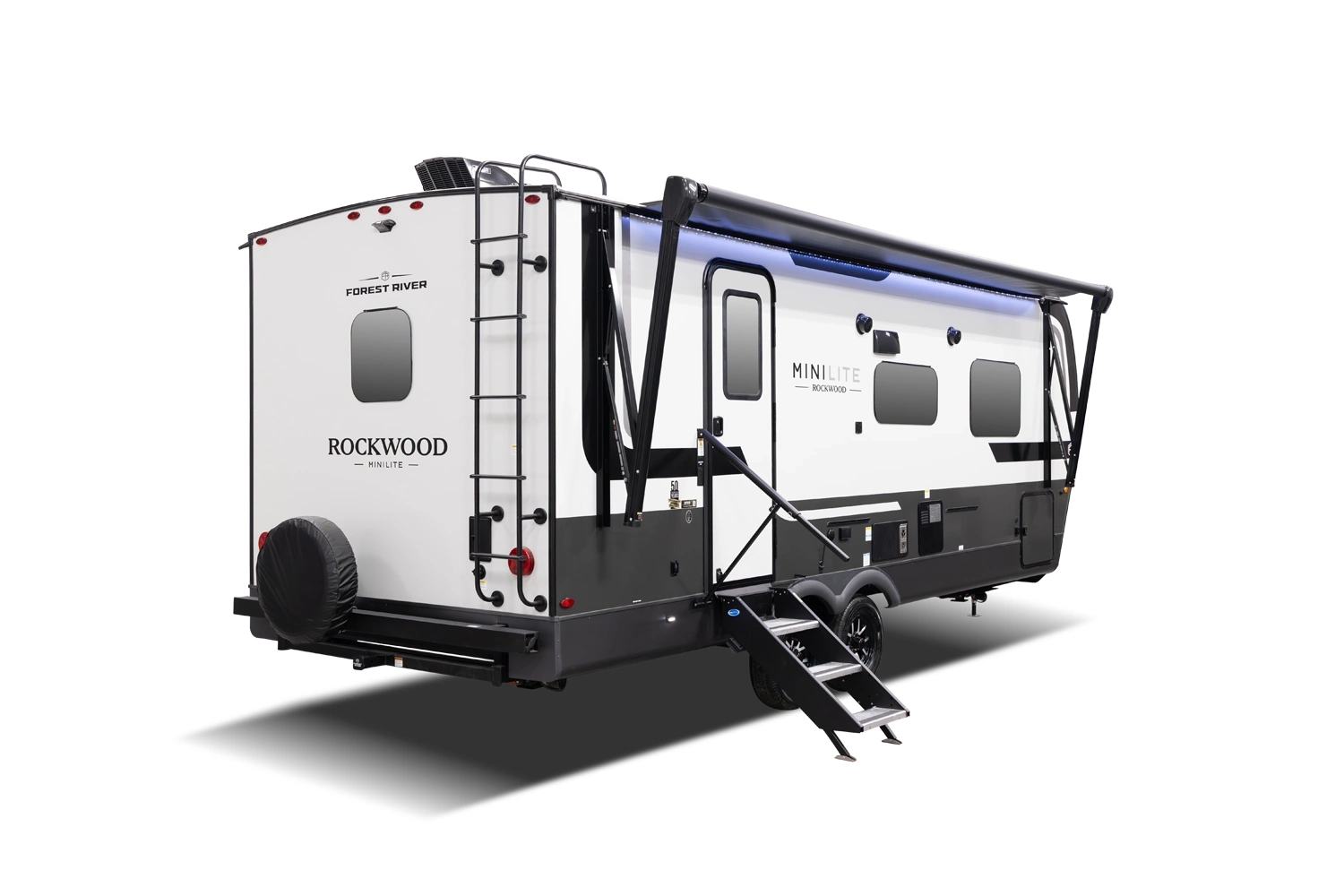

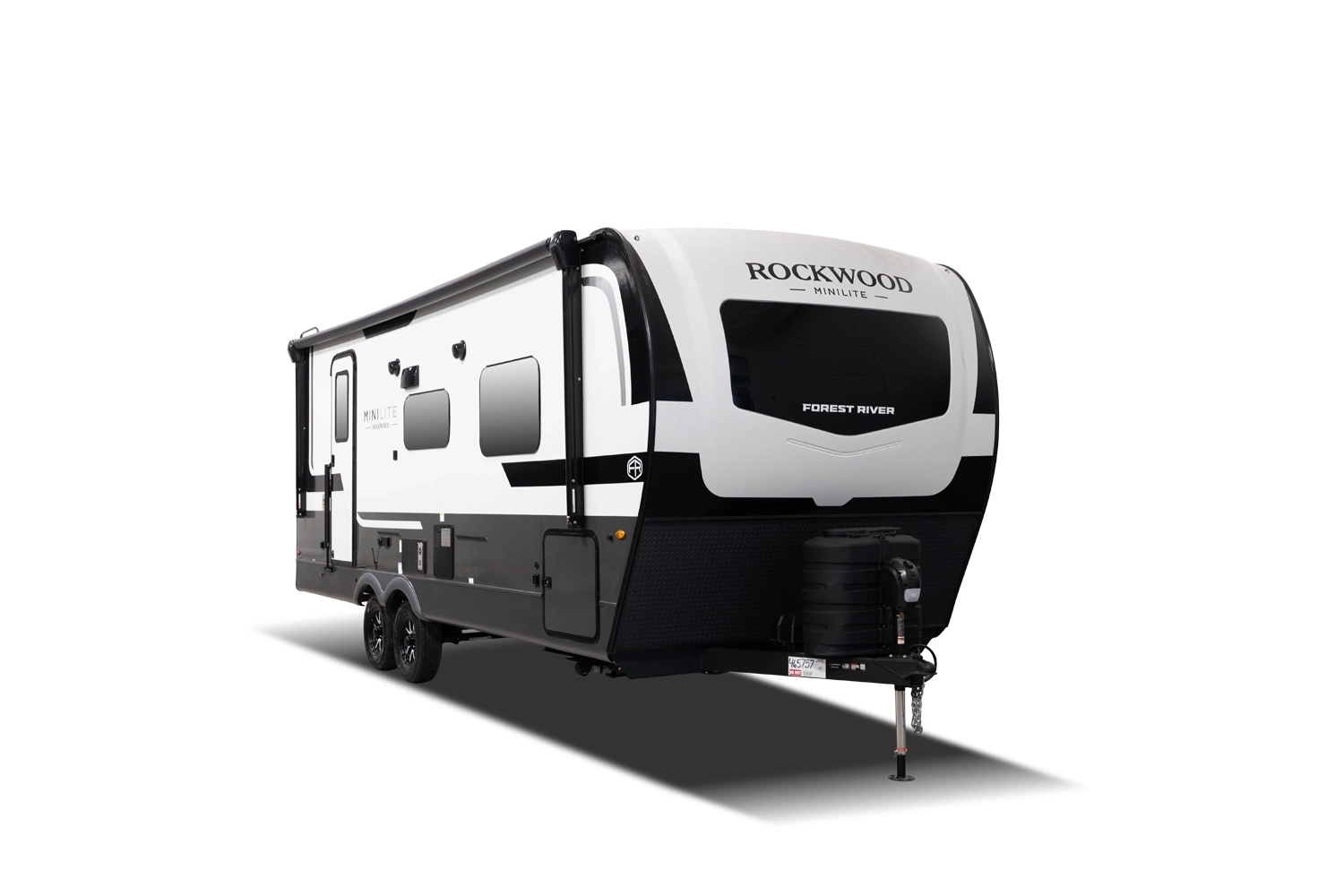

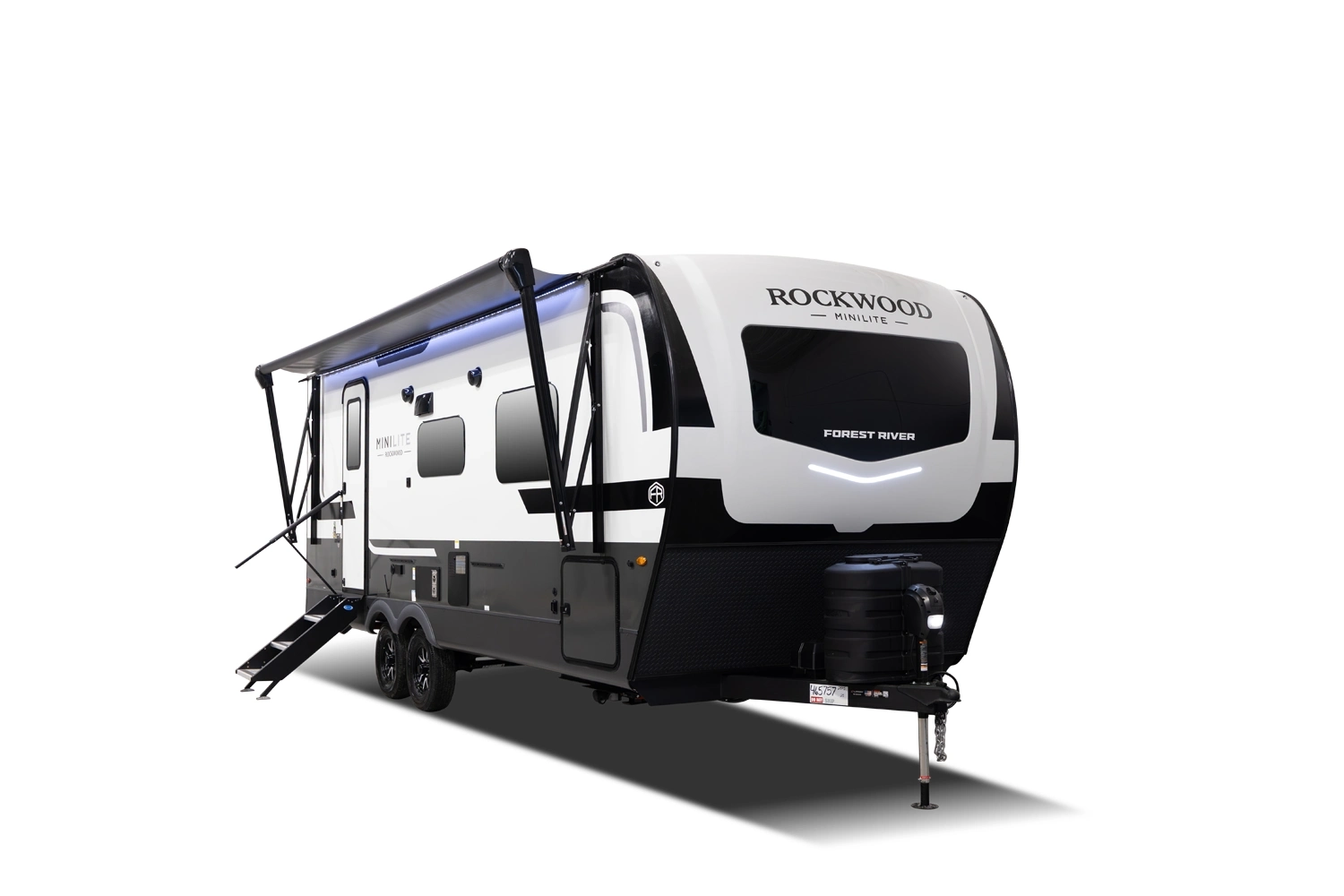

TOWING A TRAILER DOESN’T REQUIRE A TRUCK ANYMORE. When towing size and weight are your focus, you will find that these specially designed Mini Lite models offer flexible floor plans that provide you with more comfort and amenities than you would expect — all within the towing capacity of many SUV’s.

Azdel Onboard™ RV Composite Panels We RV - Rockwood Link TreeCare Camps, fighting cancer and making memories

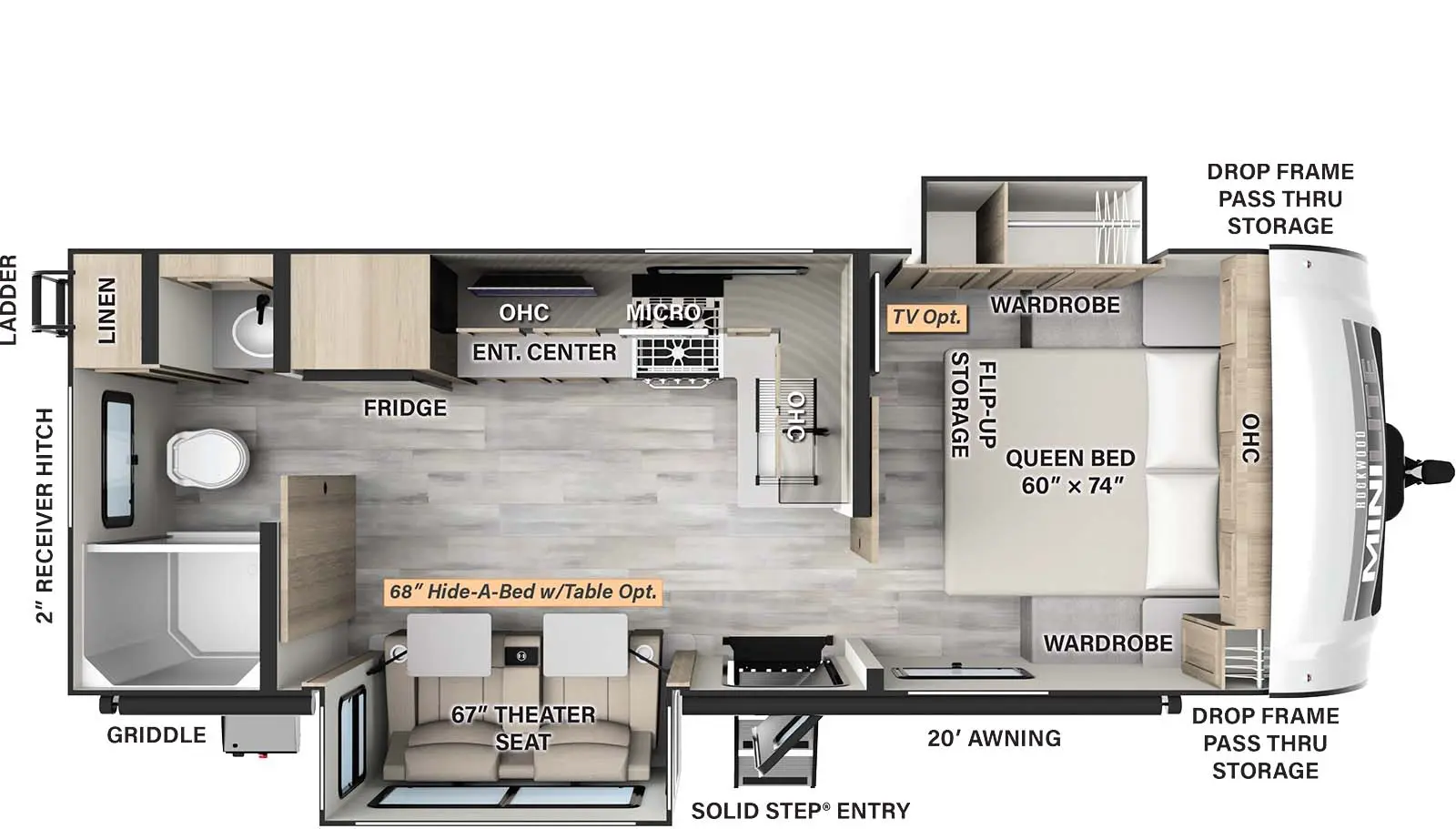

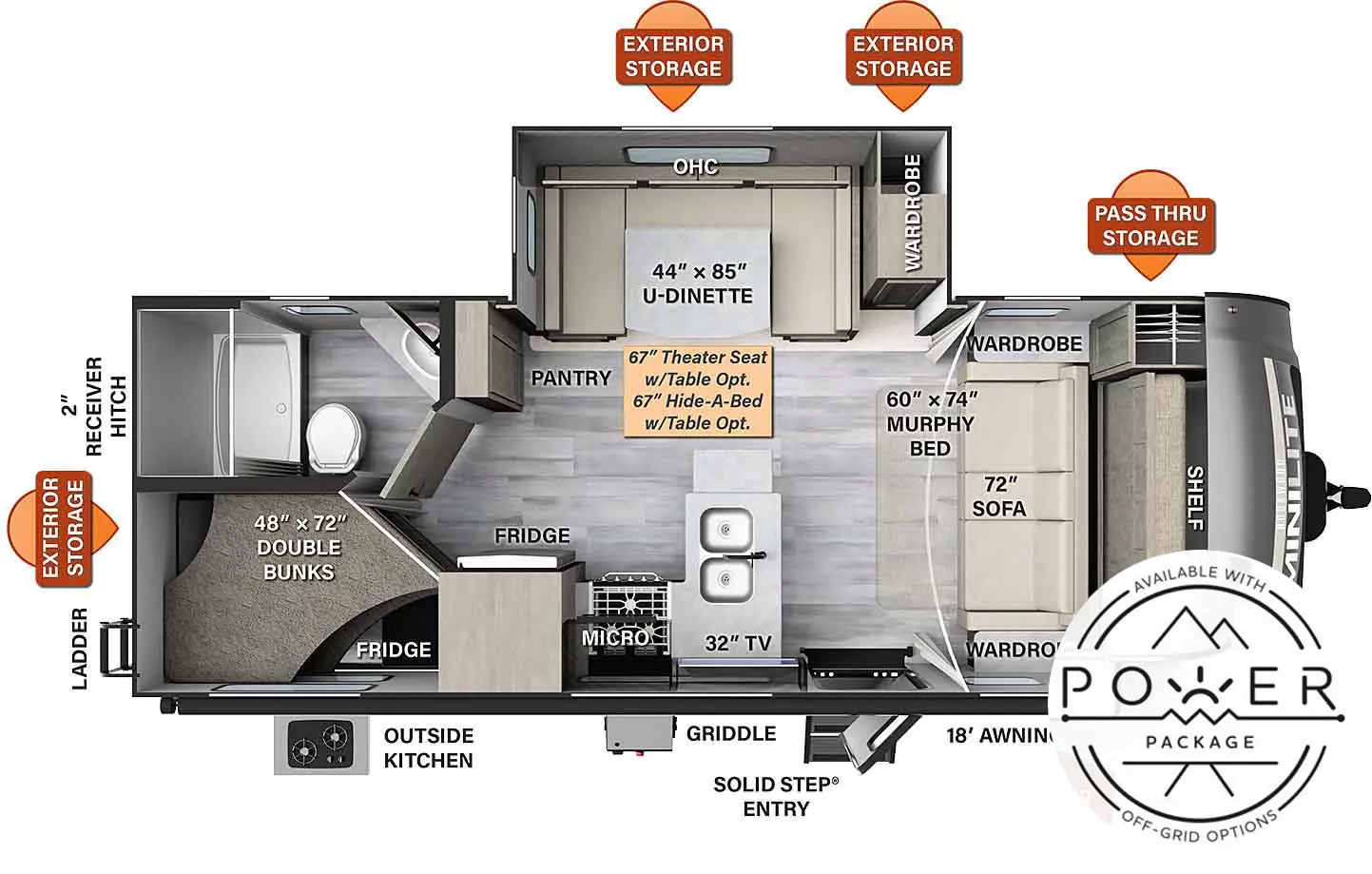

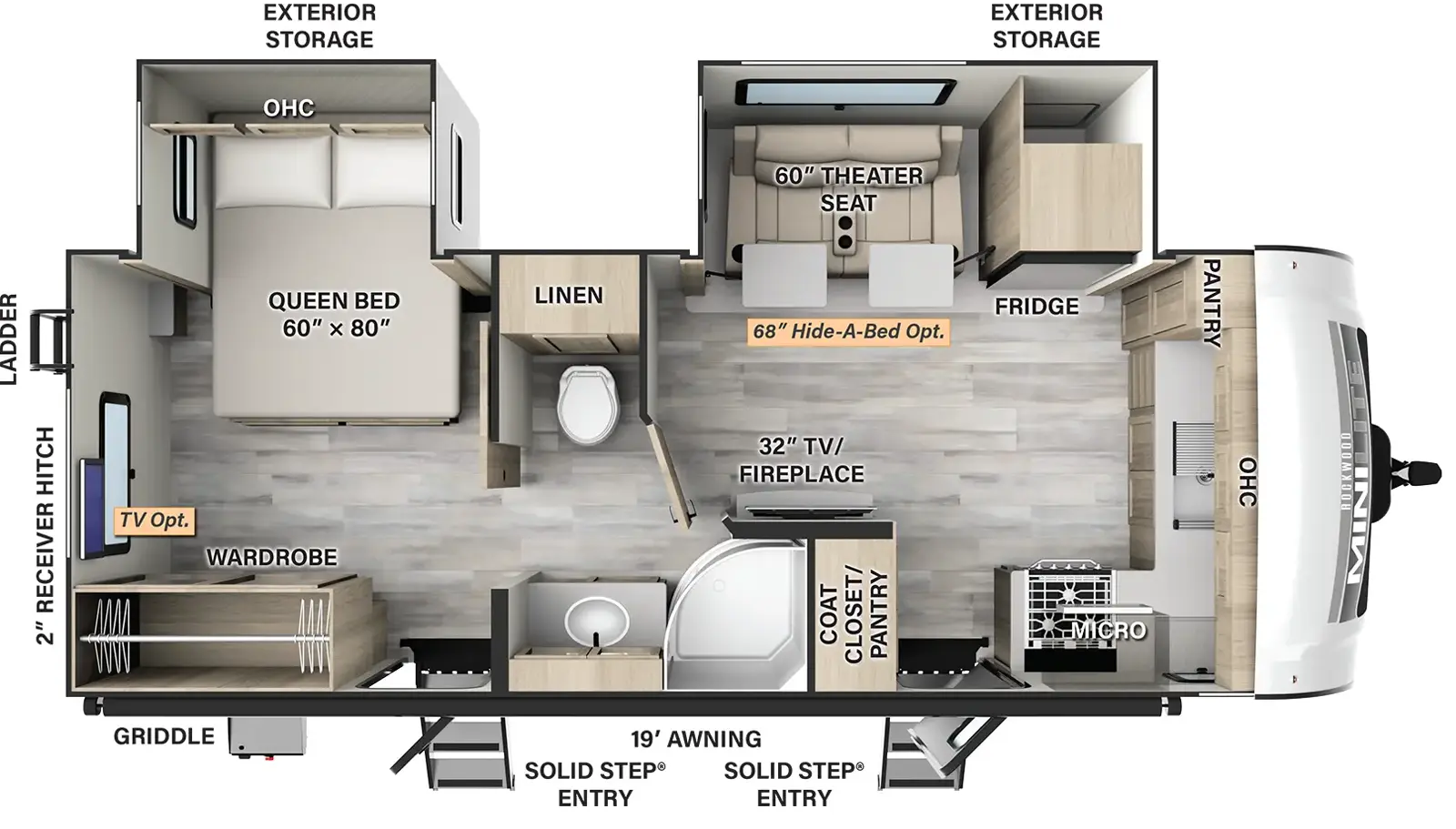

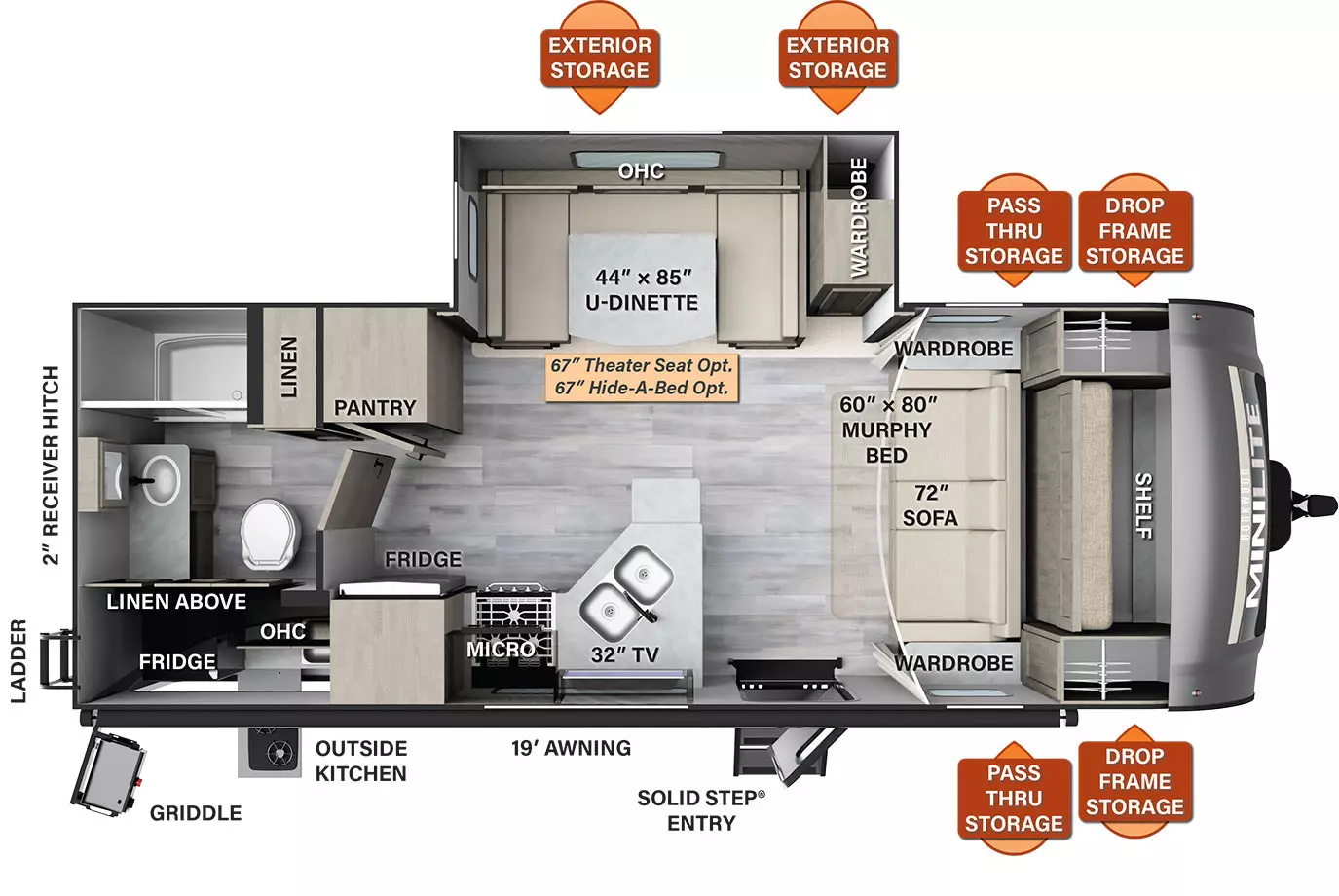

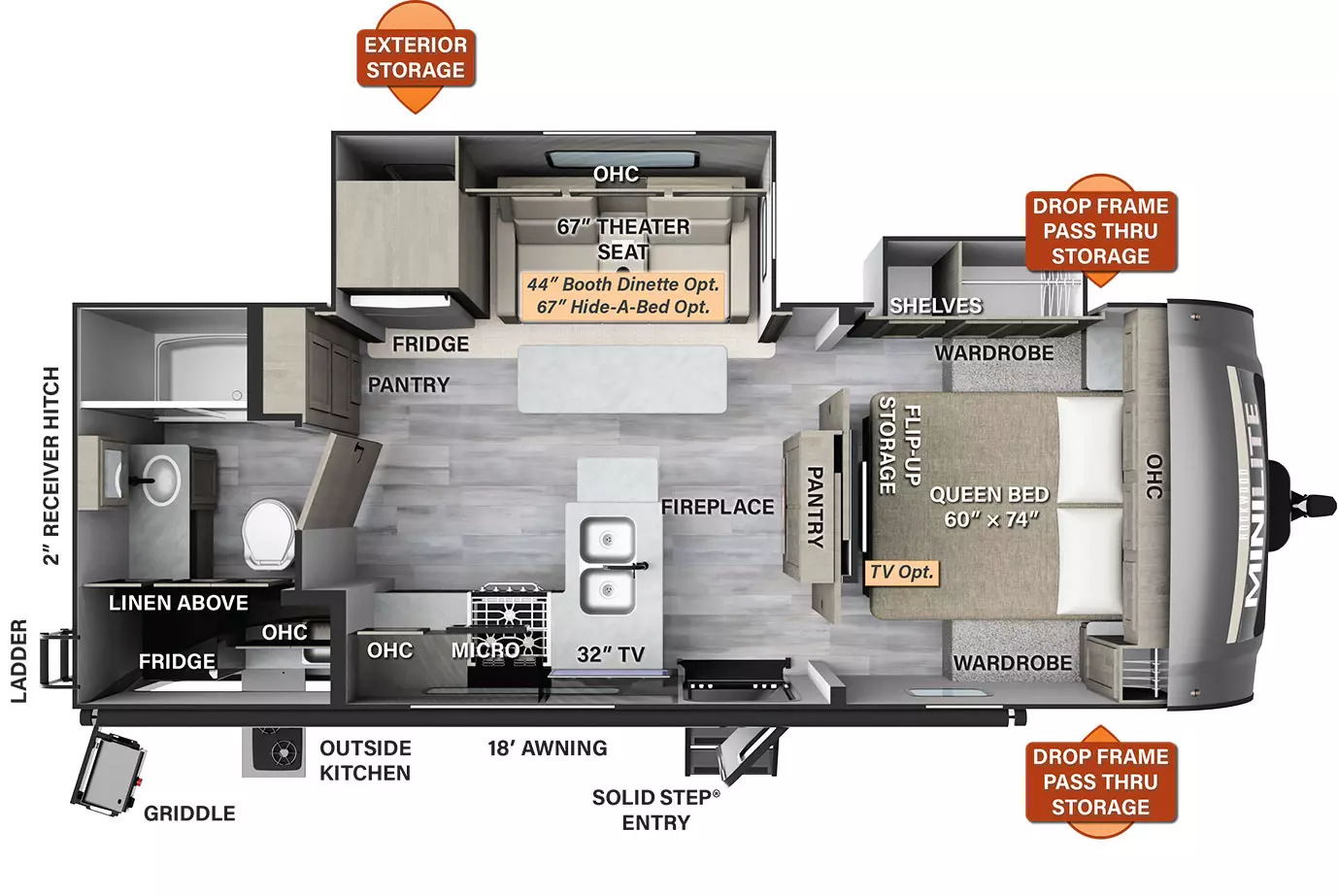

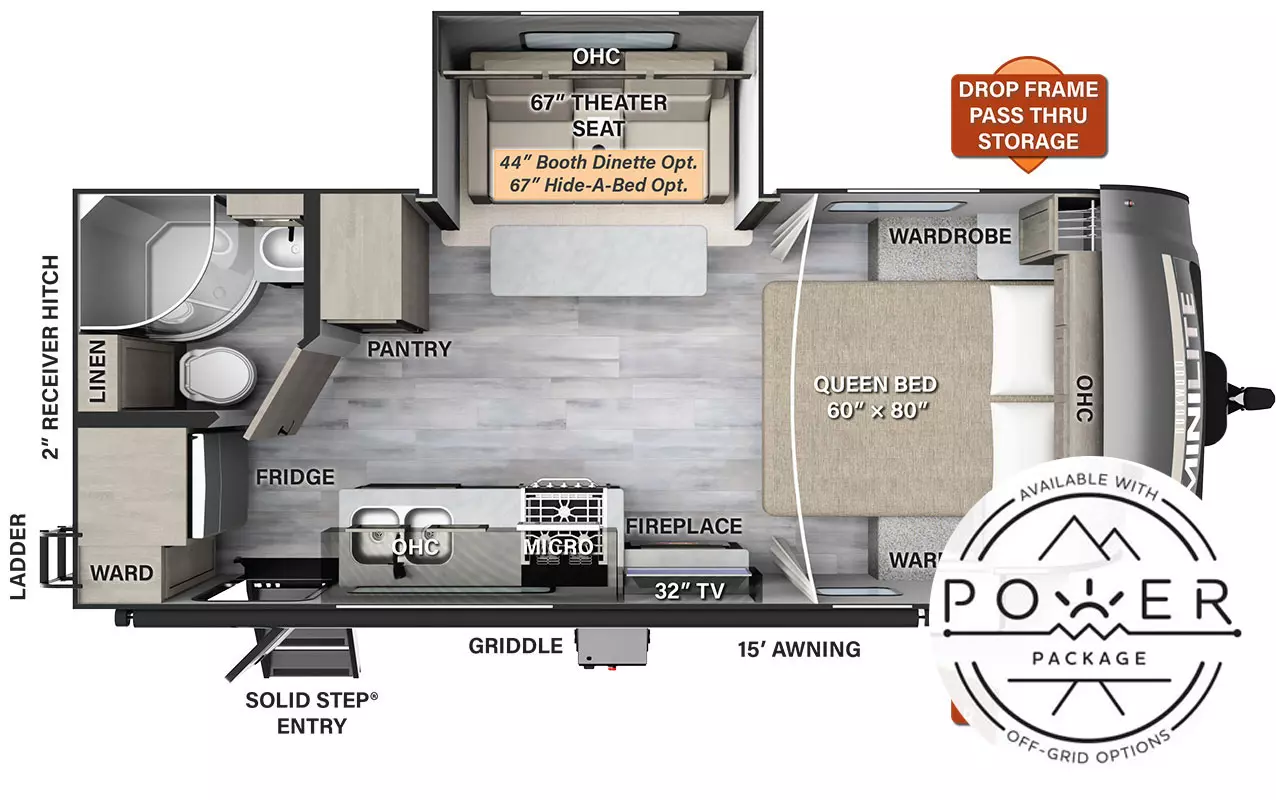

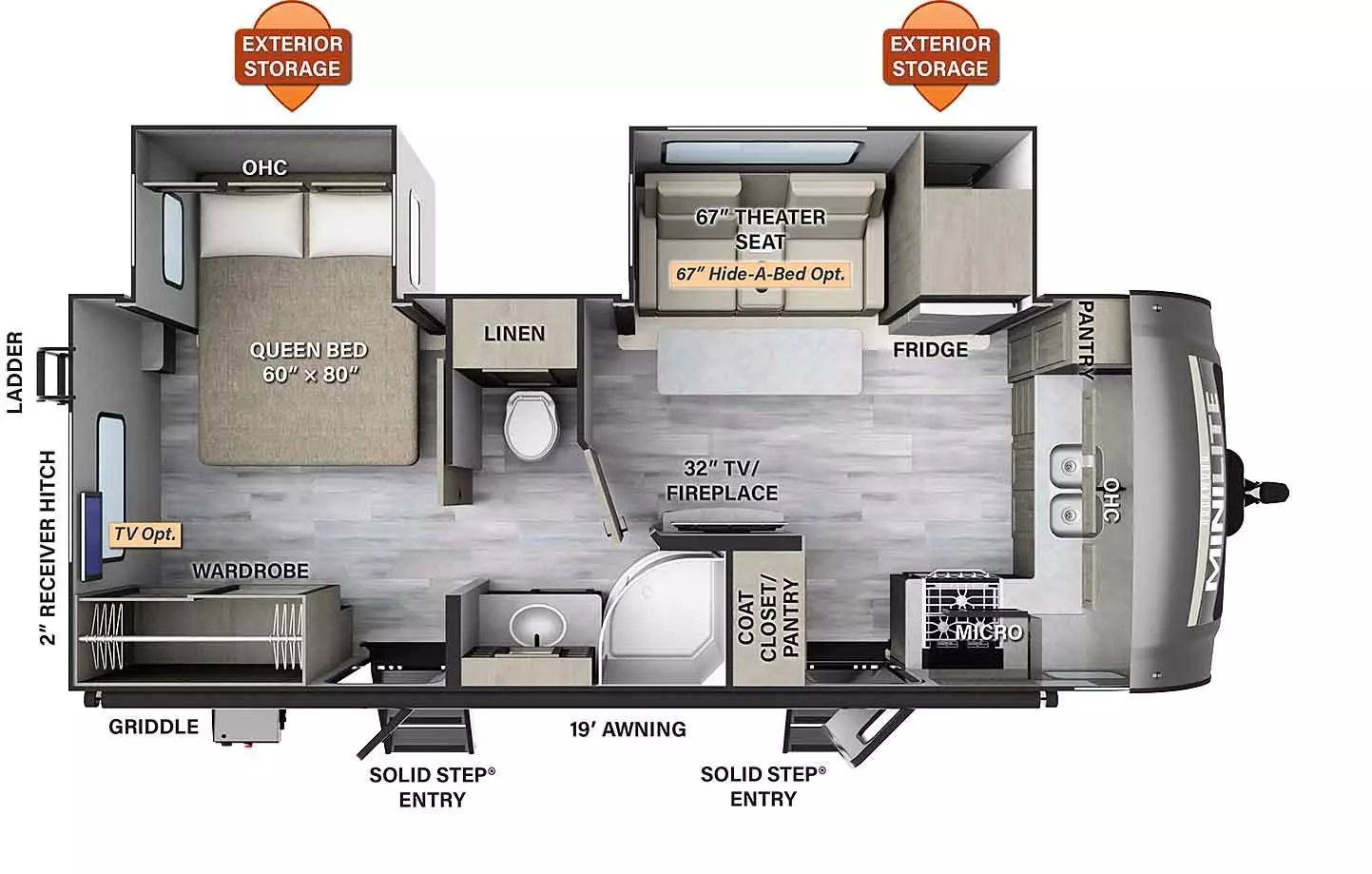

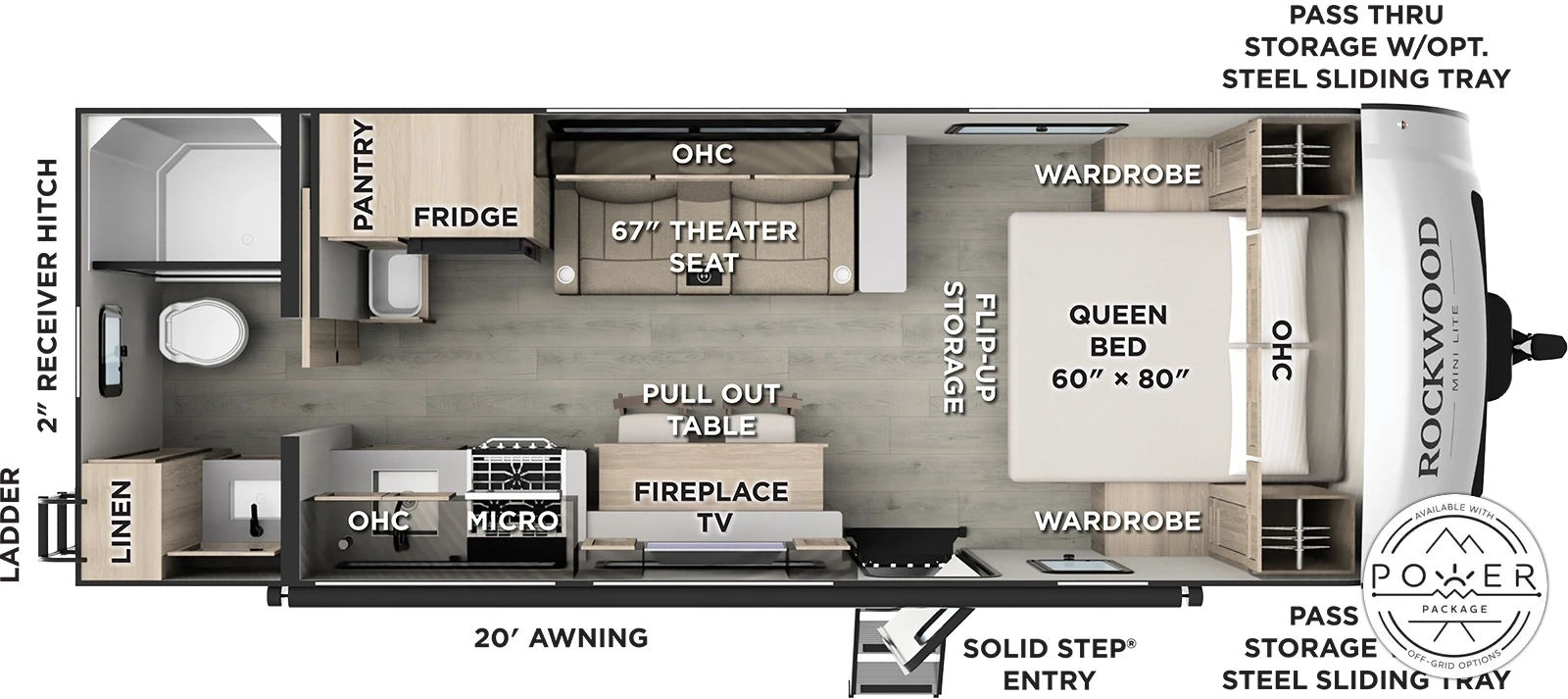

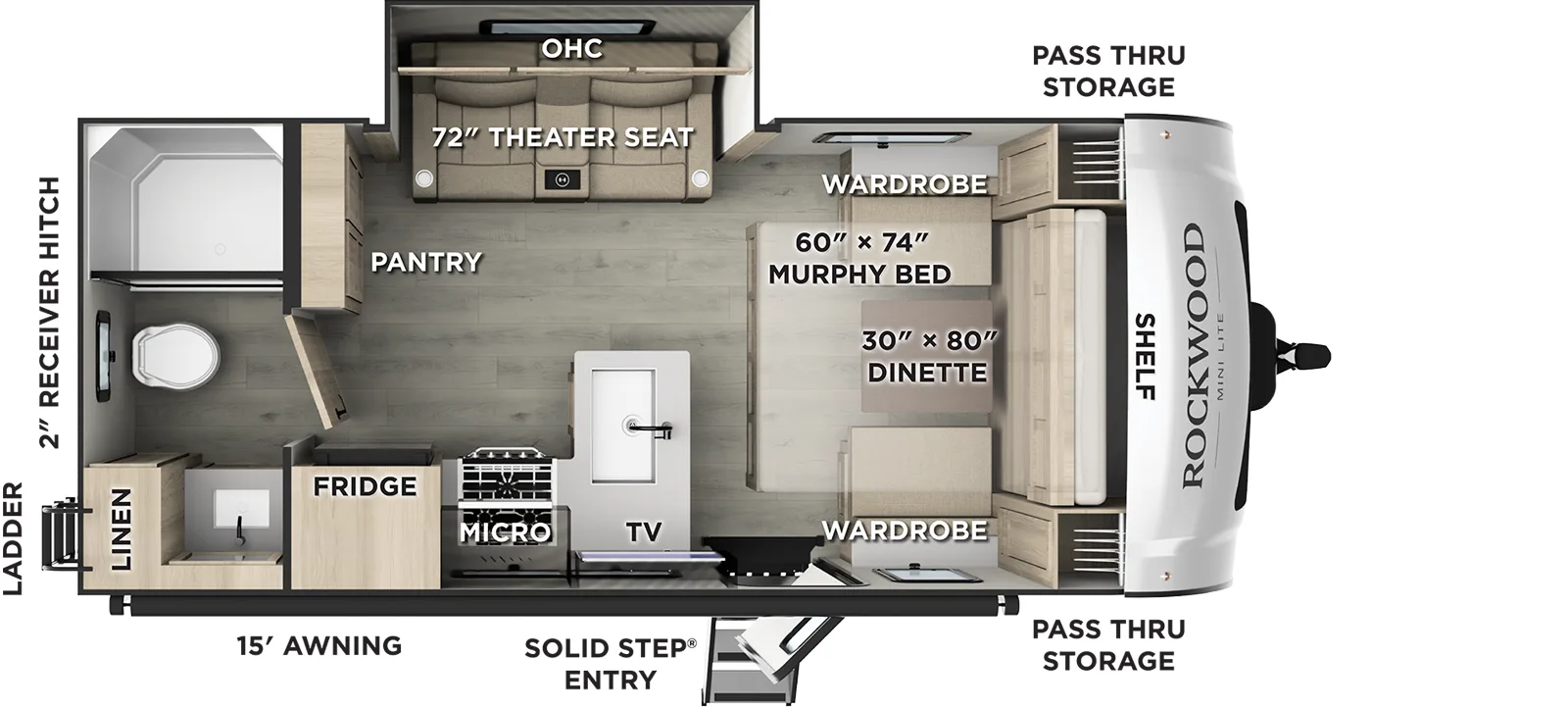

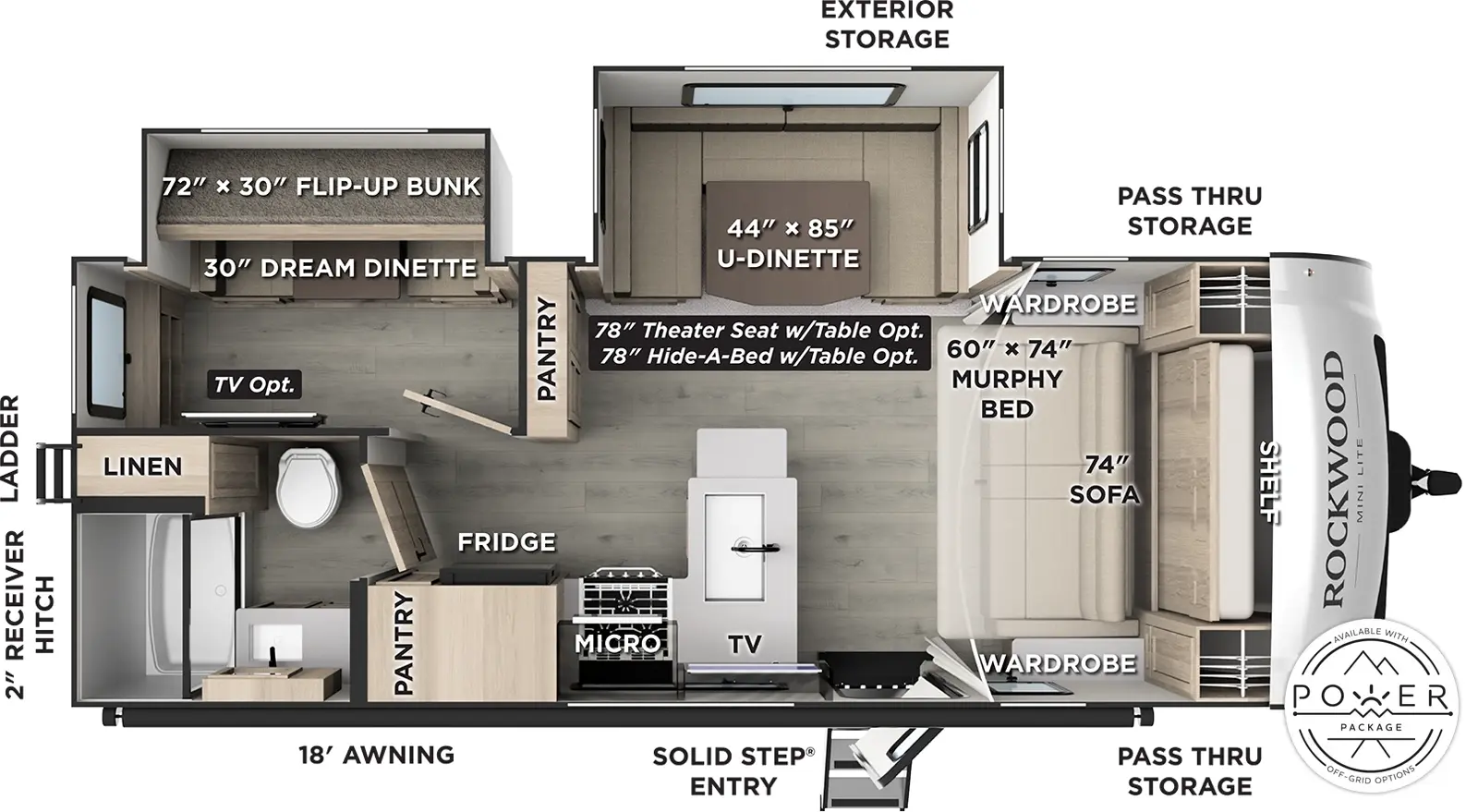

Floorplans

Print

Mini Lite Travel Trailers


Specifications

Print

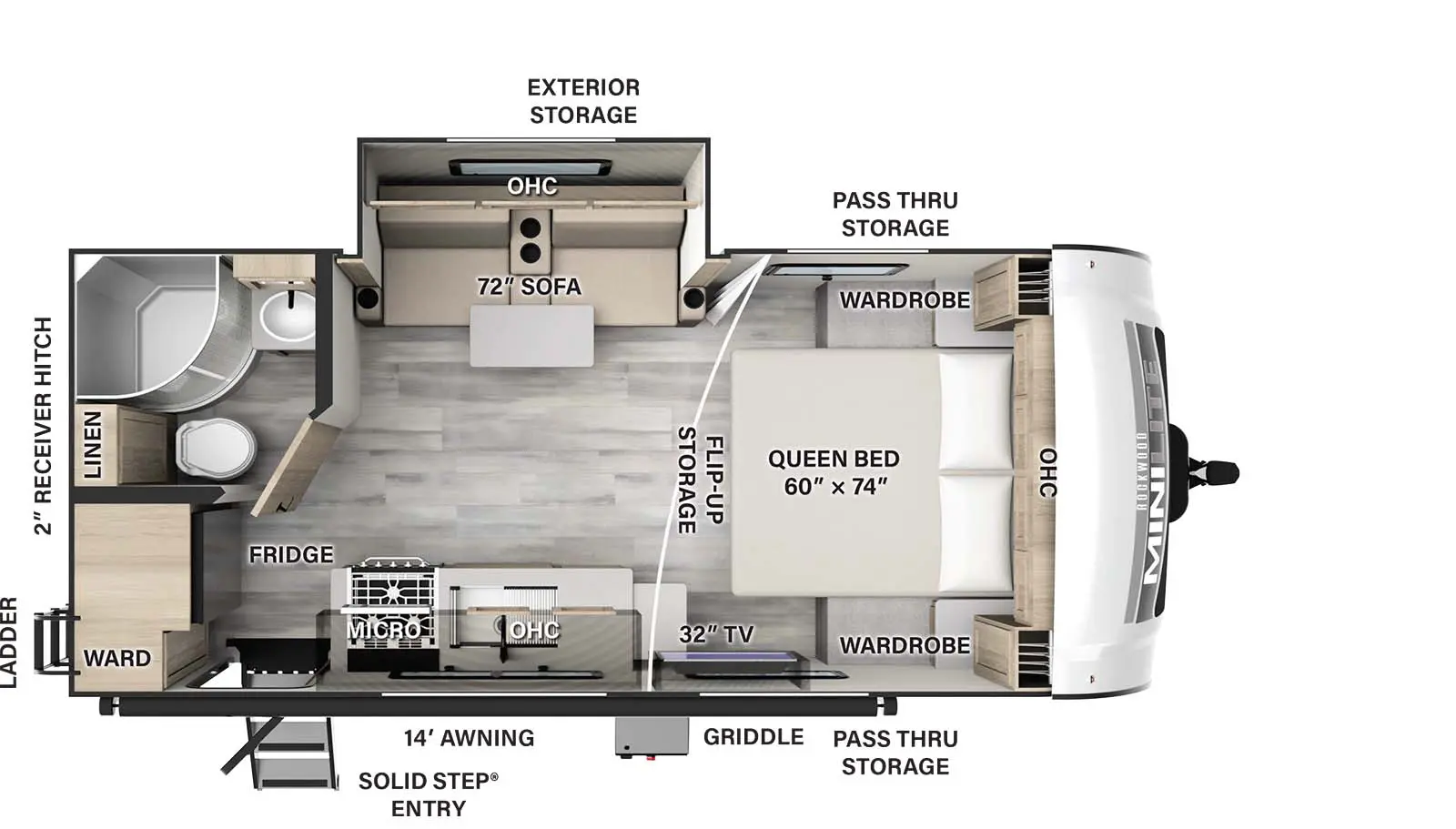

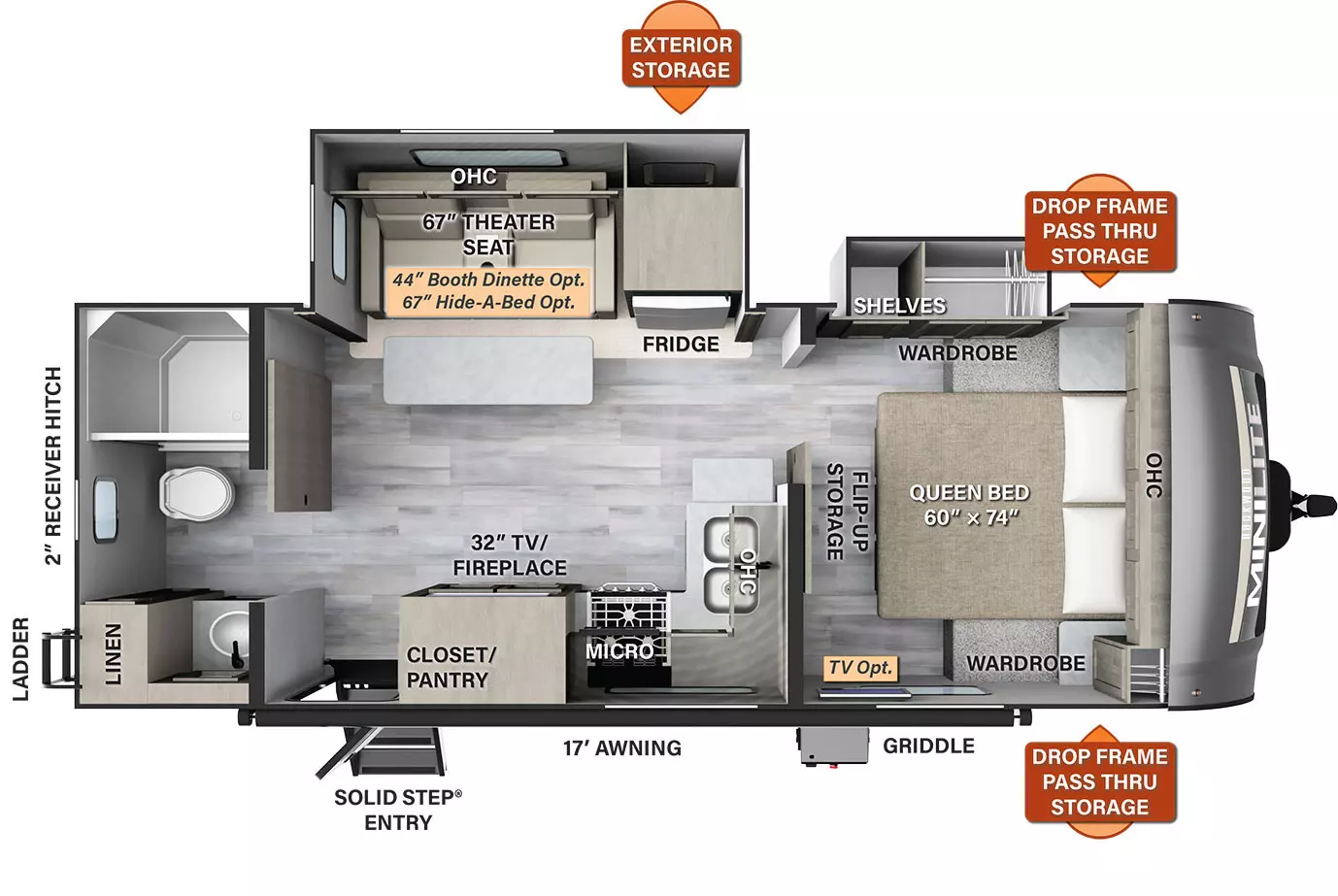

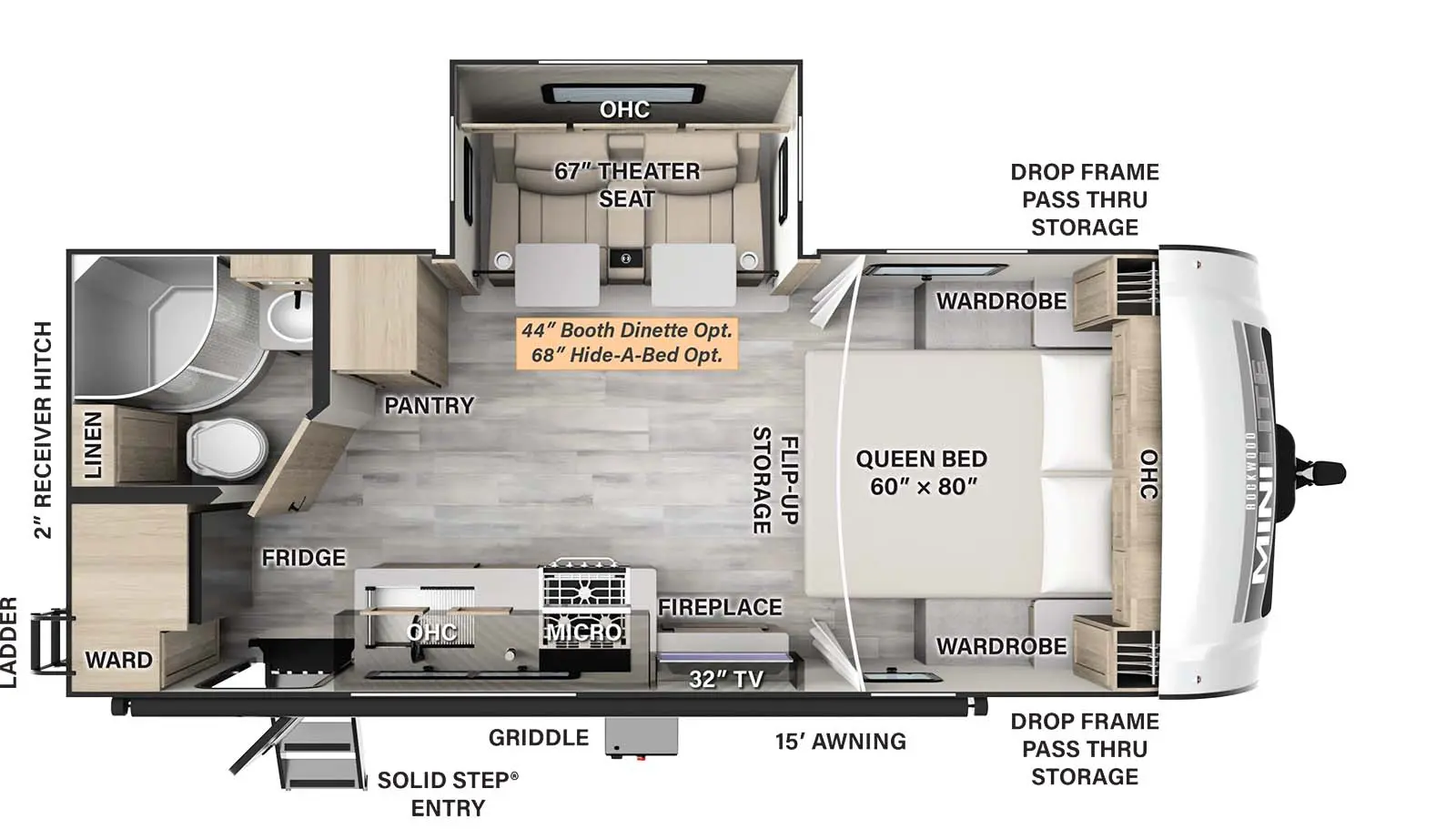

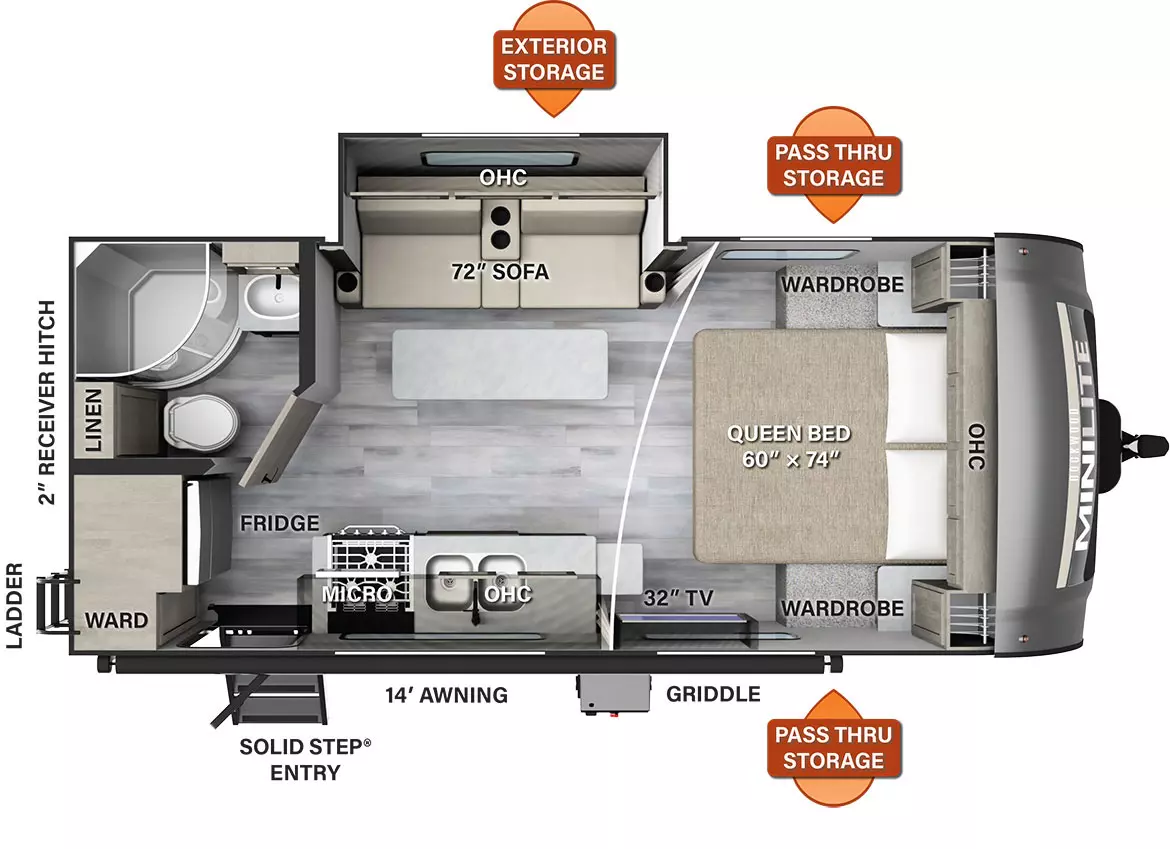

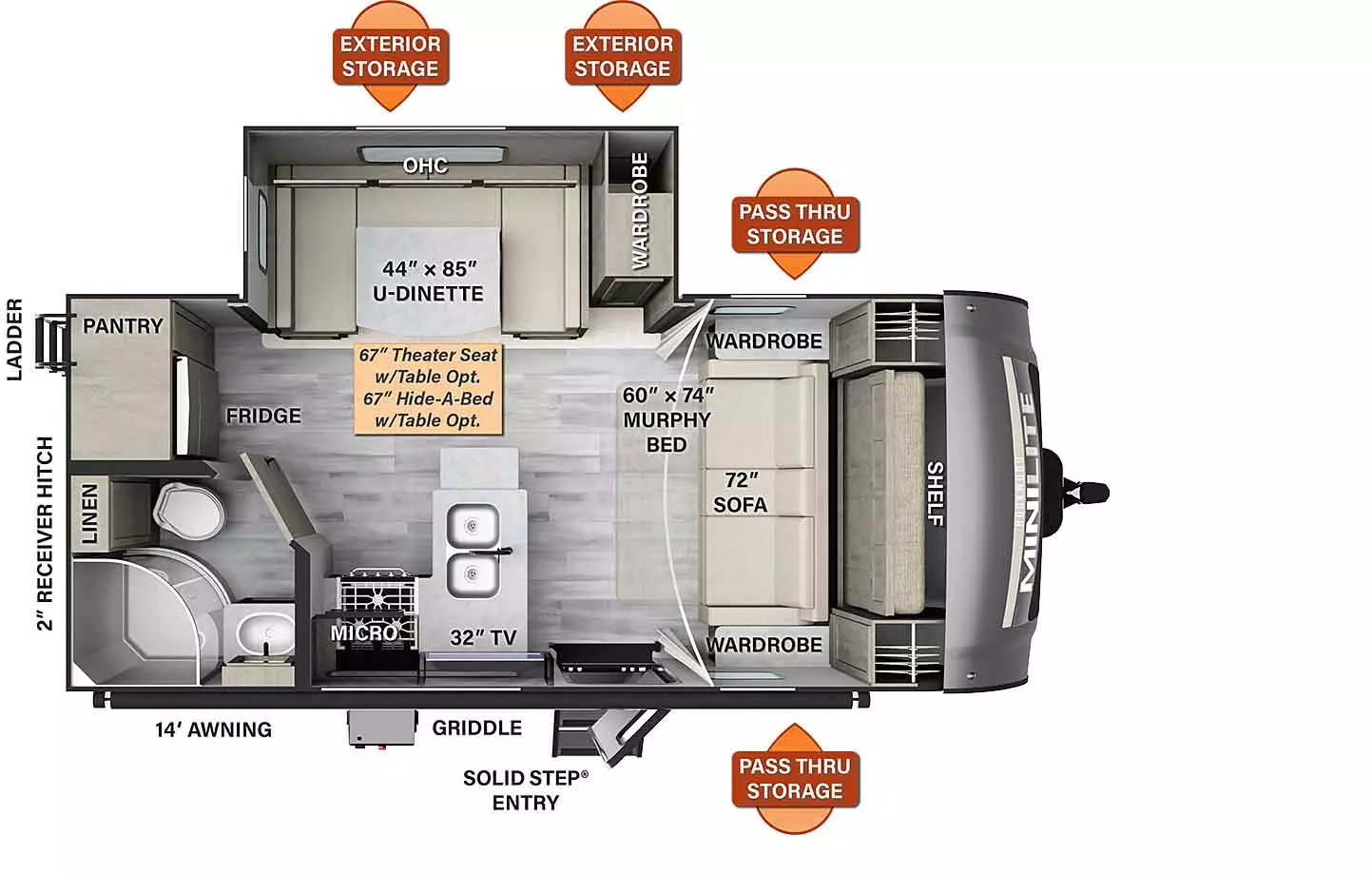

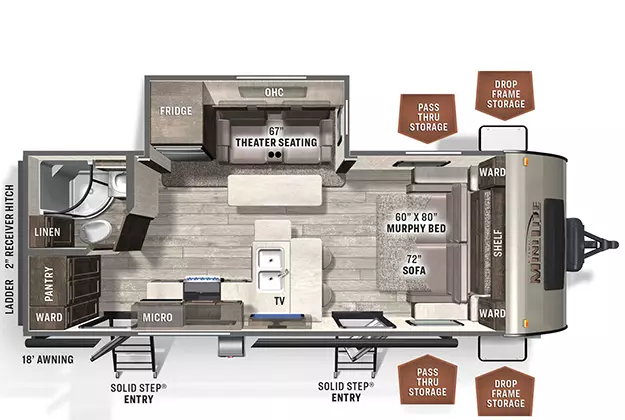

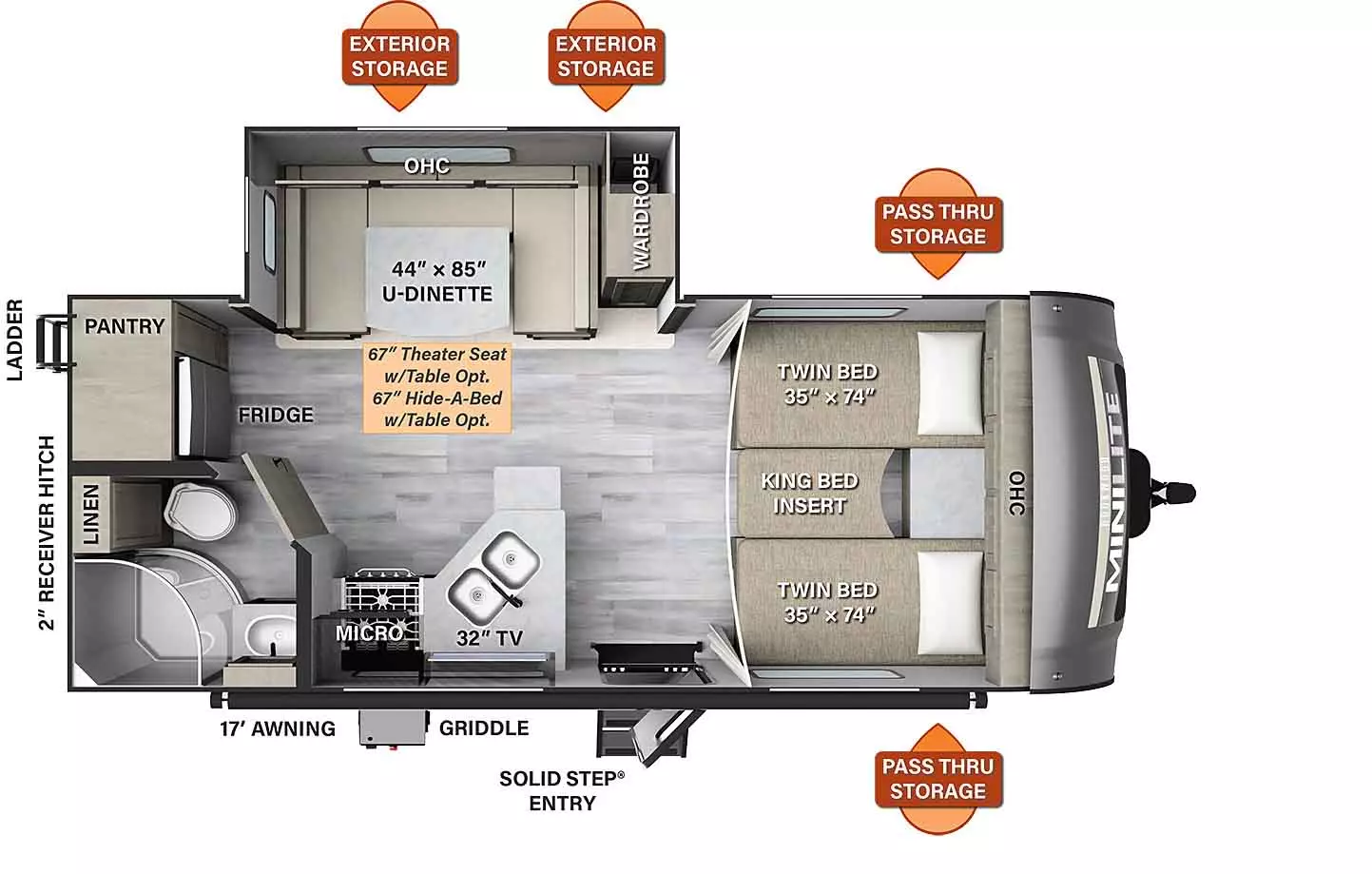

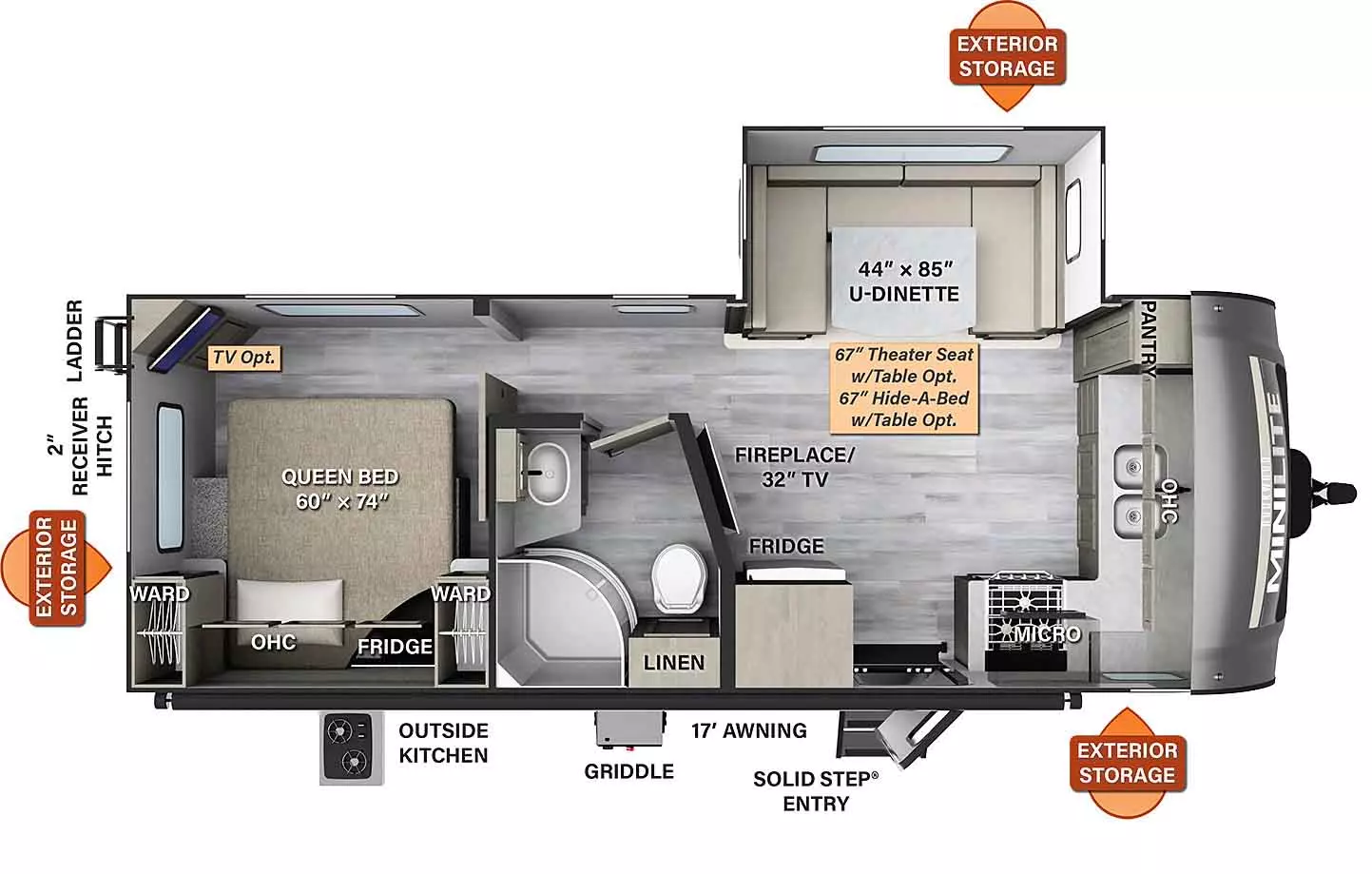

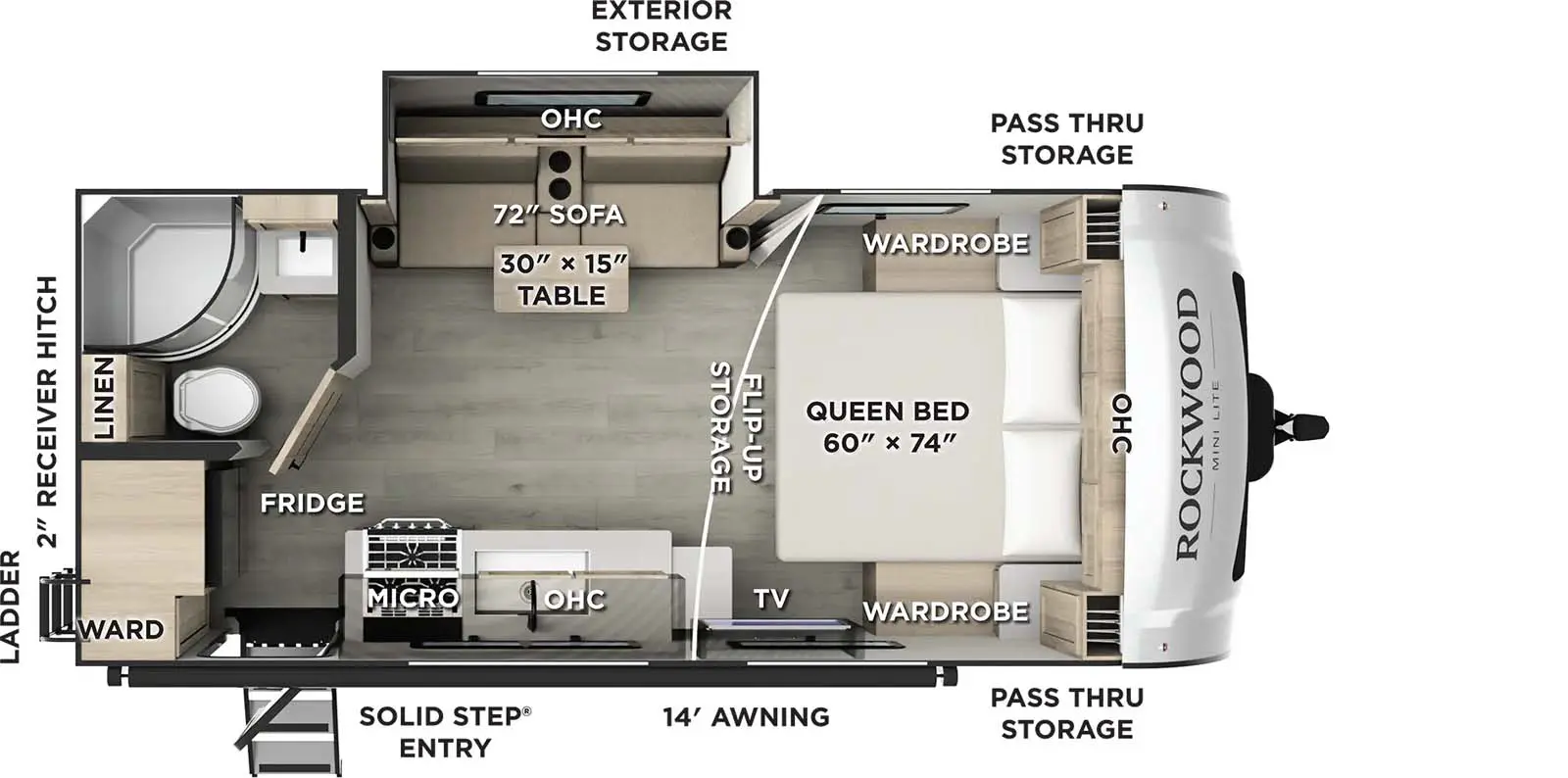

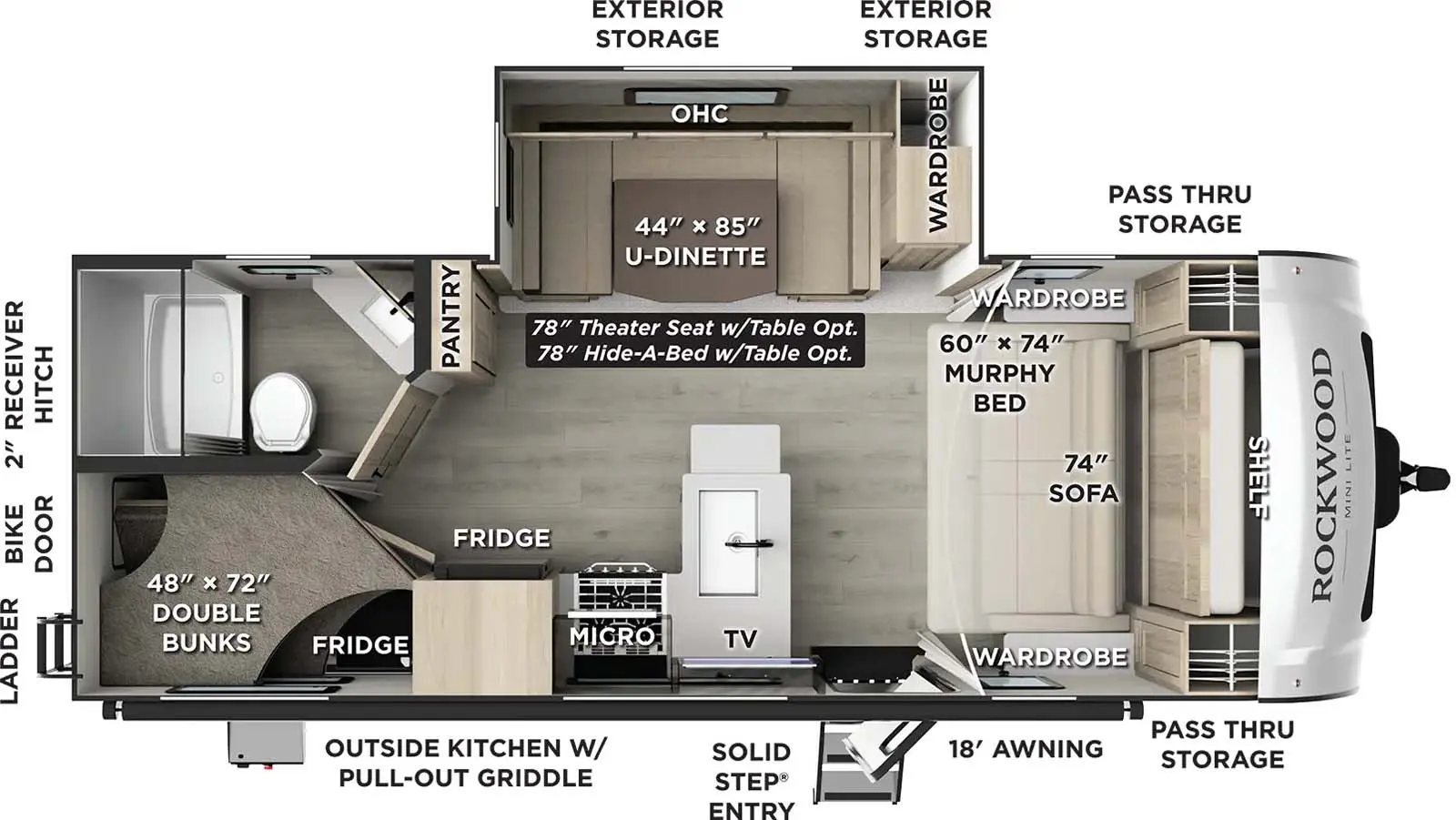

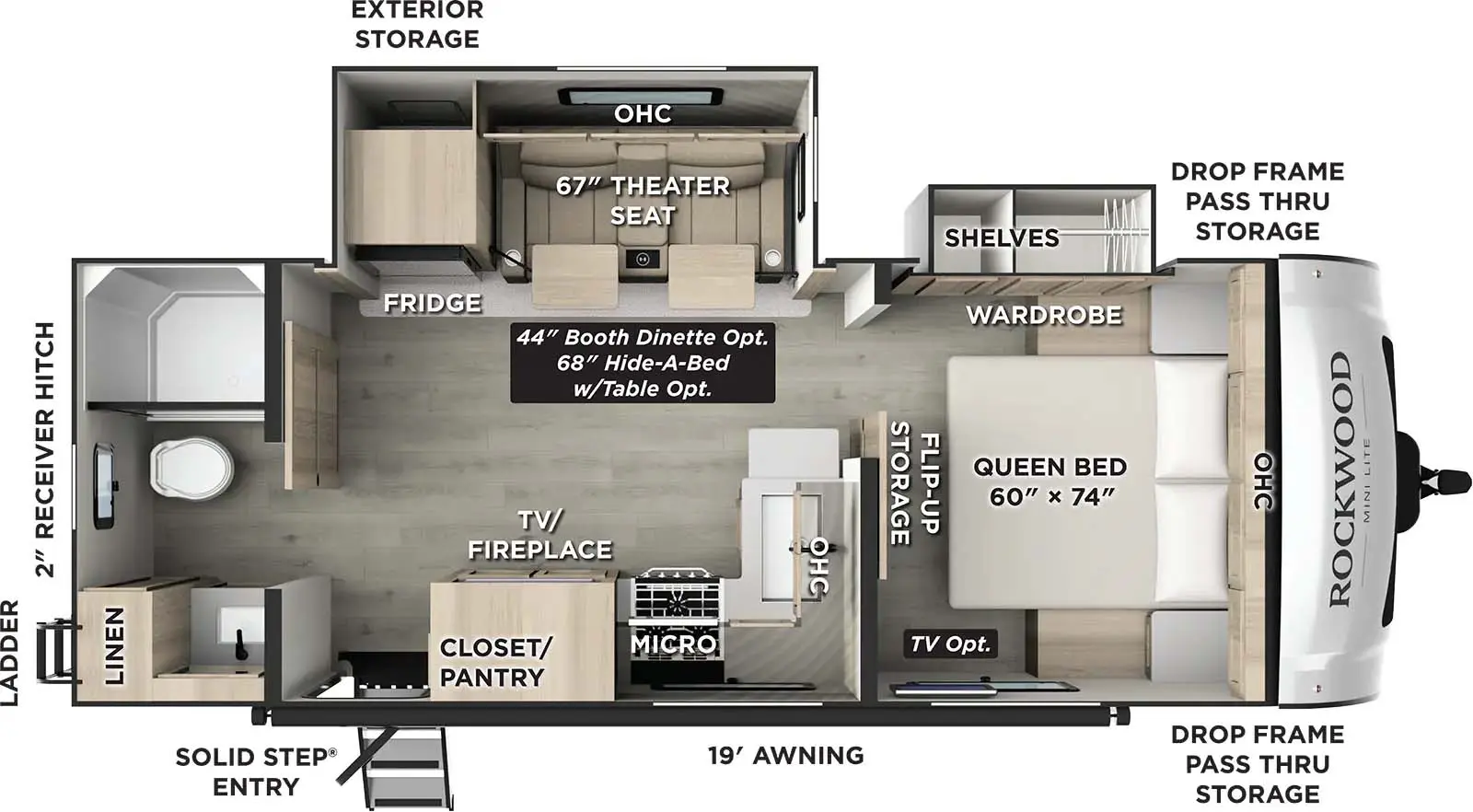

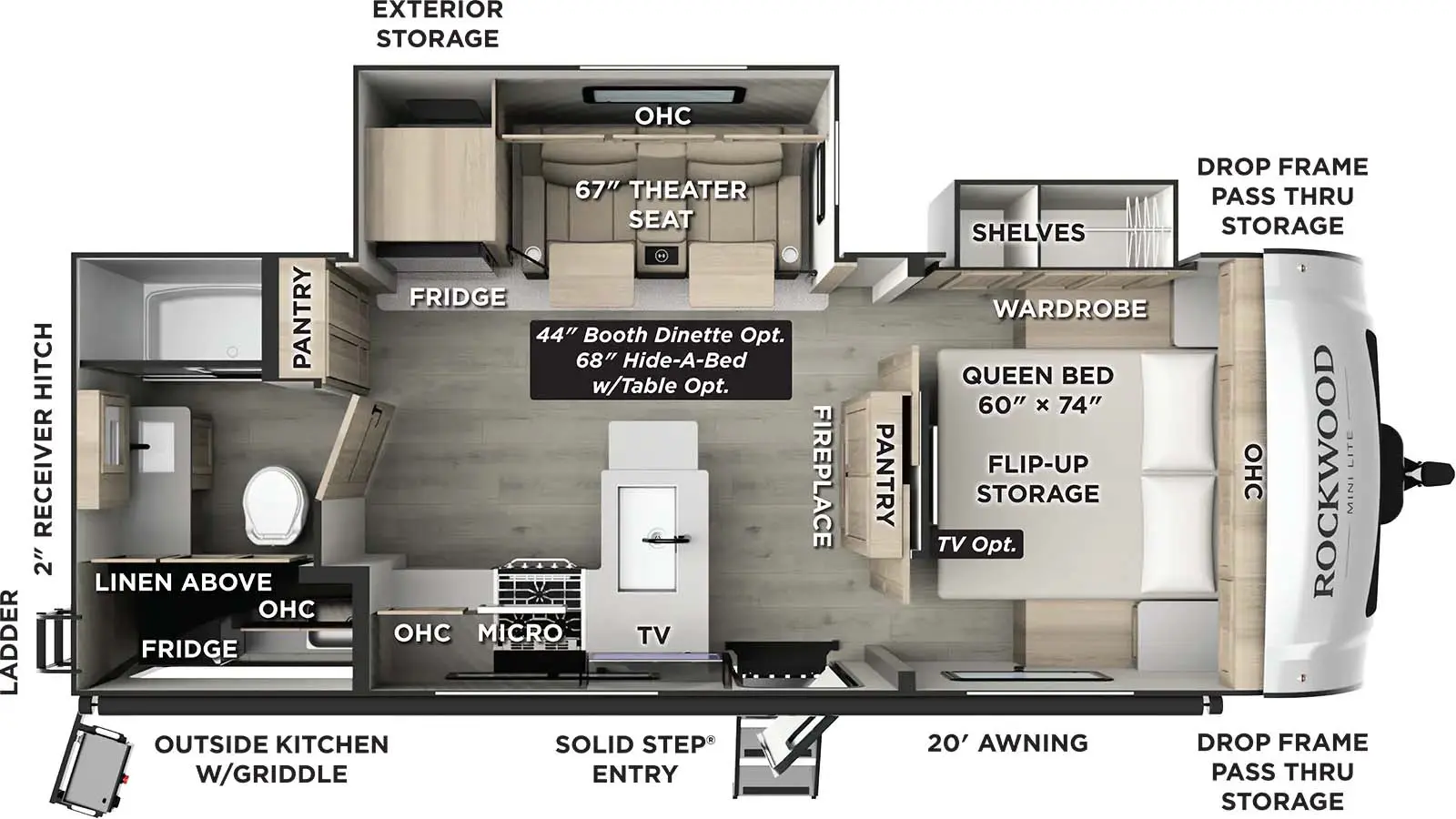

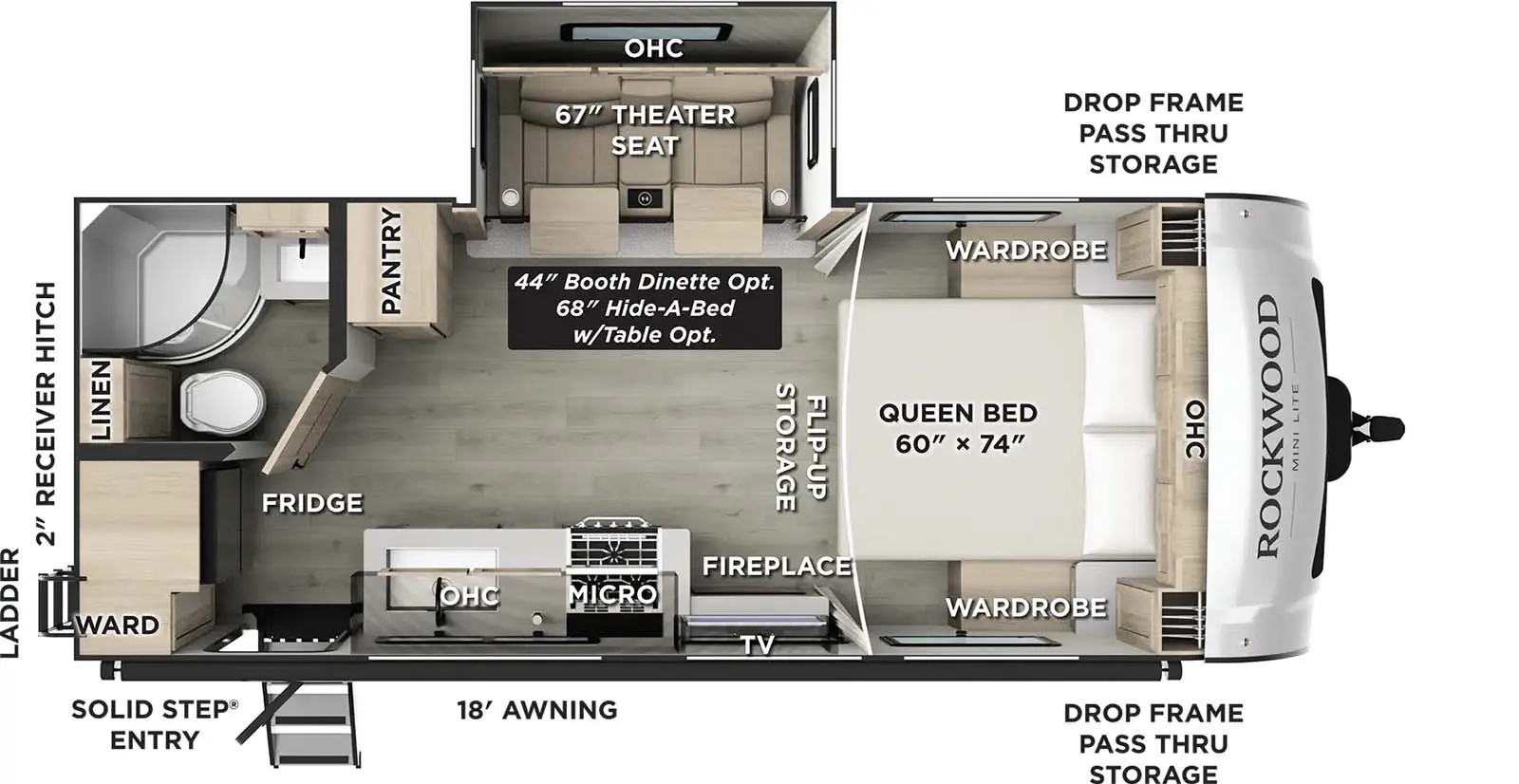

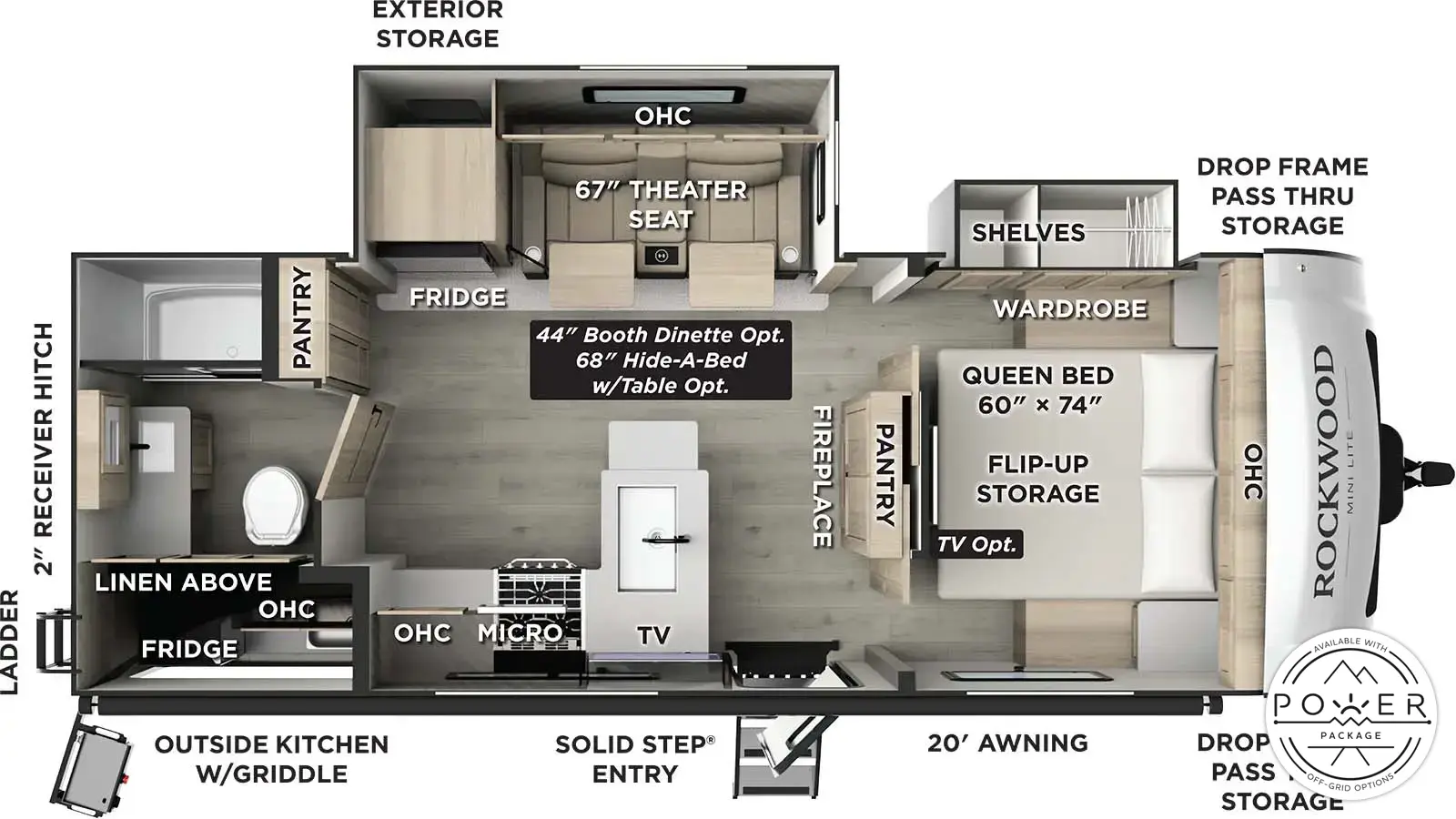

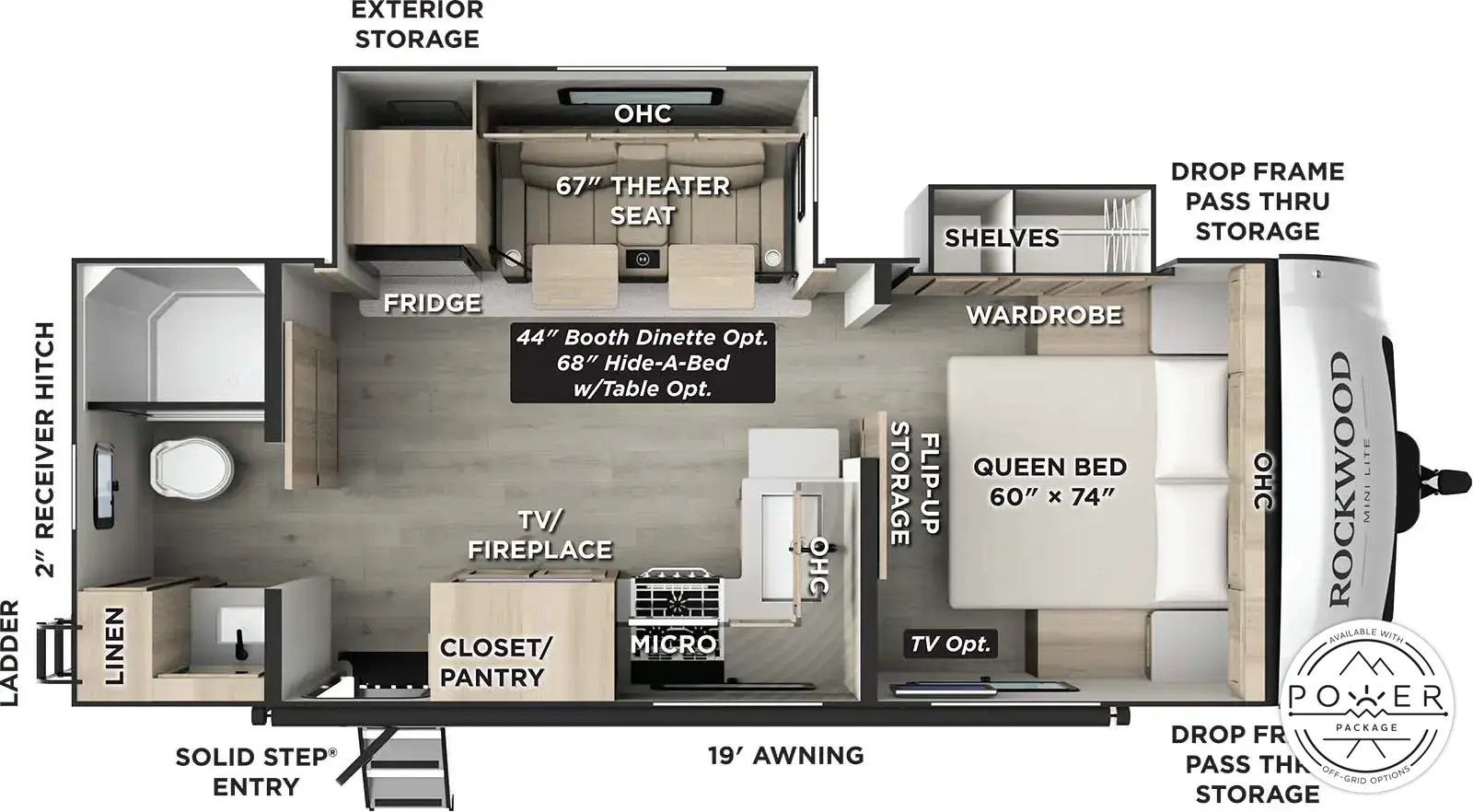

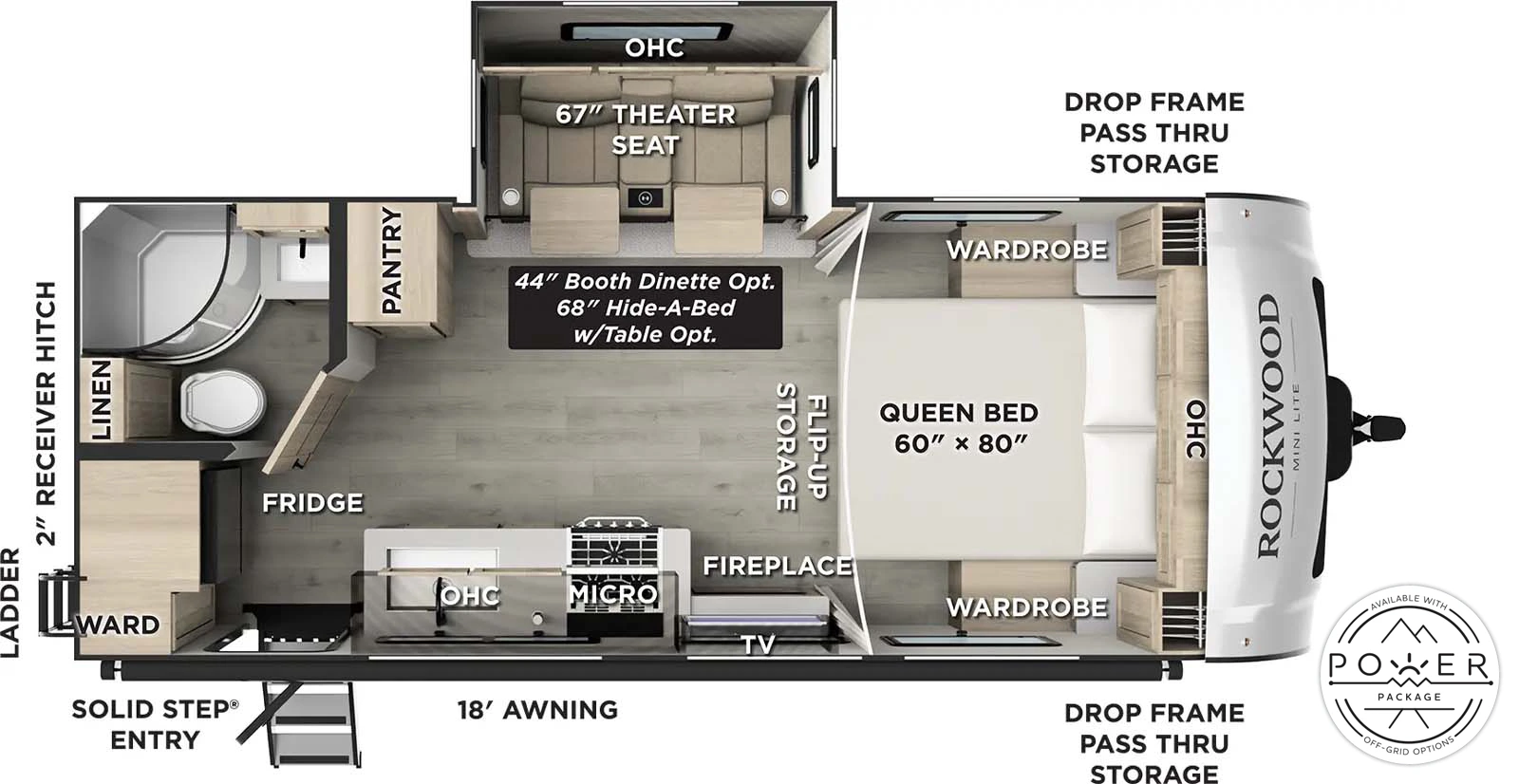

Floorplan: 2104S : Mini Lite Travel Trailers 2109S : Mini Lite Travel Trailers 2204S : Mini Lite Travel Trailers 2205S : Mini Lite Travel Trailers 2506S : Mini Lite Travel Trailers 2507S : Mini Lite Travel Trailers 2509S : Mini Lite Travel Trailers 2511S : Mini Lite Travel Trailers 2513S : Mini Lite Travel Trailers 2514S : Mini Lite Travel Trailers 2516S : Mini Lite Travel Trailers
Hitch Weight:681 lb.557 lb.720 lb.634 lb.814 lb.590 lb.773 lb.824 lb.660 lb.646 lb.772 lb.
UVW:4,977 lb.4,493 lb.4,975 lb.5,132 lb.5,528 lb.5,754 lb.5,499 lb.5,748 lb.5,971 lb.5,675 lb.6,049 lb.
CCC:1,864 lb.1,344 lb.1,905 lb.1,662 lb.1,446 lb.1,836 lb.1,434 lb.1,236 lb.1,689 lb.1,971 lb.1,723 lb.
Exterior Length:22' 4"22' 4"23' 11"23' 10"25' 11"25' 10"25' 11"25' 10"25' 10"25' 10"25' 11"
Exterior Height:10' 11"10' 3"10' 11"10' 11"10' 11"10' 11"10' 11"10' 11"10' 11"10' 11"10' 11"
Exterior Width:96"96"96"96"96"96"96"96"96"96"96"
Fresh Water:54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.
Gray Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.60.00 gal.30.00 gal.30.00 gal.60.00 gal.30.00 gal.30.00 gal.60.00 gal.
Black Water:30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.30.00 gal.
Awning Size:15'14'17'15'17'19'18'17'18'18'19'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

* Due to the current environment, our features and options are subject to change due to material availability.

  • Laminated White OR Champagne Color Fiberglass Sidewalls
  • Power Awning w/ Adjustable Rain Dump & LED Lighting
  • Tinted Frameless Windows
  • Magnetic Compartment Door Catches
  • Exterior Battery Disconnect Switch
  • Cable & Satellite Hookup
  • Teton All In One Wi-Fi Booster/LTE Prep & Antenna
  • Side Solar Prep
  • Outside Griddle w/ LP Hook Up
  • Friction Hinge Entrance Door with Window Shade & ScreenShot Screen Door
  • Large, Foldable Grab Handles (All Entrance Doors)

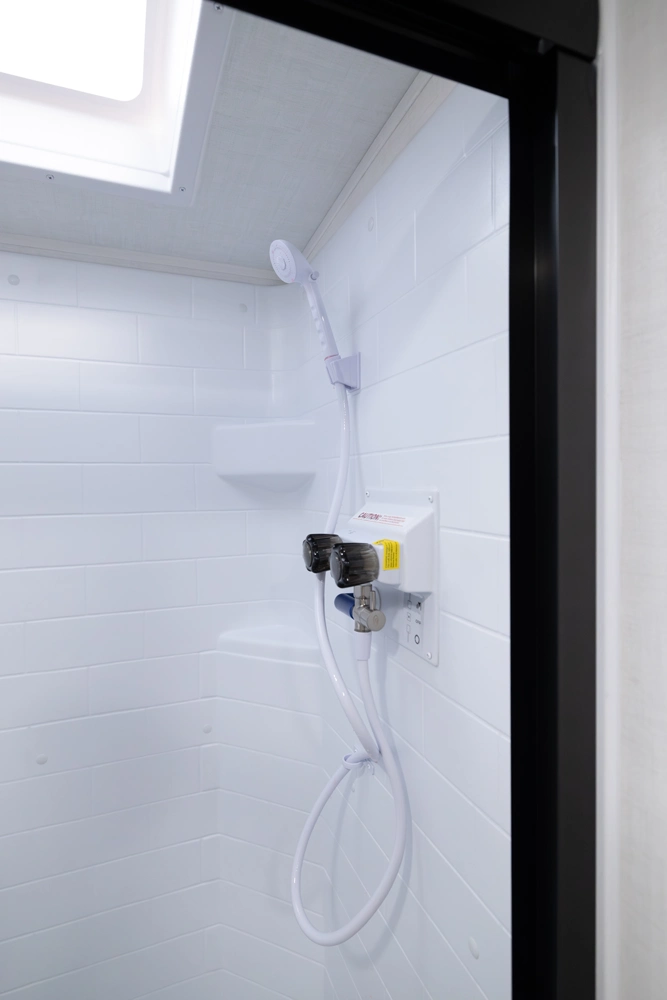

  • Outside Shower w/ Hot & Cold Water
  • Outside Antifreeze Station
  • Black Tank Flush
  • 360 Siphon Vent Cap On All Black Tanks
  • Solid Entry, Strut Assist Fold Out Entry Steps (N/A 2109S)
  • Power Tongue Jack
  • Outside Speakers
  • Keyed Alike Locks
  • Rear Ladder
  • Two 30lb Gas Bottles w/ Molded Bottle Cover
  • Molded Fiberglass Front Cap w/ Automotive Windshield
  • 4 Frame Mounted Manual Stabilizer Jacks
  • 2" Accessory Hitch
  • 190W Roof Solar Panel w/ 1000W Inverter
  • Aluminum Cage Dinette & Bed Base
  • 6 Sided Aluminum Framed (Side Walls, End Wall, Front, Floor & Roof)
  • 5/8" Plywood Tongue & Groove Subfloor
  • Insulation Factors R-7 Side Wall, R-12 Floor & R-14 Ceiling
  • Radiant Foil Insulated Underbelly & Slide Out Floors
  • Enclosed Underbelly
  • Electronically Controlled Heated Holding Tanks
  • Radius Roof w/ Interior Vaulted Ceilings
  • Vinyl/Rubber Composite Roofing Membrane
  • Vacuum Laminated One Piece Roof & Walls
  • Azdel Composite Panels
  • Rear Observation Camera Prep w/ Molded Mounting Plate
  • Easy Lube Axles & Nev-R Adjust Brakes
  • Torsion Axle, Rubber-Ryde Suspension
  • Nitrogen Filled, Goodyear Endurance Tires w/ Polished Alloy Wheels
  • TST Tire Pressure Monitor System w/ Monitor
  • Spare Tire w/ Carrier & Cover
  • Newport Ash Cabinetry
  • Autumn Wood Cabinetry
  • Screwed & Glued, Solid Wood Cabinet Doors & Drawers With Hidden Hinges, Metal Drawer Glides & Residential Hardware
  • 13,500 BTU Ducted Air Conditioner
  • Carbon Monoxide Detector
  • Interior 12V Outlet
  • Monitor Panel Switch Station w/ OneControl App
  • 55 AMP Converter w/ Charger
  • Ceiling LED 12V Interior Lighting
  • LED TVs
  • Showermiser Water Saving System
  • Bathroom Skylight
  • Water Heater By-Pass Kit
  • Foot Flush Toilets
  • Maxxair Ventilation Fan & Cover
  • Quick Recovery Water Heater w/ Interior Gas/Electric Switches
  • Multi Zone Stereo w/ DVD, CD, AM/FM & Bluetooth Control
  • 20K BTU Furnace on 2104S/2109S & 35K BTU on all others

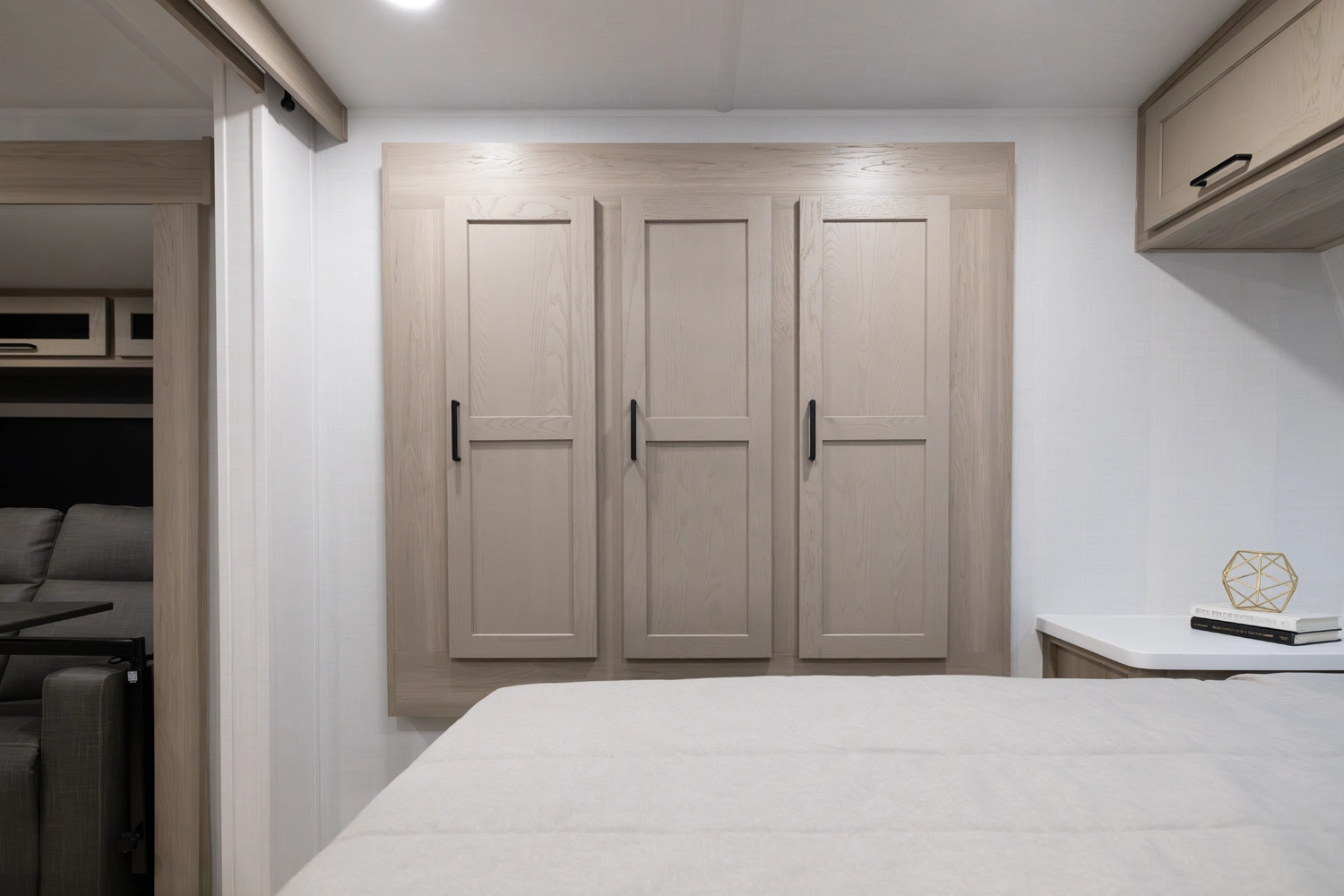

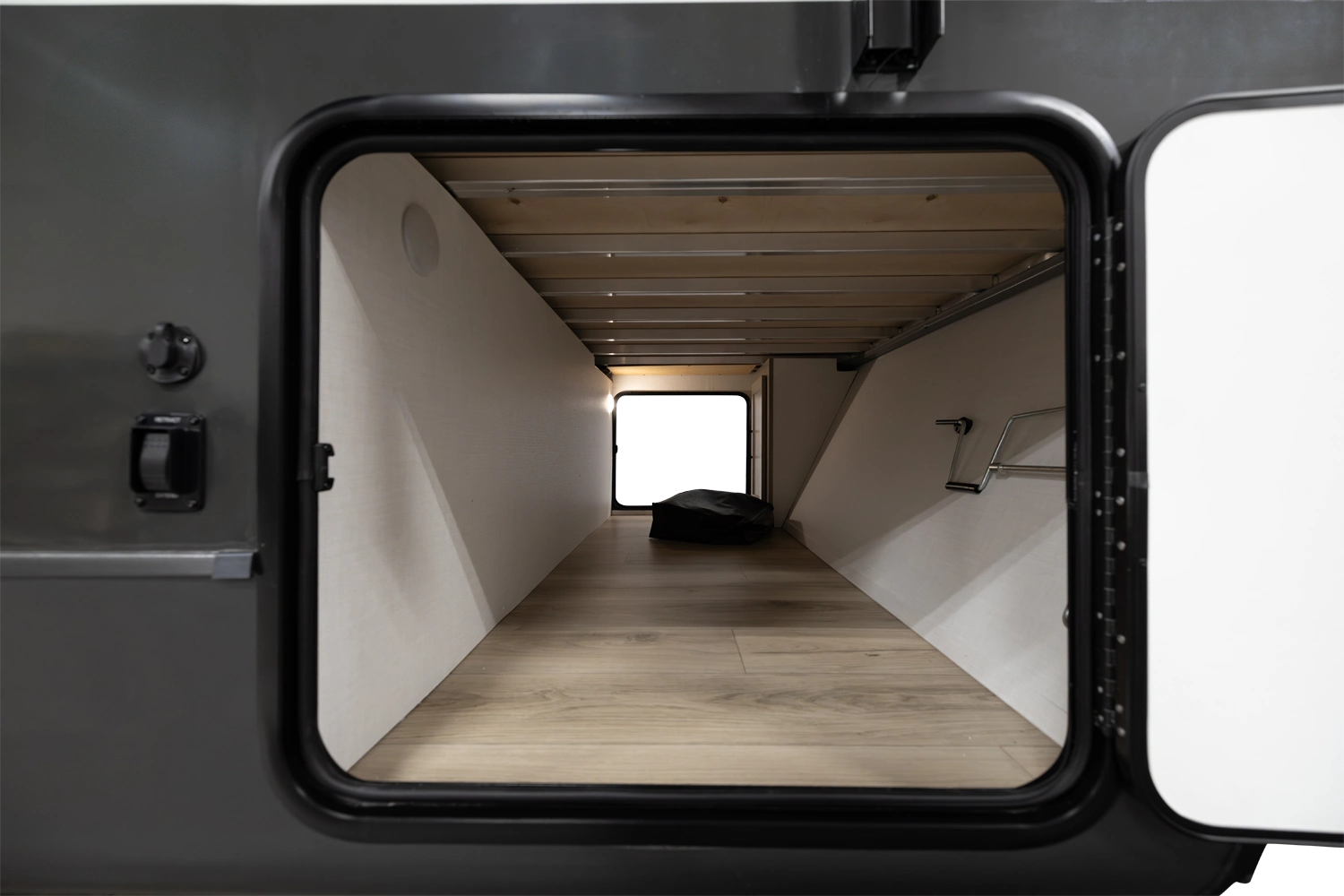

  • Murphy Bed w/ Under Sofa Storage System w/ Outside Access (2104S, 2507S, 2509S, 2514S)
  • Night Roller Shades

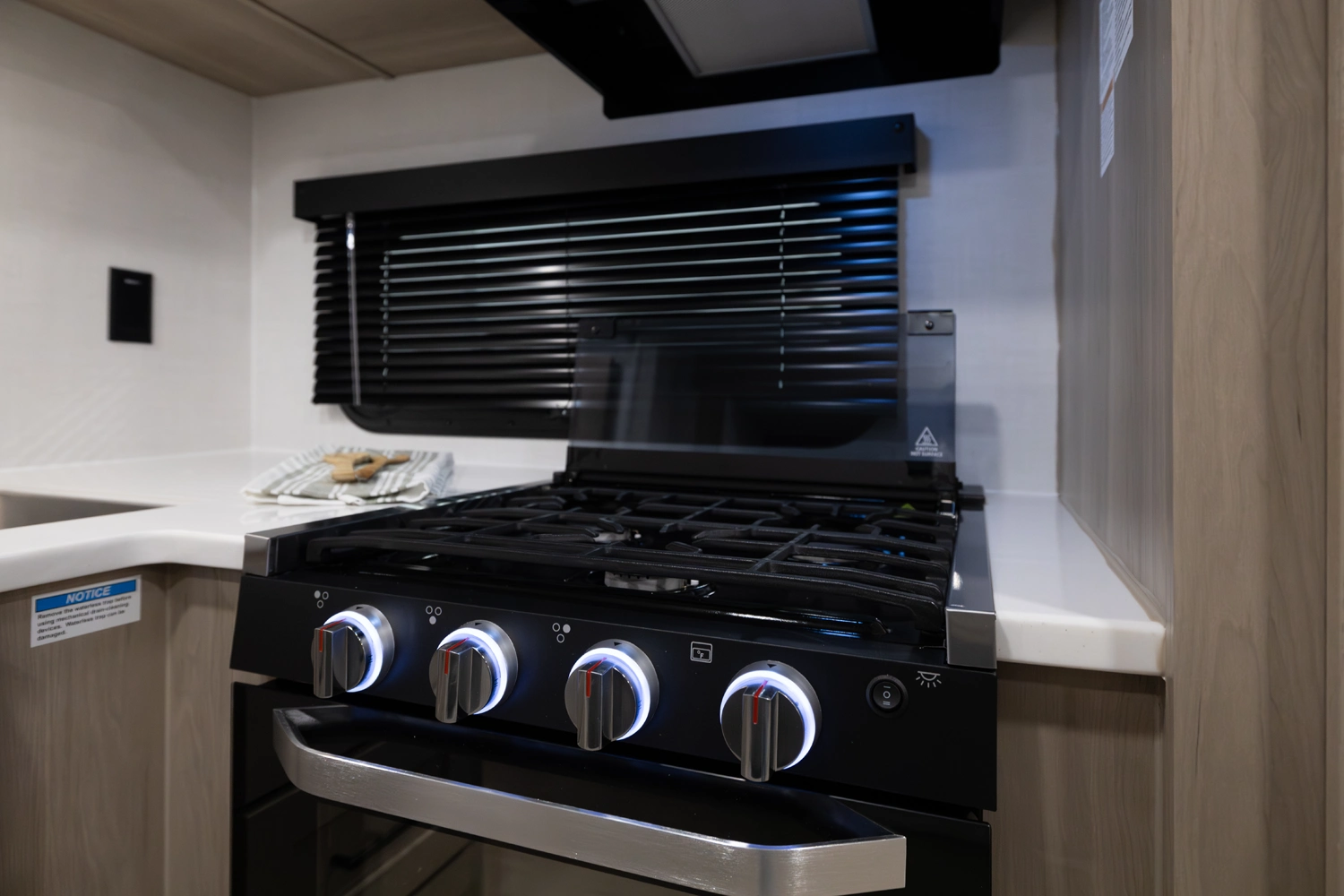

  • Three Burner High Output Gas Range with Flush Mount Glass Top Cover
  • 21" Gas Oven
  • Under Mount Double Bowl Kitchen Sink w/ Residential Style Faucet
  • Microwave Oven
  • Water Filtration System
  • 12V Refridgerator
  • Sink Covers
  • Solid Surface Kitchen Countertops
  • Showermiser Water Saving System
  • Bathroom Skylight
  • Water Heater By-Pass Kit
  • Foot Flush Toilets
  • Maxxair Ventilation Fan & Cover
  • 15,000 BTU A/C
  • Bedroom Mounted LED TV (Only on 2506S, 2511S, 2513S, 2516S)
  • Deluxe Tri-Fold Sleeper Sofa (N/A 2109S)
  • Extra Maxxair® Ventilation Fan and Vent Cover
  • Tongue Mount Bike Rack
  • Slide Topper
  • ThermoPane Windows
  • Sport, Tire and Wheel Package
  • Power Stabilizer Jacks
  • Gas Electric Fridge

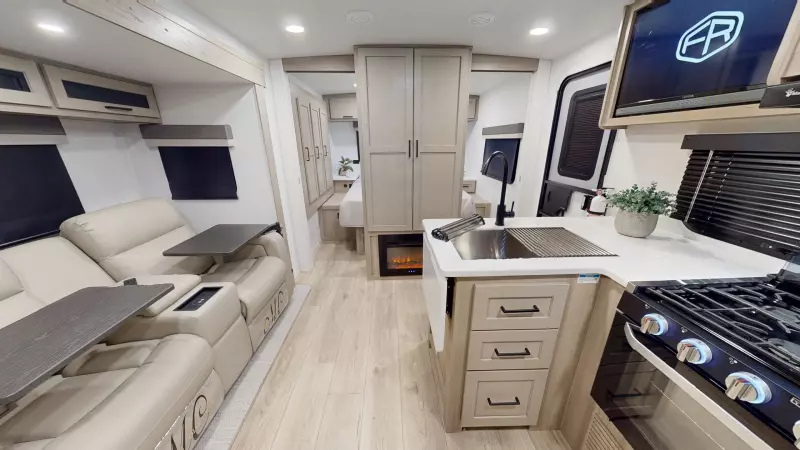

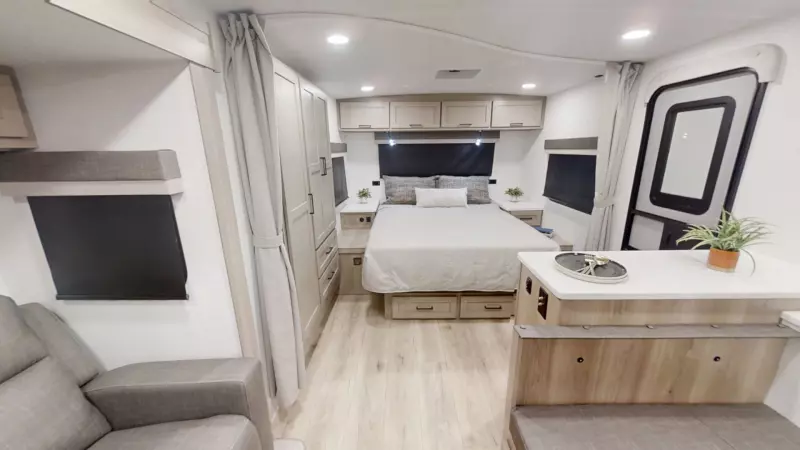

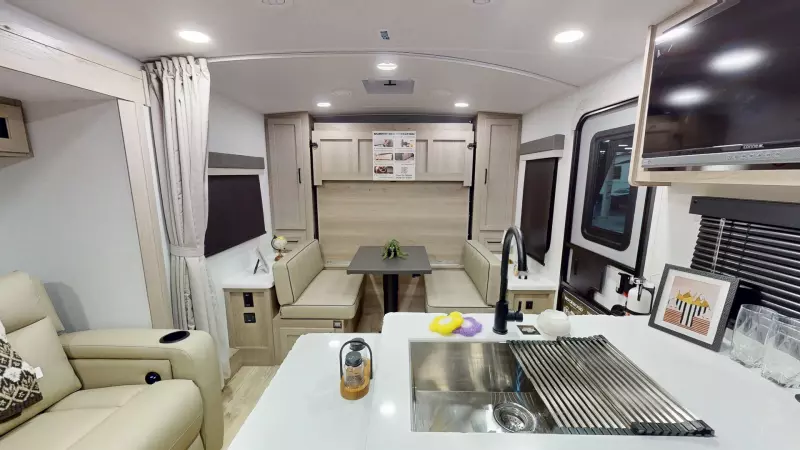

Virtual Tours

  • 2104S
    2104S Main Room
  • 2109S
    2109S Main Room
  • 2204S
    2204S Main Room
  • 2205S
    2205S Main Room
  • 2506S
    2506S Main Room
  • 2507S

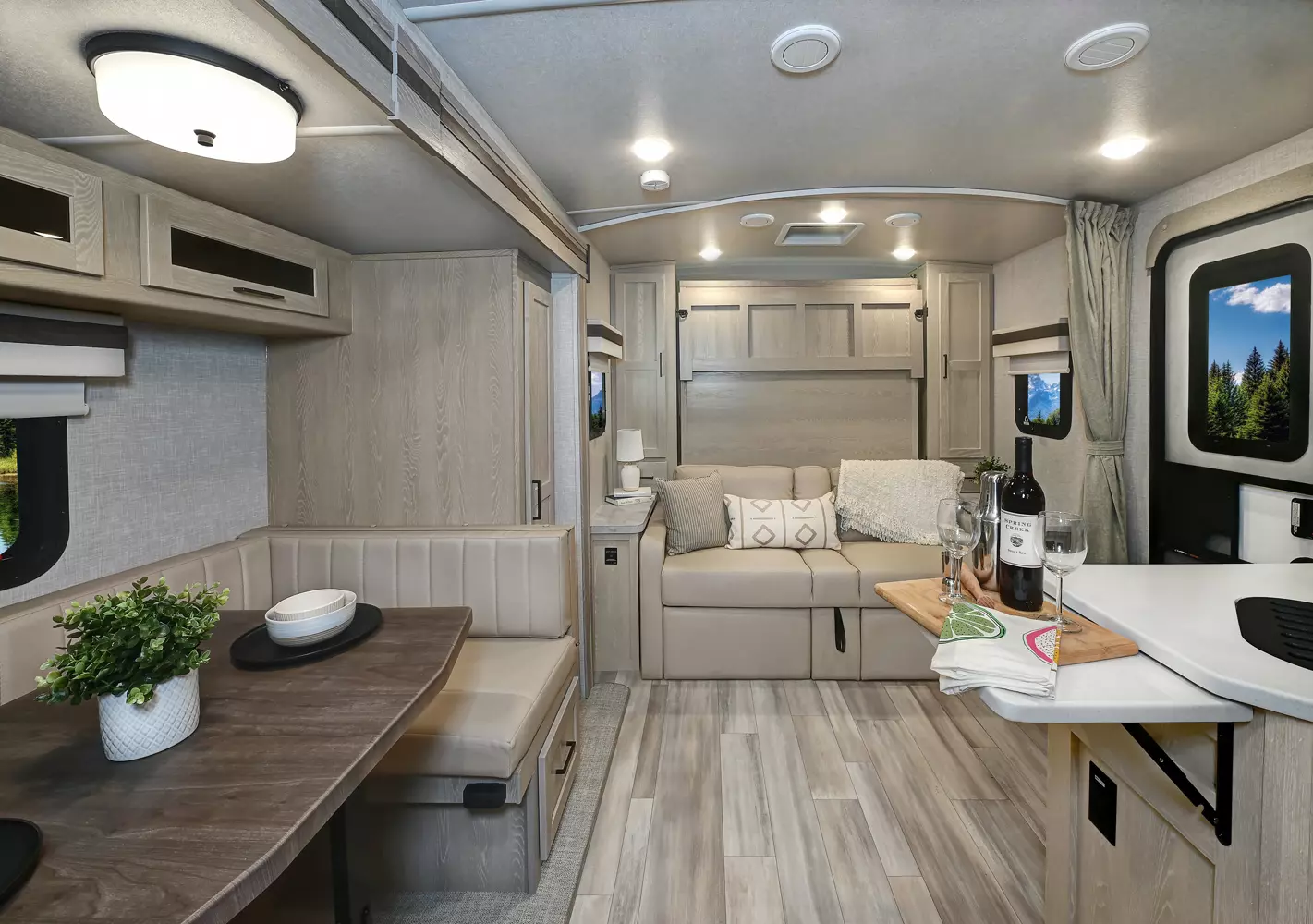

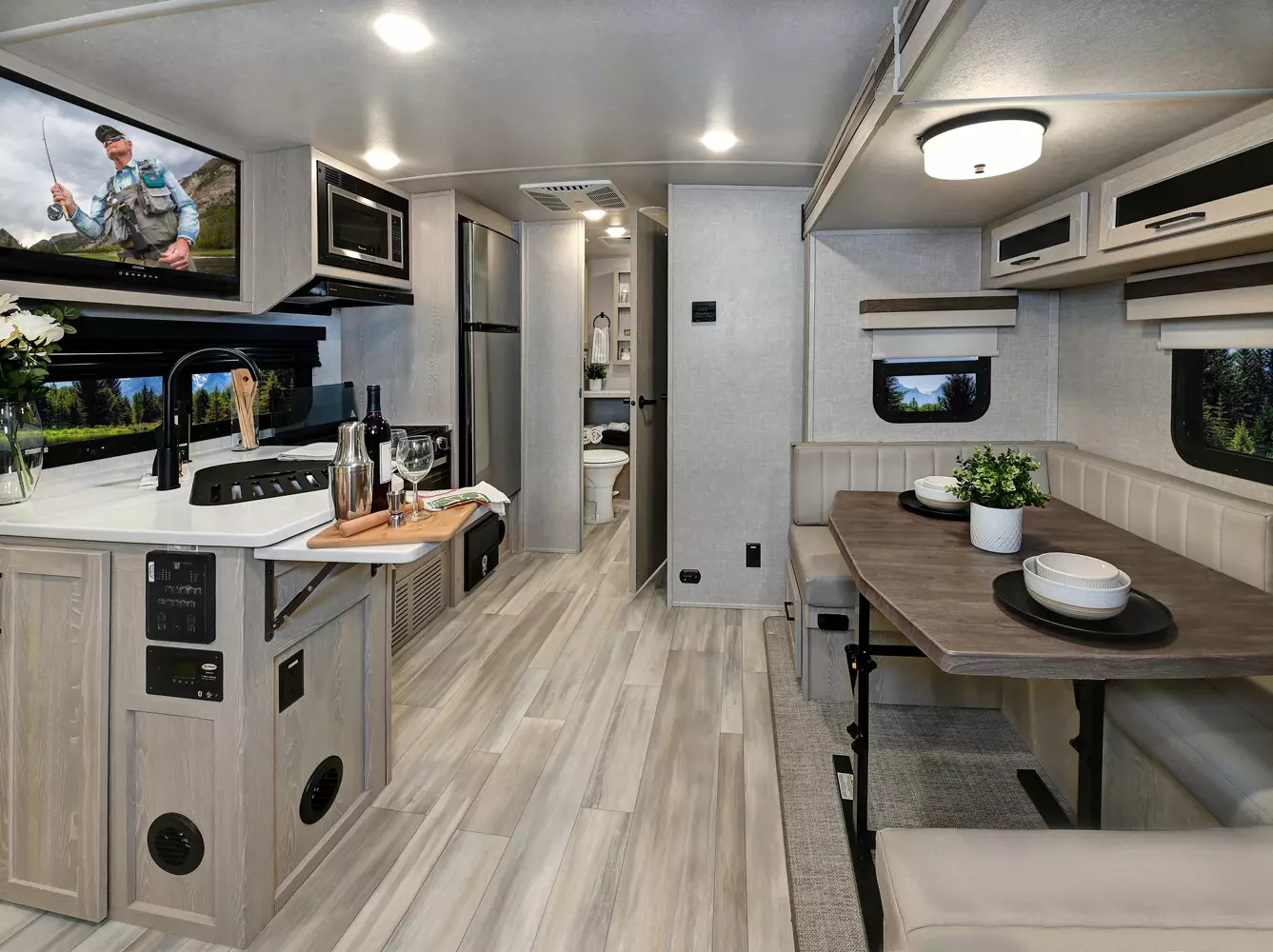

    2507S Main Room
  • 2509S
    2509S Main Room

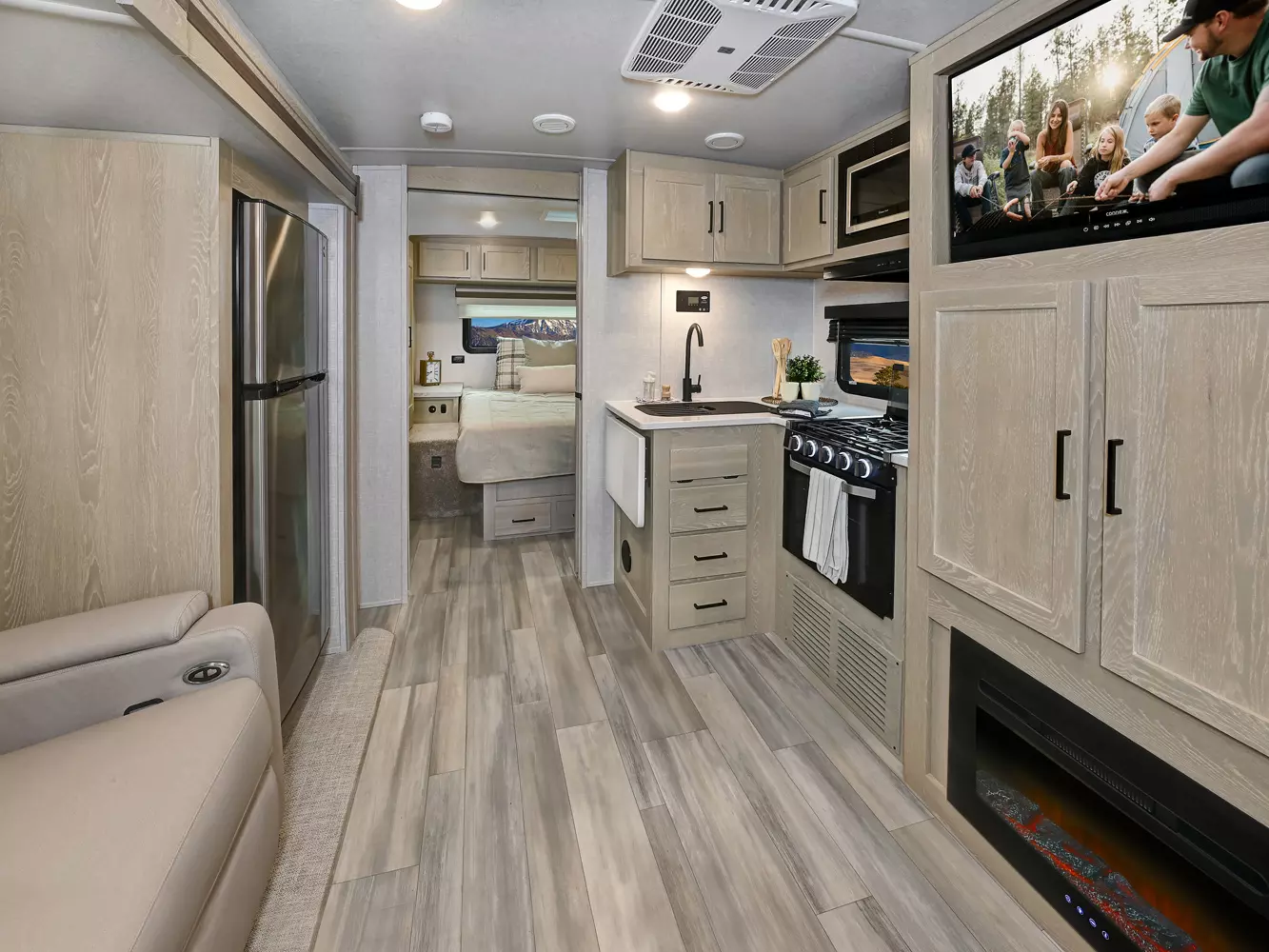

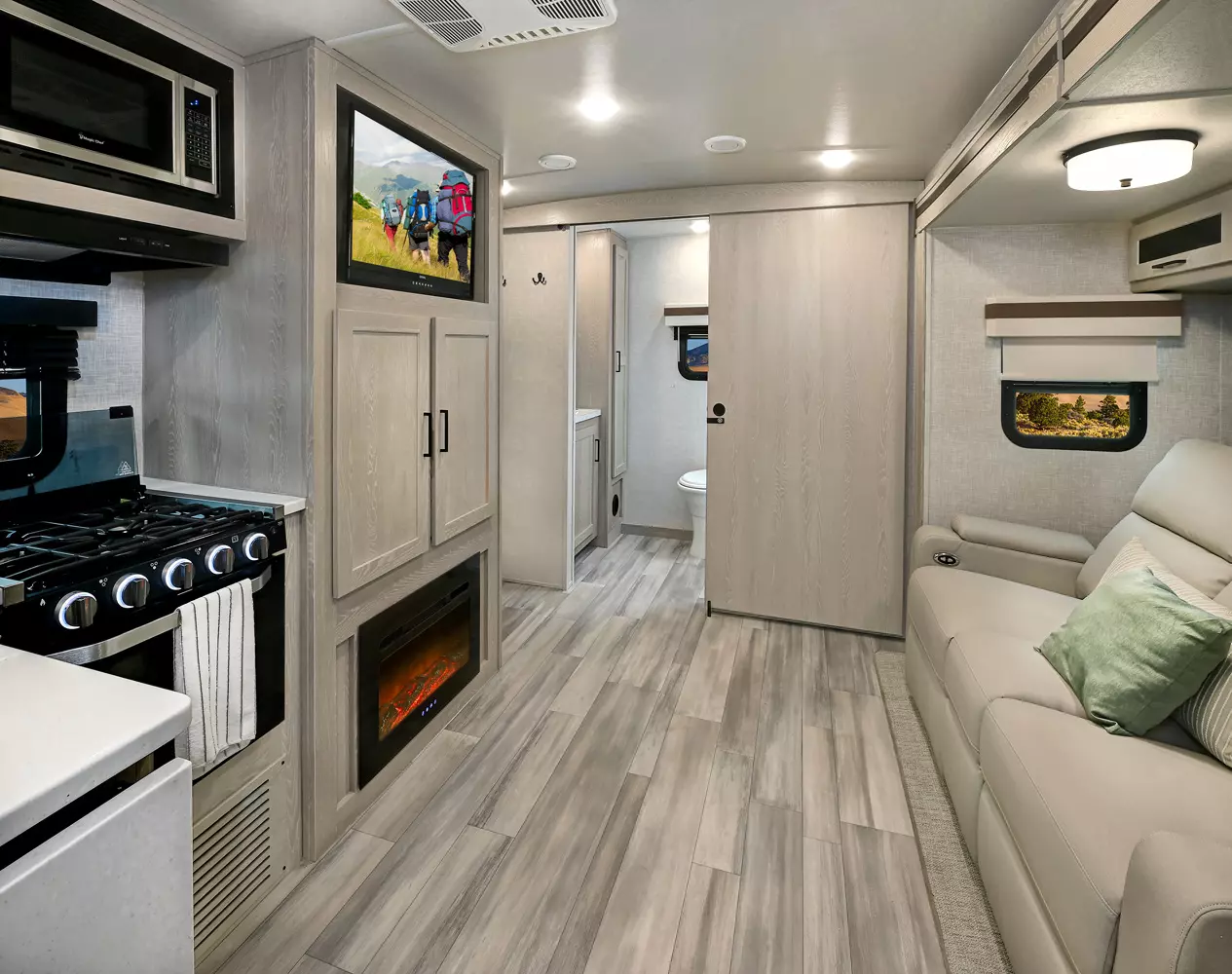

  • 2511S

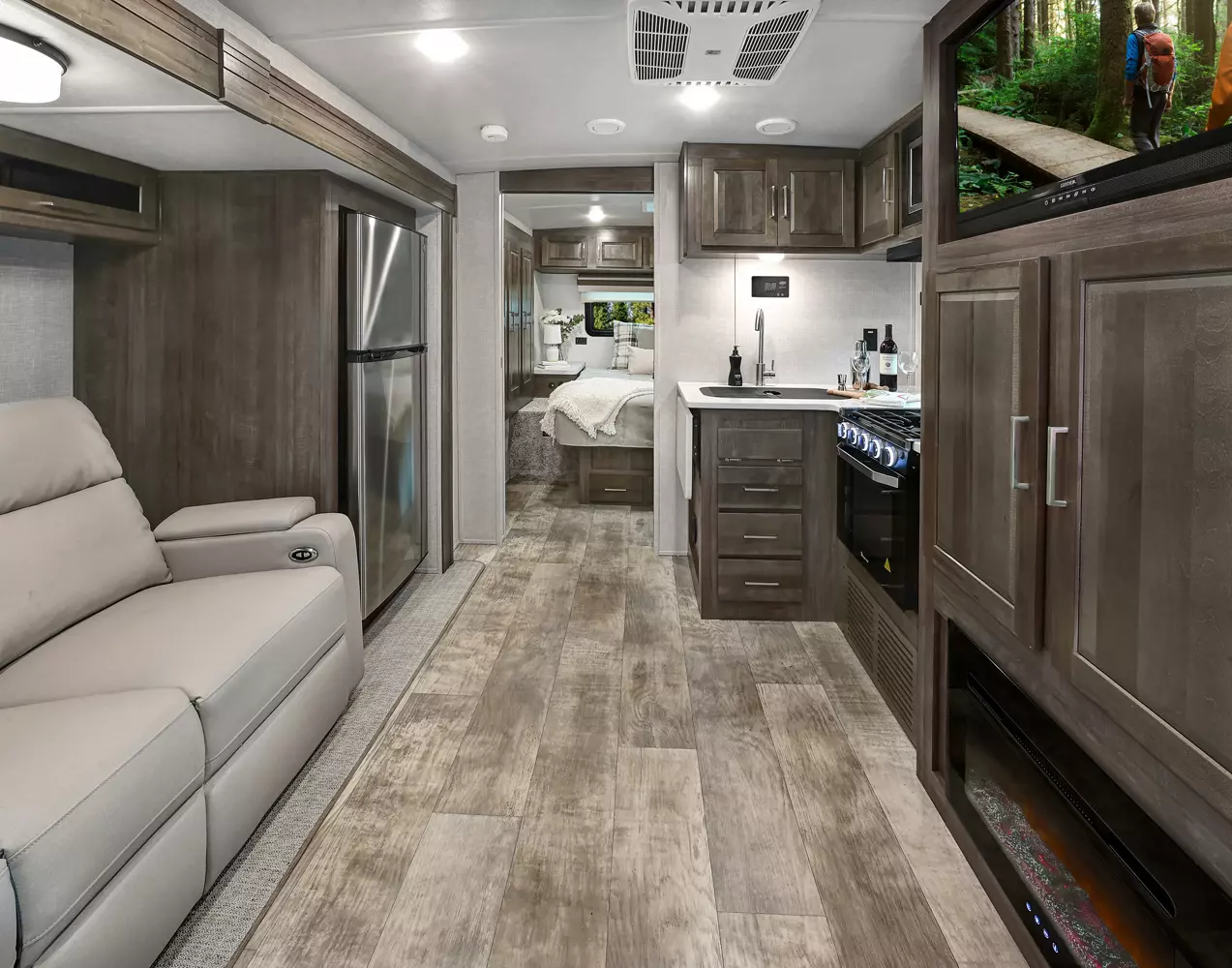

    2511S Main Room
