Rockwood Mini Lite Travel Trailers

TOWING A TRAILER DOESN’T REQUIRE A TRUCK ANYMORE. When towing size and weight are your focus, you will find that our Mini Lite models offer flexible floorplans, quality construction and more comfort and amenities than you would expect - all within the towing capacity of many SUVs and Crossover vehicles.

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications












to

to




Specifications

Print


Hitch Weight:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
614 lb.
4841 lb.
1933 lb.
22' 4"
10' 11"
96"
58 gal.
30 gal.
30 gal.
15'
412 lb.
4171 lb.
1521 lb.
22' 4"
10' 3"
96"
58 gal.
30 gal.
30 gal.
14'
640 lb.
4795 lb.
2005 lb.
23' 10"
10' 11"
96"
58 gal.
30 gal.
30 gal.
17'
530 lb.
5004 lb.
1686 lb.
23' 10"
10' 11"
96"
58 gal.
30 gal.
30 gal.
15'
644 lb.
5281 lb.
1523 lb.
25' 11"
10' 11"
96"
58 gal.
60 gal.
30 gal.
17'
625 lb.
5471 lb.
1314 lb.
25' 11"
10' 11"
96"
58 gal.
30 gal.
30 gal.
19'
645 lb.
4685 lb.
1960 lb.
25' 11"
10' 4"
96"
58 gal.
30 gal.
30 gal.
18'
709 lb.
5300 lb.
1569 lb.
25' 11"
10' 11"
96"
58 gal.
30 gal.
30 gal.
18'
714 lb.
5492 lb.
1382 lb.
25' 11"
10' 11"
96"
58 gal.
60 gal.
30 gal.
17'
638 lb.
5327 lb.
1471 lb.
25' 11"
10' 11"
96"
58 gal.
60 gal.
30 gal.
17'
629 lb.
4651 lb.
1978 lb.
24' 0"
10' 3"
96"
58 gal.
30 gal.
30 gal.
15'
584 lb.
4337 lb.
1527 lb.
24' 0"
10' 3"
96"
58 gal.
30 gal.
30 gal.
15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Slatewood Interior
  • Decorative Slide Out Fascia
  • Screwed and Glued Wood Cabinetry
  • Hardwood Cabinet Doors and Drawer Fronts
  • Residential Full Extension Metal Drawer Guides
  • Engineered Mold and Mildew Resistant Floor Covering
  • Ducted Furnace (20K BTU on 21’ & 35K BTU on Trailers over 21’)
  • 13,500 BTU Ducted Air
  • Carbon Monoxide Detector
  • 12 Volt Power Plug Hook-up
  • Monitor Panel Switch Station
  • 55 Amp Converter With Charger
  • Battery Disconnect Switch
  • Recessed Ceiling LED 12 Volt Interior Lighting
  • Mounted 24” or 32" LCD TV (per floorplan)
  • Digital AM/FM/CD/DVD w/ Remote
  • MP3 Player Hook-Up
  • Premium Soundbar (per floorplan)
  • Decorative Valances
  • Heated Theater Seating w/USB Ports (2511S Only)
  • Family Dinette (per floorplan)
  • Spacious King-U-Style Dinette (2104S, 2204S, 2506S, 2507S, 2509S Only)
  • Free Standing High Pressure Laminated Table (per floorplan)
  • Double Door Auto Gas / Elect. Refrigerator
  • Shaker Style Refrigerator Panel on Slatewood, Raised Panel Refrigerator Front
  • 3 Burner High Output Gas Range w/ Glass Stove Top Cover
  • Gas Oven
  • Under Mount Double Bowl Kitchen Sink w/ Sink Cover
  • Counter Top Extension (per floorplan)
  • Water-Pur Filtration System
  • Shower Miser Water Saver
  • Tub Surround
  • Radius Glass Door Shower (per floorplan)
  • Night Shades
  • Bathroom Skylight
  • 110 DSI Gas/Electric Six Gallon “Quick Recovery” Water Heater w/ By-Pass Kit
  • Foot Flush Toilets
  • Murphy Bed w/ Under Sofa Storage System and Outside Access for Unmatched Floor Plan Flexibility (per floorplan)
  • Heated Mattress
  • Fireplace (2205S, 2506S, 2511S, 2512S Only)
  • Ground Solar Prep
  • Magnetic Compartment Door Catches
  • Fully Aluminum Frame (Floor, Sidewall, & Roof)
  • Insulation Factors R-7 Side Wall, R-12 Floor and R-14 Ceiling
  • Radiant Foil Insulated Underbelly, Fronts and Slide-out Floors
  • Radius Roofs w/Interior Vaulted Ceilings
  • Vinyl / Rubber Composite Roofing Membrane
  • T V Antenna w/Cable & Satellite Hook-Up
  • Rear Observation Camera Prep w/Molded Mounting Plate
  • Rear Ladder
  • Laminated Champagne Colored Fiberglass Sidewalls
  • Distinctive Black Exterior Trim
  • Electric Slide-Out (All Slide Out Models)
  • Lower Front Diamond Plate Panel
  • Power Awning w/Adjustable Rain Dump and LED Lighting
  • Entrance/Screen Door
  • Friction Hinge Entrance Door
  • Large Assist Grab Handles
  • Radius Corner Exterior Door
  • Outside Griddle Prep
  • Two-30 Lb Gas Bottles
  • Molded Bottle Cover
  • Surface Coated Steel I-Beam Frame
  • Power Tongue Jack
  • 2” Hitch Receiver
  • Easy Lube Axles and Nev-R Adjust Brakes
  • Radial Tires w/Nitro Fill
  • Outside Shower
  • Outside Antifreeze Stations
  • 360 Siphon Vent Cap on all black tanks
  • Black Water Flush
  • Aluminum Cage Dinette Base
  • 6 Sided Aluminum Cage Construction
  • Vacuum Laminated One Piece Roof and Walls
  • 5/8” Plywood Tongue and Groove Sub Floor
  • Enclosed Underbelly
  • (4) Frame Mounted Stabilizer Jacks
  • Torsion Axle, Rubber-Ryde Suspension
  • Nitro Filled Radial Tires
  • Polished Alloy Wheels
  • LED TV W/ Multi-directional Antenna
  • Prewire for Back Up Camera and Solar
  • Multi Zone Stereo W/ DVD/CD/AM/FM and Bluetooth Control
  • WIFI Ranger WIFI Booster Sky 4
  • Outside Speakers
  • Maxxair® Ventilation Fan and Vent Cover
  • Tire Pressure Monitoring System (TPMS)
  • Night Shades
  • Double Bowl Undermount Kitchen Sink
  • Solid Surface Kitchen Countertops
  • Roller Bearing Drawer Guides
  • Recessed Cooktop w/Flush Mount Cover
  • Microwave Oven
  • Double Door Auto Gas/Electric Large Refrigerator
  • Quick Recovery Water Heater w/Interior Gas and Electric Switches
  • Fold In Steps (Double or Triple Entry Step Per Flooplan)
  • Black Tank Flush
  • Spare Tire w/Carrier and Cover
  • Tinted Bonded Frameless Windows
  • Outside Griddle Cooktop
  • Automotive Front Windshield
  • American Maple Interior
  • 15,000 BTU A/C
  • CSA Standards (Canadian Standards)
  • Bedroom Mounted 24” LCD TV (2506S, 2511S, 2512S Only)
  • Heated Theater Seating w/USB Ports ILO Dinette (2205S, 2506S, 2512S Only)
  • Deluxe Tri-Fold Sleeper Sofa (per floorplan)
  • Free Standing Table and Chairs (per floorplan)
  • Extra Maxxair® Ventilation Fan and Vent Cover
  • Roof Mount Solar Prep
  • White Two Tone Laminated Fiberglass Sidewalls w/Graphics Package
  • Bike Rack Ladder Attachment
  • Tongue Mount Bike Rack
  • Awning Slide Topper
  • Thermopane Windows


Virtual Tours

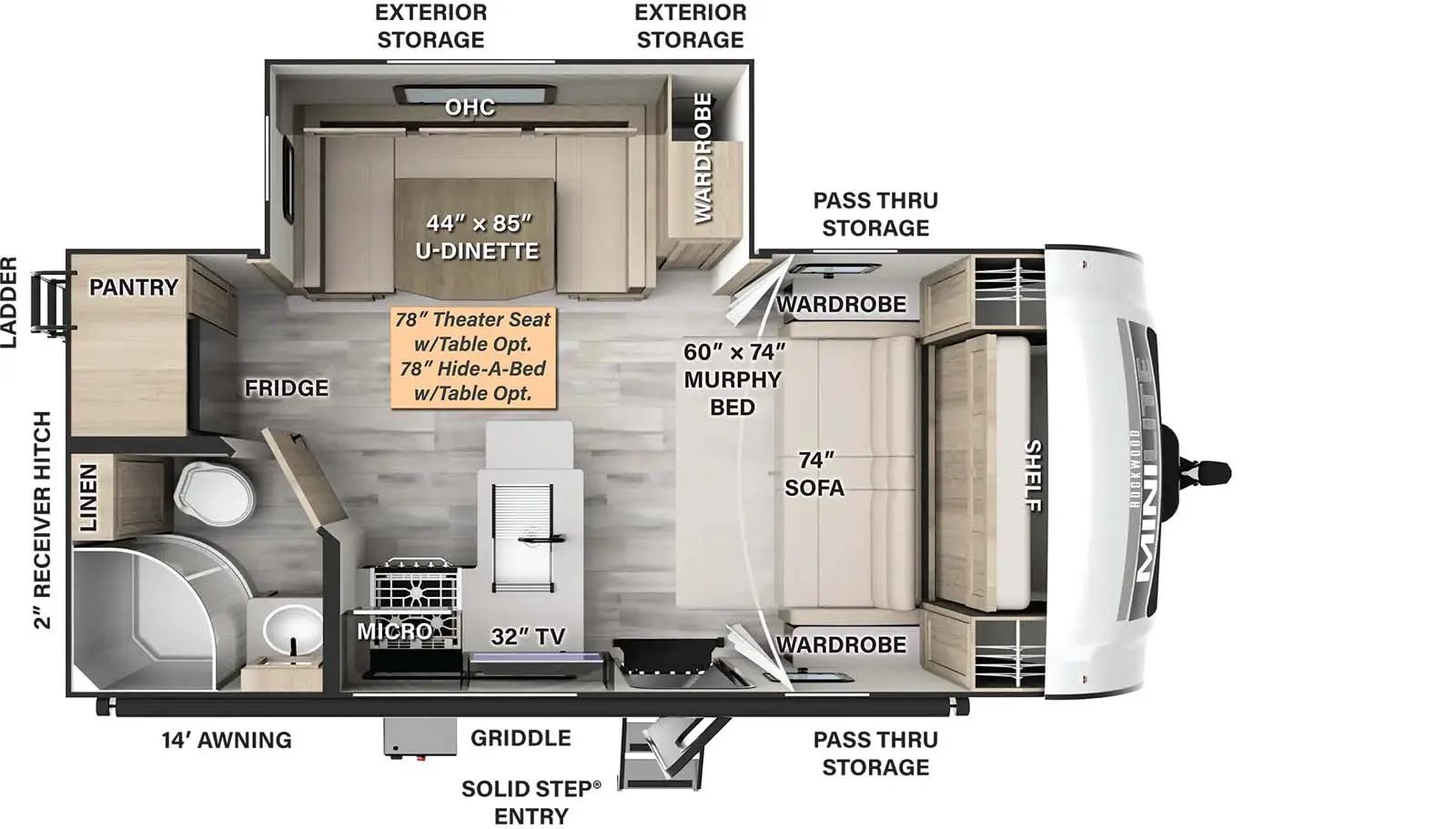

2104S

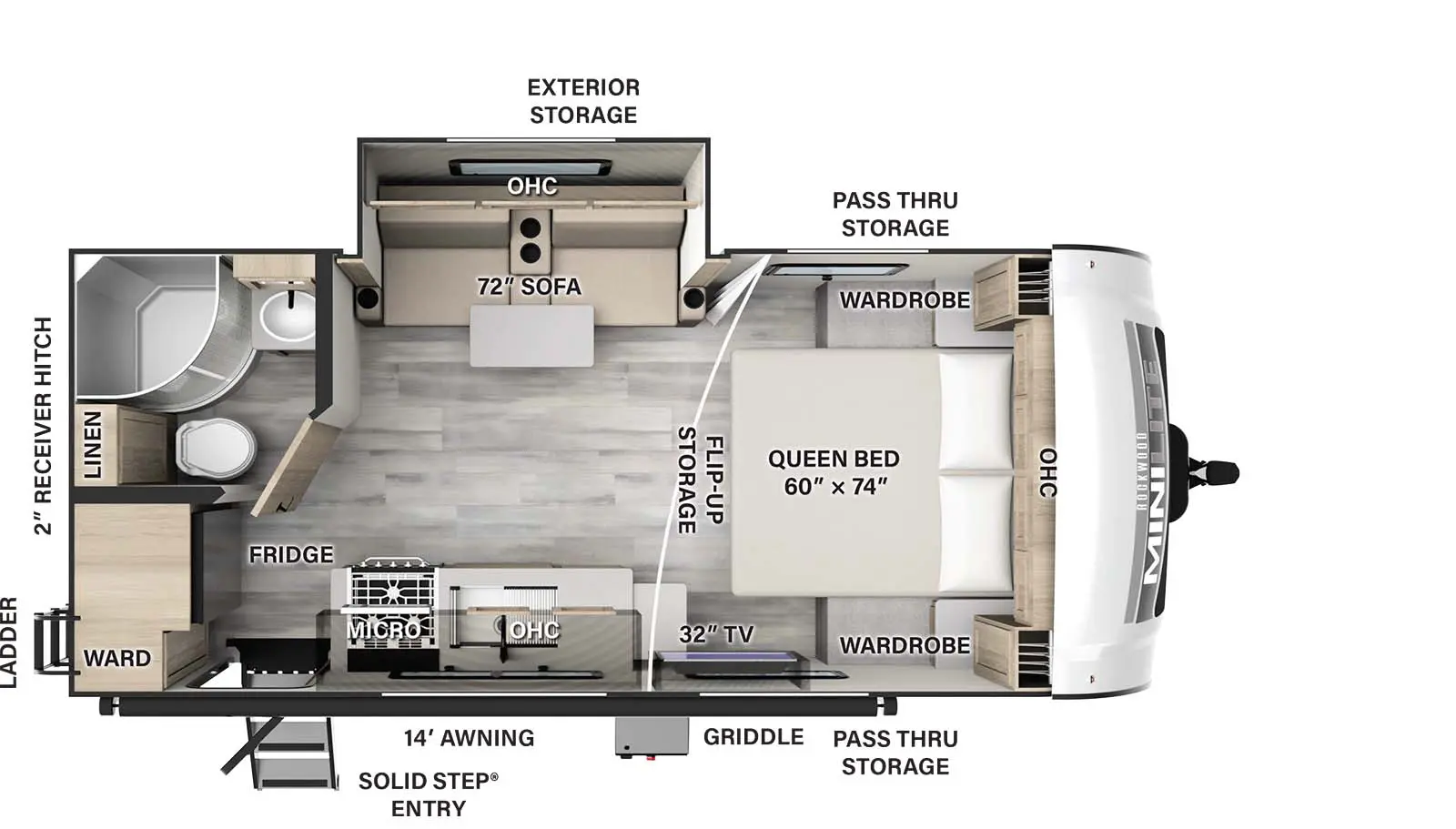

2109S

2204S

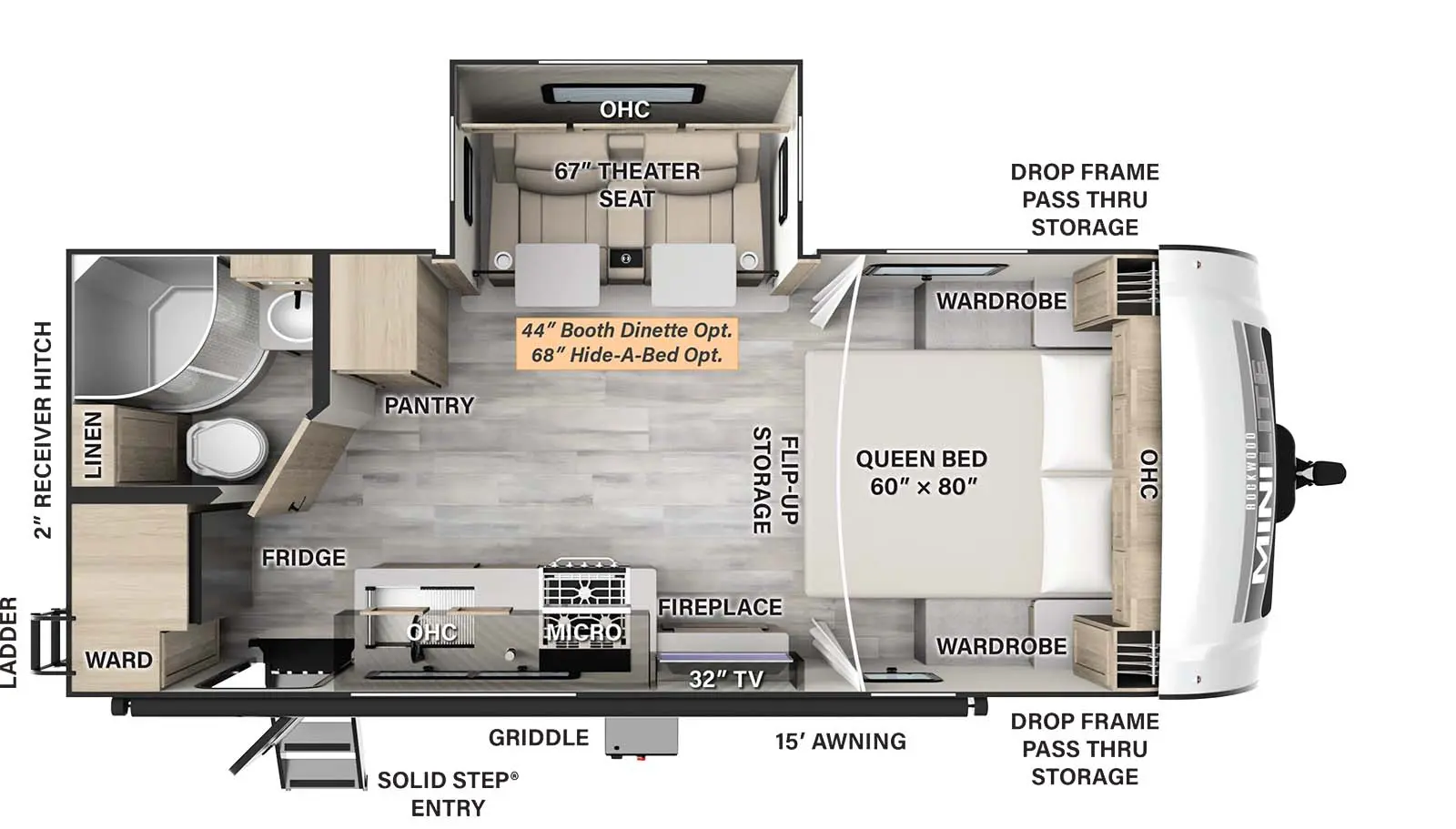

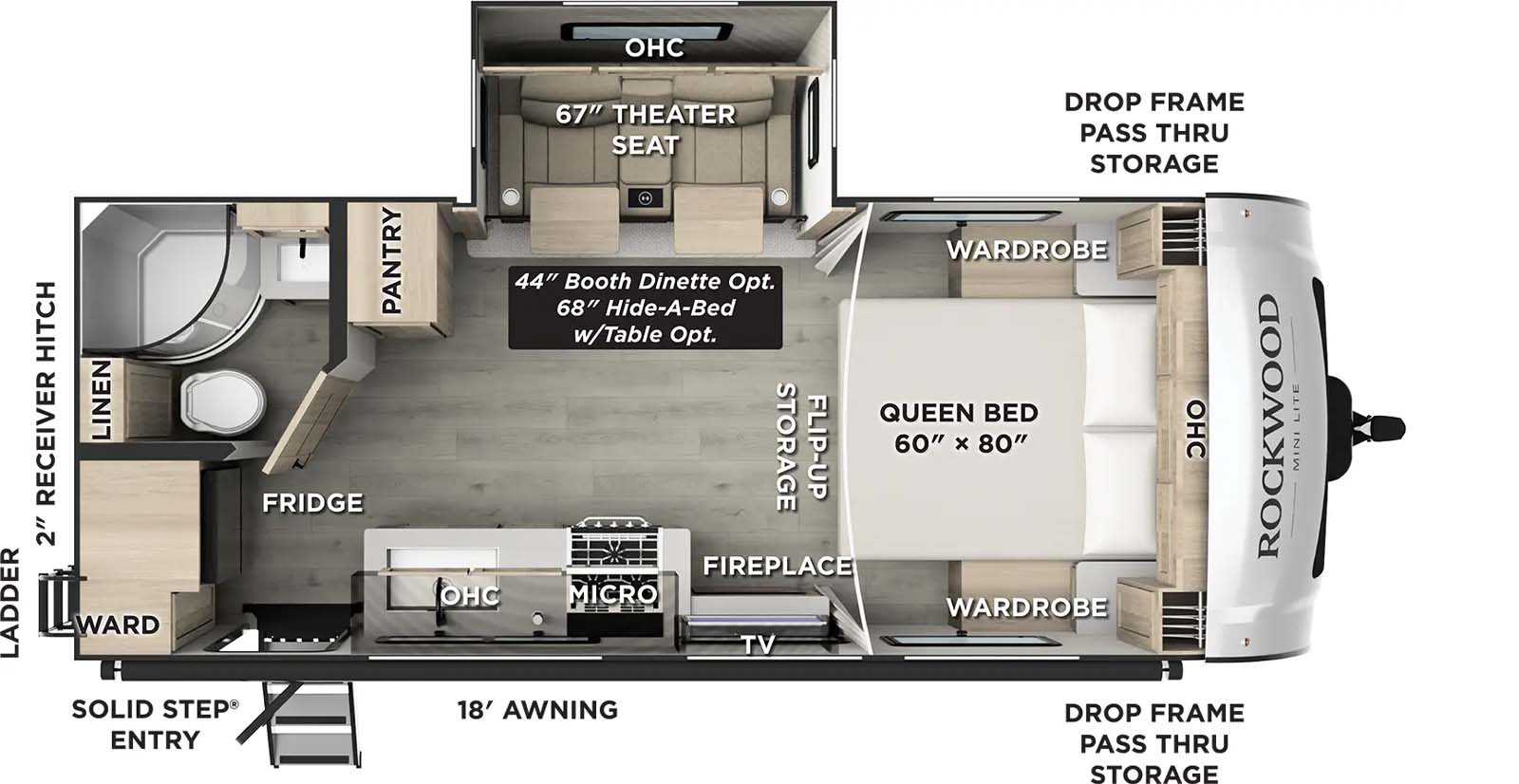

2205S

2306 - DSO

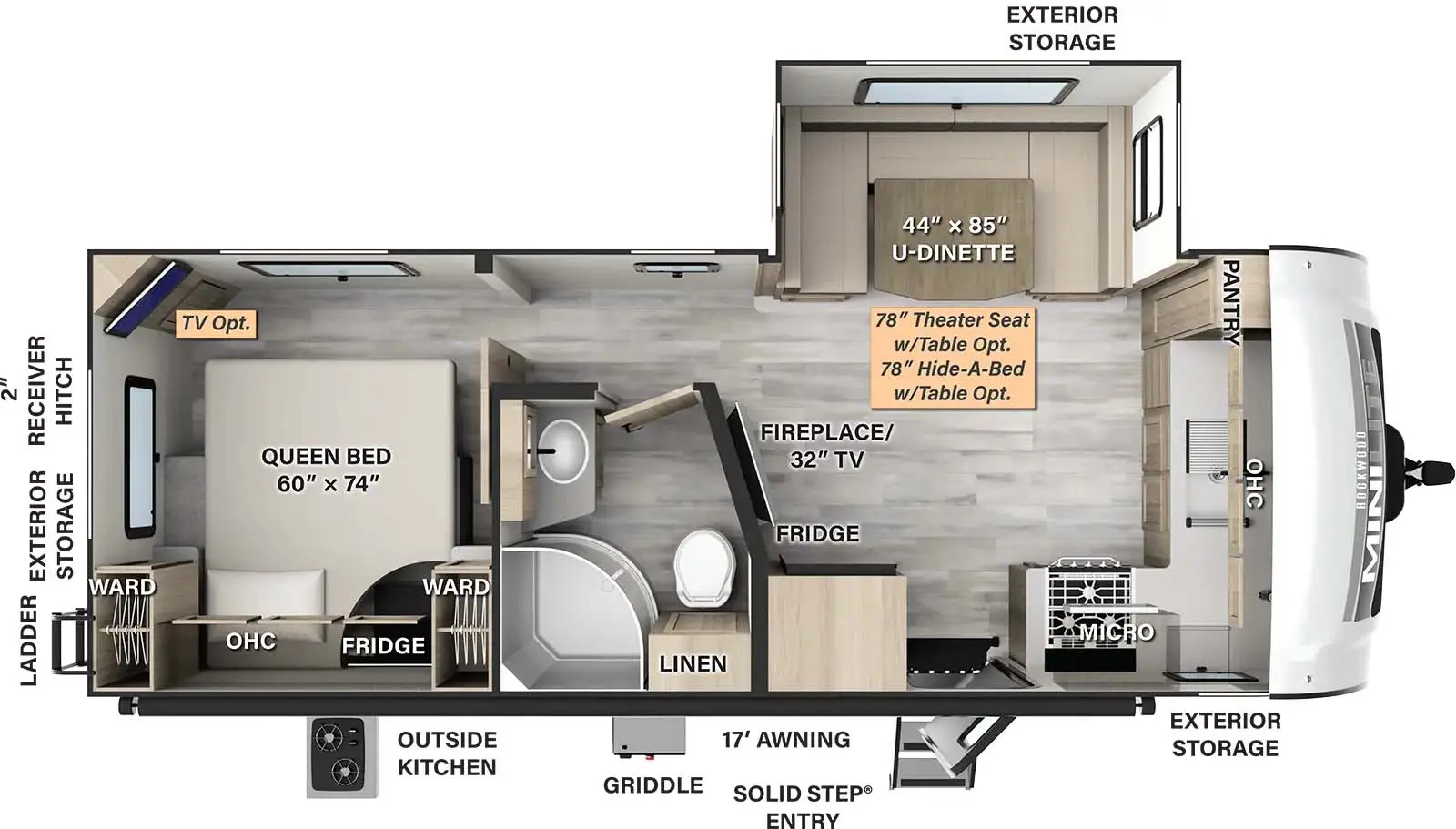

2506S

2507S

2508

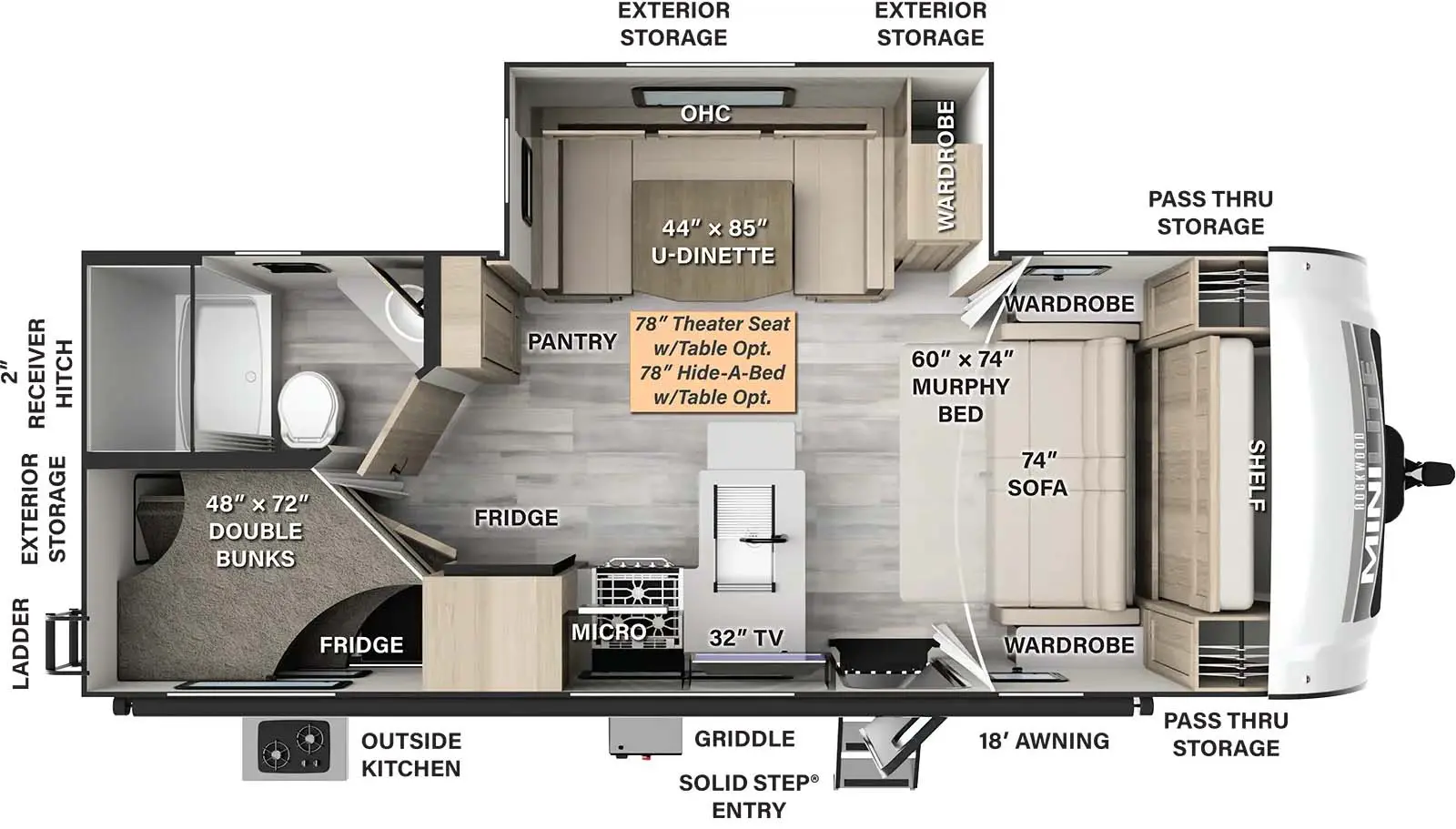

2509S

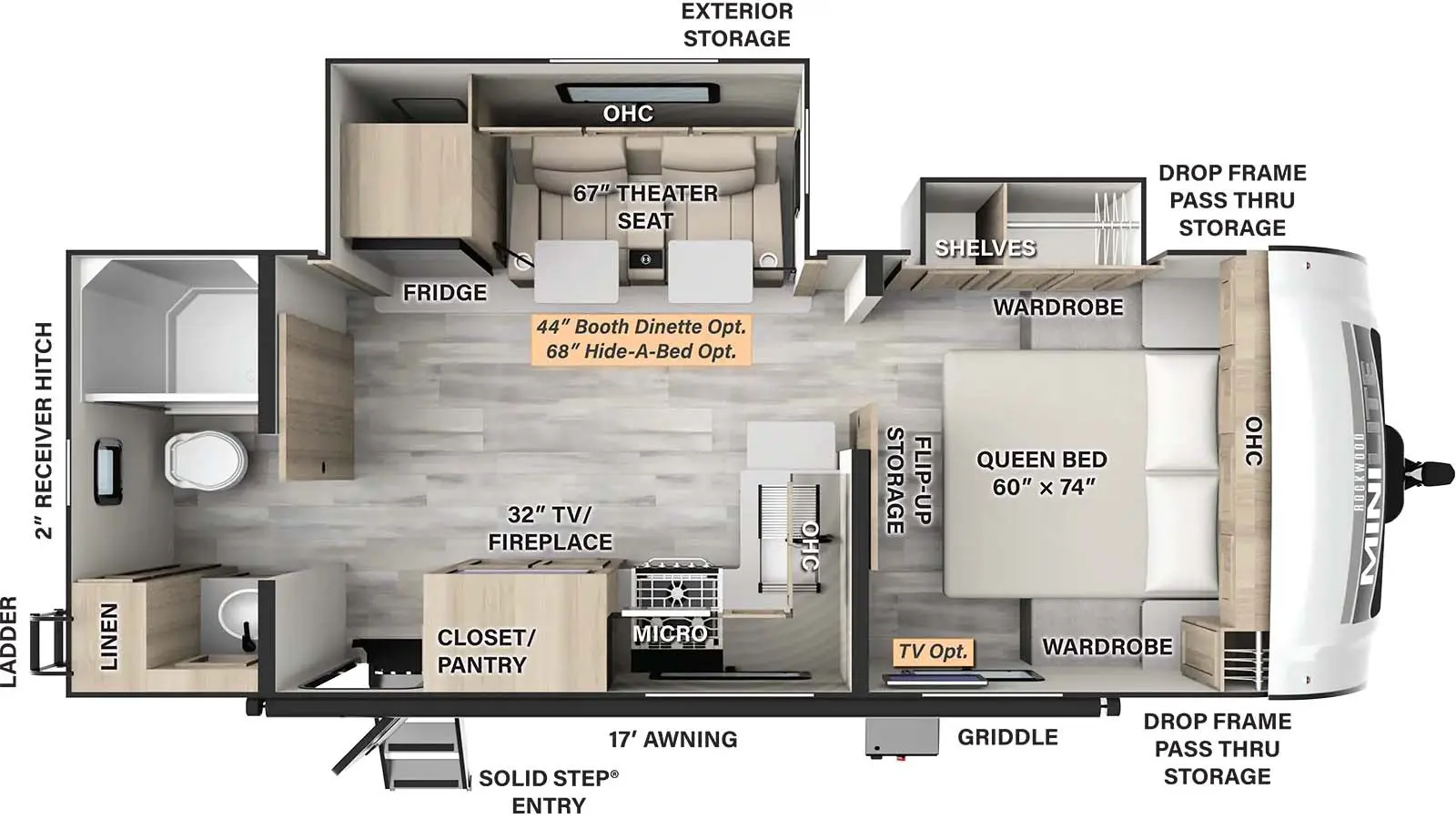

2511S

2512S



Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature


Rockwood Travel Trailer Brochure
Rockwood Travel Trailer Brochure
