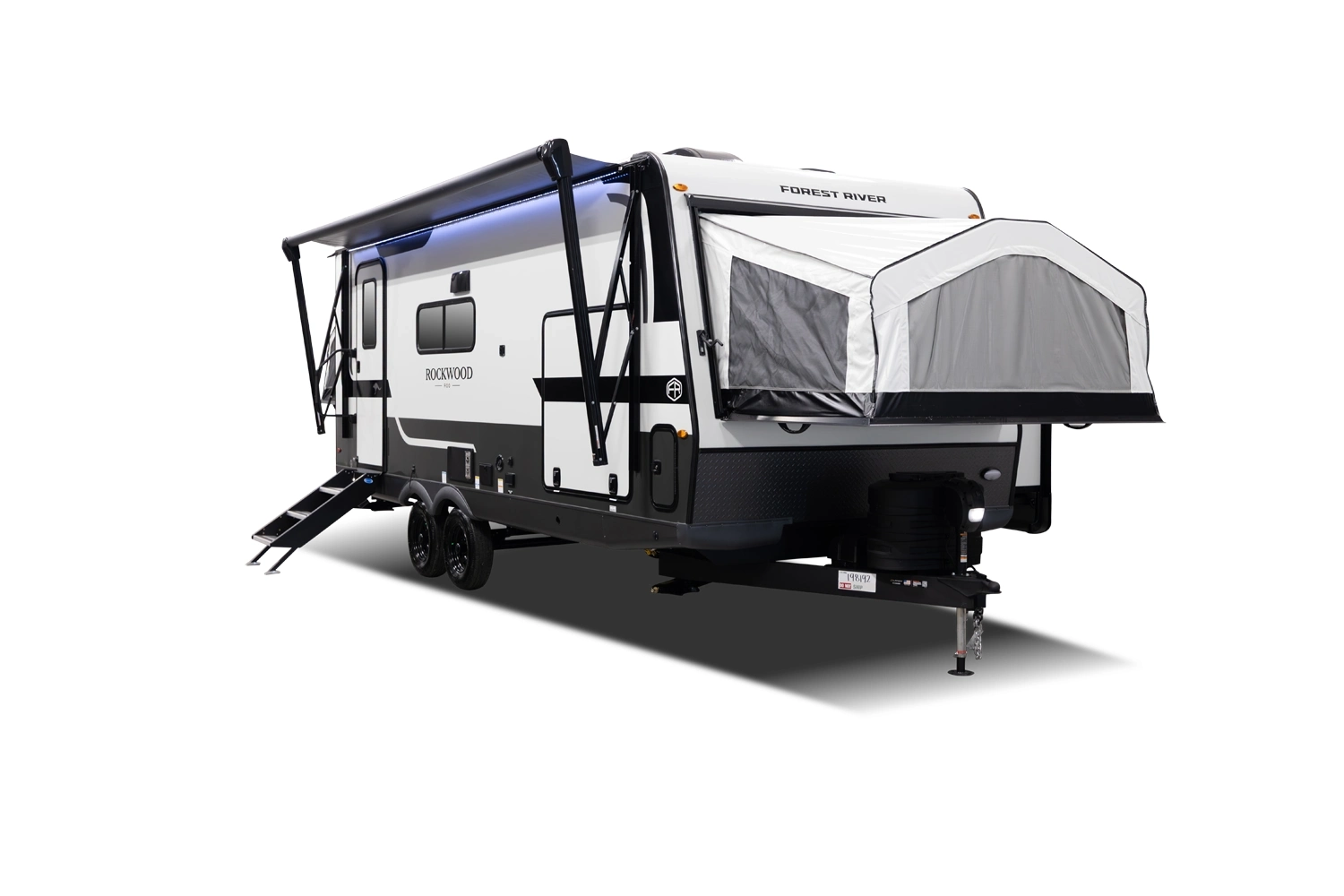

Rockwood Roo Expandable Hybrid Travel Trailers

MAKING YOUR INVESTMENT GO A LONG WAY. Rockwood takes pride in packing the most value possible into our Roo series. With a wide variety of floor plans available and built in standards second to none, we are sure you will find a Rockwood Roo that fits your needs. Built in value in all we do!

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications














to

to




Specifications

Print


Hitch Weight:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
480 lb.
4179 lb.
1581 lb.
21' 2"
10' 5"
96"
58 gal.
30 gal.
30 gal.
15'
448 lb.
4056 lb.
1672 lb.
21' 2"
10' 5"
96"
58 gal.
30 gal.
30 gal.
15'
548 lb.
4985 lb.
1563 lb.
22' 10"
10' 10"
96"
58 gal.
30 gal.
30 gal.
15'
480 lb.
5972 lb.
1508 lb.
32' 2"
11' 2"
96"
58 gal.
30 gal.
30 gal.
15'
708 lb.
5063 lb.
1645 lb.
24' 10"
10' 5"
96"
58 gal.
30 gal.
30 gal.
17'
725 lb.
5418 lb.
1467 lb.
24' 10"
10' 10"
96"
58 gal.
30 gal.
30 gal.
18'
584 lb.
5278 lb.
1466 lb.
24' 10"
10' 10"
96"
58 gal.
30 gal.
30 gal.
17'
736 lb.
5693 lb.
1203 lb.
24' 10"
10' 10"
96"
58 gal.
30 gal.
30 gal.
19'
688 lb.
5640 lb.
1208 lb.
24' 10"
10' 10"
96"
58 gal.
30 gal.
30 gal.
19'
634 lb.
5384 lb.
1410 lb.
24' 10"
10' 10"
96"
58 gal.
30 gal.
30 gal.
19'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Features & Options

Print
  • Square Bunk Ends W/ Attached Boots & Aircraft Cable
  • Automotive Grade Easy Latch Bunk Latch/Lock
  • Aluminum Cage Dinette Base
  • 6 Sided Aluminum Cage Construction
  • Vacuum Laminated 1 Piece Roof and Walls
  • Enclosed Underbelly
  • 4 Frame Mounted Stabilizer Jacks
  • Torsion Axle, Rubber-Ryde Suspension
  • Nitro Filled Radial Tires
  • Polished Alloy Wheels
  • LED TV W/ Multi-directional Antenna
  • WIFI Ranger WIFI Booster
  • Prewire for Back Up Camera and Solar
  • Multi Zone Stereo W/ DVD/CD/AM/FM and Bluetooth Control
  • Outside Speakers
  • 13,500 BTU Roof AC
  • Night Shades

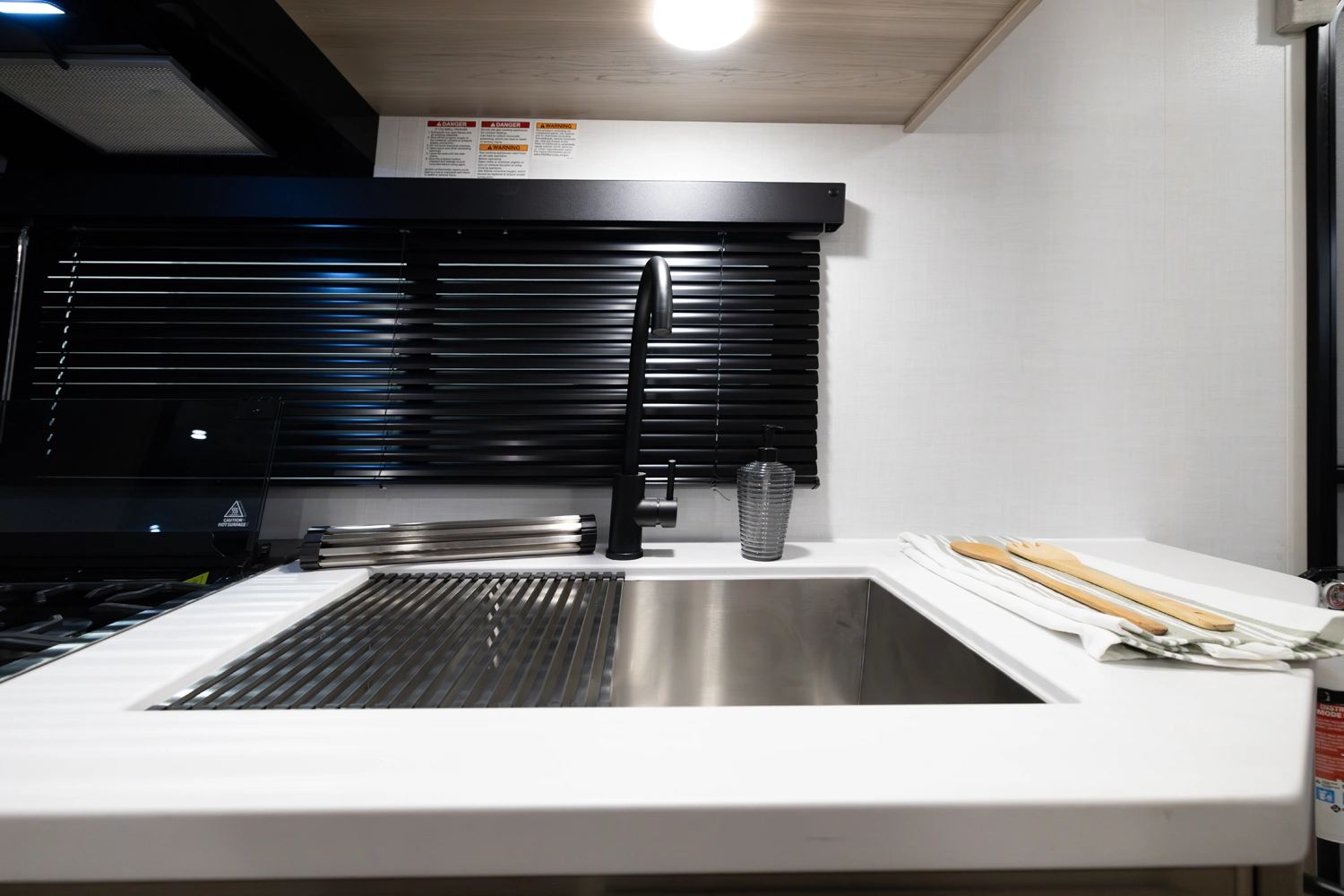

  • Double Bowl Undermount Kitchen Sink
  • Solid Surface Kitchen Countertops
  • Recessed Cooktop W/ Flush Mount Cover
  • Microwave Oven
  • Double Door Auto Gas/Elec. Large Refrigerator
  • Quick Recovery Water Heater w/ Interior Gas and Electric Switches
  • Power Awning
  • Black Tank Flush
  • Spare Tire W/ Carrier and Cover
  • Tinted Bonded Frameless Windows
  • Automotive Front Windshield (23BDS Only)
  • Slatewood Interior
  • American Maple Interior (Optional)
  • Decorative Slide Out Fascia
  • Solid Wood Cabinet Doors and Drawer Fronts
  • Stainless Steel Appliance Pkg. (Optional)
  • Screwed and Glued Wood Cabinetry
  • Residential Full Extension Metal Drawer Guides
  • Engineered Mold and Mildew Resistant Floor Covering
  • Ducted Furnace
  • 13,500 BTU Ducted Air (N/A 183, 19)
  • 15,000 BTU A/C (Optional)
  • 13,500 Roof A/C (Std. 183, 19)
  • Carbon Monoxide Detector
  • 12 Volt Power Plug Hook-up
  • CSA (Canadian Standards) (Optional)
  • Monitor Panel Switch Station
  • 55 Amp Converter With Charger
  • Battery Disconnect Switch
  • Ceiling LED 12 Volt Interior Lighting
  • Bunk Fan/Light Combination with Each Bed
  • Mounted 24” LCD TV
  • Bedroom Mounted 24” LCD TV (Opt. 23IKSS, 233S Only)
  • Mounted 32” LCD TV (24WS, 21SS, 21SSL, 23IKSS, 23BD, 24WS Only)
  • 43” TV” (23FL, 235S Only)
  • MP3 Player Hook-Up
  • Premium Soundbar (Where applicable)
  • Decorative Valances
  • Heated Theater Seating ILO Sofa (Opt. 21SS, 21SSL, 23BDS, 23FL, 23IKSS, 24WS, 235S Only)
  • Deluxe Tri-Fold Sleeper Sofa (Per floorplan)

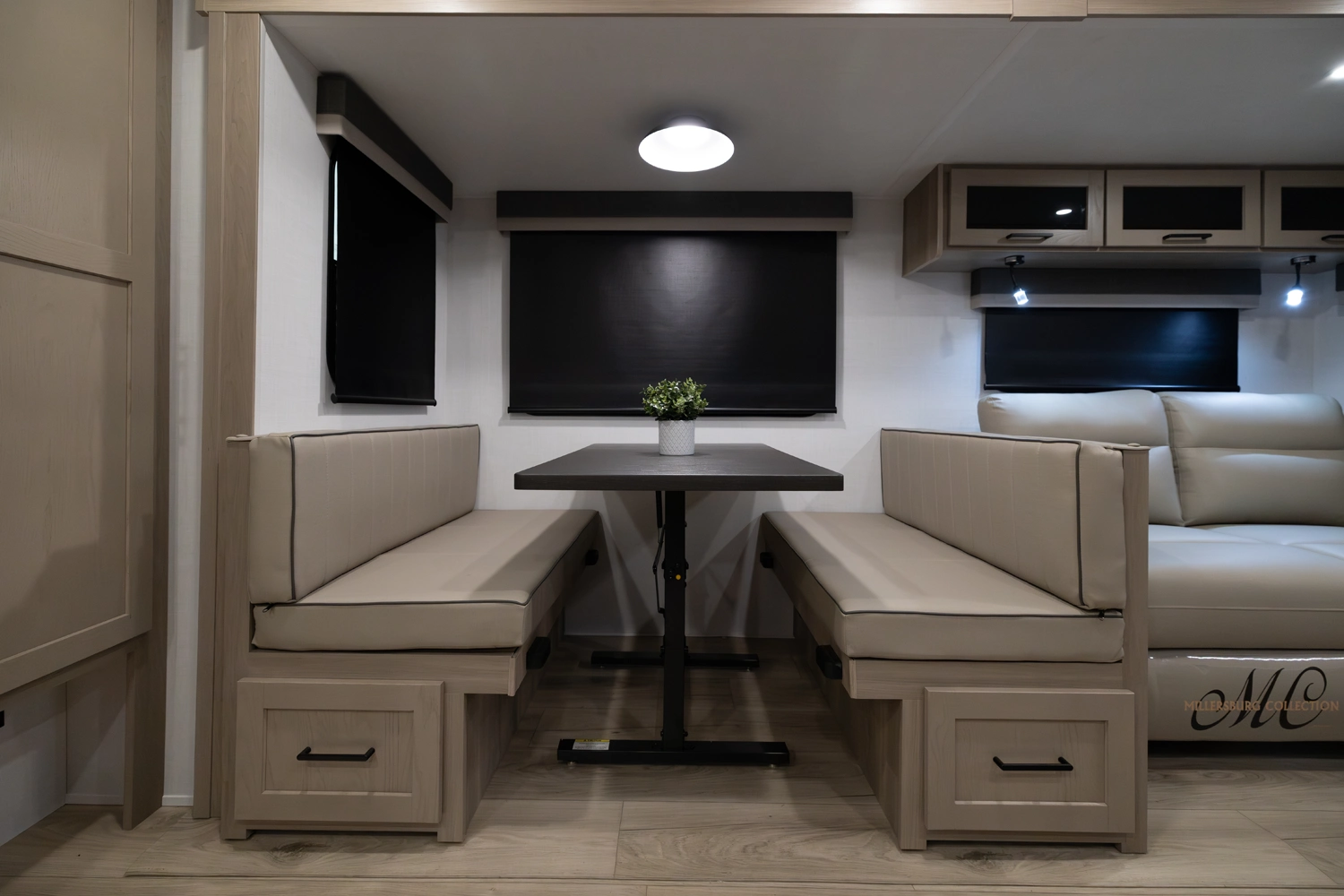

  • Family Dinette (Per floorplan)
  • Spacious King-U-Style Dinette (Std.233SS, 23BDS)
  • Free Standing Table and Chairs (Optional Per floorplan )
  • Double Door Auto Gas / Elect. Refrigerator
  • Shaker Style Refrigerator Panel on Slatewood, Raised Refrigerator Panel on Maple (Optional)

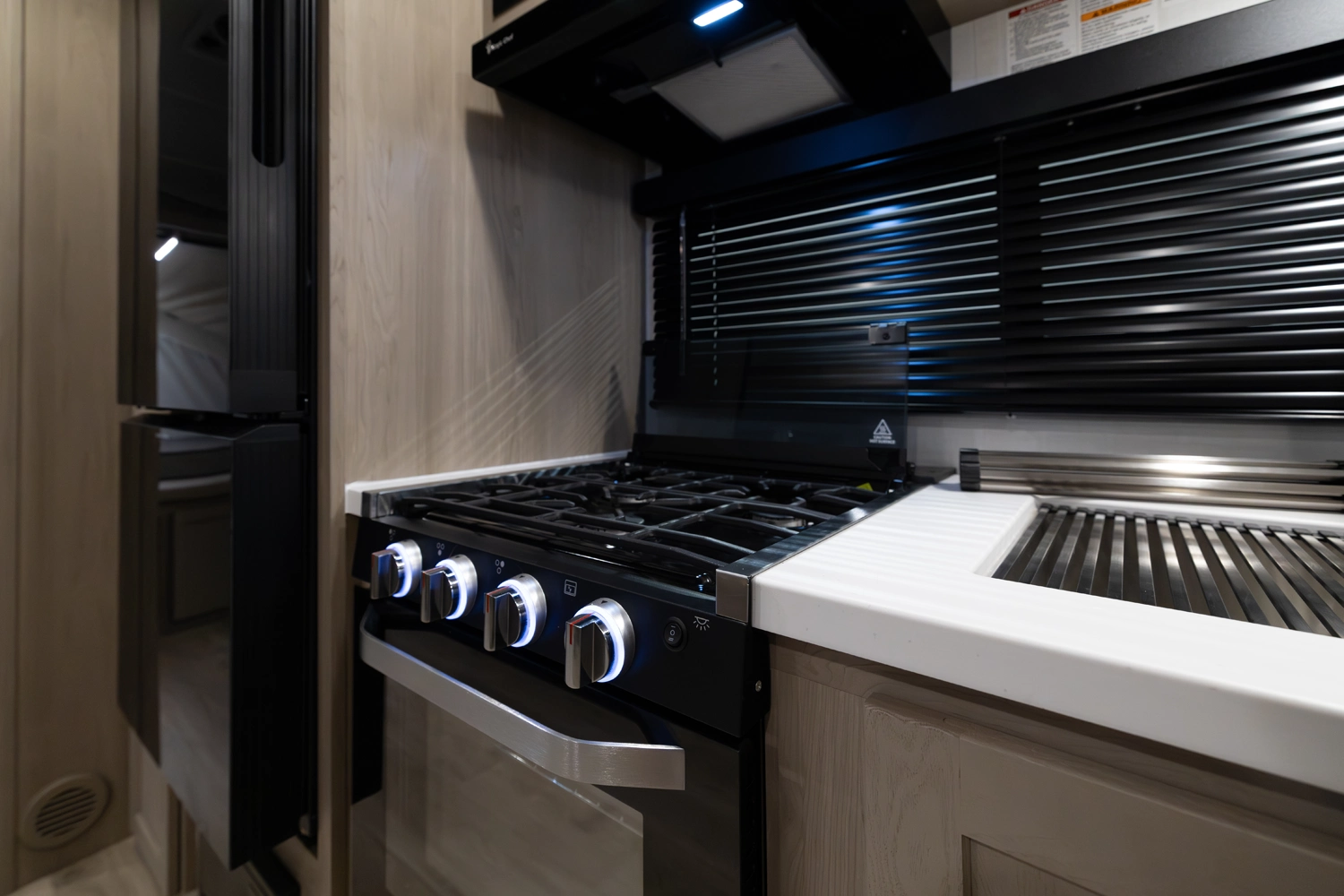

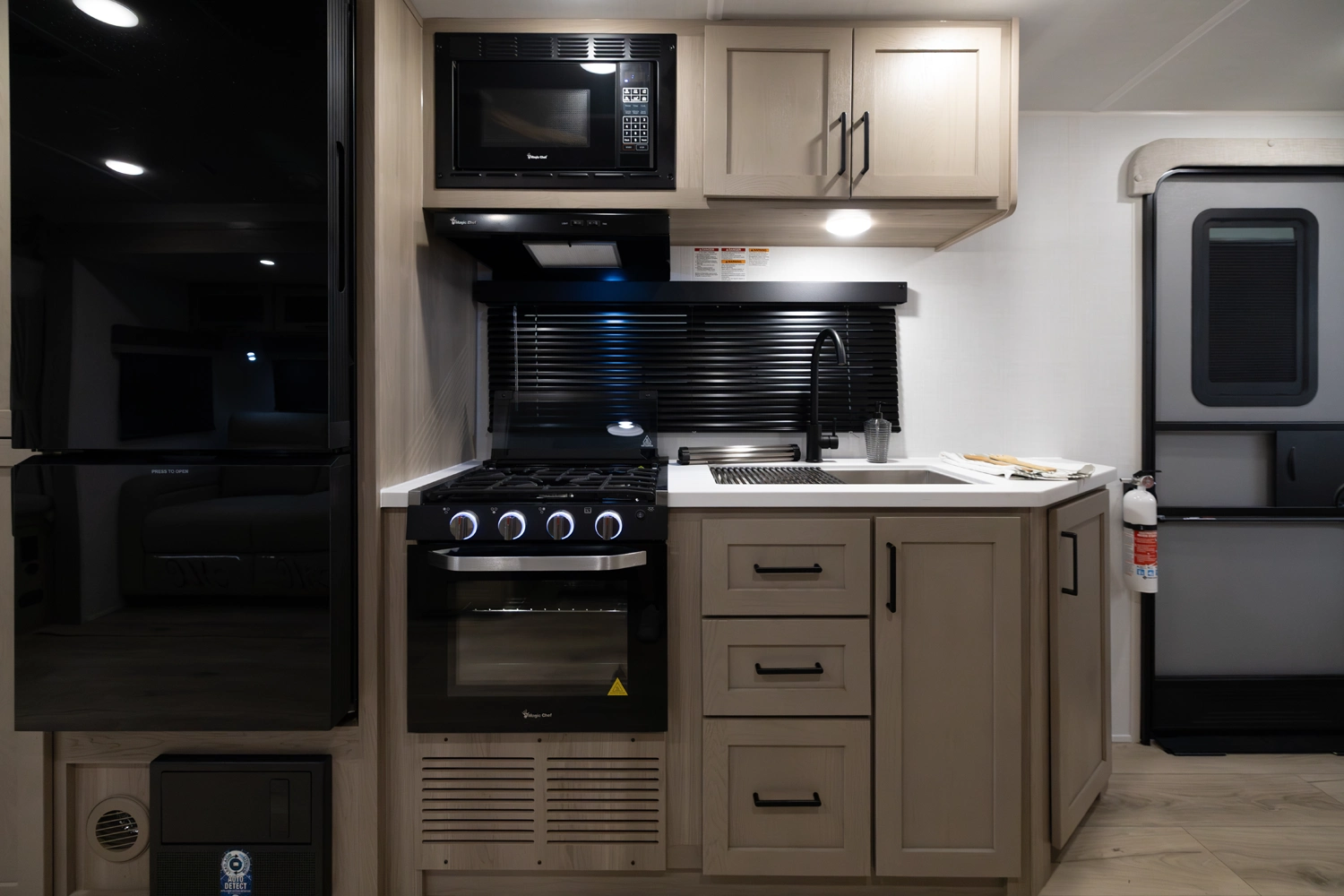

  • 3 Burner High Output Gas Range w/ Glass Stove Top Cover
  • Gas Oven
  • Counter Top Extension (Per floorplan)
  • Water-Pur Filtration System
  • Shower Miser Water Saver System
  • Tub Surround

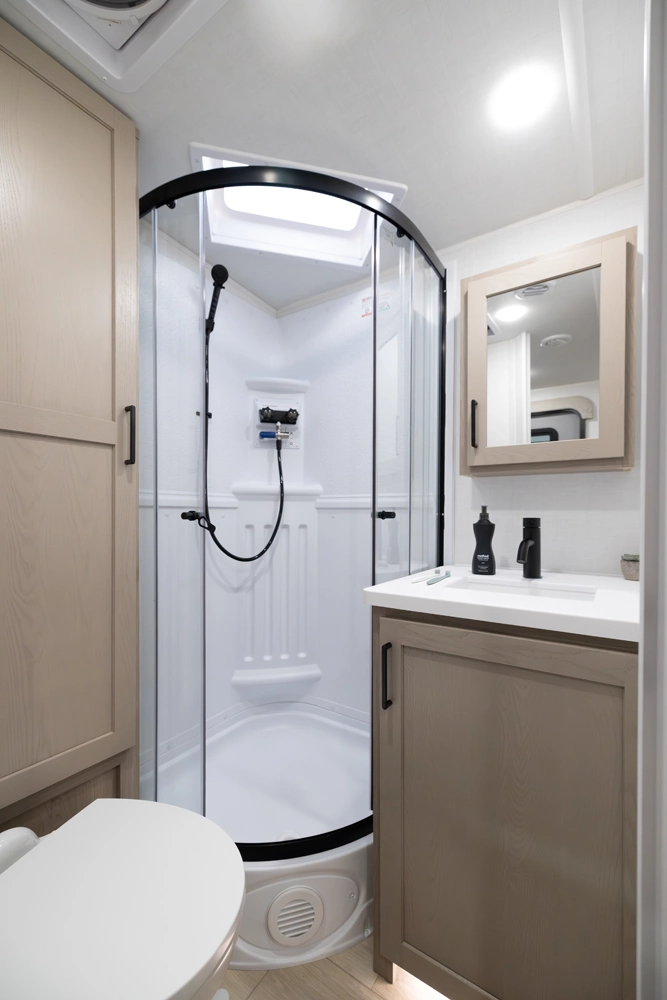

  • Radius Glass Door Shower (Per floorplan)
  • Bathroom Skylight
  • Water Heater By-Pass Kit
  • Foot Flush Toilets
  • Two Maxxair® Ventilation Fan and Vent Cover
  • Murphy Bed w/ Under Sofa Storage System and Outside Access for Unmatched Floor Plan Flexibility (Per floorplan)
  • Heated Mattress (Select Floorplans)

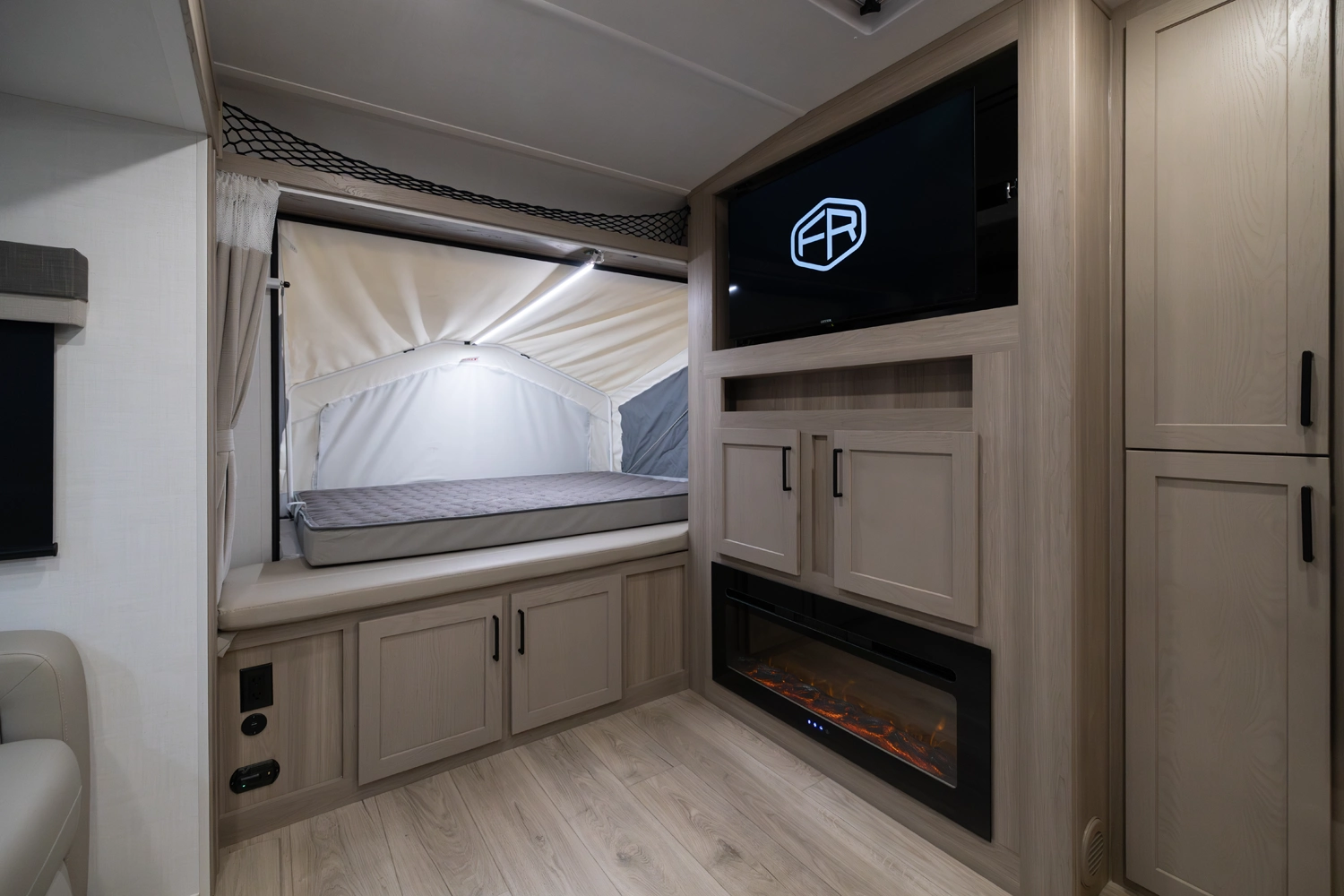

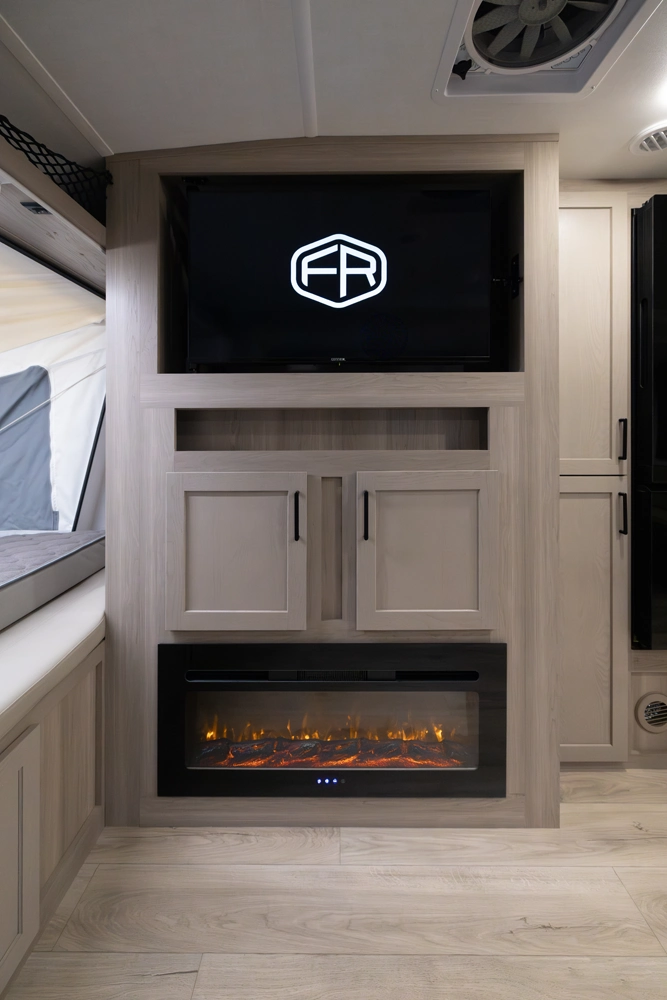

  • Fireplace (235S Only)
  • WIFI Ranger WIFI Booster Sky 4
  • Magnetic Compartment Door Catches
  • Aluminum Fold In Steps. Double or Triple Entry Step Per Flooplan
  • Fully Aluminum Frame (Floor, Sidewall, & Roof)
  • Insulation Factors R-7 Side Wall, R-12 Floor and R-14 Ceiling
  • Radius Roof w/ Interior Vaulted Ceilings
  • Vinyl / Rubber Composite roofing Membrane
  • 360 Siphon Vent Cap on all black tanks
  • T V Antenna w/ Cable & Satellite Hook-Up
  • Rear Observation Camera Prep w/ Molded Mounting Plate
  • Laminated Champagne Colored Fiberglass Sidewalls
  • White Two Tone Laminated Fiberglass Sidewalls w/ Graphics Package (Optional)
  • Distinctive Black Exterior Trim
  • Electric Slide-Out (All Slide Out Models)
  • Lower Front Diamond Plate Panel
  • Easy to Reach Lockable Bed Latch System
  • Bed Cable System (No Poles)
  • Tongue Mount Bike Rack (Optinal 23BDS Only)
  • Power Awning With Adjustable Rain Dump and LED Lighting

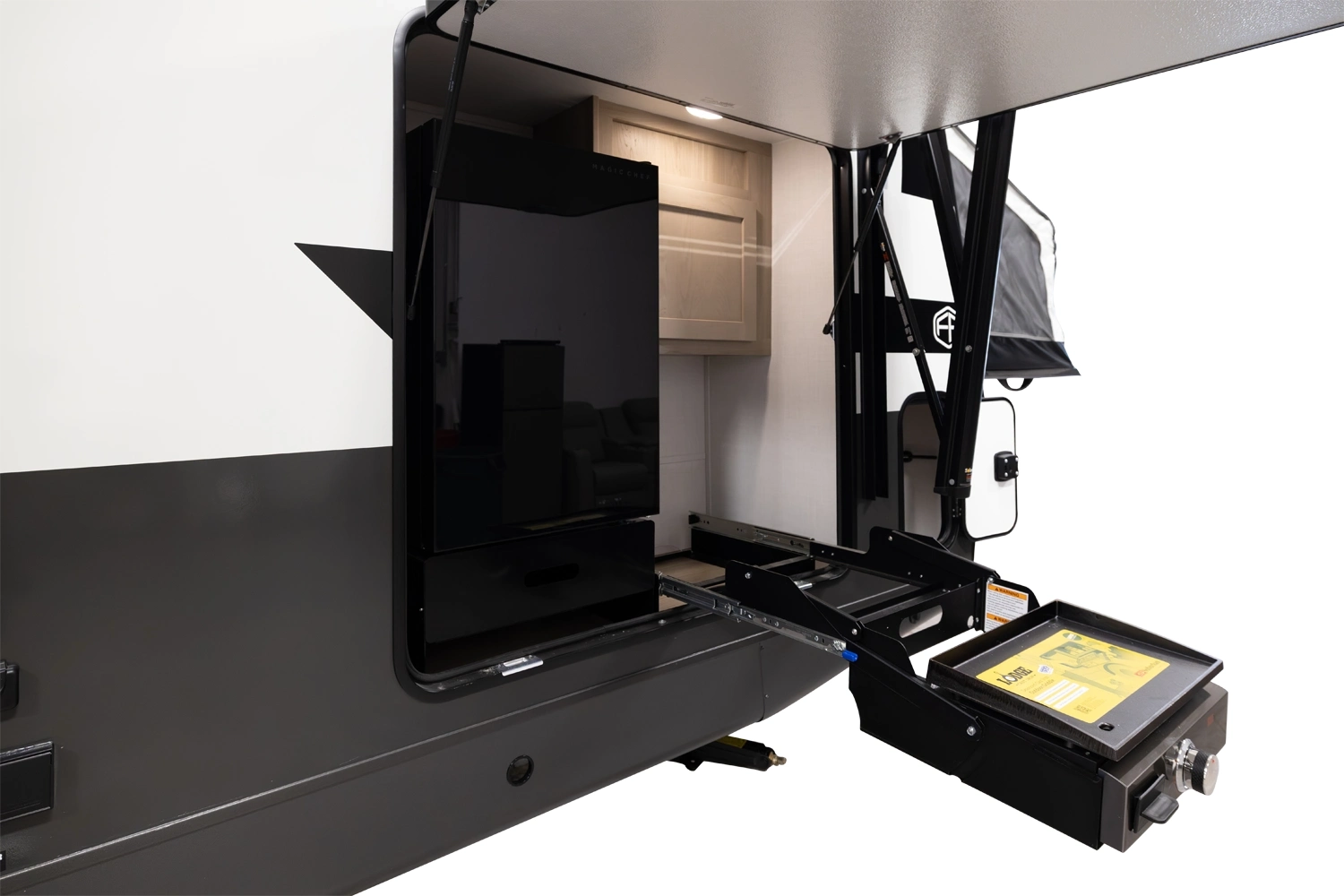

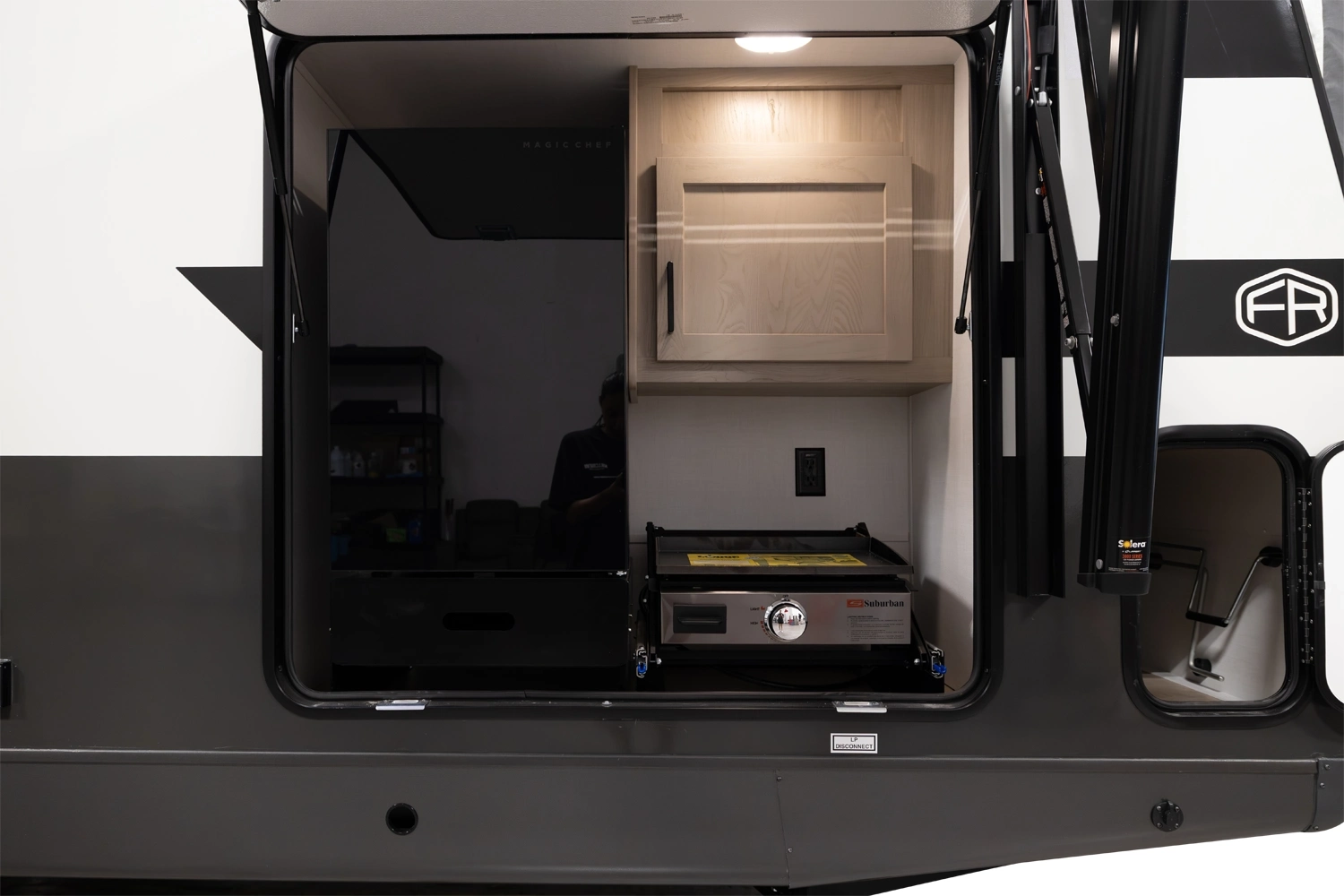

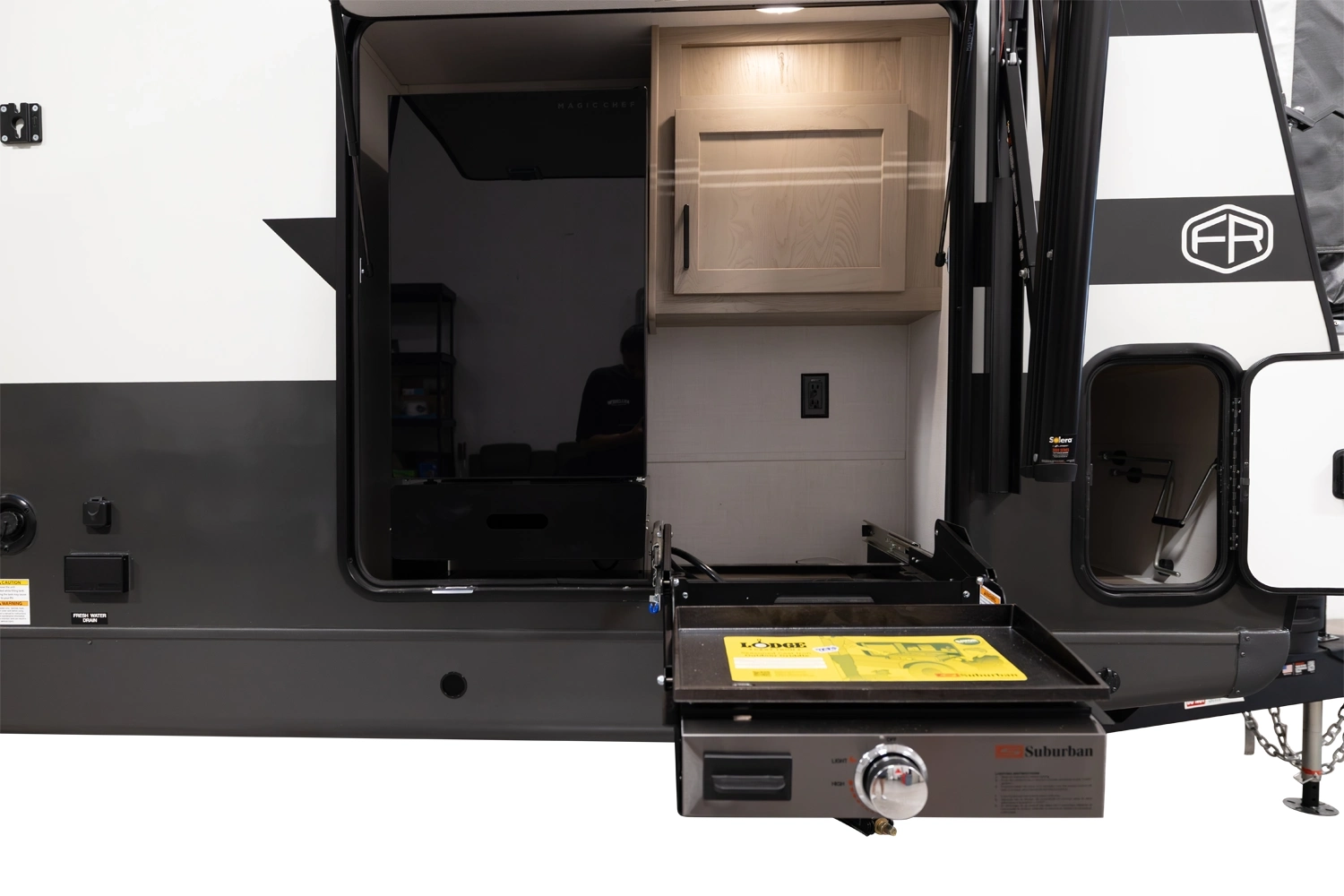

  • Outside RVQ Grill w/LP Hook Up
  • Awning Slide Topper (Optional)
  • Radius Entrance/Screen Door
  • Friction Hinge Entrance Door
  • Large Assist Grab Handles
  • Thermopane Windows (Optional)
  • Outside Shower
  • 1/2 Sliding Storage Tray (Opt. 21SS, 21SSL, 23BDS, 23FL )
  • Outside Antifreeze Stations
  • Two-20 Lb Gas Bottles
  • Molded Bottle Cover
  • Surface Coated Steel I-Beam Frame
  • 8’ X 8’ Front Storage Deck: 1300 LBS. Max Capacity (21SSL Only)
  • Fuel Station with 18 Gallon Capacity (Gasoline Only) (Opt. 21SSL Only)
  • Toylok Mounted Locking System (21SSL Only)
  • Power Tongue Jack (Optional)
  • Easy Lube Axles and Nev-R Adjust Brakes
  • Radial Tires w/ Nitro Fill
  • Double or Triple Entry Step
  • Off Road Package (Includes: 15” Off Road Tires and Aluminum Wheels 21SSL Only)
  • Electronically Controlled Heated Holding Tanks (Optional)
  • Black Water Flush

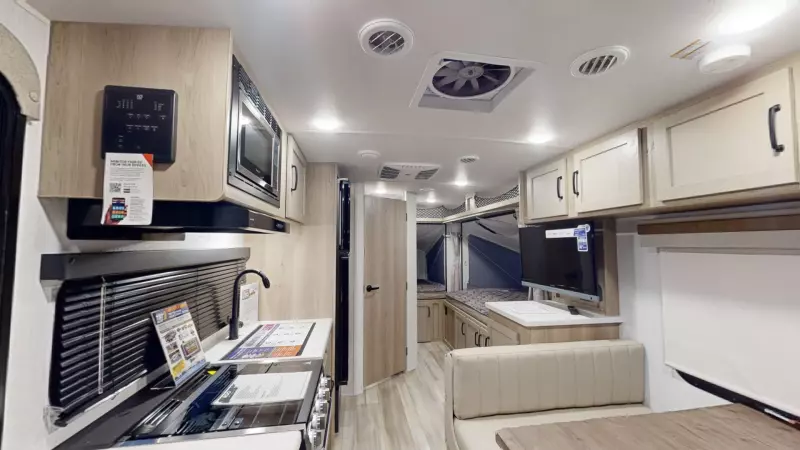

Virtual Tours
