Rockwood Signature Travel Trailers

BEAUTIFUL SPACIOUS INTERIORS COME STANDARD. THE SIGNATURE SERIES HAS MANY OUTSTANDING FEATURES TO ENHANCE YOUR CAMPING EXPERIENCE. The open floorplans and generous storage space allows extra room for those extra things you want to bring along. Sleeping on the comfortable bed, you’ll forget you were in the great outdoors. The spacious interior and picturesque view through the many windows enable you to experience your surroundings in the comfort of your Signature travel trailer.

We RV - Rockwood Link TreeCare Camps, fighting cancer and making memories

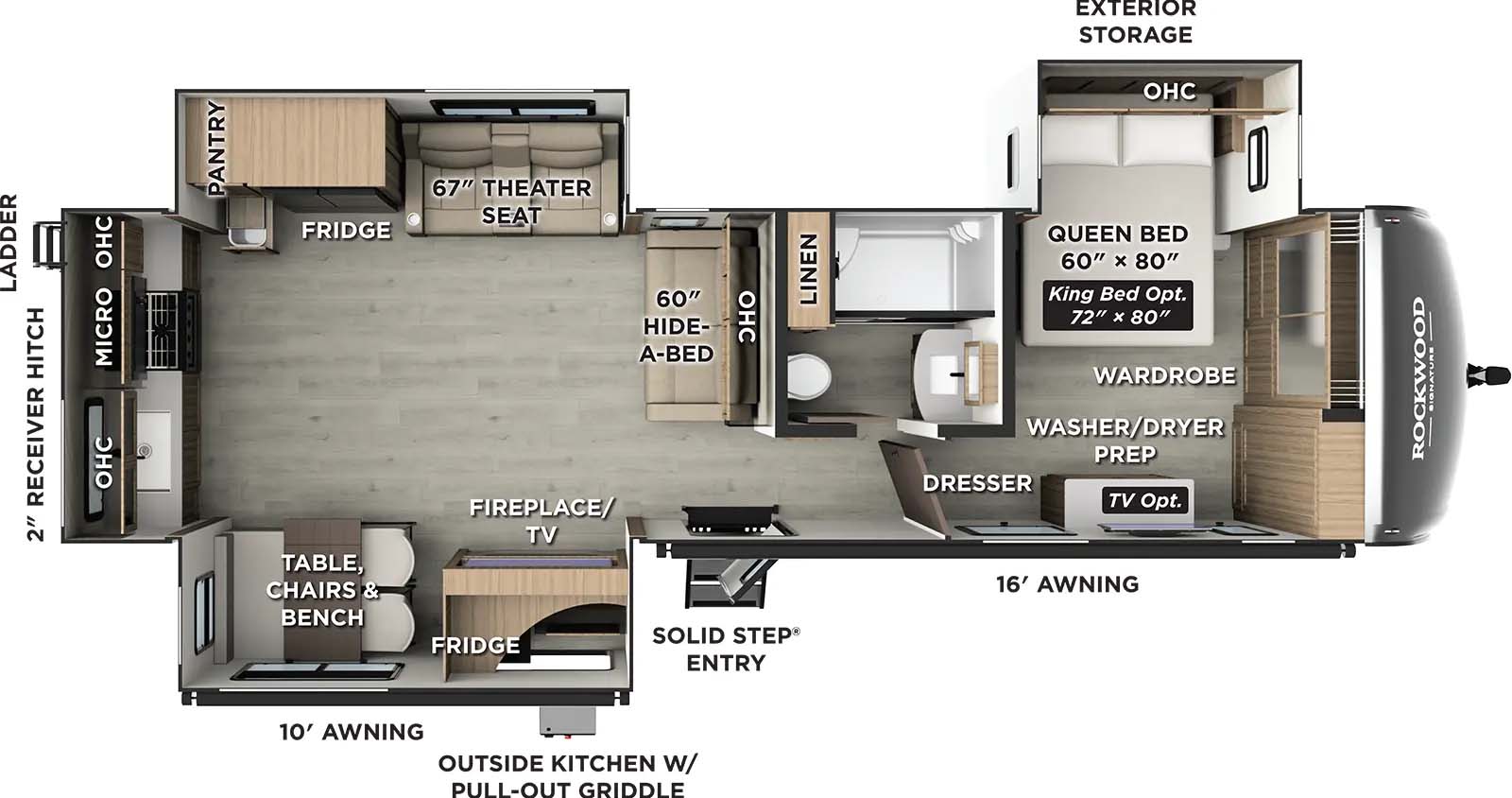

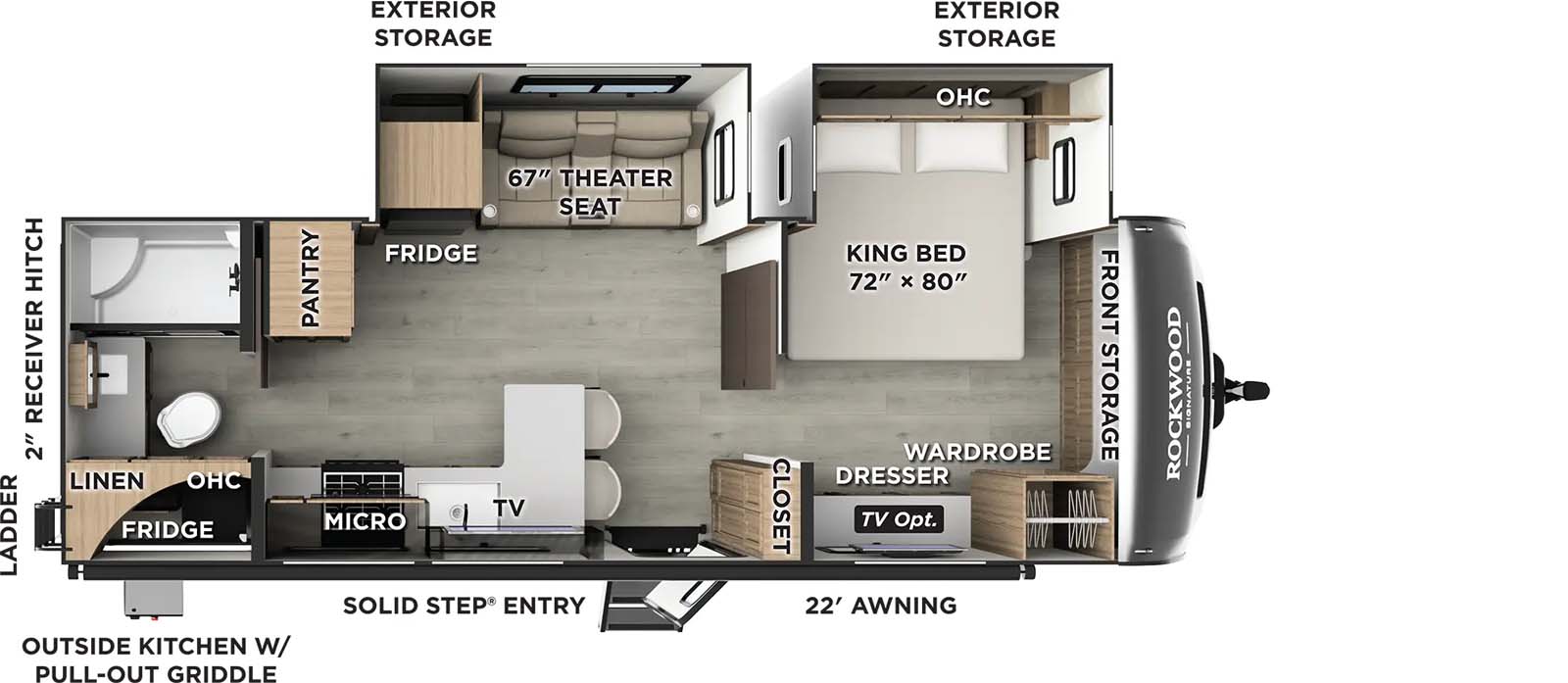

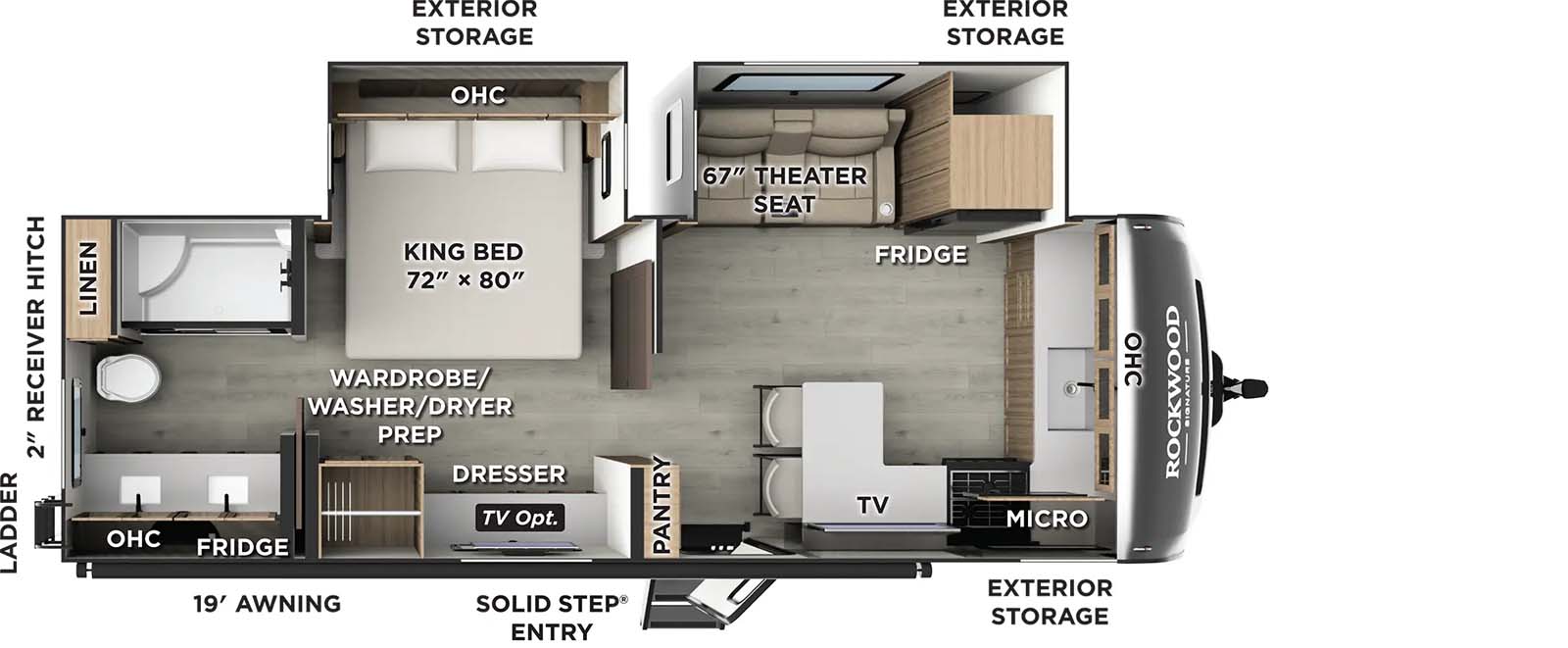

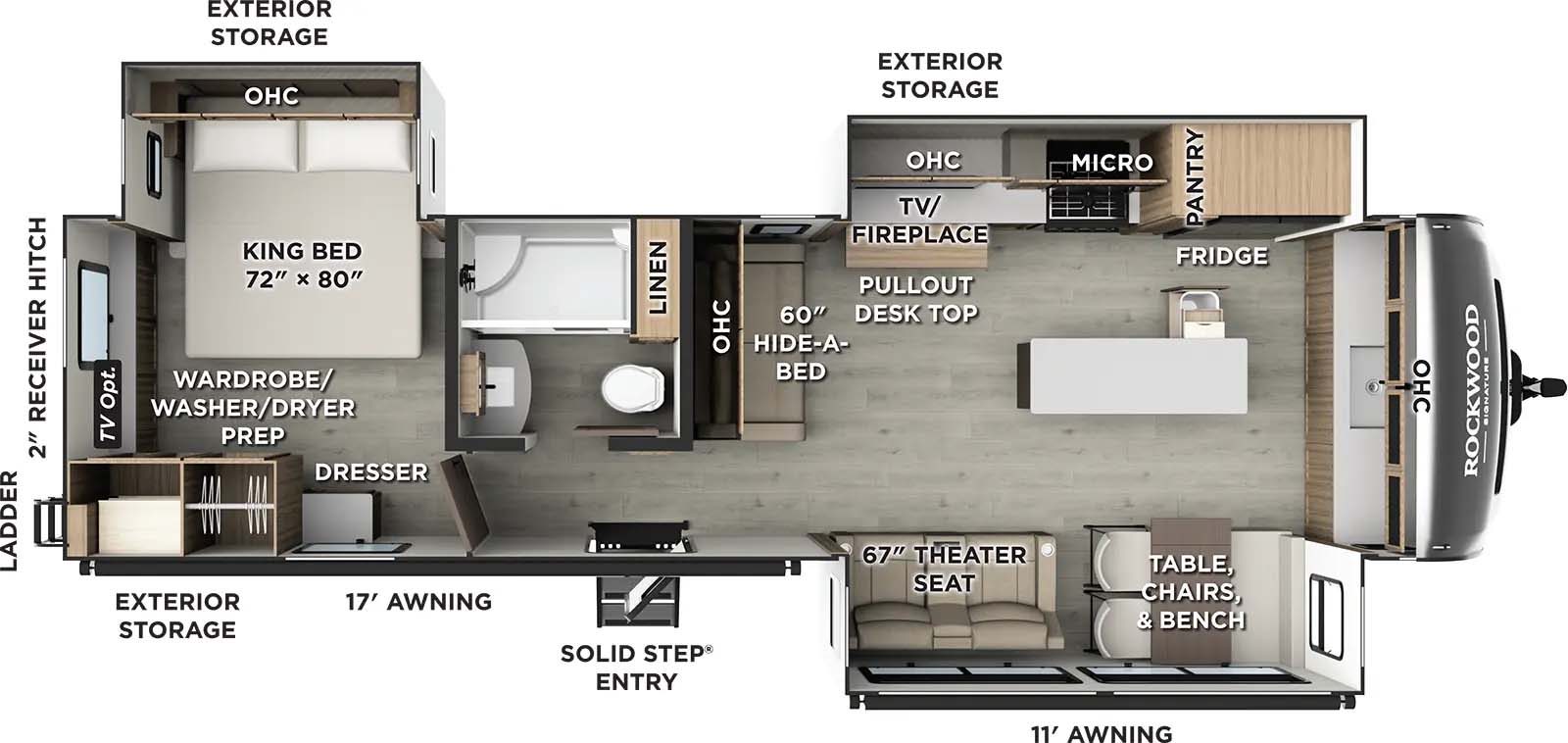

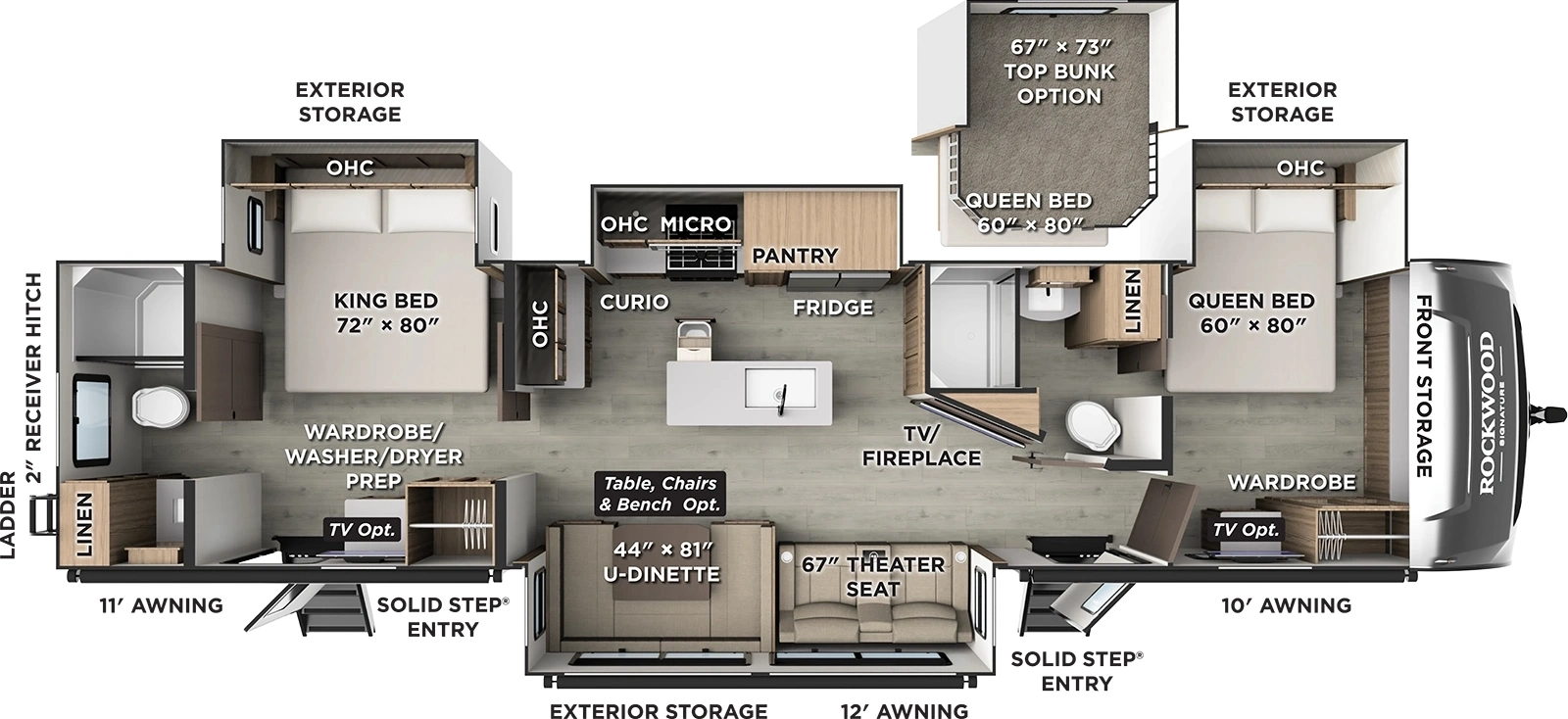

Floorplans

Print

Signature Travel Trailers
Dealer Stock Only


Specifications

Print

Floorplan: 8262RBS : Signature Travel Trailers 8263MBR : Signature Travel Trailers 8324SB : Signature Travel Trailers 8332SB : Signature Travel Trailers 8335SB : Signature Travel Trailers 8336BH : Signature Travel Trailers 8337RL : Signature Travel Trailers 8329SB - DSO : Dealer Stock Only
Hitch Weight:1,260 lb.1,065 lb.1,115 lb.1,130 lb.1,057 lb.1,320 lb.1,315 lb.1,130 lb.
UVW:7,614 lb.7,809 lb.9,254 lb.9,444 lb.8,327 lb.9,669 lb.9,209 lb.8,839 lb.
CCC:2,446 lb.2,056 lb.1,861 lb.1,686 lb.2,730 lb.1,651 lb.2,106 lb.2,291 lb.
Exterior Length:29' 11"29' 11"36' 8"36' 8"36' 8"36' 8"36' 8"36' 8"
Exterior Height:11' 7"11' 7"11' 7"11' 7"11' 7"11' 7"11' 7"11' 7"
Exterior Width:96"96"96"96"96"96"96"96"
Fresh Water:54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.54.00 gal.
Gray Water:70.00 gal.80.00 gal.120.00 gal.110.00 gal.130.00 gal.130.00 gal.120.00 gal.80.00 gal.
Black Water:40.00 gal.40.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.50.00 gal.
Awning Size:21'19'20'10' &16'21'11' & 10'10' & 15'8' & 15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)*- is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Laminated White OR Champagne Color Fiberglass Sidewalls
  • High Gloss Front Cap with Automotive Windshield (NA 8332SB)
  • Exterior Battery Disconnect Switch
  • Power Awning w/ Adjustable Rain Dump & LED Lighting
  • Tinted Frameless Windows
  • Slam Latches & Magnetic Compartment Door Catches
  • Cable & Satellite Hookup
  • Teton All In One Wi-Fi Booster/LTE Prep & Antenna
  • Roof & Side Solar Prep
  • Outside Griddle w/ LP Hook Up

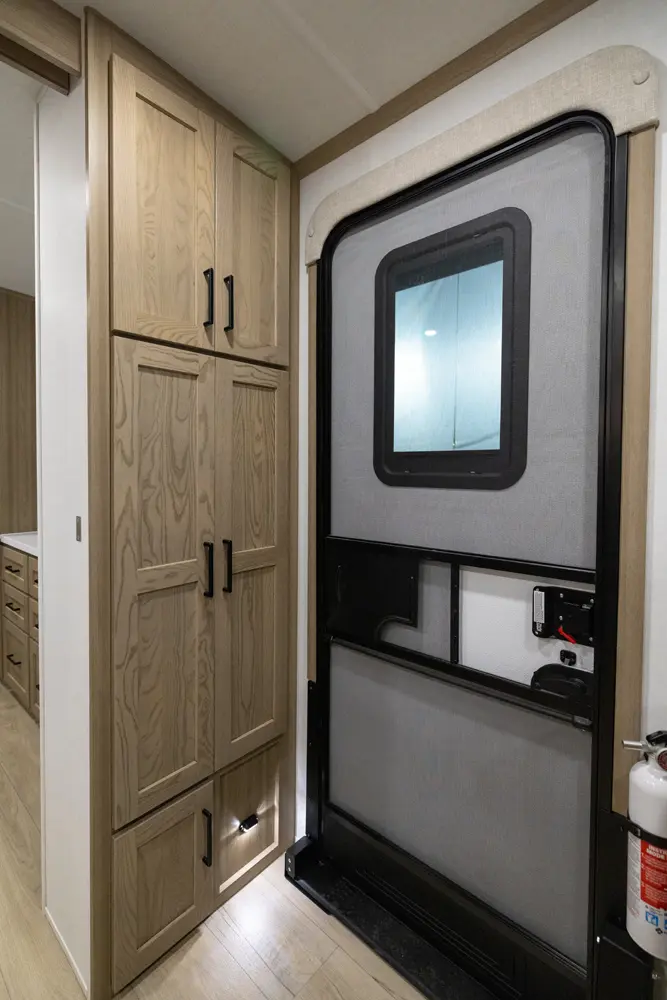

  • Friction Hinge Entrance Door with Window Shade & ScreenShot Screen Door
  • Large, Foldable Grab Handles (All Entrance Doors)
  • Outside Shower w/ Hot & Cold Water
  • Outside Antifreeze Station
  • Black Tank Flush
  • 360 Siphon Vent Cap On All Black Tanks
  • Solid Entry, Strut Assist Fold Out Entry Steps
  • Outside Speakers
  • Keyed Alike Locks
  • Rear Ladder
  • Power Stabilizer Jacks
  • Shielded Awning Cover
  • 2" Accessory Hitch
  • 6 Sided Aluminum Framed (Side Walls, End Wall, Front, Floor & Roof)
  • 5/8" Plywood Tongue & Groove Subfloor
  • Insulation Factors R-7 Side Wall, R-12 Floor & R-14 Ceiling
  • Radiant Foil Insulated Underbelly & Slide Out Floors
  • Enclosed Underbelly
  • Electronically Controlled Heated Holding Tanks
  • Radius Roof w/ Interior Vaulted Ceilings
  • Vinyl/Rubber Composite Roofing Membrane
  • Vacuum Laminated One Piece Roof & Walls
  • Aluminum Cage Dinette & Bed Base
  • Rear Observation Camera Prep w/ Molded Mounting Plate
  • Easy Lube Axles & Nev-R Adjust Brakes
  • Torsion Axle, Rubber-Ryde Suspension
  • Spare Tire w/ Carrier & Cover
  • Power Tongue Jack
  • Nitrogen Filled, Goodyear Endurance Tires w/ Polished Alloy Wheels
  • TST Tire Pressure Monitor System w/ Monitor
  • Newport Ash Cabinetry
  • Autumn Wood Cabinetry
  • Screwed & Glued, Solid Wood Cabinet Doors & Drawers With Hidden Hinges, Soft Closing Metal Drawer Glides & Residential Hardware
  • 35K BTU Ducted Furnaces
  • Carbon Monoxide Detector
  • Interior 12V Outlet
  • 55 AMP Converter with Charger
  • Ceiling LED 12V Interior Lighting
  • Fireplace (select floor plans)
  • Quick Recovery Water Heater w/ Interior Gas/Electric Switches
  • Multi Zone Stereo w/ DVD, CD, AM/FM & Bluetooth Control
  • 86" Interior Height
  • 13,500 BTU Ducted A/C w/ 50 AMP Service & Prepped for 2nd A/C
  • One Control Touch Button Control Panel w/ WeRV App Control
  • Day/Night Roller Shades
  • LED TVs
  • Fireplace (N/A 8263MBR)
  • Upgraded Sound Bar with Subwoofer
  • Multi Zone Stereo w/ DVD, CD, AM/FM & Bluetooth Control
  • Deluxe Tri-Fold Sleeper Sofa (N/A 8263MBR Std. all others)
  • Deluxe Theater Seating with Adjustable Lumbar Support and USB Outlets
  • Upgraded Backlit Headboard
  • Optional Bedroom TV
  • Optional Bunkroom Entertainment Package (8336BH Only)

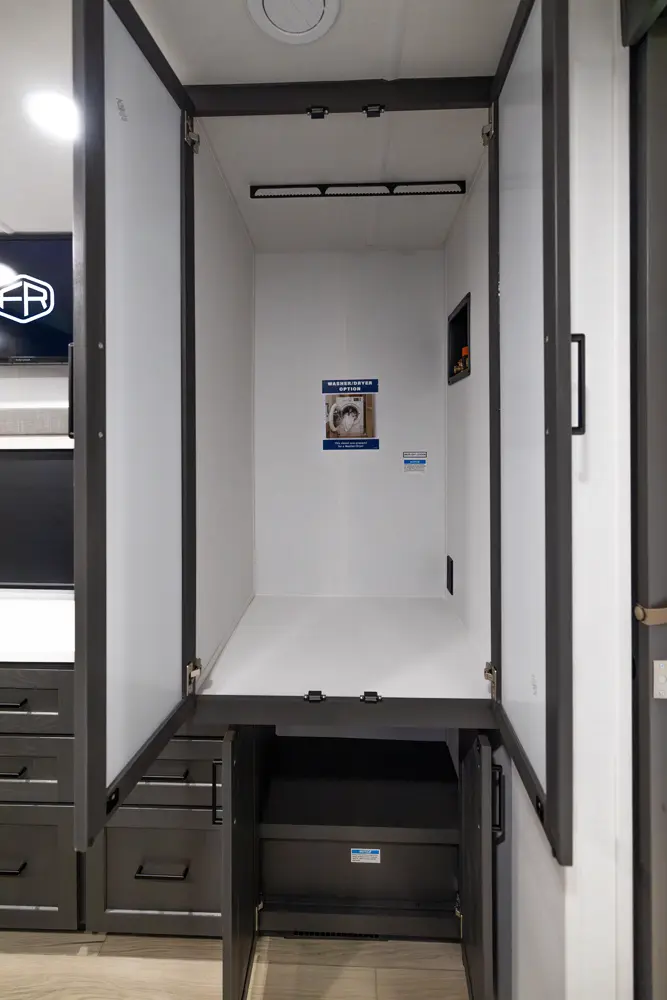

  • Washer/Dryer Prep (N/A 8263MBR)
  • Carpetless Main Bedroom Floor
  • Under Bed Storage
  • Designer Headboard & Bedding
  • Individual Reading Lights
  • Two Bed Side Power Outlets
  • 72 x 80 King Beds (Optional on 8336BH)

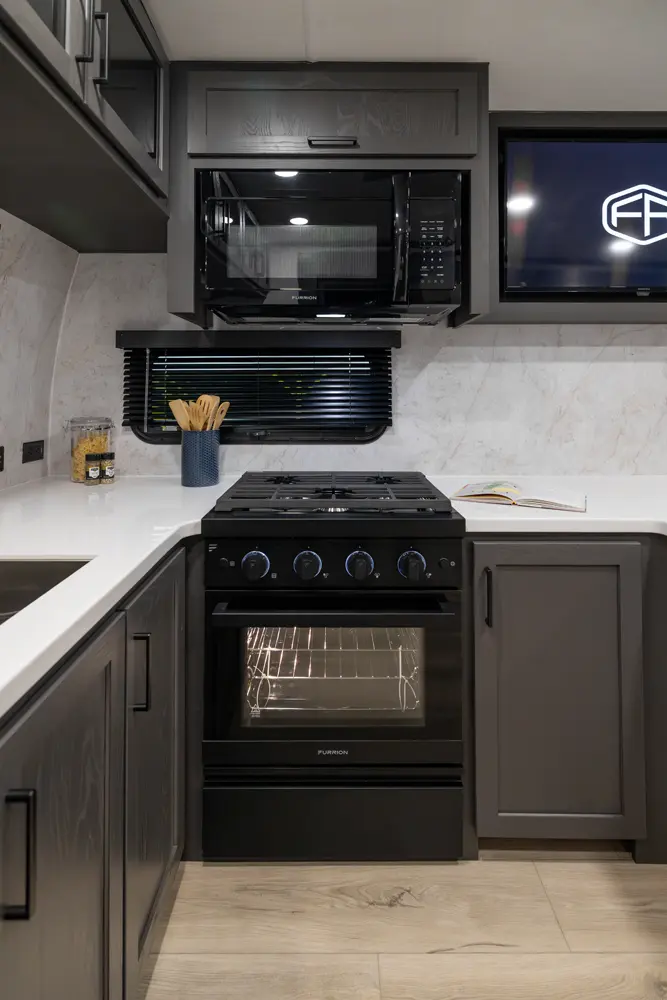

  • Three Burner High Output Gas Range with Flush Mount Glass Top Cover
  • 21" Gas Oven
  • Under mount Double Bowl Kitchen Sink w/ Residential Style Faucet & Cover
  • Microwave Oven
  • Water-Pur Filtration System
  • Double Door Auto Gas/Electric Large Refrigerator Optional
  • Residential Full Extension Soft Close Drawers
  • Residential Solid Surface Kitchen Countertops
  • Designer Kitchen Backsplash
  • Showermiser Water Saving System
  • Bathroom Skylight
  • Water Heater By-Pass Kit
  • Foot Flush Toilets
  • Maxxair Ventilation Fan & Cover
  • Upgraded Residential Faucet
  • Toothbrush Holder, Soap Dish, Towel Ring
  • Bedroom Carpet
  • 15,000 BTU Ducted Roof Air
  • 2nd AC in Bedroom with Digital Dual Control Thermostat
  • 2nd HAB Sofa in Bunk Room (Only 8336BH)
  • Deluxe Tri-Fold Sleeper Sofa (Opt only on 8263MBR & 8336BH, Std. all others)
  • Free Standing Table and Chairs (N/A 8263MBR, 8324SB)
  • Residential Refrigerator w/ Inverter (8332SB only)
  • 12V Fridge with 190W Roof Solar Panel with 1000W Inverter (N/A 8332SB)
  • Extra Maxxair® Ventilation and Vent Cover
  • Tongue Mount Bike Rack
  • Slide Toppers
  • Sliding Glass Patio Door (8335SB Only) Deleted starting this year
  • ThermoPane Window Upgrade
  • Electric Auto Leveling System
  • LED Bedroom TV
  • Washer/Dryer (N/A 8263MBR)
  • 190W Roof Solar Panel with 1000W Inverter (standard except the 8332)
  • Flip Down Rear Storage Deck (250 lbs. Max Load)
  • Bunkroom Entertainment Package ( 8336BH Only)


Virtual Tours

  • 8262RBS
    8262RBS Main Room
  • 8263MBR
    8263MBR Main Room
  • 8324SB
    8324SB Main Room
  • 8332SB
    8332SB Main Room
  • 8335SB
    8335SB Main Room

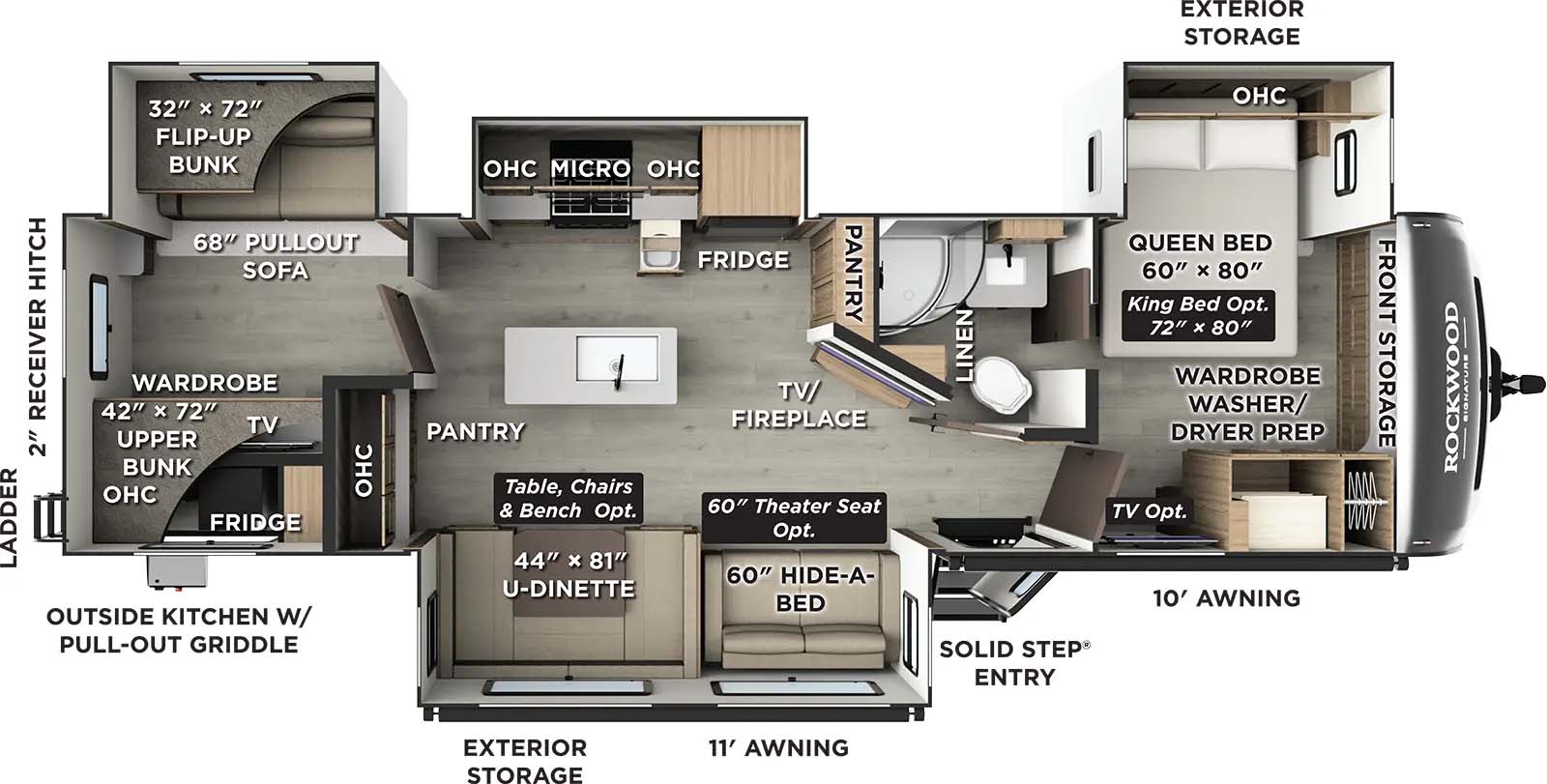

  • 8336BH
    8336BH Main Room

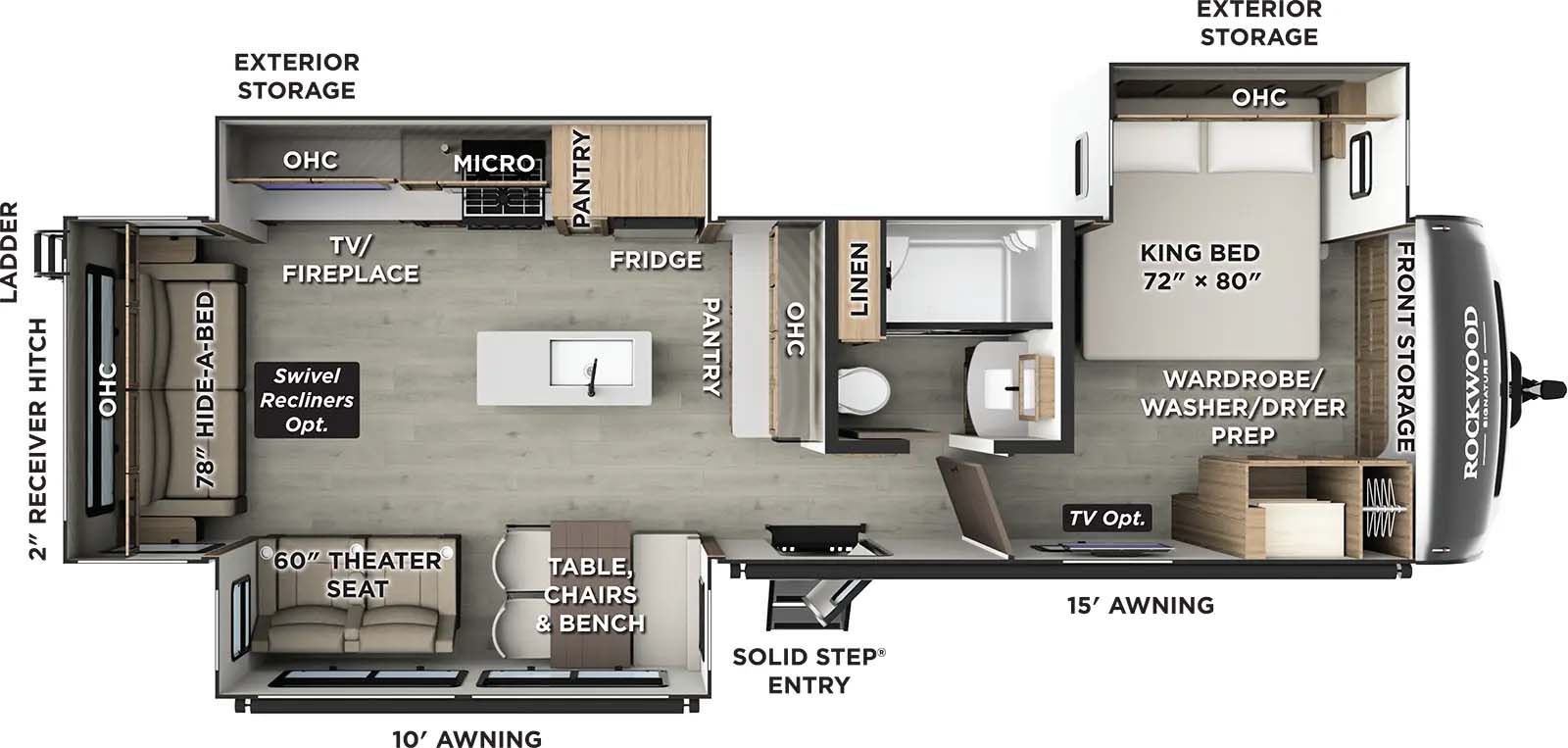

  • 8337RL
    8337RL Main Room


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature
